栓皮栎和麻栎抽提物的化学成分分析

doi:10.11707/j.1001-7488.20210420

摘要/Abstract

摘要：

目的: 分析栓皮栎和麻栎不同使用部位抽提物含量及其化学组成特点，为栎类木材加工工艺和实际生产提供应用性指导，为我国林木资源充分、合理、高附加值利用提供新的思路和科学依据。方法: 以河南地区栓皮栎和麻栎为研究对象，采用我国木材化学分析标准，结合傅里叶红外（FTIR）和气相质谱联用（GC-MS）方法，对树干不同高度上树皮、心边材冷/热水抽提物、1%NaOH抽提物、苯醇抽提物含量和组成进行详细分析。结果: 对于树干不同高度上树皮、心边材冷/热水抽提物、1%NaOH抽提物含量，栓皮栎明显高于麻栎；在同一种栎类木材中，树皮抽提物含量最高，边材次之，心材最低；抽提物含量在树干高度上呈两端高、中间低的趋势；对于苯醇抽提物含量，栓皮栎树皮远高于心边材和麻栎树皮，但2种栎类木材心边材差异较小且并未随树高呈特定变化规律。栓皮栎和麻栎树皮、心边材FTIR图谱区别明显，根据图谱吸收峰强度判断，栎类木材树皮中可能含有较多的醇类、脂肪酸、芳香族类和烷烃结构化合物，心边材中应还有较多的酸类、醇类及不饱和烃化物。GC-MS联用分析结果显示，树皮、心边材中均含有少量烷烃醇、酯类及不饱和烯类，其中，树皮中含有软木三萜酮及其同分异构体，心边材中含有γ-谷甾醇等化学物质。结论: 栓皮栎和麻栎树皮、心边材抽提物主要化学成分存在较大的含量差异和一定的成分差异；树干高度对2种栎类木材抽提物含量也有一定影响，中间部分累积较多的冷/热水、1%NaOH抽提物，但并没有发生明显成分差异。在木材实际加工和生产中，应充分考虑2种栎类木材树皮、心边材抽提物含量和性质差异，提供合理、全面、高价值的加工利用方案。

关键词: 栓皮栎, 麻栎, 抽提物含量, 气相质谱联用, 化学成分

Abstract:

Objective: This study focused on the extract content and chemical composition of different parts of oak, with the aim to provide scientific guidance for the processing and utilization of oak wood. Method: This study used the oak from Henan Province as the research object, using the Chinese wood chemical analysis standard, combined with Fourier transform infrared(FTIR) and gas chromatography mass spectrometry(GC-MS) method. The content and composition of the cold/hot water extract, 1% sodium hydroxide extract and phenyl alcohol extract from the bark, sapwood and heartwood with different heights in the trunk of Quercus variabilis and Quercus acutissima were analyzed in detail. Result: The results showed that the contents of cold/hot water and 1% NaOH extractives of Q. variabilis bark, sapwood and heartwood at different heights were significantly higher than those of Q. acutissima. Among them, the bark extractive had the highest content, the sapwood was the second, and the heartwood had the lowest content. The extract content had a tendency to be high at both ends and low in the middle with the height of the trunk. For the content of phenyl alcohol extract, the oak bark was much higher than the sapwood and heartwood, but the difference between two oaks was small and did not change with the height for the sap/hearwood. The FTIR spectra showed that the bark and sap/heartwood of Q. variabilis and Q. acutissima were obviously different. According to the absorption peak intensity, the bark might contain more alcohols, fatty acids, aromatics and alkane structural compounds, and there should be more acids, alcohols and unsaturated hydrocarbons in the sap/heartwood. The Result: s of GC-MS analysis showed that both the bark and sap/heartwood contained a small amount of alkane alcohols, esters and unsaturated alkenes. The bark contained abundant friedelin and its isomers. The sap/heartwood included γ-sitosterol et al. Conclusion: The main chemical components of the extracts of Q. variabilis and Q. acutissima in bark and sap/heartwood have a large difference, and there also have a certain difference in component contents. The height of the trunk also has a certain influence on the extract content of these two oaks. The middle trunk accumulated more cold/hot water and 1% NaOH extractives, but no significant compositional differences were found. In the actual processing and production of wood, the differences in the content and bark, sap/heartwood extractives of the two kinds of oak wood should be fully considered to provide a reasonable, comprehensive and high-value utilization processing plan.

Key words: Quercus variabilis, Quercus acutissima, extract content, GC-MS(gas chromatography mass spectrometry), chemical composition

中图分类号:

S781

陈媛,晏婷婷,杨昇,付宗营,李改云,任海青. 栓皮栎和麻栎抽提物的化学成分分析[J]. 林业科学, 2021, 57(4): 191-198.

Yuan Chen,Tingting Yan,Sheng Yang,Zongying Fu,Gaiyun Li,Haiqing Ren. Extractive Chemical Components of Quercus variabilis and Quercus acutissima[J]. Scientia Silvae Sinicae, 2021, 57(4): 191-198.

图/表 9

图1

图2

图3

图4

图5

图6

图7

表1

表2

参考文献 0

	陈媛, 甘家兵, 李珊, 等. 我国栓皮栎和麻栎木材的主要化学组成分析. 木材工业, 2019, 33 (6): 54- 58.
	Chen Y , Gan J B , Li S , et al. Chemical composition analysis of Quercus variabilis and Q. acutissima in China. China Wood Industry, 2019, 33 (6): 54- 58.
	陈云霞, 薛晓明, 史洪飞, 等. 4种樟属木材GC-MS化学辅助鉴别研究. 江苏农业科学, 2020, 48 (8): 202- 207.
	Chen Y X , Xue X M , Shi H F , et al. Study on GC-MS chemical assisted identification of 4 Cinnamomum wood. Jiangsu Agricultural Sciences, 2020, 48 (8): 202- 207.
	成俊卿. 木材学. 北京: 中国林业出版社, 1985.
	Cheng J Q . Wood science. Beijing: China Forestry Publishing House, 1985.
	端木炘. 我国栎属资源的综合利用. 河北林学院学报, 1994, 9 (2): 177- 181.
	Duan M X . On the comprehensive utilization of Quercus resources in China. Journal of Hebei Forestry College, 1994, 9 (2): 177- 181.
	冯利群, 郭爱龙. 杨柴木材的构造、纤维形态及其化学成分的分析研究. 内蒙古林业科技, 1997, (4): 45- 47.
	Feng L Q , Guo A L . Study on the structure, fiber morphology and chemical composition of wood. Inner Mongolia Forestry Science & Technology, 1997, (4): 45- 47.
	何盛, 林兰英, 傅峰. 樟子松木材苯醇抽提物含量对其胶合性能的影响. 木材工业, 2014, 28 (3): 9- 12. doi: 10.3969/j.issn.1001-8654.2014.03.002
	He S , Lin L Y , Fu F . Effect of benzene-alcohol extractives content on gluability of Pinus sylvestris lumber. China Wood Industry, 2014, 28 (3): 9- 12.
	何拓, 罗建举. 20种红木类木材颜色和光泽度研究. 林业工程学报, 2016, 1 (2): 44- 48.
	He T , Luo J J . Study on the color and luster of twenty species of rose wood. Journal of Forestry Engineering, 2016, 1 (2): 44- 48.
	李荣专, 董清木. 脂松香、石炭酸松香树脂和马林酸松香树脂的红外光谱剖析及鉴别. 光谱实验室, 2002, 19 (3): 379- 382. doi: 10.3969/j.issn.1004-8138.2002.03.027
	Li R Z , Dong Q M . Analysis and identification of resin rosin, carbonate rosin resin and malinic rosin resin by infrared spectroscopy. Chinese Journal of Spectroscopy Laboratory, 2002, 19 (3): 379- 382.
	李迎超, 厉月桥, 王利兵, 等. 木本淀粉能源植物栓皮栎与麻栎的资源调查以及分布规律. 林业资源管理, 2013, (2): 94- 101. doi: 10.3969/j.issn.1002-6622.2013.02.018
	文献全部内容项
	Li Y C, Li Y Q, Wang L B, et al. 2013. Resource investigation and distribution pattern of Quercus variabilis Blume. and Quercus acutissima Carr. as woody energy plant in China. Forest Resources Management, (2): 94-101. [in Chinese]
	梁善庆, 罗建举. 人工林米老排木材化学成分及其在树干高度上的差异. 中南林学院学报, 2004, 24 (5): 28- 31. doi: 10.3969/j.issn.1673-923X.2004.05.023
	Liang S Q , Luo J J . Study of Mytilania laosensis plantation: contents of wood chemical components and their variation along tree stem. Journal of Central South Forestry University, 2004, 24 (5): 28- 31.
	刘志龙, 虞木奎, 唐罗忠, 等. 麻栎资源研究进展及开发利用对策. 中国林副特产, 2009, (6): 94- 96.
	Liu Z L , Yu M K , Tang L Z , et al. Progress and utilization countermeasure of Quercus acutissima. Forest By-Product and Speciality in China, 2009, (6): 94- 96.
	罗莎. 四种红木抽提物的FTIR与GC-MS指纹图谱鉴别研究. 长沙: 中南林业科技大学硕士学位论文, 2013,
	Luo S . Study on the FTIR and GC-MS fingerprints identification of four specices of redwood extractives. Changsha: MS thesis of Central South University of Forestry and Technology, 2013,
	罗伟祥, 郝怀晓, 薛安平. 橡树资源-优质林木生物质能源发展战略研究. 生物质化学工程, 2006, (S1): 147- 152.
	Luo W X , Hao H X , Xue A P . Resources of the oak-developing strategic research on biomass energy of high-quality forests. Biomass Chemical Engineering, 2006, (S1): 147- 152.
	南京林业大学. 1990. 木材化学. 北京: 中国林业出版社.
	(Nanjing Forestry University. 1990. Wood chemistry. Beijing: China Forestry Publishing House. [in Chinese])
	宁黎黎, 陈桂华. 苹果木材的化学成分分析. 山东林业科技, 2008, (2): 28- 29. doi: 10.3969/j.issn.1002-2724.2008.02.013
	Ning L L , Chen G H . Chemical composition analysis of apple wood. Shandong Forestry Science and Technology, 2008, (2): 28- 29.
	彭万喜. 木材抽提物渗透屏障原理研究与应用. 广州: 华南农业大学博士学位论文, 2006,
	Peng W X . Study and application of wood extract osmotic barrier principle. Guangzhou: PhD thesis of South China Agricultural University, 2006.
	彭万喜, 朱同林, 郑真真, 等. 木材抽提物的研究现状与趋势. 林业科技开发, 2004, 18 (5): 6- 9. doi: 10.3969/j.issn.1000-8101.2004.05.002
	Peng W X , Zhu T L , Zheng Z Z , et al. Research status and trends of wood extracts. Forestry Technology Development, 2004, 18 (5): 6- 9.
	涂平涛. 非木材植物纤维作为人造板生产原料的有关问题. 林产工业, 1995, (4): 1- 4.
	Tu P T . Non-wood plant fiber as a raw material for the production of wood-based panels. China Forest Products Industry, 1995, (4): 1- 4.
	吴云汉, 姚占芳. 栓皮栎、麻栎枝条粉碎栽培香菇试验. 河南农业大学学报, 1990, 24 (3): 374- 376.
	Wu Y H , Yao Z F . Experiment on cultivation of lentinus edodes by crushing branches of Quercus variabilis and Quercus acutissima. Acta Agriculture Universitatis Henanensis, 1990, 24 (3): 374- 376.
	谢碧霞, 谢涛. 我国橡实资源的开发利用. 中南林学院学报, 2002, 22 (3): 37- 41. doi: 10.3969/j.issn.1673-923X.2002.03.006
	Xie B X , Xie T . Exploitation study of acorn resources in China. Journal of Central South Forestry University, 2002, 22 (3): 37- 41.
	曾新德. 葡萄牙软木工业的现状及发展趋势. 林产化工通讯, 1995, (5): 25- 27.
	Zeng X D . The current situation and development trend of the Portuguese softwood industry. Forest Products Chemical Newsletter, 1995, (5): 25- 27.

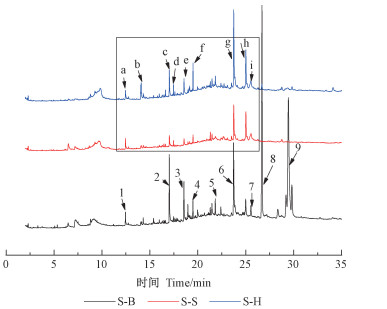

峰号No.	保留时间Retention time/min	化合物名称Compound name	分子式Molecular formula	相似度Similarity
1	12.452	十六烷酸n-hexadecanoic acid	C₁₆H₃₂O₂	90
2	17.031	二十八烷醇Octacosanol	C₂₈H₅₈O	97
3	18.447	1-二十六烷醇1-hexacosanol	C₂₄H₅₆O	95
4	19.451	角鲨烯Squalene	C₂₀H₃₄O	93
5	21.761	维生素E Vitamin E	C₂₉H₅₀O₂	85
6	23.795	γ-谷甾醇γ-sitosterol	C₂₉H₅₀O	91
7	25.591	3-氧代胆甾-4-烯-27-基乙酸酯3-oxysteroidal-4-ene-27-based acetate	C₂₉H₄₆O₃	71
8	26.701	软木三萜酮Friedelin	C₃₀H₅₀O	93
9	29.461	Friedelin-3-one	C₃₀H₅₀O	85

峰号No.	保留时间Retention time/min	化合物名称Compound name	分子式Molecular formula	相似度Similarity
a	12.452	十六烷酸n-hexadecanoic acid	C₁₆H₃₂O₂	86
b	13.834	亚麻油酸Linoleic	C₁₈H₃₂O₂	97
c	17.031	二十八烷醇Octacosanol	C₂₈H₅₈O	97
d	17.284	邻苯二甲酸二异辛酯Diisooctyl phthalate	C₂₄H₃₈O₄	90
e	18.447	1-二十六烷醇1-hexacosanol	C₂₄H₅₆O	95
f	19.451	角鲨烯Squalene	C₂₀H₃₄O	93
g	23.795	γ-谷甾醇γ-sitosterol	C₂₉H₅₀O	91
h	25.011	—	—	—
i	25.591	3-氧代胆甾-4-烯-27-基乙酸酯3-oxysteroidal-4-ene -27-based acetate	C₂₉H₄₆O₃	71
