长白落叶松人工林优势高广义代数差分生长模型

doi:10.11707/j.1001-7488.LYKX20230534

Abstract

Abstract:

Objective: Taking Larix olgensis plantations as the research object, this study aims to explore the difference of site quality between different site types, grade division of site from classification of site types is realized, and accurately evaluate the site quality of L. olgensis plantations. Method: Based on the sample plot data by the national forest inventory and the forest management inventory in Jilin Province, a difference model for stand dominant height growth was constructed by generalized algebraic difference approach. The dominant site factors significant affecting dominant height growth of L. olgensis were screened by partial correlation analysis and formed the site types (ST). Site type groups (STG) is formed by clustering site types based on K-Means algorithm, and the ST and STG are taken as random effects to construct the dominant high growth mixed effect model respectively, adding exponential function, power function and constant plus power function to eliminate heteroscedasticity, autocorrelation of order 1, compound symmetry and autocorrelation-moving average, three structures were used to consider the autocorrelation, the optimal mixed effect model was selected and carried out the site rank according to the site type groups corresponding to the dominant height at 30 years. Result: The optimal difference model M1.1 evaluation index adjusted coefficient of determination ($ {R}_{\mathrm{a}}^{2} $) = 0.865, relative root mean square error (rRMSE) = 7.756%. The site factors that had significant effect on stand dominant height (P<0.01) and their partial correlation coefficients were elevation 0.379, soil thickness ?0.247, humus thickness 0.190, slope position 0.113, slope degree 0.067, respectively, the first three factors were identified as dominant site factors, and 45 site types were formed. 5 site type groups were obtained from 45 site type clusters, the optimal mixed effect model M1.7 considering site type groups, AIC (Akaike information criterion) is 4 402.492 and BIC (Bayesian information criterion) is 4 451.014, decreased by 7.42% and 7.04% compared with AIC and BIC of M1.1 respectively. Divided into 5 site grades by using M1.7, the dominant height at 30 years are 18.7, 17.6, 16.2, 14.4, 12.8 m in turn. Conclusion: Richards, Korf and Hossfeld are more suitable than other base models to derive difference models. Elevation, soil thickness and humus thickness are the dominant site factors affecting the growth of dominant height for L. olgensis. The corresponding table of site types and site grade is obtained.

Key words: generalized algebraic difference approach, Larix olgensis, mixed effect model, site quality evaluation

CLC Number:

S758

Guangcheng Luo,Xiao He,Xiangdong Lei,Biyun Wu,Wei Xiang. Generalized Algebraic Differential Growth Model of Dominant Height for Larix olgensis Plantations[J]. Scientia Silvae Sinicae, 2024, 60(12): 1-12.

Figures/Tables 12

Table 1

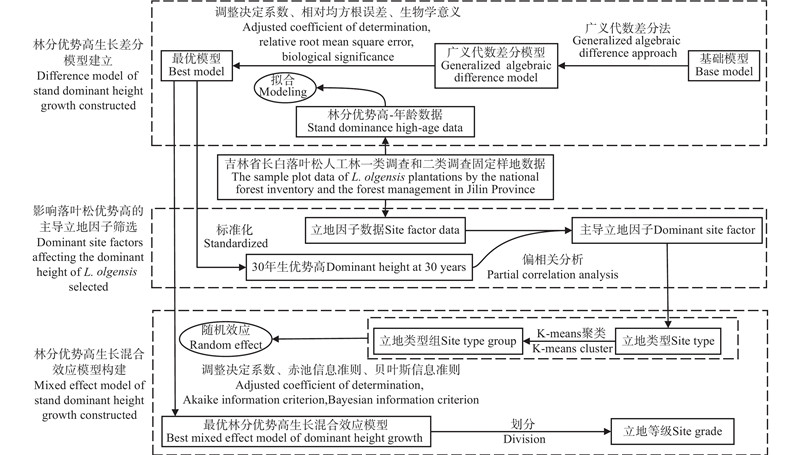

Fig.1

Table 2

Difference models alternative"

编号 No.	参考文献 References	差分模型 Difference model	X的解 Solution for X	自由参数 Free parameter	基础模型 Base model
M1	Scolforo et al., 2016	$ H={\rm e}^{X}{\left(1-{\rm e}^{-bT}\right)}^{{d}_{1}+{d}_{2}X} $	$ X=\dfrac{\mathrm{l}\mathrm{n}{H}_{0}-{d}_{1}\mathrm{ln}\left(1-{\rm e}^{-b{T}_{0}}\right)}{1+{d}_{2}\mathrm{ln}\left(1-{\rm e}^{-b{T}_{0}}\right)} $	$ a={\rm e}^{X} $ $ c={d}_{1}+{d}_{2}X $	Richards $ H=a{\left(1-{\rm e}^{-bT}\right)}^{c} $
M2	Ercanli et al., 2014	$ H={\rm e}^{X}{\left(1-{\rm e}^{-bT}\right)}^{{d}_{1}+{d}_{2}/X} $	$ X=0.5\left(\mathrm{l}\mathrm{n}{H}_{0}-{d}_{1}F+\sqrt{{\left({d}_{1}F-\mathrm{l}\mathrm{n}{H}_{0}\right)}^{2}-4{d}_{2}F}\right) $ $ F=\mathrm{ln}\left(1-{\rm e}^{-b{T}_{0}}\right) $	$ a={\rm e}^{X} $ $ c={d}_{1}+{d}_{2}/X $
M3	Ercanli et al., 2014	$ H={\rm e}^{X}{\left(1-{\rm e}^{-bT}\right)}^{{d}_{1}+1/X} $	$ X=0.5\left(\mathrm{l}\mathrm{n}{H}_{0}-{d}_{1}F+\sqrt{{\left({d}_{1}F-\mathrm{l}\mathrm{n}{H}_{0}\right)}^{2}-4F}\right) $ $ F=\mathrm{ln}\left(1-{\rm e}^{-b{T}_{0}}\right) $	$ a={\rm e}^{X} $ $ c={d}_{1}+1/X $
M4	赵磊等, 2012	$ H={\rm e}^{X-\left({d}_{1}+{d}_{2}/X\right){T}^{-c}} $	$ X=0.5\left({d}_{1}{t}_{0}^{-c}+\mathrm{l}\mathrm{n}{H}_{0}+F\right) $ $ F=\sqrt{{\left({d}_{1}{T}_{0}^{-c}+\mathrm{l}\mathrm{n}{H}_{0}\right)}^{2}+4{d}_{2}{T}_{0}^{-c}} $	$ a={\rm e}^{X} $ $ b={d}_{1}+{d}_{2}/X $	Korf $ H=a{\rm e}^{-b{T}^{-c}} $
M5	赵磊等, 2012	$ H={\rm e}^{X-\left({d}_{1}/X\right){T}^{-c}} $	$ X=0.5\left(\mathrm{l}\mathrm{n}{H}_{0}+\sqrt{{\left(\mathrm{l}\mathrm{n}{H}_{0}\right)}^{2}+4{d}_{1}{T}_{0}^{-c}}\right) $	$ a={\rm e}^{X} $ $ b={d}_{1}/X $
M6	牛亦龙, 2021	$ H={\rm e}^{X-\left({d}_{1}+{d}_{2}X\right){T}^{-c}} $	$ X=(\mathrm{l}\mathrm{n}{H}_{0}+{d}_{1}{T}_{0}^{-c})/(1-{d}_{2}{T}_{0}^{-c}) $	$ a={\rm e}^{X} $ $ b={d}_{1}+{d}_{2}X $
M7	Scolforo et al., 2016	$ \mathrm{l}\mathrm{n}H=X+\left({d}_{1}+{d}_{2}X\right)\mathrm{ln}\left(-{\rm e}^{-{T}^{c}}\right) $	$ X=\dfrac{\mathrm{l}\mathrm{n}{H}_{0}-{d}_{1}\mathrm{ln}\left(1-{\rm e}^{-{T}_{0}^{c}}\right)}{1+{d}_{2}\mathrm{ln}\left(1-{\rm e}^{-{T}_{0}^{c}}\right)} $	$ a=X $ $ b={d}_{1}+{d}_{2}X $	修正Weibull Adjusted Weibull $ \mathrm{l}\mathrm{n}H=a+b\mathrm{l}\mathrm{n}\left(1-{\rm e}^{-{T}^{c}}\right) $
M8	曹元帅等, 2017	$ H={(d}_{1}+X)/[1+\left({d}_{2}/X\right){T}^{-c}] $	$ X=0.5\left({H}_{0}-{d}_{1}-\sqrt{{\left({H}_{0}-{b}_{1}\right)}^{2}+4{d}_{2}{H}_{0}{T}_{0}^{-c}}\right) $	$ a={d}_{1}+X $ $ b={d}_{2}/X $	Hossfeld $ H=a/(1+b{T}^{-c}) $
M9	王冬至等, 2016	$ H={(d}_{1}+X)/(1+{d}_{2}X{T}^{-c}) $	$ X=({H}_{0}-{d}_{1})/(1+{d}_{2}{H}_{0}{T}_{0}^{-c}) $	$ a={d}_{1}+X $ $ b={d}_{2}X $
M10	牛亦龙, 2021	$ H=({d}_{1}+X)/[1+\left({d}_{2}+{d}_{3}/X\right){T}^{-c}] $	$ X=0.5\left({H}_{0}+{H}_{0}{d}_{2}{T}_{0}^{-c}-{d}_{1}+\sqrt{F}\right) $ $ F={\left({H}_{0}+{H}_{0}{d}_{2}{T}_{0}^{-c}\right)}^{2}+4{H}_{0}{d}_{2}{T}_{0}^{-c} $	$ a={d}_{1}+X $ $ b={d}_{2}+{d}_{3}/X $
M11	Scolforo et al., 2016	$ \mathrm{l}\mathrm{n}H=X+X\left({d}_{1}/T\right) $	$ X=\mathrm{l}\mathrm{n}{H}_{0}/\left(({T}_{0}+{d}_{1})/{T}_{0}\right) $	$ a=X $ $ b={d}_{1}X $	Schumacher $ \mathrm{l}\mathrm{n}H=a+b/T $
M12	牛亦龙, 2021	$ H={\rm e}^{X}{\rm e}^{-\left({d}_{1}+{d}_{2}X\right){\rm e}^{-cT}} $	$ X=(\mathrm{l}\mathrm{n}{H}_{0}+{d}_{1}{\rm e}^{-c{T}_{0}})/(1-{d}_{2}{\rm e}^{-c{T}_{0}}) $	$ a={\rm e}^{X} $ $ b={d}_{1}+{d}_{2}X $	Gompertz $ H=a{\rm e}^{-b{\rm e}^{-cT}} $
M13	牛亦龙, 2021	$ H={\rm e}^{X}{\rm e}^{-\left({d}_{1}+{d}_{2}/X\right){\rm e}^{-cT}} $	$ X=0.5\left(\mathrm{l}\mathrm{n}{H}_{0}+{d}_{1}{\rm e}^{-c{T}_{0}}+\sqrt{F}\right) $ $ F={\left(\mathrm{l}\mathrm{n}{H}_{0}+{d}_{1}{\rm e}^{-c{T}_{0}}\right)}^{2}+4{d}_{2}{\rm e}^{-c{T}_{0}} $	$ a={\rm e}^{X} $ $ b={d}_{1}+{d}_{2}/X $	Gompertz $ H=a{\rm e}^{-b{\rm e}^{-cT}} $

Table 2

Table 3

Table 4

Table 5

Table 6

Table 7

Table 8

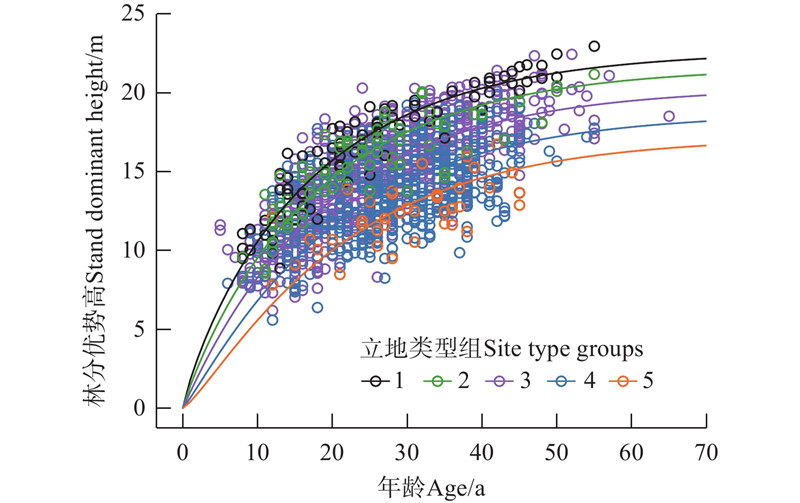

Fig.2

Fig.3

Table 9

References 0

	曹元帅, 孙玉军. 基于广义代数差分法的杉木人工林地位指数模型. 南京林业大学学报(自然科学版), 2017, 41 (5): 79- 84.
	Cao Y S, Sun Y J. Generalized algebraic difference site index model for Chinese fir plantation. Journal of Nanjing Forestry University (Natural Sciences Edition), 2017, 41 (5): 79- 84.
	柴宗政, 王得祥, 郝亚中, 等. 秦岭中段华北落叶松人工林演替动态. 林业科学, 2014, 50 (2): 14- 21.
	Chai Z Z, Wang D X, Hao Y Z, et al. Succession dynamics of Larix principis-rupprechtii plantation in intermediate section of Qinling Mountains. Scientia Silvae Sinicae, 2014, 50 (2): 14- 21.
	段　劼, 马履一, 贾黎明, 等. 北京低山地区油松人工林立地指数表的编制及应用. 林业科学, 2009, 45 (3): 7- 12. doi: 10.3321/j.issn:1001-7488.2009.03.002
	Duan J, Ma L Y, Jia L M, et al. Establishment and application of site index table for Pinus tabulaeformis plantation in the low elevation area of Beijing. Scientia Silvae Sinicae, 2009, 45 (3): 7- 12. doi: 10.3321/j.issn:1001-7488.2009.03.002
	段光爽, 郑亚丽, 洪　亮, 等. 基于潜在生产力的华北落叶松纯林和白桦山杨混交林立地质量评价. 林业科学, 2022, 58 (10): 1- 9.
	Duan G S, Zheng Y L, Hong L, et al. A potential productivity-based approach of site quality evaluation for larch pure forest and birch-aspen mixed forest. Scientia Silvae Sinicae, 2022, 58 (10): 1- 9.
	何　静, 李新建, 朱晋梅, 等. 基于最粗优势木胸径生长的湖南栎类天然林立地质量评价模型. 林业科学, 2022, 58 (8): 89- 98.
	He J, Li X J, Zhu J M, et al. Site quality evaluation model of natural Quercus forests in Hunan based on the growth of the thickest dominant tree diameter at breast height. Scientia Silvae Sinicae, 2022, 58 (8): 89- 98.
	华伟平, 武健伟, 于丽瑶, 等. 基于森林潜在生产力评价模型的林地分等及应用. 林业资源管理, 2023, (3): 29- 37.
	Hua W P, Wu J W, Yu L Y, et al. Forestland grading based on forest potential productivity evaluation model and its application. Forest Resources Management, 2023, (3): 29- 37.
	惠淑荣, 李丽锋, 刘　强, 等. 辽东地区日本落叶松立地分类和立地质量研究. 西北林学院学报, 2011, 26 (3): 139- 142.
	Hui S R, Li L F, Liu Q, et al. Analysis of site condition and quality of Larix kaempferi in eastern Liaoning Province. Journal of Northwest Forestry University, 2011, 26 (3): 139- 142.
	赖文豪, 席　沁, 武海龙, 等. 内蒙古兴和县低山丘陵立地类型划分与林草适宜性评价. 浙江农林大学学报, 2018, 35 (2): 331- 339. doi: 10.11833/j.issn.2095-0756.2018.02.018
	Lai W H, Xi Q, Wu H L, et al. Site classification type and vegetation suitability evaluation for hilly land in Xinghe, Inner Mongolia. Journal of Zhejiang A & F University, 2018, 35 (2): 331- 339. doi: 10.11833/j.issn.2095-0756.2018.02.018
	雷相东, 唐守正, 符利勇, 等. 2020. 森林立地质量定量评价: 理论方法应用. 北京: 中国林业出版社.
	Lei X D, Tang S Z, Fu L Y, et al. 2020. Quantitative evaluation of forest site quality: theory, method, application. Beijing: China Forestry Publishing House. ［in Chinese］
	李斌成, 许业洲, 袁　慧, 等. 湖北省日本落叶松差分型立地指数模型构建. 森林与环境学报, 2020, 40 (4): 433- 441.
	Li B C, Xu Y Z, Yuan H, et al. Construction of a differential site index model for a Larix kaempferi plantation in Hubei Province. Journal of Forest and Environment, 2020, 40 (4): 433- 441.
	李平平, 王彦辉, 段文标, 等. 黄土高原刺槐人工林立地指数变化及评价. 林业科学, 2023, 59 (4): 18- 31. doi: 10.11707/j.1001-7488.LYKX20220621
	Li P P, Wang Y H, Duan W B, et al. Variation and evaluation of site index of black locust plantations on the Loess Plateau of northwest China. Scientia Silvae Sinicae, 2023, 59 (4): 18- 31. doi: 10.11707/j.1001-7488.LYKX20220621
	李晓燕, 段爱国, 张建国. 不同产区杉木人工林初植密度对优势高生长的影响. 林业科学, 2023, 59 (8): 22- 29. doi: 10.11707/j.1001-7488.LYKX20210836
	Li X Y, Duan A G, Zhang J G. Effects of initial planting density on dominant height growth of Chinese fir (Cunninghamia lanceolata) plantation in different distribution areas. Scientia Silvae Sinicae, 2023, 59 (8): 22- 29. doi: 10.11707/j.1001-7488.LYKX20210836
	刘创民, 梁海英, 罗菊春. 西林吉林业局天然兴安落叶松立地条件的调查研究. 林业科学, 1993, 29 (5): 456- 462.
	Liu C M, Liang H Y, Luo J C. Investigation on site conditions of natural Larix gmelinii in the Forestry Bureau of Xilinji. Scientia Silvae Sinicae, 1993, 29 (5): 456- 462.
	刘佳琪, 魏广阔, 史常青, 等. 基于MaxEnt模型的北方抗旱造林树种适宜区分布. 北京林业大学学报, 2022, 44 (7): 63- 77. doi: 10.12171/j.1000-1522.20210527
	Liu J Q, Wei G K, Shi C Q, et al. Suitable distribution area of drought-resistant afforestation tree species in north China based on MaxEnt model. Journal of Beijing Forestry University, 2022, 44 (7): 63- 77. doi: 10.12171/j.1000-1522.20210527
	马　羽, 许业洲, 袁　慧, 等. 湖北省杉木人工林胸径差分方程及多形地位指数表研究. 森林工程, 2023, 39 (2): 72- 81.
	Ma Y, Xu Y Z, Yuan H, et al. Study on DBH difference equation and polymorphic site index table of Chinese fir plantation in Hubei Province. Forest Engineering, 2023, 39 (2): 72- 81.
	孟宪宇, 陈东来. 山杨次生林地位指数表编制方法的研究. 北京林业大学学报, 2001, 23 (3): 47- 51. doi: 10.3321/j.issn:1000-1522.2001.03.011
	Meng X Y, Chen D L. Study on constructive method of site index table for poplar secondary forest. Journal of Beijing Forestry University, 2001, 23 (3): 47- 51. doi: 10.3321/j.issn:1000-1522.2001.03.011
	倪成才, 于福平, 张玉学, 等. 差分生长模型的应用分析与研究进展. 北京林业大学学报, 2010, 32 (4): 284- 292.
	Ni C C, Yu F P, Zhang Y X, et al. Application analysis and recent advances of projection growth models. Journal of Beijing Forestry University, 2010, 32 (4): 284- 292.
	牛亦龙, 董利虎, 李凤日. 基于广义代数差分法的长白落叶松人工林地位指数模型. 北京林业大学学报, 2020, 42 (2): 9- 18.
	Niu Y L, Dong L H, Li F R. Site index model for Larix olgensis plantation based on generalized algebraic difference approach derivation. Journal of Beijing Forestry University, 2020, 42 (2): 9- 18.
	牛亦龙. 2021. 长白落叶松-水曲柳带状混交林立地质量评价. 哈尔滨: 东北林业大学.
	Niu Y L. 2021. Evaluation of site quality for Larix olgensis and Fraxinus mandshurica belt-mixed plantation. Harbin: Northeast Forestry University. ［in Chinese］
	孙拥康, 汤景明, 王怡, 等. 鄂西山区日本落叶松人工林全林整体模型研究与应用. 森林工程, 2023, 39 (3): 57- 63.
	Sun Y K, Tang J M, Wang Y, et al. Research and application of the integrated stand growth model of Larix kaempferi plantation in the mountainous area of western Hubei. Forest Engineering, 2023, 39 (3): 57- 63.
	宋　争, 黄　朗, 胡　松, 等. 基于立地混合效应的湖南丘陵平原区杉木多形立地指数模型研究. 林业科学研究, 2022, 35 (5): 172- 179.
	Song Z, Huang L, Hu S, et al. Polymorphic site-index model with site mixed effects for Chinese fir plantations in Hunan hilly plains. Forest Research, 2022, 35 (5): 172- 179.
	王冬至, 张冬燕, 王方, 等. 塞罕坝主要立地类型针阔混交林树高曲线构建. 北京林业大学学报, 2016, 38 (10): 7- 14.
	Wang D Z, Zhang D Y, Wang F, et al. Height curve construction of needle and broadleaved mixed forest under main site types in Saihanba, Hebei of northern China. Journal of Beijing Forestry University, 2016, 38 (10): 7- 14.
	王志波, 季　蒙, 李永乐, 等. 华北落叶松人工林差分地位指数模型构建. 林业资源管理, 2021, (1): 156- 163.
	Wang Z B, Ji M, Li Y L, et al. Construction of difference site index model for Larix principis-rupprechtii plantation. Forest Resources Management, 2021, (1): 156- 163.
	袁其站, 张慧勤, 李剑吾, 等. 河南省日本落叶松适生区研究. 北京林业大学学报, 2000, 22 (3): 44- 47.
	Yuan Q Z, Zhang H Q, Li J W, et al. The suitable area of Larix kaempferi in Henan Province. Journal of Beijing Forestry University, 2000, 22 (3): 44- 47.
	张春霞, 冯自茂, 李文鑫, 等. 陕西黄陵油松人工林立地类型划分及评价. 西北农林科技大学学报(自然科学版), 2021, 49 (1): 55- 63.
	Zhang C X, Feng Z M, Li W X, et al. Site classification and evaluation of Pinus tabulaeformis plantation in Huangling, Shaanxi. Journal of Northwest A & F University (Natural Science Edition), 2021, 49 (1): 55- 63.
	赵磊, 倪成才, Gordon Nigh. 加拿大哥伦比亚省美国黄松广义代数差分型地位指数模型. 林业科学, 2012, 48 (3): 74- 81. doi: 10.11707/j.1001-7488.20120312
	Zhao L, Ni C C, Nigh G. Generalized algebraic difference site index model for ponderosa pine in British Columbia, Canada. Scientia Silvae Sinicae, 2012, 48 (3): 74- 81. doi: 10.11707/j.1001-7488.20120312
	Adame P, Cañellas I, Roig S, et al. Modelling dominant height growth and site index curves for rebollo oak (Quercus pyrenaica Willd.). Annals of Forest Science, 2006, 63 (8): 929- 940. doi: 10.1051/forest:2006076
	Bravo-Oviedo A, del Río M, Montero G. Site index curves and growth model for Mediterranean maritime pine (Pinus pinaster Ait.) in Spain. Forest Ecology and Management, 2004, 201 (2/3): 187- 197.
	Bravo-Oviedo A, del Río M, Montero G. Geographic variation and parameter assessment in generalized algebraic difference site index modelling. Forest Ecology and Management, 2007, 247 (1/2/3): 107- 119.
	Bravo-Oviedo A, Roig S, Bravo F, et al. Environmental variability and its relationship to site index in Mediterranean maritime pine. Forest Systems, 2011, 20 (1): 50- 64. doi: 10.5424/fs/2011201-9106
	Christophe C, Gil K, Laurent S A, et al. Relationship between soil nutritive resources and the growth and mineral nutrition of a beech (Fagus sylvatica) stand along a soil sequence. Catena, 2017, 155, 156- 169. doi: 10.1016/j.catena.2017.03.013
	Cieszewski C J, Bailey R L. Generalized algebraic difference approach: theory based derivation of dynamic site equations with polymorphism and variable asymptotes. Forest Science, 2000, 46 (1): 116- 126. doi: 10.1093/forestscience/46.1.116
	de Souza H J, Miguel E P, Nascimento R G M, et al. Thinning-response modifier term in growth models: an application on clonal Tectona grandis Linn F. stands at the amazonian region. Forest Ecology and Management, 2022, 511, 120109. doi: 10.1016/j.foreco.2022.120109
	Diéguez-Aranda U, González J G A, Anta M B, et al. Site quality equations for Pinus sylvestris L. plantations in Galicia (northwestern Spain). Annals of Forest Science, 2005, 62 (2): 143- 152. doi: 10.1051/forest:2005006
	Duan G S, Lei X D, Zhang X Q, et al. Site index modeling of larch using a mixed-effects model across regional site types in northern China. Forests, 2022, 13 (5): 815. doi: 10.3390/f13050815
	Elfving B, Kiviste A. Construction of site index equations for Pinus sylvestris L. using permanent plot data in Sweden. Forest Ecology and Management, 1997, 98 (2): 125- 134. doi: 10.1016/S0378-1127(97)00077-7
	Ercanli İ, Kahrİman A, Yavuz H. Dynamic base-age invariant site index models based on generalized algebraic difference approach for mixed Scots pine (Pinus sylvestris L.) and Oriental beech (Fagus orientalis Lipsky) stands. Turkish Journal of Agriculture and Forestry, 2014, 38, 134- 147. doi: 10.3906/tar-1212-67
	Gülsoy S, Çinar T. The relationships between environmental factors and site index of anatolian black pine (Pinus nigra Arn. subsp. pallasiana (Lamb. ) Holmboe) stands in Demİrcİ (Manİsa) district, Turkey. Applied Ecology and Environmental Research, 2019, 17 (1): 1235- 1246. doi: 10.15666/aeer/1701_12351246
	Guo Y R, Han Y Y, Wu B G, et al. Study on modelling of site quality evaluation and its dynamic update technology for plantation forests. Nature Environment and Pollution Technology, 2013, 12 (4): 591- 597.
	Hipler S M, Spiecker H, Wu S R. Dynamic top height growth models for eight native tree species in a cool-temperate region in northeast China. Forests, 2021, 12 (8): 965. doi: 10.3390/f12080965
	Koirala A, Montes C R, Bullock B P. Modeling dominant height using stand and water balance variables for loblolly pine in the western Gulf, US. Forest Ecology and Management, 2021, 479, 118610. doi: 10.1016/j.foreco.2020.118610
	Lopez-Senespleda E, Bravo-Oviedo A, Alonso R, et al. Resource communication. Modeling dominant height growth including site attributes in the GADA approach for Quercus faginea Lam. in Spain. Forest Systems, 2014, 23 (3): 494- 499. doi: 10.5424/fs/2014233-04937
	Merganič J, Pichler V, Gömöryová E, et al. Modelling impact of site and terrain morphological characteristics on biomass of tree species in Putorana Region. Plants, 2021, 10 (12): 2722. doi: 10.3390/plants10122722
	Messaoud Y, Chen Han Y H. The influence of recent climate change on tree height growth differs with species and spatial environment. PLoS One, 2011, 6 (2): e14691. doi: 10.1371/journal.pone.0014691
	Nava-Nava A, Santiago-García W, Quiñonez-Barraza G, et al. Climatic and topographic variables improve estimation accuracy of Patula pine forest site productivity in southern Mexico. Forests, 2022, 13 (8): 1277. doi: 10.3390/f13081277
	Oğuzoğlu Ş, Özkan K. Productivity distribution modelling of Anatolian black pine (Pinus nigra subsp. pallasiana var. pallasiana) in the Türkmen Mountain, Eskişehir. Biological Diversity and Conservation, 2015, 2 (8): 134- 140.
	Palahí M, Tomé M, Pukkala T, et al. Site index model for Pinus sylvestris in north-east Spain. Forest Ecology and Management, 2004, 187 (1): 35- 47. doi: 10.1016/S0378-1127(03)00312-8
	Reineke L H. Perfecting a stand-density index for even-aged forests. Journal of Agriculture Research, 1933, 46 (7): 627- 638.
	Scolforo H F, de Castro Neto F, Soares Scolforo J R, et al. Modeling dominant height growth of Eucalyptus plantations with parameters conditioned to climatic variations. Forest Ecology and Management, 2016, 380, 182- 195. doi: 10.1016/j.foreco.2016.09.001
	Soong J L, Janssens I A, Grau O, et al. Soil properties explain tree growth and mortality, but not biomass, across phosphorus-depleted tropical forests. Scientific Reports, 2020, 10 (1): 2302. doi: 10.1038/s41598-020-58913-8
	Tahar S, Marc P, Salah G, et al. Modeling dominant height growth in planted Pinus pinea stands in northwest of Tunisia. International Journal of Forestry Research, 2012, 902381.
	Takahashi K, Hirosawa T, Morishima R. How the timberline formed: altitudinal changes in stand structure and dynamics around the timberline in central Japan. Annals of Botany, 2012, 109 (6): 1165- 1174. doi: 10.1093/aob/mcs043
	Weber-Blaschke G, Heitz R, Blaschke M, et al. Growth and nutrition of young European ash (Fraxinus excelsior L.) and sycamore maple (Acer pseudoplatanus L.) on sites with different nutrient and water statuses. European Journal of Forest Research, 2008, 127 (6): 465- 479. doi: 10.1007/s10342-008-0230-x
	Zang H, Lei X D, Zeng W S. Height–diameter equations for larch plantations in northern and northeastern China: a comparison of the mixed-effects, quantile regression and generalized additive models. Forestry, 2016, 89 (4): 434- 445. doi: 10.1093/forestry/cpw022
	Zhu G Y, Hu S, Chhin S, et al. Modelling site index of Chinese fir plantations using a random effects model across regional site types in Hunan Province, China. Forest Ecology and Management, 2019, 446, 143- 150. doi: 10.1016/j.foreco.2019.05.039

林分因子Stand variables	平均值Mean	标准差Standard deviation	最小值Min.	最大值Max.
林分平均年龄Stand mean age/a	27.0	9.7	5	65
林分优势高Stand dominant height/m	14.5	3.0	5.6	23.0
林分平均胸径Stand average DBH/cm	13.0	3.8	5.7	28.1
林分断面积Stand basal area/(m2·hm^?2)	13.41	7.23	0.79	37.13
林分蓄积Stand volume/(m3·hm^?2)	81.73	52.68	2.53	284.31
林分密度指数Stand density index/(tree·hm^?2)	498.1	246.1	40	1 285

立地因子 Site factors	等级范围（样本量） Level range (sample size)
海拔 Altitude/m	Ⅰ: 0~200 (8); Ⅱ: 201~400 (539); Ⅲ: 401~600 (566); Ⅳ: 601~800 (310); Ⅴ: 801~1 000 (160); Ⅵ: 1 001~1 200 (35); Ⅶ: 1 201~1 400 (4)
坡度 Slope degree/(°)	平坡Conservative slope: 0~4 (401); 缓坡Gentle slope: 5~14 (786); 斜坡Incline slope: 15~24 (379); 陡坡Steep slope: 25~34 (45); 急坡Acute slope: 35~44 (11)
坡向（方位角） Slope aspect (azimuth)/(°)	北坡North slope: 338~22 (186); 东北坡Northeast slope: 23~67 (142); 东坡East slope: 68~112 (136); 东南坡Southeast slope: 113~157 (205); 南坡South slope: 158~202 (135); 西南坡Southwest slope: 203~247 (122); 西坡West slope: 248~292 (147); 西北坡Northwest slope: 293~337 (148); 无坡向No aspect: 坡度<5的地段Slope degree <5 (401)
坡位 Slope position	脊部Ridge (28); 上坡Up slope (386); 中坡Middle slope (640); 下坡Down slope (418); 山谷Valley (53) ;平地Flat (97)
土层厚度 Soil thickness/cm	厚Thick: ≥60 (201); 中Middle: 30~59 (1 290); 薄Thin: <30 (131)
腐殖质层厚度 Humus thickness/cm	厚Thick: ≥5.0 (328); 中Middle: 2.0~4.9 (1 018); 薄Thin: <2.0 (276)

编号 No.	与立地无关参数 Site independent parameter (SIP)		差分模型参数 Difference model parameter			$ {R}_{\mathrm{a}}^{2} $	RMSE/m	rRMSE(%)
编号 No.	b	c	d₁	d₂	d₃	$ {R}_{\mathrm{a}}^{2} $	RMSE/m	rRMSE(%)
M1	0.054		5.085	?1.353		0.865	1.093	7.756
M2	0.054		?3.054	12.211		0.864	1.095	7.770
M3	0.033		0.423			0.849	1.156	8.203
M4		0.540	?2.756e+04	9.866e+04		0.846	1.166	8.277
M5		0.381	16.459			0.864	1.095	7.770
M6		0.659	76.297	?20.469		0.862	1.106	7.852
M7		0.318	38.912	?9.535		0.830	0.091	3.484
M8		1.050	27.604	6.110e-06		0.858	1.119	7.940
M9		2.801	12.149	122.262		0.449	2.206	15.661
M10		1.213	0.336	?156.340	4 513.895	0.864	1.095	7.774
M11			?2.527			0.652	0.131	4.993
M12		0.079	7.639	?1.967		0.864	1.095	7.770
M13		0.079	?3.923	16.943		0.864	1.096	7.778

立地因子 Site factors	偏相关系数 Coefficient of partial correlation (R_p)	P	贡献度 Contribution (%)
海拔Altitude	0.379	<0.001	37.790
坡度Slope degree	0.067	0.007	6.703
坡向Slope aspect	0.006	0.799	0.632
坡位Slope position	0.113	<0.001	11.249
土层厚度Soil thickness	?0.247	<0.001	24.634
腐殖质层厚度 Humus thickness	0.190	<0.001	18.992

混合参数 Mixed parameter	参数估计Parameter estimation					模型评价Model evaluation
混合参数 Mixed parameter	b	d₁	d₂	d₁₁	d₁₂	AIC	BIC	$ {R}_{\mathrm{a}}^{2} $
d₁₁	0.051	3.014	?0.683	5.584	?1.533	4 752.506	4 790.245	0.879
d₁₂	0.051	3.032	?0.689	5.561	?1.525	4 753.599	4 791.339	0.879
d₁₁, d₁₂	不收敛Nonconvergence

Generalized Algebraic Differential Growth Model of Dominant Height for Larix olgensis Plantations

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 12

References 0

Related Articles 15

Recommended Articles

Metrics

Comments

模型 Model	参数估计Parameter estimation					模型评价Model evaluation
模型 Model	b	d₁	d₂	d₁₁	d₁₂	AIC	BIC	$ {R}_{\mathrm{a}}^{2} $
M1.1	0.053	3.554	?0.853	6.118	?1.710	4 755.592	4 787.940	0.876
M1.3	0.052	3.154	?0.724	6.213	?1.740	4 727.464	4 765.204	0.880

模型 Model	异方差函数 Variance function	自相关结构 Autocorrelation structure	AIC	BIC	LRT	P
M1.3	无None	无None	4 727.464	4 765.204
M1.4	var Exp	无None	不收敛Nonconvergence
M1.5	var Power	无None	4 557.201	4 600.332	172.263	<0.001
M1.6	var Const Power	无None	4 559.201	4 607.724	172.263	<0.001
M1.7	var Power	AR₁	4 402.492	4 451.014	156.709	<0.001
M1.8	var Power	CS	4 558.609	4 607.132	0.592	0.442
M1.9	var Power	ARMA(1, 1)	4 403.725	4 457.640	157.475	<0.001

立地等级 Rank of site	优势高 Dominant height/m	立地类型Site types
立地等级 Rank of site	优势高 Dominant height/m	海拔 Altitude/m	土层厚度 Soil thickness/cm	腐殖质层厚度Humus thickness/cm
1	18.7	0~200	薄Thin	中Middle
		1 001~1 200	中Middle	厚Thick
		801~1 000	中Middle	厚Thick
		201~400	薄Thin	厚Thick
		601~800	中Middle	厚Thick
		801~1 000	薄Thin	厚Thick
2	17.6	601~800	薄Thin	厚Thick
		1 001~1 200	中Middle	薄Thin
		801~1 000	薄Thin	薄Thin
		601~800	薄Thin	中Middle
		801~1 000	厚Thick	薄Thin
		601~800	中Middle	薄Thin
		401~600	薄Thin	中Middle
		801~1 000	厚Thick	厚Thick
		401~600	薄Thin	薄Thin
		1 001~1 200	厚Thick	中Middle
3	16.2	401~600	中Middle	厚Thick
		601~800	厚Thick	中Middle
		801~1 000	中Middle	中Middle
		801~1 000	薄Thin	中Middle
		1 201~1 400	厚Thick	中Middle
		601~800	薄Thin	薄Thin
		1 001~1 200	中Middle	中Middle
		401~600	薄Thin	厚Thick
		601~800	厚Thick	薄Thin
		1 201~1 400	中Middle	中Middle
		601~800	中Middle	中Middle
		1 001~1 200	厚Thick	厚Thick
		601~800	厚Thick	厚Thick
		201~400	中Middle	厚Thick
		201~400	薄Thin	薄Thin
		801~1 000	厚Thick	中Middle
		201~400	薄Thin	中Middle
		401~600	中Middle	中Middle
4	14.4	401~600	中Middle	薄Thin
		201~400	厚Thick	中Middle
		401~600	厚Thick	厚Thick
		201~400	中Middle	中Middle
		401~600	厚Thick	薄Thin
		401~600	厚Thick	中Middle
		201~400	中Middle	薄Thin
5	12.8	0~200	中Middle	薄Thin
		201~400	厚Thick	厚Thick
		0~200	中Middle	中Middle
		201~400	厚Thick	薄Thin

[1]	Jing He,Xinjian Li,Jinmei Zhu,Guangyu Zhu. Site Quality Evaluation Model of Natural Quercus Forests in Hunan Based on the Growth of the Thickest Dominant Tree Diameter at Breast Height [J]. Scientia Silvae Sinicae, 2022, 58(8): 89-98.
[2]	Lingbo Dong,Xueying Lin,Yifan Zhang,Zhaogang Liu. Optimal Rotation of Larix olgensis Plantation in Considering Carbon Sequestration and Timber Production [J]. Scientia Silvae Sinicae, 2022, 58(5): 18-30.
[3]	Guangshuang Duan,Yali Zheng,Liang Hong,Xinyu Song,Liyong Fu. A Potential Productivity-Based Approach of Site Quality Evaluation for Larch Pure Forest and Birch-Aspen Mixed Forest [J]. Scientia Silvae Sinicae, 2022, 58(10): 1-9.
[4]	Xingjing Chen,Linyan Feng,Yuchao Zhang,Qingwang Liu,Zhaohui Yang,Liyong Fu,Jinhua Bai. Inversion of Aboveground Biomass in the Core Area of Chongli Winter Olympics Based on Airborne LiDAR [J]. Scientia Silvae Sinicae, 2022, 58(10): 35-46.
[5]	Xiaofang Zhang,Xuzhan Guo,Liang Hong,Tao Chen,Liyong Fu,Huiru Zhang. Comparison of Single Tree Crown Prediction Models of Larix principis-rupprechtii and Betula platyphylla in the Core Area of the Winter Olympics in China [J]. Scientia Silvae Sinicae, 2022, 58(10): 89-100.
[6]	Yu Bai,Yong Pang,Xiaoyun Xia,Weiwei Jia. 3-PG Model Parameterization Using Destructive Sampling Data of Larix olgensis [J]. Scientia Silvae Sinicae, 2022, 58(1): 98-110.
[7]	Xiaowen Zhang,Qingjun Yu,Guisheng Luo,Xi Jia,Danni Wu,Zhongkui Jia. Site Classification and Site Quality Evaluation of Pinus tabulaeformis Plantation for Construction Timber in Pingquan, Hebei Province [J]. Scientia Silvae Sinicae, 2021, 57(9): 1-12.
[8]	Tingting Zhao,Dongzhi Wang,Dongyan Zhang,Li Guo,Xuanrui Huang. Crown Prediction Model of Larix principis-rupprechtii Plantation in Saihanba of Hebei Province, Northern China [J]. Scientia Silvae Sinicae, 2021, 57(5): 108-118.
[9]	Xuefan Hu,Huiru Zhang,Guangshuang Duan,Jun Lu. Establishment and Evaluation of Tree Competition Index Based on Intersection and Crowding [J]. Scientia Silvae Sinicae, 2021, 57(4): 182-190.
[10]	Xiaoyun Xia,Yong Pang,Qingfeng Huang,Rong Wu,Dongsheng Chen,Yu Bai. Prediction of Biomass Growth of Larix olgensis Based on 3-PG Model [J]. Scientia Silvae Sinicae, 2021, 57(3): 67-78.
[11]	Ning Liu,Changjun Ding,Bo Li,Mi Ding,Xiaohua Su,Qinjun Huang. Effects of Genotype by Environment Interaction of 12 Populus×euramericana Clones in Their Early Growth [J]. Scientia Silvae Sinicae, 2020, 56(8): 63-72.
[12]	Yefan Cao,Laifa Wang,Xizhuo Wang,Jiehong Fan. Pathogenicity of Bursaphelenchus xylophilus to Larix olgensis Seedlings [J]. Scientia Silvae Sinicae, 2020, 56(11): 108-115.
[13]	Gao Huilin, Dong Lihu, Li Fengri. Crown Profile Prediction Model for Pinus sylvestris var. mongolica Plantation Based on Modified Kozak Model [J]. Scientia Silvae Sinicae, 2019, 55(8): 84-94.
[14]	Song Yue, Li Shujuan, Zhang Hanguo, Bai Xiaoming, Bi Xianyu, Dong Shiwei, Dong Hao. Establishment and Optimization of Embryogenic Callus Suspension Culture System of Larix [J]. Scientia Silvae Sinicae, 2018, 54(7): 146-154.
[15]	Jiang Dun, Xue Yi, Xu Zhiwen, Wang Jiabing, Meng Zhaojun, Yan Shanchun. Effects of Induced-Resistance of Larix olgensis by Sbraying Jasmonic Acid on Growth and Development of Lymantria dispar [J]. Scientia Silvae Sinicae, 2018, 54(1): 162-167.
