马尾松毛虫线粒体全基因组的测定与分析

doi:10.11707/j.1001-7488.20191217

Abstract

Abstract:

Objectve: In this study, we sequenced the mitochondrial genome of Dendrolimus punctatus, and analyzed the mitochondrial genome characteristics and the higher-level phylogenetic relationships in moths of Lepidoptera. Method: The complete genome sequence of the mitochondrial genome of D. punctatus was determined by Hiseq X Ten sequencer. The genes were located and annotated based on the known complete mitochondrial genomes of Lepidopteran species. The tRNA Scan-SE 2.0 was used to predict the secondary structure of the tRNA genes online. Based on the whole nucleotide sequence of mitochondrial genome, the phylogenetic relationships of 50 insect species from 11 families of Lepidoptera were reconstructed. Result: The results showed that the complete mitochondrial genome of D. punctatus was a circular molecule of 15 417 bp, including 13 protein-coding genes, 22 tRNA genes, 2 rRNA genes and one control region without gene rearrangement. Among the 13 protein-coding genes, amino acids of Phe, Leu, Ile, Tyr, and Asn (Count>290) were used more frequently, while Ala and Arg were uesd less frequently (Count < 50). In the use of its codon, except CGA as the starting codon of COI gene, the starting codons of the other genes were all typical ATN (ATA, ATT, ATG). The stop codon of COI、COII and ND4 was T, while that of the other genes was TAA. All tRNAs showed the classic clover-leaf structure, except that the dihydrouridine (DHU) arm of tRNA^Ser(AGN) formed a simple loop. The (A+T)-rich region contained some conserved structure including the motif ATAGAA, 14 bp ploy (T) stretch and two repeating units with a length of 13 bp and one (AT)₇ structure. The complete mitochondrial genome sequence and the nucleotide sequence of 13 protein-coding genes of D. punctatus were compared with other species of Dendrolimus genus, and the results showed that there was high homology between D.punctatus, D.wenshanensis, and D.tabulaeformis. Phylogenetic tree results show that D. punctatus is closely related with D. tabulaeformis, and D. spectabilis is closely related with D. kikuchii. Conclusion: The mitochondrial genes structure of D. punctatus are stable, the phylogenetic relationship of some species from Lepidoptera based on mitochondrial genome is consistent with the traditional morphological classification.

Key words: Lepidoptera, Lasiocampidae, Dendrolimus punctatus, mitochondrial genome, phylogeny

CLC Number:

S718.7

Huicong Du,Yao Wang,Jiaxing Fang,Zhenyin Zhang,Sufang Zhang,Fu Liu,Zhen Zhang,Xiangbo Kong. Sequencing and Analysis of the Complete Mitochondrial Genome of Dendrolimus punctatus (Lepidoptera: Lasiocampidae)[J]. Scientia Silvae Sinicae, 2019, 55(12): 162-172.

Figures/Tables 9

Fig.1

Table 1

Table 2

Fig.2

Fig.3

Fig.4

Table 3

Table 4

Fig.5

References 0

	蔡邦华, 侯陶谦, 宋士美. 松毛虫种间杂交及杂种生物学的初步观察. 昆虫学报, 1965. 14 (4): 347- 359.
	Cai B H , Hou T Q , Song S M . Preliminary observation on interspecific hybridization and hybrid biology of pine moth. Acta Entomologica Sinica, 1965. 14 (4): 347- 359.
	陈志腾, 杜予州. 昆虫线粒体基因组重排的研究进展. 环境昆虫学报, 2016. 38 (4): 843- 851.
	Chen Z T , Du Y Z . Rearrangement of mitochondrial genome in insects. Journal of Environmental Entomology, 2016. 38 (4): 843- 851.
	贾玉迪, 孔祥波, 张真, 等. 基于线粒体COI基因部分序列分析4种松毛虫的亲缘关系. 东北林业大学学报, 2011. 39 (11): 1- 5. doi: 10.3969/j.issn.1000-5382.2011.11.001
	Jia Y D , Kong X B , Zhang Z , et al. Taxonomic position of four species of pine caterpillar moths based on sequences analysis of COI Gene. Journal of Northeast Forestry University, 2011. 39 (11): 1- 5. doi: 10.3969/j.issn.1000-5382.2011.11.001
	孔祥波, 张真, 王鸿斌, 等. 枯叶蛾昆虫性信息素的研究进展. 林业科学, 2006. 42 (6): 115- 122.
	Kong X B , Zhang Z , Wang H B , et al. Investigation on sex pheromones in Lasiocampidae:Advance and prospect. Scientia Silvae Sinicae, 2006. 42 (6): 115- 122.
	林爱丽, 李欣欣, 赵新成, 等. 黑毛皮蠹线粒体基因组分析及皮蠹科系统发育分析. 昆虫学报, 2018. 61 (4): 477- 487.
	Lin A L , Li X X , Zhao X C , et al. Analysis of the mitochondrial genome of Attgenus unicolor japonicus (Coleoptera:Dermestidae) and a phylogenetic analysis of Dermestidae. Acta Entomologica Sinica, 2018. 61 (4): 477- 487.
	孙志鹏, 吕伟华, 匡友谊, 等. 玻璃缺鳍鲶线粒体全基因组序列测定与分析. 水产学杂志, 2018. 31 (2): 12- 19. doi: 10.3969/j.issn.1005-3832.2018.02.003
	Sun Z P , Lü W H , Kuang Y Y , et al. Sequencing and analysis of complete mitochondrial genome of catfish Kryptopterus vitreolus. Chinese Journal of Fisheries, 2018. 31 (2): 12- 19. doi: 10.3969/j.issn.1005-3832.2018.02.003
	王菊平, 曹天文, 张越, 等. 扬眉线蛱蝶线粒体基因组全序列测定和分析. 昆虫学报, 2017. 60 (8): 950- 961.
	Wang J P , Cao T W , Zhang Y , et al. Sequencing and analysis of the complete mitochondrial genome of Limenitis helmanni (Lepidoptera:Nymphalidae). Acta Entomologica Sinica, 2017. 60 (8): 950- 961.
	张爱兵, 孔祥波, 李典谟, 等. 中国松毛虫属八个种和亚种亲缘关系的DNA指纹证据. 昆虫学报, 2004. 47 (2): 236- 242. doi: 10.3321/j.issn:0454-6296.2004.02.017
	Zhang A B , Kong X B , Li D M , et al. DNA fingerprinting evidence for the phylogenetic relationship of eight species and subspecies of Dendrolimus(Lepidoptera:Lasiocampidae) in China. Acta Entomologica Sinica, 2004. 47 (2): 236- 242. doi: 10.3321/j.issn:0454-6296.2004.02.017
	张苏芳, 张真, 孔祥波, 等. 马尾松毛虫常灾区、偶灾区和无灾区松针挥发物特征. 林业科学, 2015. 51 (3): 170- 174.
	Zhang S F , Zhang Z , Kong X B , et al. Volatile characters of masson pine needles from Dendrolimus punctatus frequent outbreak area, occasional outbreak area, and non-outbreak area. Scientia Silvae Sinicae, 2015. 51 (3): 170- 174.
	赵清山, 邬文波, 吕国平, 等. 松毛虫的杂交遗传试验. 昆虫学报, 1992. 35 (1): 29- 32.
	Zhao Q S , Wu W B , Lü G P , et al. Hybridization experiments with two species of Dendrolimus. Acta Entomologica Sinica, 1992. 35 (1): 29- 32.
	赵清山, 邬文波, 吕国平, 等. 松毛虫种间杂交及其遗传规律的研究. 林业科学, 1999. 35 (4): 45- 50. doi: 10.3321/j.issn:1001-7488.1999.04.008
	Zhao Q S , Wu W B , Lü G P , et al. Study on cross heredity of pine caterpillars Dendrolimus spp. Scientia Silvae Sinicae, 1999. 35 (4): 45- 50. doi: 10.3321/j.issn:1001-7488.1999.04.008
	周夏芝, 王振兴, 余燕, 等. 马尾松毛虫幼虫高峰期发生量的预测模型研究. 应用昆虫学报, 2017. 54 (6): 1031- 1043.
	Zhou X Z , Wang Z X , Yu Y , et al. Comparison of model for forecasting peak abundance of Dendrolimus punctatus larvae. Chinese Journal of Applied Entomology, 2017. 54 (6): 1031- 1043.
	Boore J L . Animal mitochondrial genomes. Nucleic Acids Research, 1999. 27 (8): 1767- 1780. doi: 10.1093/nar/27.8.1767
	Boore J L , Lavrov D V , Brown W M . Gene translocation links insects and crustaceans. Nature, 1998. 392 (6677): 667- 668. doi: 10.1038/33577
	Cameron S L , Lambkin C L , Barker S C , et al. A mitochondrial genome phylogeny of Diptera:whole genome sequence data accurately resolve relationships over broad timescales with high precision. Systematic Entomology, 2007. 32 (1): 40- 59. doi: 10.1111/j.1365-3113.2006.00355.x
	Clary D O , Wolstenholme D R . Genes for cvtochrome c oxidase subunit I, URF2, and three tRNAs in Drosophila mitochondrial DNA. Nucleic Acids Research, 1983. 11 (19): 6859- 6872. doi: 10.1093/nar/11.19.6859
	De Brujin M H L . Drosophila melanogaster mitochondrial DNA, a novel organization and genetic code. Nature, 1983. 304 (5923): 234- 241. doi: 10.1038/304234a0
	Guindon S , Gascuel O . A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Mlecular Systems Biology, 2003. 52 (5): 696- 704. doi: 10.1080/10635150390235520
	Liu J H , Fu J Q , Yang L Y , et al. Complete mitochondrial genome of Simao pine caterpillar moth, Dendrolimus kikuchii(Lepidoptera:Lasiocampidae) and the related phylogenetic analysis. Mitochondrial DNA Part B, 2017. 2 (2): 611- 612. doi: 10.1080/23802359.2017.1372725
	Kim I , Lee E M , Seol K Y , et al. The mitochondrial genome of the Korean hairstreak, Coreana raphaelis (Lepidoptera:Lycaenidae). Insect Molecular Biology, 2006. 15 (2): 217- 225. doi: 10.1111/j.1365-2583.2006.00630.x
	Kim M J , Kim J S , Kim S S , et al. Complete mitochondrial genome of the pine moth Dendrolimus spectablis(Lepidoptera:Lasiocampidae). Mitochondrial DNA Part B, 2016. 1 (1): 180- 181. doi: 10.1080/23802359.2016.1149789
	Kononov A , Ustyantsev K , Wang B D , et al. Genetic diversity among eight Dendrolimus species in Eurasia (Lepidoptera:Lasiocampidae) inferred from mitochondrial COI and COII, and nuclear ITS2 markers. BMC Genetics, 2016. 17 (S3): 173- 182.
	Qin J , Zhang Y Z , Zhou X , et al. Mitochondrial phylogenomics and genetic relationship of closely related pine moth (Lasiocampidae:Dendrolimus) species in China, using whole mitochondrial genomes. BMC Genomics, 2015. 16 (1): 428- 439. doi: 10.1186/s12864-015-1566-5
	Ramirez-Rios V , Franco-Sierra N D , Alvarez J C , et al. Mitochondrial genome characterization of Tecia solanivora (Lepidoptera:Gelechiidae) and its phylogenetic relationship with other lepidopteran insects. Gene, 2016. 581, 107- 116. doi: 10.1016/j.gene.2016.01.031
	Song S N , Tang P , Wei S J , et al. Comparative and phylogenetic analysis of the mitochondrial genomes in basal hymenopterans. Scientific Report, 2016. 6, 20972. doi: 10.1038/srep20972
	Tamura K , Stecher G , Peterson D , et al. MEGA 6:molecular evolutionary genetics analysis version 6.0. Molecular Biology and Evolution, 2013. 30 (12): 2725- 2729. doi: 10.1093/molbev/mst197
	Wallace D C . Why do we still have a maternally inherited mitochondrial DNA? Insights from evolutionary medicine. Annual Review of Biochemistry, 2007. 76, 781- 821. doi: 10.1146/annurev.biochem.76.081205.150955
	Wang Q Q , Tang G H . Genomic and phylogenetic analysis of the complete mitochondrial DNA sequence of walnut leaf pest Paleosepharia posticata (Coleoptera:Chrysomeloidea). J Asia Pac Entomol, 2017. 20 (3): 840- 853. doi: 10.1016/j.aspen.2017.05.010

基因 Gene	方向 Direction	起始位置 Start position	终止位置 Stop position	长度 Length/bp	反密码子 Anticodon	起始密码子 Start codon	终止密码子 Stop codon	基因间隔 IGS/bp
trnM	F	1	67	67	CAT
trnI	F	75	135	61	GAT			7
trnQ	R	133	201	69	TTG			-3
ND2	F	260	1 267	1 008		ATT	TAA	58
trnW	F	1 266	1 334	69	TCA			-2
trnC	R	1 327	1 392	66	GCA			-8
trnY	R	1 393	1 460	68	GTA			0
COI	F	1 495	3 025	1 531		CGA	T	34
trnL2	F	3 026	3 092	67	TAA			0
COII	F	3 093	3 774	682		ATA	T	0
trnK	F	3 775	3 845	71	CTT			0
trnD	F	3 849	3 916	68	GTC			3
ATP8	F	3 917	4 078	162		ATT	TAA	0
ATP6	F	4 072	4 749	678		ATG	TAA	-7
COIII	F	4 764	5 552	789		ATG	TAA	14
trnG	F	5 555	5 620	66	TCC			2
ND3	F	5 621	5 974	354		ATG	TAA	0
trnA	F	5 974	6 040	67	TGC			-1
trnR	F	6 056	6 119	64	TCG			15
trnN	F	6 124	6 189	66	GTT			4
trnS1	F	6 201	6 268	68	GCT			11
trnE	F	6 268	6 332	65	TTC			-1
trnF	R	6 337	6 402	66	GAA			4
ND5	R	6 405	8 147	1 743		ATT	TAA	2
trnH	R	8 148	8 215	68	GTG			0
ND4	R	8 216	9 554	1 339		ATG	T	0
ND4L	R	9 579	9 872	294		ATG	TAA	24
trnT	F	9 880	9 943	64	TGT			7
trnP	R	9 944	10 008	65	TGG			0
ND6	F	10 017	10 547	531		ATA	TAA	8
CytB	F	10 552	11 700	1 149		ATG	TAA	4
trnS2	F	11 704	11 770	67	TGA			3
ND1	R	11 770	12 723	954		ATG	TAA	-1
trnL1	R	12 725	12 792	68	TAG			1
rrnL	R	12 793	14 253	1 461				0
trnV	R	14 254	14 318	65	TAC			0
rrnS	R	14 319	15 097	779				0

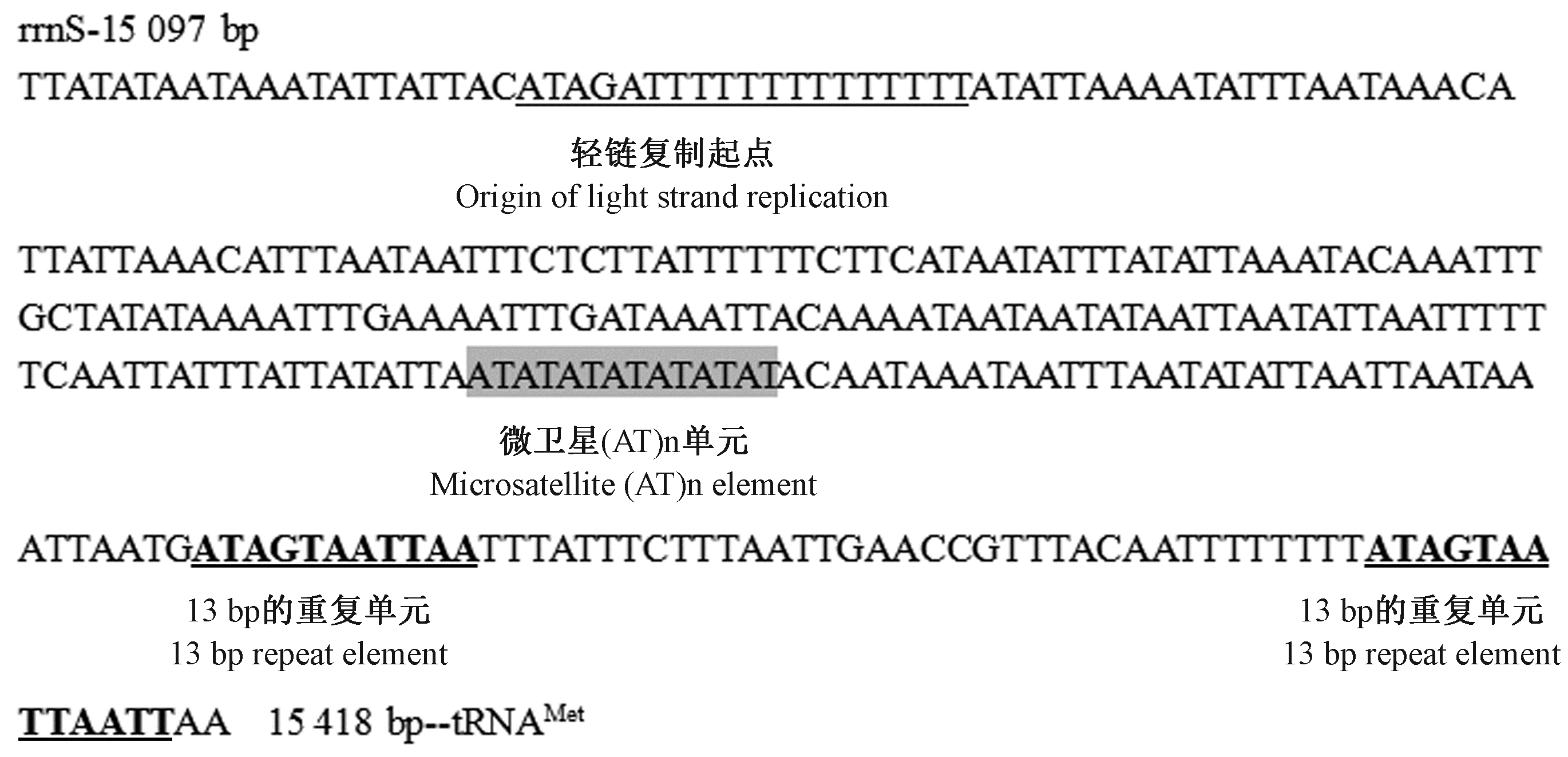

D-loop	F	15 098	15 417	320				0

基因序列 Gene sequences	T (%)	C (%)	A (%)	G (%)	A+T (%)	C+G (%)	AT偏斜 AT-skew	GC偏斜 GC-skew
全基因组Whole genome	38.6	12.5	41.0	7.9	79.6	20.4	0.030	-0.223
蛋白质编码基因Protein-coding genes	44.1	10.8	33.7	11.4	77.8	22.2	-0.134	-0.027
密码子第1位1^st codon site	45.7	9.1	35.6	9.6	81.3	18.7	-0.124	-0.024
密码子第2位2^nd codon site	41.9	11.2	34.0	12.9	75.9	24.1	-0.105	-0.070
密码子第3位3^rd codon site	44.8	12.1	31.4	11.7	76.2	23.8	-0.176	-0.028
tRNA基因tRNA genes	39.1	8.5	41.8	10.6	80.9	19.1	0.033	0.110
rRNA基因rRNA genes	43.7	4.3	41.2	10.8	84.9	15.1	-0.029	0.430
控制区Control region	49.4	5.0	42.8	2.8	92.2	7.8	-0.072	-0.282

物种Species	全基因组 Whole genome		PCG		tRNA		A+T-rich region		登录号 GenBank Accession No.
物种Species	大小 Size/bp	A+T (%)	大小 Size/bp	A+T (%)	大小 Size/bp	A+T (%)	大小 Size/bp	A+T (%)	登录号 GenBank Accession No.
马尾松毛虫D. punctatus	15 417	79.6	11 214	77.8	1 465	80.9	320	92.2	MK886799
文山松毛虫D. punctatus wenshanensis	15 418	79.4	11 214	77.6	1 468	81.0	320	92.5	KJ_913812
油松毛虫D. tabulaeformis	15 411	79.5	11 211	77.7	1 468	81.0	320	92.8	KJ_913817
思茅松毛虫D. kikuchii	15 370	78.8	11 211	77.0	1 473	80.7	319	92.5	KY_000412
落叶松毛虫D. superans	15 417	80.1	11 217	78.5	1 475	81.2	316	90.2	KY_000413
云南松毛虫D. houi	15 381	80.0	11 219	78.3	1 477	81.2	319	92.2	KJ_913817
赤松毛虫D. spectabilis	15 410	79.4	11 211	77.5	1 468	81.2	320	93.4	KJ_913816

物种 Species	马尾松毛虫 D. punctatus	文山松毛虫 D. punctatus wenshanensis	油松毛虫 D. tabulaeformis	思茅松毛虫 D. kikuchii	落叶松毛虫 D. superans	云南松毛虫 D. houi	赤松毛虫 D. spectabilis
马尾松毛虫D. punctatus	100.00	98.84	98.89	90.85	91.31	93.45	95.12
文山松毛虫D. punctatus wenshanensis	98.99	100.00	99.46	90.78	91.14	93.29	95.00
油松毛虫D. tabulaeformis	98.99	99.55	100.00	90.78	91.23	93.34	95.09
思茅松毛虫D. kikuchii	91.49	91.48	91.49	100.00	91.28	91.11	90.78
落叶松毛虫D. superans	91.75	91.66	91.71	91.85	100.00	91.86	91.41
云南松毛虫D. houi	93.84	93.76	93.79	91.73	92.36	100.00	93.38
赤松毛虫D. spectabilis	95.64	95.59	95.64	91.53	91.87	93.83	100.00
