抽提处理对泡桐木材声学振动性能的影响

doi:10.11707/j.1001-7488.20220217

摘要/Abstract

摘要：

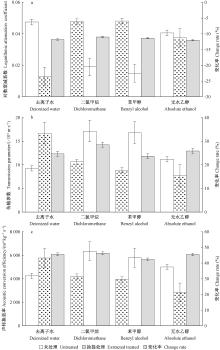

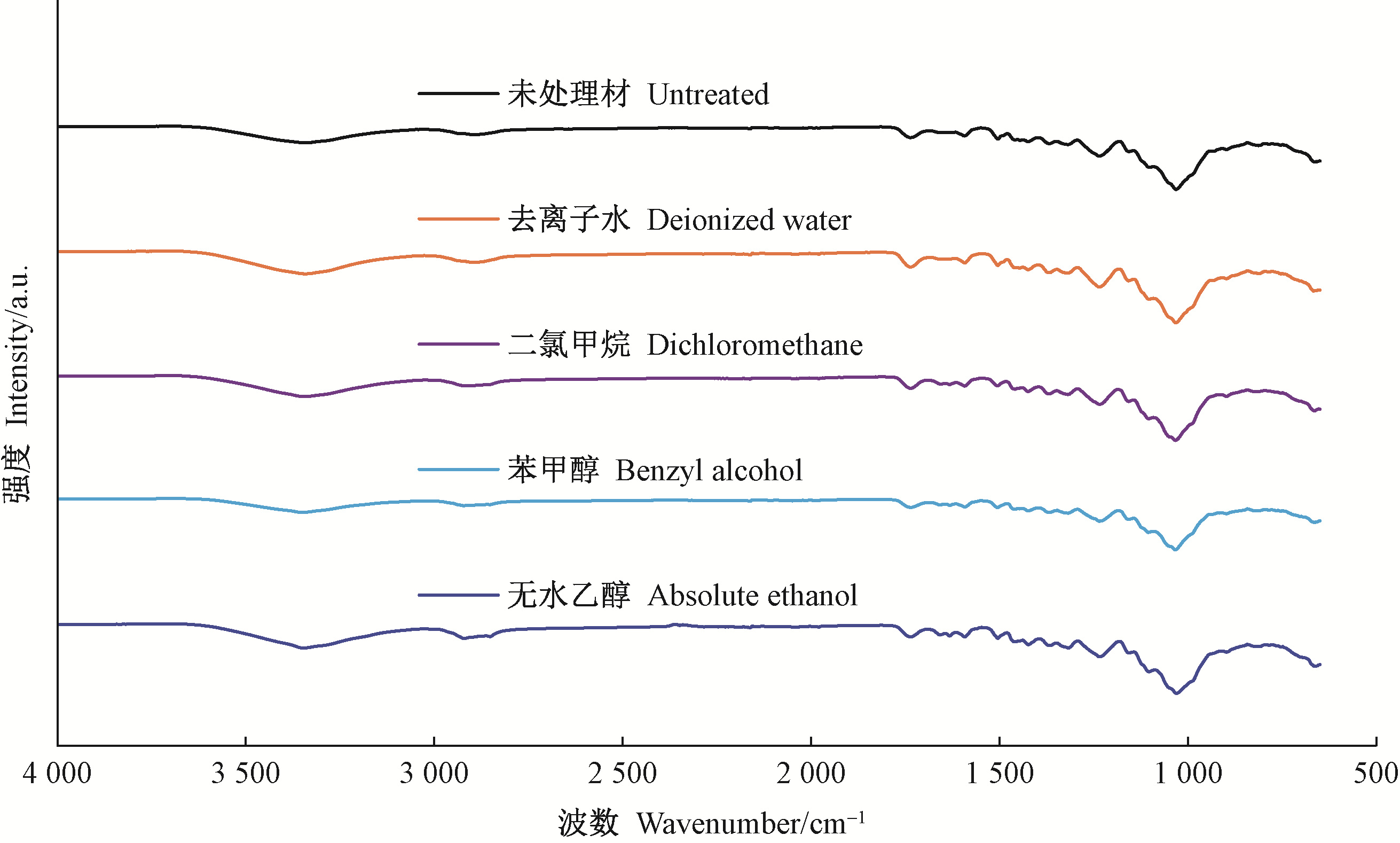

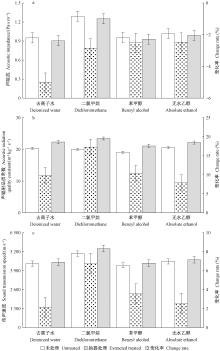

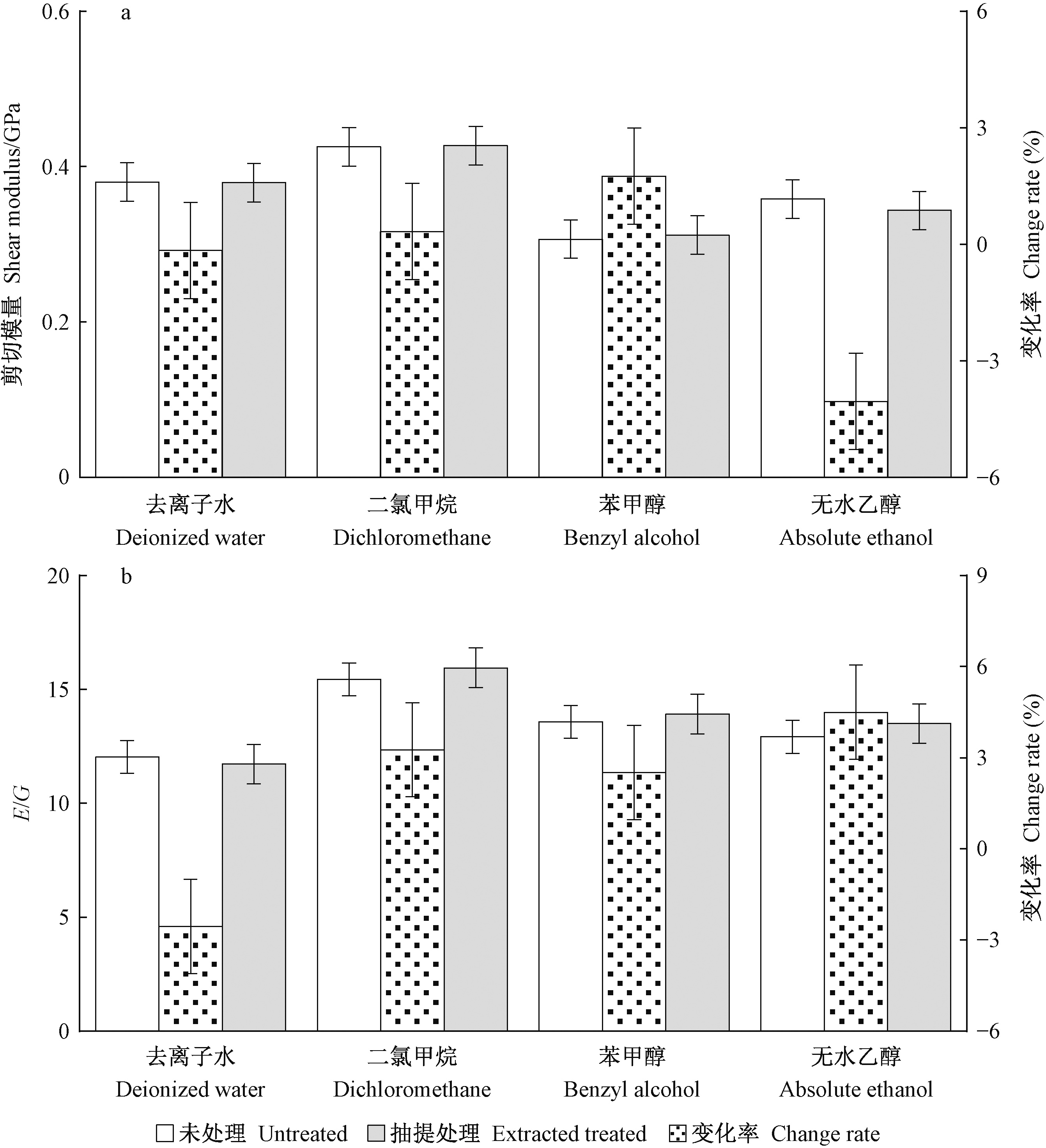

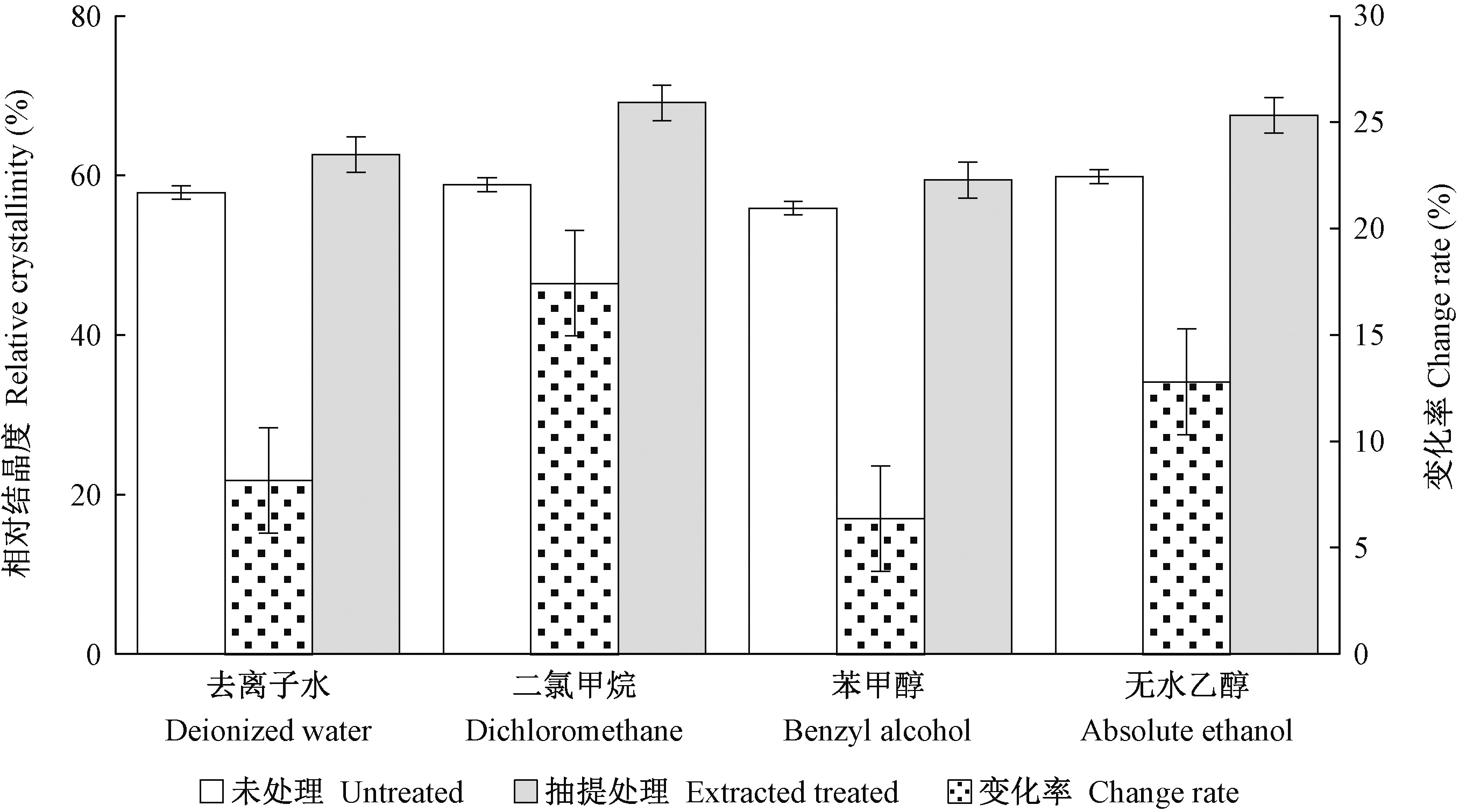

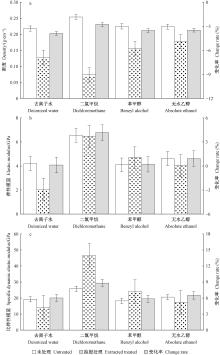

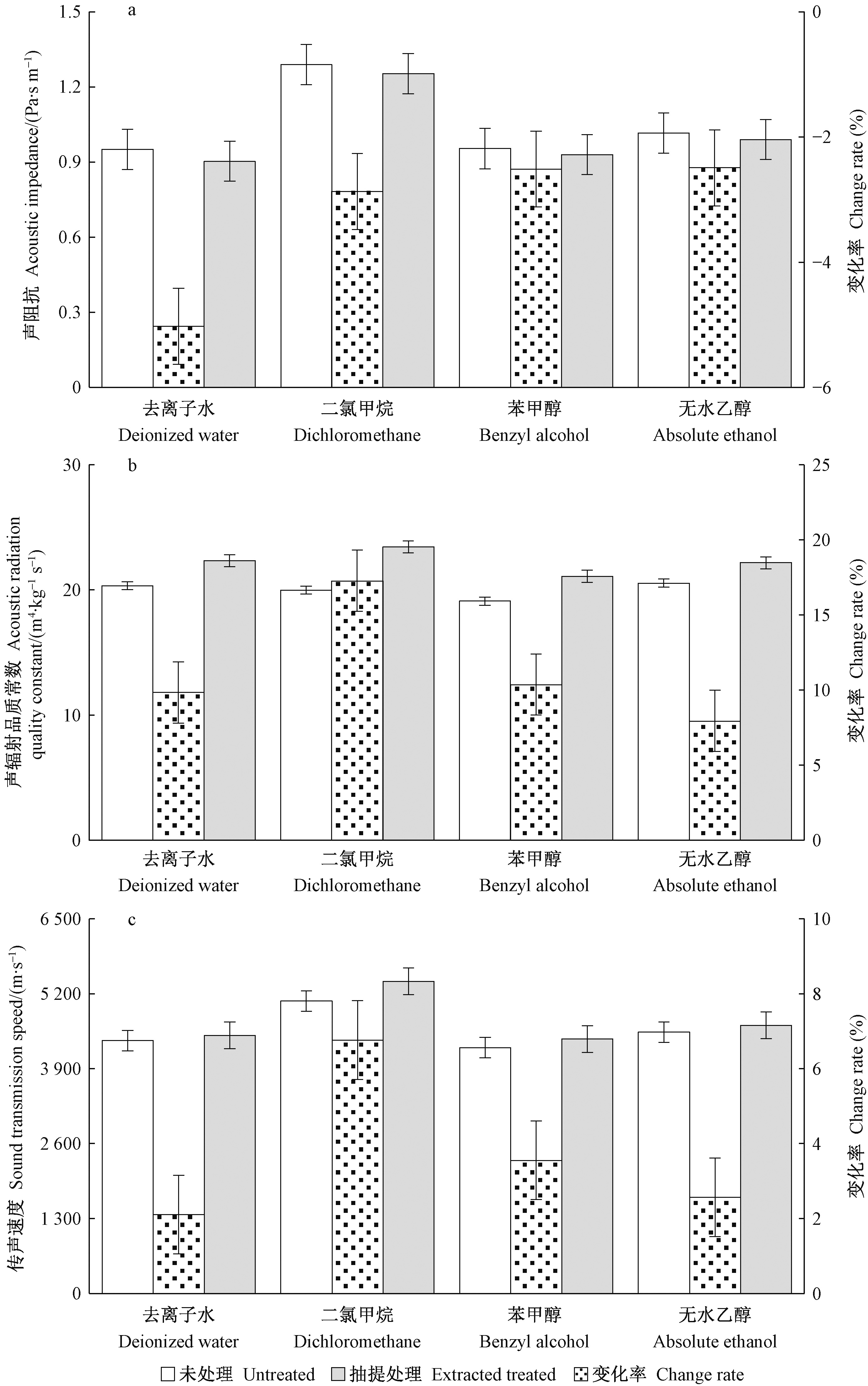

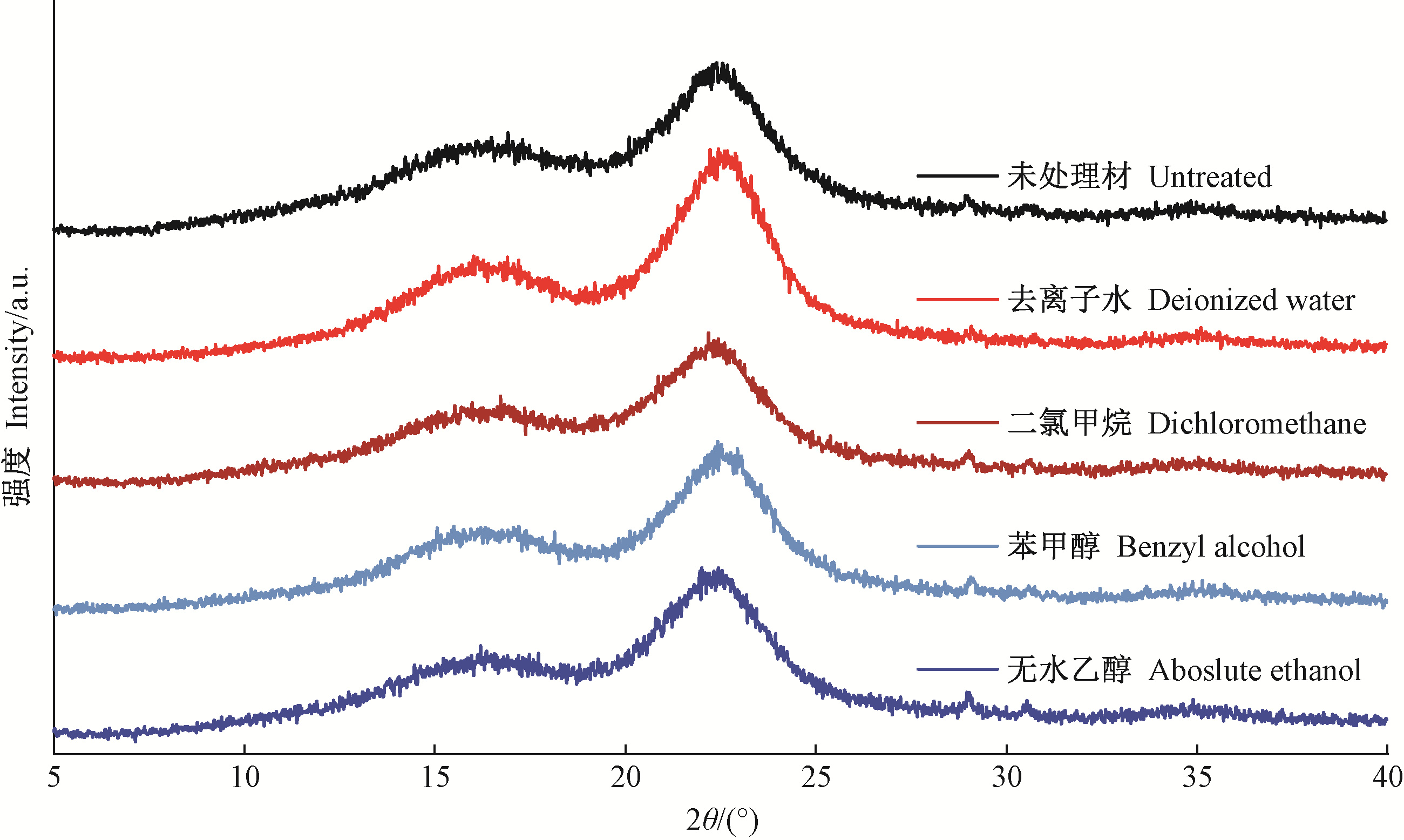

目的: 探究抽提处理对乐器用泡桐木材声学振动性能的影响，为木材声学品质改良提供理论依据，促进我国乐器产品声学品质提高，缓解乐器共鸣板用优质木材资源日益匮乏的局面。方法: 采用苯甲醇、去离子水、二氯甲烷和无水乙醇4种溶剂对泡桐木材进行15天的抽提处理，基于两端自由的弯曲振动方法，测定并分析抽提处理对木材弹性模量E、剪切模量G、比动弹性模量E/ρ、对数衰减系数σ、声阻抗ω、声辐射品质常数R、E/G、传声速度υ、传输参数υ/σ、声转换效率υ/(σ ·ρ)等声学振动性能参数的影响规律，并通过微观结构观察、红外光谱(FTIR)和X射线衍射(XRD)的变化，分析抽提处理对木材声学振动性能的影响机理。结果: 经去离子水、二氯甲烷、苯甲醇和无水乙醇抽提处理后，泡桐木材声学振动性能参数均发生变化。比动弹性模量E/ρ、声辐射品质常数R和传声速度υ平均增加7.67%、11.36%和3.75%，其中经二氯甲烷抽提处理的改善效果最佳，增幅分别为13.99%和17.28%和6.77%；声阻抗ω和对数衰减系数σ平均降低3.23%和19.42%，经去离子水抽提处理后其下降程度最大，降幅分别为-5.03%和-23.45%。从能量利用率来看，声转换效率υ/(σ ·ρ)和传输参数υ/σ平均提高38.89%和29.21%，其中经二氯甲烷抽提处理的改善效果最佳，增幅分别为47.66%和35.10%。抽提处理后泡桐木材红外光谱曲线未发生明显变化，仅羟基和半纤维素的吸收峰强度细微减弱。从木材微观结构看出，抽提处理后导管和纹孔更加清晰，并保留木材多孔性能。XRD分析表明，抽提处理未改变衍射峰位置，仅影响衍射峰强度，苯甲醇、去离子水、二氯甲烷和无水乙醇抽提处理后泡桐木材相对结晶度分别增加4.73%、10.25%、3.56%和7.66%，其中经二氯甲烷抽提处理的变化率最大，增大比率为17.42%。结论: 抽提处理可改善泡桐木材声学振动性能，但不同溶剂抽提处理的改善效果不同，总体来说，二氯甲烷、苯甲醇抽提处理的改善效果更优；不同溶剂对木材不同声学振动性能的改善效果也不尽相同，今后可考虑采取多种溶剂抽提结合的方式全面提升木材声学振动性能。

关键词: 抽提处理, 泡桐, 声学振动性能

Abstract:

Objective: This study was carried out to explore the influences of extraction treatments on the acoustic vibration performance of paulownia wood used for Chinese national musical instrument, with the aims to provide a theoretical basis for the improvement of wood acoustic quality, promote the improvement of acoustic quality of Chinese musical instrument products, and alleviate the increasingly scarce situation of high-quality wood resources for musical instrument soundboards. Method: Four solvents(benzyl alcohol, deionized water, dichloromethane and absolute ethanol) were used to extract paulownia wood for 15 days. Based on the free bending vibration method, the effects of extraction treatments on the acoustic vibration performance parameters such as elastic modulus E, shear modulus G, specific dynamic elastic modulus E/ρ, logarithmic attenuation coefficient σ, acoustic impedance ω, acoustic radiation quality constant R, E/G, sound transmission speed υ, transmission parameter υ/σ and acoustic conversion efficiency υ/(σ ·ρ) were measured and analyzed. The influence mechanisms of extraction treatments on acoustic vibration performances were analyzed by microstructure observation, infrared spectroscopy(FTIR) and X-ray diffraction(XRD). Result: Acoustic performance parameters of paulownia wood were changed after extracting by deionized water, dichloromethane, benzyl alcohol and absolute ethanol. The specific dynamic elastic modulus E/ρ, acoustic radiation quality constant R and sound transmission speed υ increased by 7.67%, 11.36% and 3.75%, respectively. The improvement effect of dichloromethane extraction treatment was the best, with an increase of 13.99%, 17.28% and 6.77%, respectively. The acoustic impedance ω and logarithmic attenuation coefficient σ decreased by 3.23% and 19.42%, on average. The maximum decrease was -5.03% and -23.45%, respectively, after deionized water extraction. From the perspective of energy utilization, the acoustic conversion efficiency υ/(σ ·ρ) and transmission parameter υ/σ increase by 38.89% and 29.21%, on average. The improvement effect of dichloromethane extraction treatment was the best, with an increase of 47.66% and 35.10%, respectively. The infrared spectrum curve of paulownia wood after extraction treatment did not change significantly, but the absorption peak intensity of hydroxyl and hemicellulose decreased slightly. It could be seen from the microstructure of wood that the ducts and pits of the specimens after extraction were clearer, and the porosity of wood was retained. XRD analysis showed that the extraction treatment did not change the diffraction peak position, only affected the intensity of the diffraction peak. The relative crystallinity of paulownia wood treated with benzyl alcohol, deionized water, dichloromethane and absolute ethanol increased by 4.73%, 10.25%, 3.56% and 7.66%, respectively. The change rate of dichloromethane extraction was the largest (17.42%). Conclusion: The acoustic vibration performance of paulownia wood can be improved with extraction treatment, but the degree of improvement is different with different solvent extraction treatments. Overall, the improvement effect of dichloromethane and benzyl alcohol extraction is better. Different solvents have different improvement effects on different acoustic vibration performance indexes of wood. In the future, a combination of two or more solvent extraction can be considered to improve the acoustic vibration performance of wood.

Key words: extraction treatment, paulownia, acoustical vibration characteristics

中图分类号:

S781.3

李瑞,苗媛媛,钱晓东,林斌,金祥龙,李慕之,刘镇波. 抽提处理对泡桐木材声学振动性能的影响[J]. 林业科学, 2022, 58(2): 171-181.

Rui Li,Yuanyuan Miao,Xiaodong Qian,Bin Lin,Xianglong Jin,Muzhi Li,Zhenbo Liu. Effect of Extraction Treatment on Acoustic Vibration Performance of Paulownia Wood[J]. Scientia Silvae Sinicae, 2022, 58(2): 171-181.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 0

	常德龙, 李芳东, 胡伟华, 等. 国内外泡桐木材市场分析与我国发展对策. 世界林业研究, 2018, 31 (1): 57- 62.
	Chang D L , Li F D , Hu W H , et al. Analysis on international and national paulownia wood market and its development strategy in China. World Forestry Research, 2018, 31 (1): 57- 62.
	刘一星, 沈隽, 刘镇波. 结晶度对云杉属木材声振动特性参数的影响. 东北林业大学学报, 2001, 29 (2): 4- 6. doi: 10.3969/j.issn.1000-5382.2001.02.002
	Liu Y X , Shen J , Liu Z B . The effect of crystallinity index on vibration properties of Picea wood. Journal of Northeast Forestry University, 2001, 29 (2): 4- 6. doi: 10.3969/j.issn.1000-5382.2001.02.002
	刘镇波, 刘一星. 乐器共鸣板用木材声学振动性能改良研究现状及趋势. 世界林业研究, 2012, 25 (1): 44- 48.
	Liu Z B , Liu Y X . Research status and prospect of acoustic vibration properties modification of wood used for soundboard. World Forestry Research, 2012, 25 (1): 44- 48.
	刘镇波, 刘一星, 于海鹏, 等. 我国民族乐器共鸣用木材声学品质的研究现状与发展趋势. 林业科学, 2010, 46 (8): 151- 156.
	Liu Z B , Liu Y X , Yu H P , et al. Present research situation and development trend of wood acoustical properties using for Chinese folk musical instruments. Scientia Silvae Sinicae, 2010, 46 (8): 151- 156.
	吕晓东, 苗媛媛, 林斌, 等. 层数与碳纤维方向对木质-碳纤维复合材料声学振动性能的影响. 林业工程学报, 2018, 3 (4): 96- 101.
	Lü X D , Miao Y Y , Lin B , et al. Study on acoustic vibration performance of wood-carbon fiber composite materials with different laying patterns. Journal of Forestry Engineering, 2018, 3 (4): 96- 101.
	秦丽丽, 苗媛媛, 刘镇波. 泡桐木材主要物理特征及化学组分对其声学振动性能的影响. 森林工程, 2017, 33 (4): 34- 39. doi: 10.3969/j.issn.1006-8023.2017.04.007
	Qin L L , Miao Y Y , Liu Z B . Influence of the main physical characteristics and components content of P. elongata on acoustic vibration performance. Forest Engineering, 2017, 33 (4): 34- 39. doi: 10.3969/j.issn.1006-8023.2017.04.007
	沙汀鸥. 2015. 髙温/超声波预处理对水杉振动性能影响的研究. 北京: 北京林业大学.
	Sha T O. 2015. Effects of thermal and ultrasound pre-treatments on vibrated properties of Metasequoia. Beijing: Beijing Forestry University. [in Chinese]
	沈隽, 刘一星, 田站礼, 等. 云杉属木材密度与声学特性参数之间关系的研究. 华中农业大学学报, 2001, 20 (2): 181- 184. doi: 10.3321/j.issn:1000-2421.2001.02.020
	Shen J , Liu Y X , Tian Z L , et al. Relationship between Picea genera wood density and sound characteristic parameters. Journal of Huazhong Agricaltural University, 2001, 20 (2): 181- 184. doi: 10.3321/j.issn:1000-2421.2001.02.020
	武亚峰, 黄文娟, 赵紫剑, 等. 不同溶剂抽提对杉木声学振动性能的影响. 林产工业, 2017, 44 (3): 21- 25.
	Wu Y F , Huang W J , Zhao Z J , et al. Effect of different extraction on sound vibration properties of Chinese fir. China Forest Products Industry, 2017, 44 (3): 21- 25.
	肖祥希, 陈正平, 林冠烽, 等. 油杉组分的提取及其化学组成分析. 福建林业科技, 2018, 45 (1): 25- 29.
	Xiao X X , Chen Z P , Lin G F , et al. The extraction of Keteleeria fortunei components and the analysis of Its chemical constituents. Journal of Fujian Forestry Science & Technology, 2018, 45 (1): 25- 29.
	尹玉雪, 苗媛媛, 万珂, 等. 基于Daubechies小波基的木材声学振动信号分析与评价. 林业工程学报, 2021, 6 (5): 68- 75.
	Yin Y X , Miao Y Y , Wan K , et al. Analysis and evaluation of wood acoustic vibration signal based on Daubechies wavelet base. Journal of Forestry Engineering, 2021, 6 (5): 68- 75.
	余德倩, 赵晨鹏, 翟胜丞, 等. 吸湿循环处理对常用乐器用材声学振动性能的影响. 林业工程学报, 2021, 6 (5): 61- 67.
	Yu D Q , Zhao C P , Zhai S C , et al. Effect of hygroscopic cycle treatment on acoustic vibration performance of different wood species for musical instruments. Journal of Forestry Engineering, 2021, 6 (5): 61- 67.
	周贤武, 邓丽萍, 王滋, 等. 沙柳的孔隙结构、微纤丝角和纤维素结晶度研究. 西北农林科技大学学报(自然科学版), 2018, 46 (1): 46- 50.
	Zhou X W , Deng L P , Wang Z , et al. Pore structure, microfibril angle and cellulose crystallinity of Salix psammophila. Journal of Northwest A & F University, 2018, 46 (1): 46- 50.
	朱玲静, 刘一星, 刘镇波, 等. 高温热处理对尾叶桉木材声学振动性能的影响. 广西林业科学, 2017, 46 (2): 140- 145. doi: 10.3969/j.issn.1006-1126.2017.02.004
	Zhu L J , Liu Y X , Liu Z B , et al. Effect of high-temperature heat treatment on the acoustic-vibration performance of Eucalyptus urophylla. Guangxi Forestry Science, 2017, 46 (2): 140- 145. doi: 10.3969/j.issn.1006-1126.2017.02.004
	庄琳, 宋小娇, 徐燕红. 水青树木材红外光谱特征研究. 湖北农业科学, 2017, 56 (7): 1334- 1339. 1334-1339, 1344
	Zhuang L , Song X J , Xu H Y . Study on the infrared spectral characteristic of Tetracetron sinense wood. Hubei Agricultrual Sciences, 2017, 56 (7): 1334- 1339. 1334-1339, 1344
	Brémaud I , Amusant N , Minato K , et al. Effect of extractives on vibrational properties of African padauk (Pterocarpus soyauxii Taub.). Wood Science and Technology, 2011, 45 (3): 461- 472. doi: 10.1007/s00226-010-0337-3
	Kubojima Y , Tonosaki M , Yoshihara H . Young's modulus obtained by flexural vibration test of a wooden beam with inhomogeneity of density. Journal of Wood Science, 2006, 52 (1): 20- 24. doi: 10.1007/s10086-005-0732-9
	Miao Y Y , Li R , Qian X D , et al. Effect of extraction on the acoustic vibrational properties of Picea jezoensis var. microsperma (Lindl.) W. C. Cheng & L. K. Fu. Annals of Forest Science, 2021, 78 (1): 1- 13. doi: 10.1007/s13595-020-01014-3
	Miao Y Y , Qin L L , Liu Z B , et al. Effects of furfurylation on acoustic vibration performance of Paulownia wood. BioResources, 2018, 13 (3): 6850- 6867.
	Ono T , Norimoto M . Study on Young's modulus and internal friction of wood in relation to the evaluation of wood for musical instruments. Limnology & Oceanography, 1983, 22 (4): 611- 614.
	Palm M , Zacchi G . Extraction of hemicellulosic oligosaccharides from spruce using microwave oven or steam treatment. Biomacromolecules, 2003, 4 (3): 617. doi: 10.1021/bm020112d
	Roohnia M , Kohantorabi M , Tajdini A . Maple wood extraction for a better acoustical performance. European Journal of Wood and Wood Products, 2015, 73 (1): 139- 142. doi: 10.1007/s00107-014-0871-z
	Traore B , Brancheriau L , Perre P , et al. Acoustic quality of vène wood (Pterocarpus erinaceus Poir.) for xylophone instrument manufacture in Mali. Annals of Forest Science, 2010, 67 (8): 815- 817. doi: 10.1051/forest/2010054
	Xu W , Wu Z , Zhang J . Effects of species and growth ring angles on acoustic performance of wood as resonance boards. Wood & Fiber Science, 2014, 46 (3): 412- 420.
	Yang Y , Liu Y , Liu Z , et al. Prediction of Yueqin acoustic quality based on soundboard vibration performance using support vector machine. Journal of Wood Science, 2016, 63 (1): 1- 8.
