马尾松早/晚材管胞和纺锤形木射线的湿胀−干缩行为

doi:10.11707/j.1001-7488.LYKX20250484

摘要/Abstract

摘要：

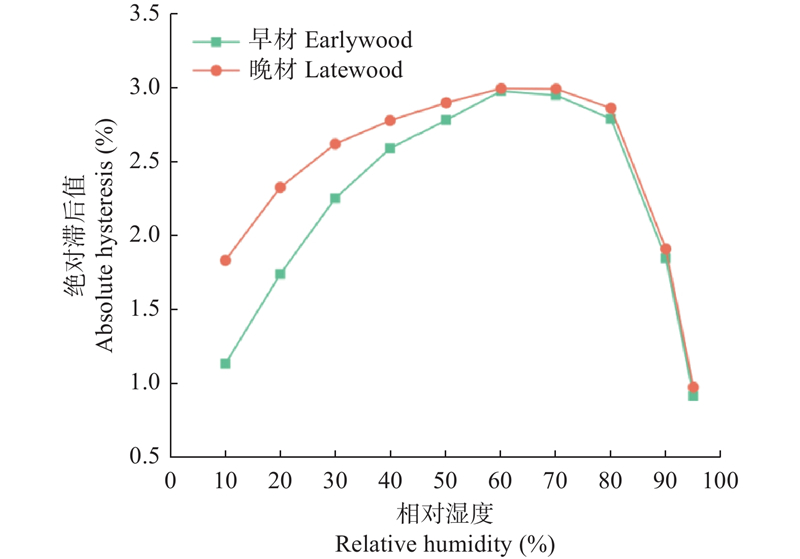

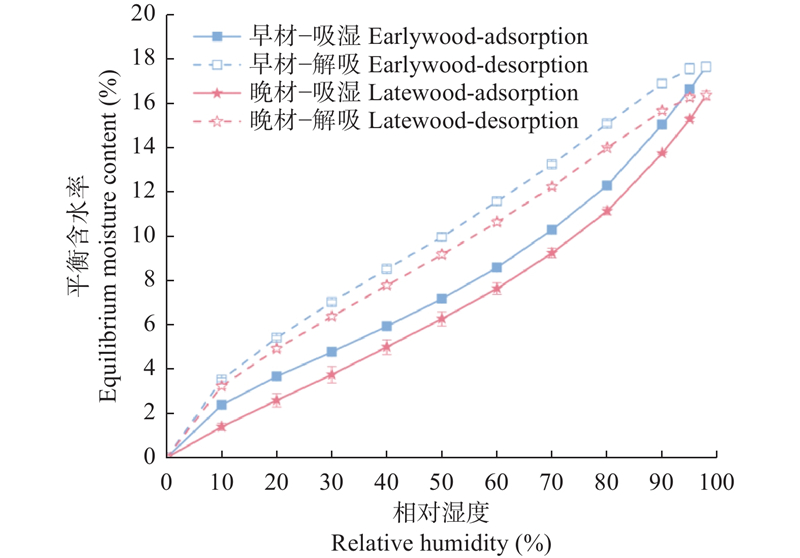

目的: 实时、同步测定马尾松同一生长轮内早/晚材的水分吸附等温线及其管胞和纺锤形木射线的截面积和轴、径、弦3个主方向的尺寸变化比率，揭示早/晚材管胞和纺锤形木射线的湿胀?干缩行为规律，为指导含脂松树木材的高效加工与利用提供重要理论依据。方法: 以马尾松同一生长轮内早材和晚材为研究对象，利用动态水分吸附分析仪联用视频白光显微镜，在0~98%相对湿度范围内进行试验：在水分吸着?解吸阶段，同步测定早/晚材的水分吸附等温线及其管胞和纺锤形木射线的截面积和轴、径、弦3个主方向的尺寸变化比率；在平衡含水率恒定阶段，考察尺寸变化比率与平衡含水率之间是否存在滞后现象。应用无水乙醇抽提方法、美国国家可再生能源实验室方法、X射线衍射仪和全自动压汞仪分别测定早材和晚材的含树脂率、化学组分含量、微纤丝角和孔隙率。结果: 1）与早材相比，同一生长轮内晚材具有较高的含树脂率、纤维素和半纤维素含量，较低的微纤丝角、孔隙率和木质素含量；2）在任一相对湿度，早材平衡含水率均大于晚材；在98%相对湿度时，早材和晚材平衡含水率分别为17.65%和16.36%；3）早材和晚材的绝对滞后值均随相对湿度升高呈先增大后减小的变化趋势，以60%相对湿度为拐点；相较于早材，晚材具有更明显的吸湿滞后现象；4）早/晚材管胞和纺锤形木射线各参数的尺寸变化比率均随相对湿度升高/降低而增大/减小，其中管胞截面积变化比率最大，在98%相对湿度时，早材和晚材管胞截面积变化比率分别为1.117和1.181；无论是弦向还是轴向，纺锤形木射线在早材和晚材之间的尺寸变化比率关系与管胞相反；5）早/晚材管胞和纺锤形木射线各参数的湿胀滞后值均随相对湿度升高呈先增大后减小的变化趋势，以60%相对湿度为拐点，与绝对滞后值的变化规律相同；相较于早材，晚材管胞和纺锤形木射线具有更明显的湿胀滞后现象；6）早/晚材管胞和纺锤形木射线各参数在平衡含水率恒定阶段的尺寸变化比率与水分吸着?解吸阶段相比低4个数量级。结论: 相较于早材，树脂含量对晚材水分等温吸附行为影响更大；相较于木质素，半纤维素对绝对滞后值影响更显著；纺锤形木射线湿胀?干缩行为受周围管胞的抑制作用；相较于平衡含水率，孔隙率对湿胀滞后值影响更显著；早/晚材管胞和纺锤形木射线各参数达到含水率平衡态的时间点与尺寸变化比率恒定的时间点一致，即不存在时间滞后现象。

关键词: 马尾松, 早材, 晚材, 管胞, 纺锤形木射线, 湿胀?干缩, 滞后

Abstract:

Objective: The moisture sorption isotherms and dimensional change ratio in sectional area and the longitudinal, radical and tangential directions of tracheid and fusiform wood ray in earlywood (EW) and latewood (LW) in the same growth ring of Pinus massoniana (masson pine) were real-timely and synchronously investigated. This study aims to reveal the wet swelling-dry shrinkage behavior of EW and LW, providing an important theoretical basis for guiding the efficient processing and utilization of resin-containing pine wood. Method: The same growth ring of masson pine was used as the research object. The experiment was conducted in the range of 0–98% relative humidity by using Dynamic Vapor Sorption Resolution combined with a video Dino X Lite Digital Microscope. During the adsorption-desorption period, the moisture sorption isotherm and dimensional change ratio in sectional area and the longitudinal, radical and tangential directions of tracheid and fusiform wood ray were synchronously measured. During the period of constant equilibrium moisture content (EMC), whether there was hysteresis between dimensional change ratio and EMC or not was investigated. In addition, the resin content, chemical components, microfibril angle, and porosity of EW and LW were tested using anhydrous ethanol extraction method, National Renewable Energy Laboratory method, X-ray diffractometer, and automatic mercury porosimeter, respectively. Result: 1) Compared to EW, LW had a higher resin content, cellulose and hemicellulose content, as well as lower microfibril angle, porosity and lignin content. 2) Under any RH condition, the EMC of EW was greater than that of LW. At 98% RH, the EMC of EW and LW was 17.65% and 16.36%, respectively. 3) The absolute hysteresis of EW and LW increased first and then decreased with the increase of RH, with 60% RH as the inflection point. Compared with EW, LW had a more obvious absorption hysteresis phenomenon. 4) The dimensional change ratio of tracheid and fusiform wood ray in EW and LW increased/decreased with the increase/decrease of RH. The area change ratio of tracheid was the largest. At 98% RH, the area change ratio of tracheid in EW and LW were 1.117 and 1.181, respectively. Regardless of the tangential or longitudinal direction, the relationship of the dimensional change ratio of fusiform wood ray between EW and LW was opposite to that of tracheid. 5) The wet swelling hysteresis of tracheid and fusiform wood ray in EW and LW first increased and then decreased with the increase of RH, with 60% RH as the inflection point, which was consistent with the change pattern of the absolute hysteresis. Compared with EW, LW tracheid and fusiform wood ray exhibited more pronounced hysteresis in wet swelling. 6) The dimensional change ratio of tracheid and fusiform wood ray in EW and LW during the EMC constant period was four orders of magnitude lower than that in the moisture adsorption-desorption period. Conclusion: Compared to EW, the resin content has a greater effect on the water vapor isothermal sorption behavior of LW. The effect of hemicellulose on absolute hysteresis is greater than that of lignin. The dry shrinking/wet swelling behavior of fusiform wood ray is inhibited by the surrounding tracheid. Compared with EMC, the porosity has a more significant effect on the wet swelling hysteresis. The time point at which the parameters of tracheid and fusiform wood ray in EW and LW reach the equilibrium content is consistent with the time point at which the dimensional change ratio is constant, that is, there is no time hysteresis.

Key words: Pinus massoniana, earlywood (EW), latewood (LW), tracheid, fusiform wood ray, swelling-shrinkage, hysteresis

中图分类号:

S781

都亚敏,李珠,蒋佳荔,殷方宇,黄鹤. 马尾松早/晚材管胞和纺锤形木射线的湿胀−干缩行为[J]. 林业科学, 2026, 62(7): 165-175.

Yamin Du,Zhu Li,Jiali Jiang,Fangyu Yin,He Huang. Wet Swelling and Dry Shrinkage Behavior of Tracheid and Fusiform Wood Ray in Earlywood and Latewood of Pinus massoniana[J]. Scientia Silvae Sinicae, 2026, 62(7): 165-175.

图/表 13

图1

图2

图3

表1

图4

图5

图6

表2

图7

图8

图9

图10

图11

参考文献 0

	曹惠敏, 殷方宇, 周永东, 等. 预蒸处理对辐射松脱脂效果及干燥质量的影响. 木材科学与技术, 2023, 37 (5): 69- 76. doi: 10.12326/j.2096-9694.2023066
	Cao H M, Yin F Y, Zhou Y D, et al. Effect of pre-steaming on deresination rate and drying quality of radiata pine lumber. Chinese Journal of Wood Science and Technology, 2023, 37 (5): 69- 76. doi: 10.12326/j.2096-9694.2023066
	丁　涛, 王长菊, 彭文文. 基于拉曼光谱分析的热处理松木吸湿机理研究. 林业工程学报, 2016, 1 (5): 15- 19. doi: 10.13360/j.issn.2096-1359.2016.05.003
	Ding T, Wang C J, Peng W W. A theoretical study of moisture sorption behavior of heat-treated pine wood using Raman spectroscopic analysis. Journal of Forestry Engineering, 2016, 1 (5): 15- 19. doi: 10.13360/j.issn.2096-1359.2016.05.003
	高玉磊. 2019. 高温热处理杉木的吸湿吸水性变化规律及其机理研究. 北京: 中国林业科学研究院.
	Gao Y L. 2019. Study on the changes and its mechanism of moisture adsorption and absorption properties of high temperature heat treated Chinese fir wood. Beijing: Chinese Academy of Forestry. ［in Chinese］
	胡　拉, 徐慧兰, 谭健晖, 等. 马尾松木材材性特点及加工利用研究. 世界林业研究, 2018, 31 (1): 40- 45.
	Hu L, Xu H L, Tan J H, et al. Research progress in wood property characteristic of masson pine and its processing and utilization. World Forestry Research, 2018, 31 (1): 40- 45.
	蒋金成, 李　璟, 张镜元, 等. 油蜡热处理对木材物理性能及尺寸稳定性的影响. 森林工程, 2024, 40 (1): 106- 113. doi: 10.3969/j.issn.1006-8023.2024.01.012
	Jiang J C, Li J, Zhang J Y, et al. Effect of oil wax heat treatment on physical properties and dimensional stability of wood. Forest Engineering, 2024, 40 (1): 106- 113. doi: 10.3969/j.issn.1006-8023.2024.01.012
	李　珠, 殷方宇, 蒋佳荔, 等. 杉木应压木和对应木的水分吸附特性比较研究. 木材科学与技术, 2022, 36 (5): 37- 42.
	Li Z, Yin F Y, Jiang J L, et al. Comparative studies on water vapor sorption characteristics between compression wood and opposite wood of Chinese fir. Chinese Journal of Wood Science and Technology, 2022, 36 (5): 37- 42.
	刘人源, 曾珠亮, 李　权. 涂饰对贵州民族木结构建筑用材表面色差及防腐性能的影响. 森林工程, 2023, 39 (3): 100- 106. doi: 10.3969/j.issn.1006-8023.2023.03.012
	Liu R Y, Zeng Z L, Li Q. The effect of finishing treatment on the surface color difference and decay resistance performance of national wooden structure building materials in Guizhou Province. Forest Engineering, 2023, 39 (3): 100- 106. doi: 10.3969/j.issn.1006-8023.2023.03.012
	刘晓玲, 杨章旗, 陈松武, 等. 马尾松木材改性研究现状. 广西林业科学, 2022, 51 (2): 285- 289. doi: 10.19692/j.issn.1006-1126.202202019
	Liu X L, Yang Z Q, Chen S W, et al. Research status of Pinus massoniana modification. Guangxi Forestry Science, 2022, 51 (2): 285- 289. doi: 10.19692/j.issn.1006-1126.202202019
	马润航, 王耀博, 韩馥蔓, 等. 抽提物对二翅豆木材颜色及尺寸稳定性的影响. 森林工程, 2025, 42 (1): 55- 64. doi: 10.7525/j.issn.1006-8023.2026.01.006
	Ma R H, Wang Y B, Han F M, et al. Effect of extractives on color and properties of Dipteryx odorata wood. Forest Engineering, 2025, 42 (1): 55- 64. doi: 10.7525/j.issn.1006-8023.2026.01.006
	欧阳白. 2020. 楸木生长轮内早材与晚材干缩/湿胀行为研究. 北京: 中国林业科学研究院.
	Ouyang B. 2020. A study on the shrinkage/swelling behavior in earlywood and latewood of the same growth ring of Catalpa bungei. Beijing: Chinese Academy of Forestry. ［in Chinese］
	王　东. 2020. 顺纹拉伸和弯曲作用下的木材破坏机理研究. 南京: 南京林业大学.
	Wang D. 2020. Wood fracture mechanisms under longitudinal tensile and bend loading. Nanjing: Nanjing Forestry University. ［in Chinese］
	谢茹胜, 刘　健, 龙敏南. NREL法测定大米草原料组分的含量. 井冈山大学学报(自然科学版), 2016, 37 (5): 43- 46. doi: 10.3969/j.issn.1674-8085.2016.05.009
	Xie R S, Liu J, Long M N. Determination of Spartina anglica stock components by NREL method. Journal of Jinggangshan University (Natural Science), 2016, 37 (5): 43- 46. doi: 10.3969/j.issn.1674-8085.2016.05.009
	杨利梅, 刘杏娥, 江泽慧, 等. 单叶省藤材水分吸附特性. 林业科学, 2021, 57 (7): 150- 157.
	Yang L M, Liu X E, Jiang Z H, et al. Water adsorption characteristics of Calamus simplicifolius cane. Scientia Silvae Sinicae, 2021, 57 (7): 150- 157.
	殷方宇, 都亚敏, 李　珠, 等. 楸木不同类型组织的湿胀-干缩行为. 林业科学, 2024, 60 (7): 105- 116. doi: 10.11707/j.1001-7488.LYKX20220705
	Yin F Y, Du Y M, Li Z, et al. Shrinkage and swelling behavior of different types of tissues in Catalpa bungei wood. Scientia Silvae Sinicae, 2024, 60 (7): 105- 116. doi: 10.11707/j.1001-7488.LYKX20220705
	张乃华, 李　康, 李延军, 等. 高温水热处理对马尾松木材物理力学性能的影响. 浙江林业科技, 2017, 37 (5): 35- 41. doi: 10.3969/j.issn.1001-3776.2017.05.006
	Zhang N H, Li K, Li Y J, et al. Effect of high temperature hydrothermal treatment on physical and mechanical properties of Pinus massoniana wood. Journal of Zhejiang Forestry Science and Technology, 2017, 37 (5): 35- 41. doi: 10.3969/j.issn.1001-3776.2017.05.006
	Carmeliet J, Van Den Abeele K. Poromechanical approach describing the moisture influence on the non-linear quasi-static and dynamic behaviour of porous building materials. Materials and Structures, 2004, 37 (4): 271- 280. doi: 10.1007/BF02480635
	Cramer S, Kretschmann D, Lakes R, et al. Earlywood and latewood elastic properties in loblolly pine. Holzforschung, 2005, 59 (5): 531- 538. doi: 10.1515/HF.2005.088
	Derome D, Kulasinski K, Zhang C, et al. 2018. Using modeling to understand the hygromechanical and hysteretic behavior of the S₂ cell wall layer of wood. Plant biomechanics: from structure to function at multiple scales. Cham: Springer International Publishin, 247−269.
	Derome D, Griffa M, Koebel M, et al. Hysteretic swelling of wood at cellular scale probed by phase-contrast X-ray tomography. Journal of Structural Biology, 2011, 173 (1): 180- 190. doi: 10.1016/j.jsb.2010.08.011
	Dong F, Olsson A M, Salmén L. Fibre morphological effects on mechano-sorptive creep. Wood Science and Technology, 2010, 44 (3): 475- 483. doi: 10.1007/s00226-009-0300-3
	Engelund E T, Thygesen L G, Svensson S, et al. A critical discussion of the physics of wood-water interactions. Wood Science and Technology, 2013, 47 (1): 141- 161. doi: 10.1007/s00226-012-0514-7
	Hæggström E. Ultrasonic study on hysteresis in modulus of elasticity in Norway spruce as a function of year ring. AIP Conference Proceedings, 2006, 820 (1): 1366- 1369. doi: 10.1063/1.2184683
	Hou S Y, Wang J Y, Yin F Y, et al. Moisture sorption isotherms and hysteresis of cellulose, hemicelluloses and lignin isolated from birch wood and their effects on wood hygroscopicity. Wood Science and Technology, 2022, 56 (4): 1087- 1102. doi: 10.1007/s00226-022-01393-y
	Joffre T, Isaksson P, Dumont P J J, et al. A method to measure moisture induced swelling properties of a single wood cell. Experimental Mechanics, 2016, 56 (5): 723- 733. doi: 10.1007/s11340-015-0119-9
	Ma E, Nakao T, Zhao G J, et al. Relation between moisture sorption and hygroexpansion of sitka spruce during adsorption processes. Wood and Fiber Science, 2010, 42 (3): 304- 309.
	Ma L Y, Meng Q L, Jiang X M, et al. Spatial organization and connectivity of wood rays in Pinus massoniana xylem based on high-resolution μCT-assisted network analysis. Planta, 2023, 258 (2): 28. doi: 10.1007/s00425-023-04185-1
	Nopens M, Riegler M, Hansmann C, et al. Simultaneous change of wood mass and dimension caused by moisture dynamics. Scientific Reports, 2019, 9, 10309. doi: 10.1038/s41598-019-46381-8
	Ouyang B, Yin F Y, Li Z, et al. Study on the moisture-induced swelling/shrinkage and hysteresis of Catalpa bungei wood across the growth ring. Holzforschung, 2022, 76 (8): 711- 721. doi: 10.1515/hf-2021-0222
	Patera A, Van den Bulcke J, Boone M N, et al. Swelling interactions of earlywood and latewood across a growth ring: global and local deformations. Wood Science and Technology, 2018, 52 (1): 91- 114. doi: 10.1007/s00226-017-0960-3
	Patera A, Derome D, Griffa M, et al. Hysteresis in swelling and in sorption of wood tissue. Journal of Structural Biology, 2013, 182 (3): 226- 234. doi: 10.1016/j.jsb.2013.03.003
	Siau J F. 2012. Transport processes in wood. Berlin: Springer Science & Business Media.
	Yin F Y, Jiang J L, Sheng S X, et al. Properties of Catalpa bungei (Bignoniaceae) earlywood and latewood in the same growth ring during moisture adsorption/desorption: swelling and shrinkage at the cell level. IAWA Journal, 2023, 45 (2): 195- 212. doi: 10.1163/22941932-bja10138
	Zhan T Y, Lyu J X, Eder M. In situ observation of shrinking and swelling of normal and compression Chinese fir wood at the tissue, cell and cell wall level. Wood Science and Technology, 2021, 55 (5): 1359- 1377. doi: 10.1007/s00226-021-01321-6
	Zillig W. 2009. Moisture transport in wood using a multiscale approach. Belgium: Katholieke Universiteit Leuven PhD thesis.

化学组分Chemical components	早材Earlywood	晚材Latewood
纤维素含量Cellulose content	41.50	43.80
半纤维素含量Hemicellulose content	21.80	23.70
木质素含量Lignin content	30.00	27.40

试样编号Sample number	早材Earlywood	晚材Latewood
1	9.42	8.41
2	9.17	8.35
3	9.26	8.82
微纤丝角均值MFA average/（°）	9.28 ± 0.13	8.52 ± 0.26
