含水率和温度对兴安落叶松木材声−超声参数的影响

doi:10.11707/j.1001-7488.LYKX20250013

摘要/Abstract

摘要：

目的: 探究含水率和温度对兴安落叶松木材声?超声参数的影响规律，为木材声?超声无损检测技术的应用提供理论基础和科学依据。方法: 在不同含水率（6%、12%、24%和85%）和不同温度（?20 ℃、0 ℃、20 ℃和40 ℃）条件下，测量兴安落叶松木材无疵小试样的超声波波速、峰值电压、均方根电压和频率形心4个声?超声参数，比较各声?超声参数在不同含水率和温度下的差异显著性和变化，分析含水率和温度对木材声?超声参数的影响及原因。结果: 1）含水率和温度对波速、峰值电压、均方根电压和频率形心均有显著影响（P<0.05），且含水率和温度的交互影响极显著（P<0.001）；2） 0 ℃、20 ℃和40 ℃时，波速、峰值电压和均方根电压随含水率升高呈降低趋势；?20 ℃时，随含水率升高，波速呈降低趋势，峰值电压、均方根电压和频率形心变化趋势不明显、变化幅度较小；3） ?20 ℃、0 ℃、20 ℃和40 ℃温度条件下，6%、12%、24%含水率之间的频率形心差异较小，均显著高于含水率85%时的频率形心；4） 6%、12%、24%含水率条件下，温度对波速、峰值电压、均方根电压和频率形心的影响均较小；85%含水率条件下，?20 ℃时，峰值电压、均方根电压和频率形心显著高于其他温度时的声?超声参数，0 ℃、20 ℃和40 ℃温度条件下峰值电压、均方根电压和频率形心之间的差异性均不显著，且?20 ℃、0 ℃、20 ℃和40 ℃温度条件下波速之间的差异性也均不显著（P>0.05）。结论: 1）对饱水兴安落叶松木材，?20 ℃时，水的结冰显著增强超声波的传播能力，与0 ℃、20 ℃和40 ℃温度相比，峰值电压、均方根电压和频率形心显著增加，但波速变化不显著；纤维饱和点以下的兴安落叶松木材，温度对超声波在木材中的传播影响很小；2）温度大于等于0 ℃时，由于水的黏滞作用，含水率对超声波在木材中的传播速度和能量衰减影响显著，波速、峰值电压和均方根电压随含水率升高而降低；?20 ℃时，随含水率升高，波速呈降低趋势，但由于水的相态变化，含水率对超声波在木材中的传播能量无显著影响，峰值电压和均方根电压变化幅度较小；3）温度大于等于0 ℃时，木材含水率低于纤维饱和点的情况下含水率对频率形心的影响很小，木材含水率高于纤维饱和点的情况下细胞腔内大量自由水导致超声波信号中的高频成分衰减，其频率形心显著降低；?20 ℃时，含水率对频率形心无显著影响。

关键词: 兴安落叶松, 无损检测, 含水率, 温度, 声?超声参数

Abstract:

Objective: This study aims to explore the influence of moisture content (MC) and temperature (T) on acousto-ultrasonic (AU) parameters of Larix gmelinii wood in order to provide theoretical basis and scientific basis for the application of acousto-ultrasonic nondestructive testing technology in wood research field. Method: Four acousto-ultrasonic parameters including wave velocity (V), amplitude voltage (A), root mean square voltage (RMS), frequency-centroid (FC) of small clear specimens of L. gmelinii were measured under four moisture content levels (6%, 12%, 24%, 85%) and four temperature levels (?20 ℃, 0 ℃, 20 ℃, 40 ℃). The significance of difference and changes of each AU parameter under different moisture content and temperature conditions were compared, the influence of moisture content and temperature on different acoustic-ultrasonic parameters of wood and the reasons were analyzed. Result: 1) Moisture content and temperature had significant effects on each acousto-ultrasonic parameter of wave velocity, amplitude voltage, root mean square voltage and frequency centroid (P<0.05), and the interaction between moisture content and temperature was extremely significant (P<0.001). 2) The wave velocity, amplitude voltage and root mean square voltage decreased with the increase of moisture content at the temperature of 0 ℃, 20 ℃ and 40 ℃. The wave velocity decreased with the increase of moisture content, but the change trend of amplitude voltage, root mean square voltage and frequency-centroid was not obvious and the change range was small at the temperature of ?20 ℃. 3) The difference of the frequency-centroid among the moisture content of 6%, 12% and 24% was small, and the frequency-centroid of the moisture content of 6%, 12% and 24% were all significantly higher than that of the moisture content of 85% at the temperature of ?20 ℃, 0 ℃, 20 ℃ and 40 ℃. 4) Temperature had little effect on wave velocity, amplitude voltage, root mean square voltage and frequency-centroid at the moisture content of 6%, 12% and 24%. The amplitude voltage, root mean square voltage and frequency-centroid at the temperature of ?20 ℃ were significantly higher than those at other temperatures, the differences among amplitude voltage, root mean square voltage and frequency-centroid at the temperature of 0 ℃, 20 ℃ and 40 ℃ were not significant, and there was no significant difference in wave velocity at the temperature of ?20 ℃, 0 ℃, 20 ℃ and 40 ℃ (P>0.05) at the moisture content of 85%. Conclusion: 1）For saturated larch wood, the water freezing significantly enhances the propagation ability of ultrasonic wave at the temperature of ?20 ℃. The amplitude voltage, root mean square voltage and frequency-centroid at the temperature of ?20 ℃ increases significantly compared with the temperature of 0 ℃, 20 ℃ and 40 ℃, but the change of wave velocity is not significant. For larch wood below fiber saturation point, temperature has little effect on ultrasonic wave propagation in wood. 2) When the temperature is greater than or equal to 0 ℃, moisture content has a significant effect on the propagation velocity and energy attenuation of ultrasonic wave in wood due to the viscosity of water, and the wave velocity, amplitude voltage and root mean square voltage decrease with the increase of moisture content. The wave velocity also tends to decrease with the increase of moisture content at the temperature of ?20 ℃. However, the moisture content has no significant effect on the propagation energy of ultrasonic wave in wood due to the phase change of water, and the change amplitude of amplitude voltage and root mean square voltage is small. 3) When the temperature is above or equal to 0 ℃, the influence of moisture content on the frequency-centroid is very small if the moisture content of wood is lower than the fiber saturation point, while the frequency-centroid decreases significantly if the moisture content of wood is higher than the fiber saturation point, because a large amount of free water in the cell cavity leads to the attenuation of high-frequency components in the ultrasonic signal. Moisture content has no significant effect on frequency-centroid atthe temperature of ?20 ℃.

Key words: Larix gmelinii, nondestructive testing, moisture content, temperature, acousto-ultrasonic (AU) parameters

中图分类号:

S781

张训亚,虞华强,殷亚方,姜笑梅. 含水率和温度对兴安落叶松木材声−超声参数的影响[J]. 林业科学, 2026, 62(1): 156-163.

Xunya Zhang,Huaqiang Yu,Yafang Yin,Xiaomei Jiang. Effect of Moisture Content and Temperature on Acousto-Ultrasonic Parameters of Larix gmelinii Wood[J]. Scientia Silvae Sinicae, 2026, 62(1): 156-163.

图/表 9

表1

图1

图2

表2

表3

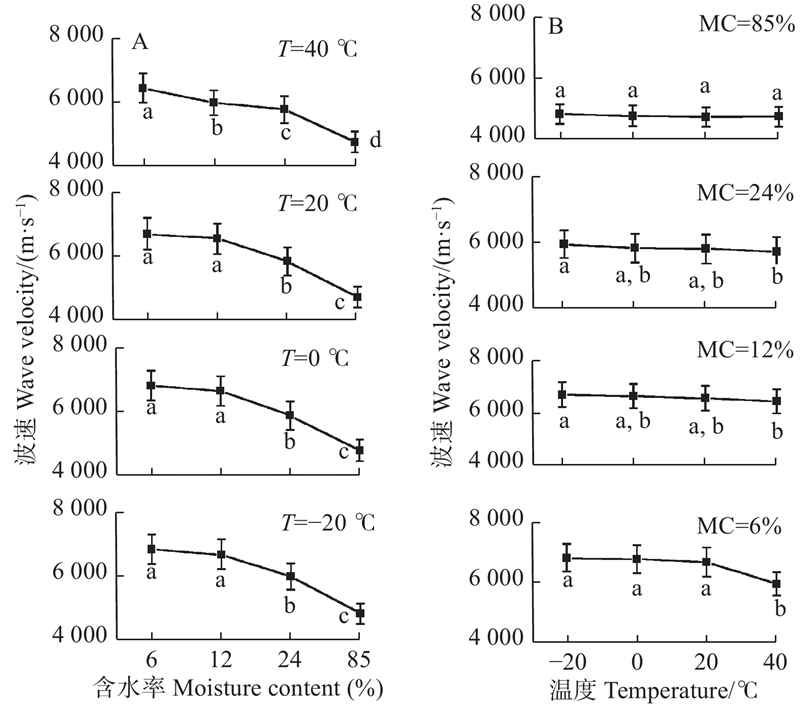

图3

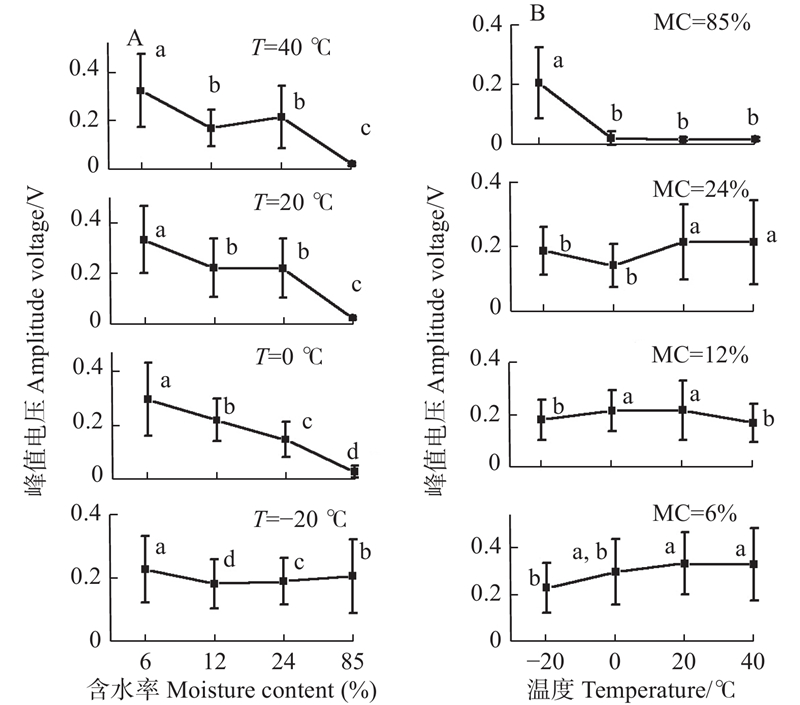

图4

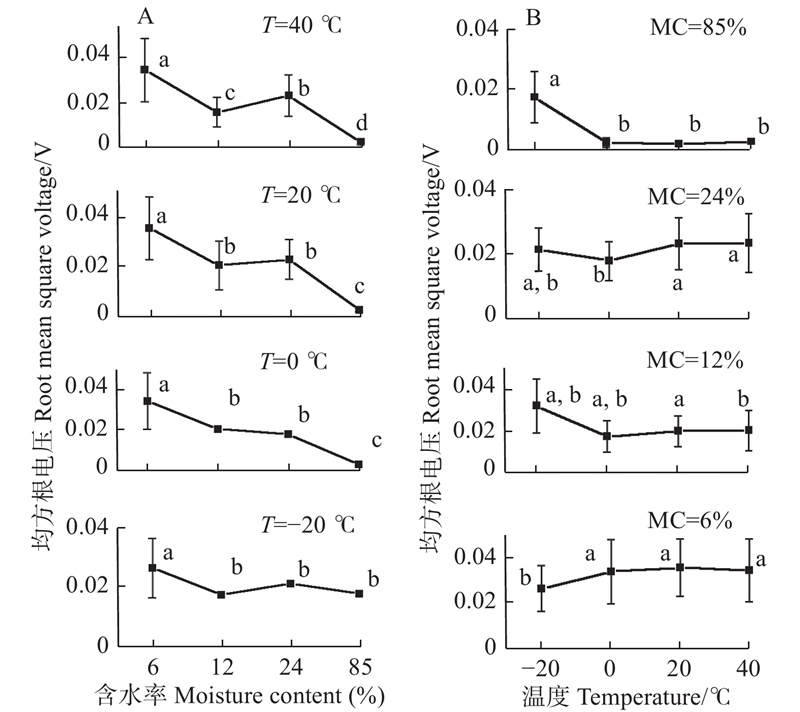

图5

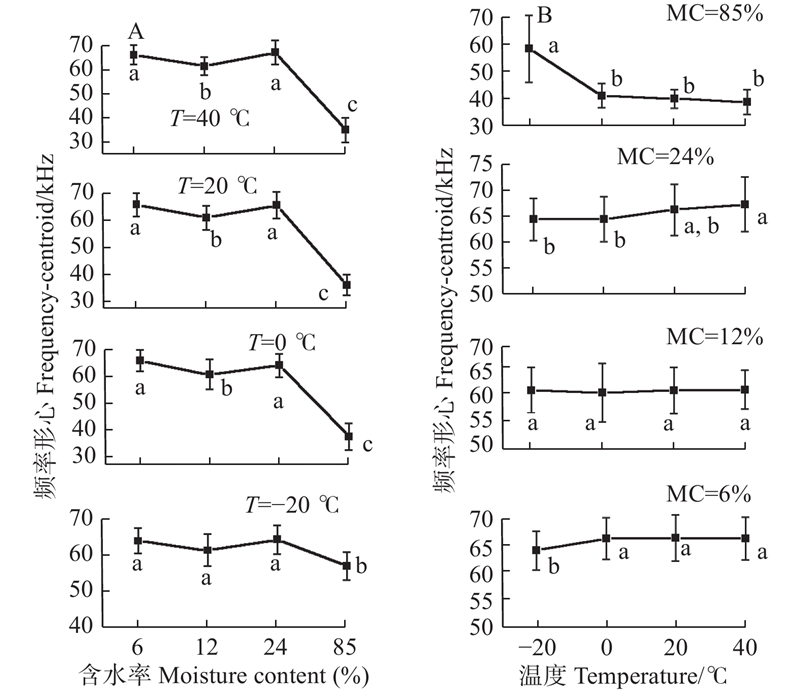

图6

参考文献 0

	成俊卿. 1985. 木材学. 北京: 中国林业出版社.
	Cheng J Q. 1985. Wood science. Beijing: China Forestry Publishing House. ［in Chinese］
	成俊卿, 杨家驹, 刘　鹏. 1992. 中国木材志. 北京: 中国林业出版社.
	Cheng J Q, Yang J J, Liu P. 1992. China woods. Beijing: China Forestry Publishing House. ［in Chinese］
	丁馨曾, 赵海龙, 申珂楠, 等. 声发射技术在木材干燥中的应用与发展. 西北林学院学报, 2015, 30 (3): 242- 244,292.
	Ding X Z, Zhao H L, Shen K N, et al. Application of acoustic emission technique in wood drying. Journal of Northwest Forestry University, 2015, 30 (3): 242- 244,292.
	刘　昊, 高建民. 含水率和密度对木材应力波传播速度的影响. 北京林业大学学报, 2014, 36 (6): 154- 158.
	Liu H, Gao J M. Effects of moisture content and density on the stress wave velocity in wood. Journal of Beijing Forestry University, 2014, 36 (6): 154- 158.
	彭　辉, 蒋佳荔, 詹天翼, 等. 木材密度和含水率对其轴向超声波传播速度的影响. 林业科学, 2016, 52 (10): 117- 124.
	Peng H, Jiang J L, Zhan T Y, et al. Influence of density and moisture content on ultrasound velocities along the longitudinal direction in wood. Scientia Silvae Sinicae, 2016, 52 (10): 117- 124.
	申珂楠, 赵海龙, 丁馨曾, 等. 声发射技术在木材加工领域的应用. 世界林业研究, 2015, 28 (1): 56- 60.
	Shen K N, Zhao H L, Ding X Z, et al. Application of acoustic emission in wood processing. World Forestry Research, 2015, 28 (1): 56- 60.
	Sandoz J L, 殷亚方, Benoit Y, 等. 木材声学-超声波分等检测技术及工业应用. 木材工业, 2007, 21 (6): 27- 30.
	Sandoz J L, Yin Y F, Benoit Y, et al. An acousto-ultrasonic timber grading and inspection technology and industrial applications. China Wood Industry, 2007, 21 (6): 27- 30.
	王千雪, 韩大校, 申方圆, 等. 大兴安岭兴安落叶松天然林结构特征. 温带林业研究, 2019, 2 (1): 47- 53.
	Wang Q X, Han D X, Shen F Y, et al. Structure characters of Larix gmelinii natural forest in Daxing’an Mountain. Journal of Temperate Forestry Research, 2019, 2 (1): 47- 53.
	徐华东, 王立海. 温度和含水率对红松木材中应力波传播速度的影响. 林业科学, 2011, 47 (9): 123- 128.
	Xu H D, Wang L H. Effects of moisture content and temperature on propagation velocity of stress waves in Korean pine wood. Scientia Silvae Sinicae, 2011, 47 (9): 123- 128.
	杨慧敏, 王立海. 木材缺陷与超声检测参数相关性及影响因素. 东北林业大学学报, 2015, 43 (8): 114- 116.
	Yang H M, Wang L H. Correlation and influencing factors between wood defect and ultrasonic propagation parameters. Journal of Northeast Forestry University, 2015, 43 (8): 114- 116.
	叶克林, 吕建雄, 殷亚方. 我国高强度结构材加工利用技术的研究进展. 木材工业, 2009, 23 (1): 4- 6.
	Ye K L, Lü J X, Yin Y F. R & D of dimension lumber processing and application in China. China Wood Industry, 2009, 23 (1): 4- 6.
	周　崟, 姜笑梅. 1990. 中国裸子植物材的木材解剖学及超微构造. 北京: 中国林业出版社.
	Zhou Y, Jiang X M. 1990. Wood anatomy and ultrastructure of gymnospermous woods in China. Beijing: China Forestry Publishing House. ［in Chinese］
	周　竹, 尹建新, 周素茵, 等. 基于近红外光谱技术的针叶材板材表面节子缺陷检测. 浙江农林大学学报, 2017, 34 (3): 520- 527.
	Zhou Z, Yin J X, Zhou S Y, et al. Knot detection on coniferous wood surfaces based on near infrared spectroscopy. Journal of Zhejiang A & F University, 2017, 34 (3): 520- 527.
	张训亚, 姜笑梅, 吕　斌, 等. 声−超声技术评价兴安落叶松规格材的抗弯性质. 林业科学, 2014, 50 (10): 94- 98.
	Zhang X Y, Jiang X M, Lü B, et al. Evaluation of bending properties of larch dimension lumber with acousto-ultrasonic technique. Scientia Silvae Sinicae, 2014, 50 (10): 94- 98.
	张训亚, 姜笑梅, 殷亚方. 不同方向落叶松木材声−超声参数特征及其与密度关系研究. 木材加工机械, 2017, 28 (4): 24- 28. doi: 10.13594/j.cnki.mcjgjx.2017.04.006
	Zhang X Y, Jiang X M, Yin Y F. Study on acousto-ultrasonic parameters of larch wood in different directions and its density relationship. Wood Processing Machinery, 2017, 28 (4): 24- 28. doi: 10.13594/j.cnki.mcjgjx.2017.04.006
	Beall F C, Reis H, Senalik A, et al. Ultrasonic nondestructive evaluation of wood and wood products-past, present and future. Pro Ligno, 2013, 9 (4): 540- 546.
	Beall F C. Overview of the use of ultrasonic technologies in research on wood properties. Wood Science and Technology, 2002, 36 (3): 197- 212. doi: 10.1007/s00226-002-0138-4
	Brashaw B K, Bucur V, Divos F, et al. 2009. Nondestructive testing and evaluation of wood: a worldwide research update. Forest Product Journal, 59(3): 7−14.
	Chan J M, Walker J C, Raymond C A. Effects of moisture content and temperature on acoustic velocity and dynamic MOE of radiata pine sapwood boards. Wood Science and Technology, 2011, 45 (4): 609- 626. doi: 10.1007/s00226-010-0350-6
	de Oliveira F G R, Candian M, Lucchette F F, et al. Moisture content effect on ultrasonic velocity in Goupia glabra. Materials Research, 2005, 8 (1): 11- 14. doi: 10.1590/S1516-14392005000100004
	El-Hadad A, Brodie G I, Ahmed B S. The effect of wood condition on sound wave propagation. Open Journal of Acoustics, 2018, 8 (3): 37- 51. doi: 10.4236/oja.2018.83004
	Gao S, Wang X P, Wang L H, et al. 2012. Effect of temperature on acoustic evaluation of standing trees and logs: part 1-laboratory investigation. Wood and Fiber Science, 44(3): 286−297.
	Gao S, Wang X P, Wang L H, et al. 2013. Effect of temperature on acoustic evaluation of standing trees and logs: part 2-field investigation. Wood and Fiber Science, 45(1): 15−25.
	Gerhards C. Effect of moisture content and temperature on the mechanical properties of wood: an analysis of immediate effects. Wood and Fiber Science, 1982, 14 (1): 4- 36.
	Han C L. Bending strength and acousto-ultrasonic characterization of Japanese Cedar exposed to the outdoors. Turkish Journal of Agriculture and Forestry, 2004, 2 (1): 95- 109.
	Kang H, Booker R E. Variation of stress wave velocity with MC and temperature. Wood Science and Technology, 2002, 36 (1): 41- 54. doi: 10.1007/s00226-001-0129-x
	Karsulovic J T, León L A, Gaete L. Ultrasonic detection of knots and annual ring orientation in Pinus radiata lumber. Wood and Fiber Science, 2000, 32 (3): 278- 286.
	Llana D F, Íñiguez-González G, Martínez R D, et al. Influence of timber moisture content on wave time-of-flight and longitudinal natural frequency in coniferous species for different instruments. Holzforschung, 2018, 72 (5): 405- 411. doi: 10.1515/hf-2017-0113
	Pommier R, Breysse D, Dumail J F. Non-destructive grading of green Maritime pine using the vibration method. European Journal of Wood and Wood Products, 2013, 71 (5): 663- 673. doi: 10.1007/s00107-013-0727-y
	Quarles S L. The effect of moisture content and ring angle on the propagation of acoustic signals in wood. Journal of Acoustic Emission, 1990, 9 (3): 189- 195.
	Sakai H, Minamisawa A, Takagi K. Effect of moisture content on ultrasonic velocity and attenuation in woods. Ultrasonics, 1990, 28 (6): 382- 385. doi: 10.1016/0041-624X(90)90060-2
	Sandoz J L. Moisture content and temperature effect on ultrasound timber grading. Wood Science and Technology, 1993, 27 (5): 373- 380.
	Tejedor B, Lucchi E, Bienvenido-Huertas D, et al. Non-Destructive Techniques (NDT) for the diagnosis of heritage buildings: traditional procedures and futures perspectives. Energy & Buildings, 2022, 263 (5): 112029.
	Watanabe K, Kobayashi I, Saito S, et al. Nondestructive evaluation of drying stress level on wood surface using near-infrared spectroscopy. Wood Science and Technology, 2013, 47 (2): 299- 315. doi: 10.1007/s00226-012-0492-9
	Yang H M, Yu L, Wang L H. Effect of moisture content on the ultrasonic acoustic properties of wood. Journal of Forestry Research, 2015, 26 (3): 753- 757. doi: 10.1007/s11676-015-0079-z
	Yang T H, Wang S Y, Lin C J, et al. Evaluation of the mechanical properties of Douglas-fir and Japanese cedar lumber and its structural glulam by nondestructive techniques. Construction and Building Materials, 2008, 22 (4): 487- 493. doi: 10.1016/j.conbuildmat.2006.11.012
	Zhou Z, Yin J X, Zhou S Y, et al. Detection of knot defects on coniferous wood surface using near infrared spectroscopy and chemometrics. BioResources, 2016, 11 (4): 9533- 9546.

平衡含水率 Equilibrium moisture contents（%）	干球温度 Dry bulb temperature/℃	湿球温度 Wet bulb temperature/℃	相对湿度 Relative humidity（%）
24	40	39.7	96.5
24	20	19.6	95.1
12	40	34.0	69.1
12	20	16.5	65.0
6	40	28.5	31.9
6	20	12.6	28.8

含水率 Moisture content (%)	温度 Temperature /℃	波速 Wave velocity/(m·s^--1)		峰值电压 Amplitude voltage/V		均方根电压 Root mean square voltage/V		频率形心 Frequency-centroid/kHz
含水率 Moisture content (%)	温度 Temperature /℃	平均值 Mean	标准偏差 Standard deviation	平均值 Mean	标准偏差 Standard deviation	平均值 Mean	标准偏差 Standard deviation	平均值 Mean	标准偏差 Standard deviation
6	?20	6 833	469	0.225	0.106	0.027	0.010	64.147	3.574
6	0	6 791	470	0.292	0.138	0.034	0.014	66.385	3.877
6	20	6 686	495	0.328	0.133	0.036	0.013	66.490	4.309
6	40	6 412	462	0.323	0.153	0.035	0.014	66.411	3.963
	合计Total	6 566	578	0.292	0.139	0.033	0.013	65.858	4.033
12	?20	6 670	474	0.179	0.078	0.018	0.008	61.538	4.451
12	0	6 619	467	0.214	0.080	0.020	0.008	61.118	5.727
12	20	6 538	473	0.216	0.116	0.021	0.010	61.577	4.514
12	40	5 955	391	0.167	0.076	0.016	0.007	61.674	3.779
	合计Total	6 560	476	0.189	0.104	0.019	0.008	61.477	4.640
24	?20	5 973	421	0.187	0.073	0.021	0.007	64.469	4.084
24	0	5 850	439	0.141	0.066	0.018	0.006	64.540	4.324
24	20	5 827	436	0.214	0.117	0.023	0.008	66.326	4.924
24	40	5 745	429	0.213	0.130	0.023	0.009	67.369	5.207
	合计Total	5 849	436	0.065	0.101	0.007	0.008	65.676	4.782
85	?20	4 807	316	0.204	0.117	0.018	0.009	57.163	13.875
85	0	4 749	334	0.020	0.022	0.003	0.002	37.711	4.986
85	20	4 713	323	0.016	0.005	0.003	0.001	36.381	3.897
85	40	4 724	327	0.017	0.006	0.003	0.001	35.116	5.102
	合计Total	5 932	874	0.185	0.136	0.020	0.013	41.612	12.094

项目 Item	独立变量 Dependent variable	自由度 Degree of freedom	F值 F value	显著性 Significance
温度 Temperature	波速 Wave velocity	3	27.18	<0.001
	峰值电压Amplitude voltage	3	4.28	<0.001
	均方根电压Root mean square voltage	3	2.91	0.03
	频率形心Frequency-centroid	3	30.76	<0.001
含水率 Moisture content	波速Wave velocity	3	809.75	<0.001
	峰值电压Amplitude voltage	3	174.62	<0.001
	均方根电压Root mean square voltage	3	302.76	<0.001
	频率形心Frequency-centroid	3	861.61	<0.001
温度×含水率 Temperature×moisture content	波速Wave velocity	9	8.72	<0.001
	峰值电压Amplitude voltage	9	20.66	<0.001
	均方根电压Root mean square voltage	9	18.46	<0.001
	频率形心Frequency-centroid	9	52.68	<0.001
