基于改进像元三分模型的植被覆盖度提取及时空变化分析

doi:10.11707/j.1001-7488.LYKX20230469

摘要/Abstract

摘要：

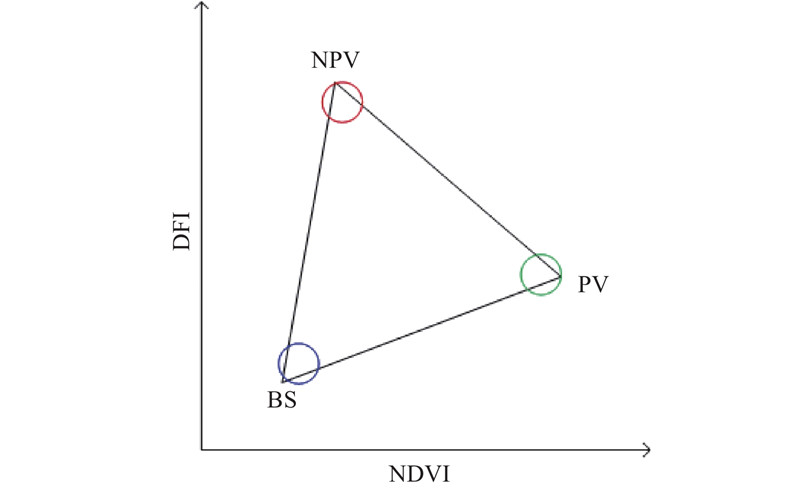

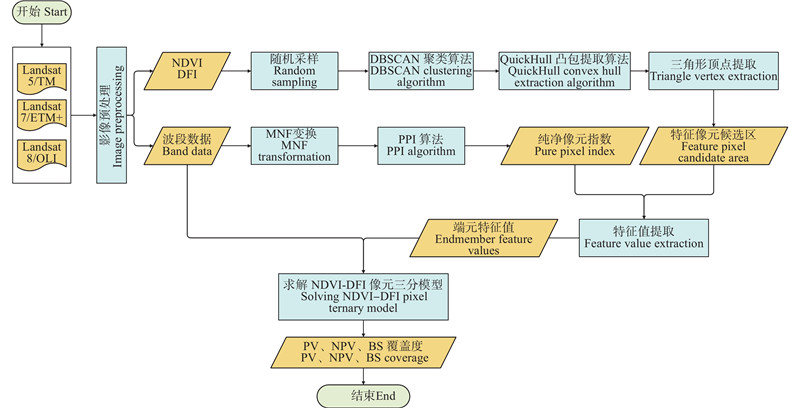

目的: 引入DBSCAN聚类算法和QuickHull凸包检测算法，提出一种自适应端元特征值提取（AEEE）算法，解决像元三分模型中纯净像元指数结合二维散点图（PPI-2DSP）算法依赖人工圈选特征像元候选区的问题，利用AEEE算法评估神木市的光合植被覆盖度（f_PV）、非光合植被覆盖度（f_NPV）和裸土覆盖度（f_BS），并分析其时空变化，验证算法的有效性，为该地区生态环境评价和植被覆盖度变化规律研究提供参考。方法: 以Landsat系列卫星遥感影像为数据源，首先对遥感数据进行预处理，然后计算像元的归一化植被指数（NDVI）和干枯燃料指数（DFI），通过以下4个步骤获取特征像元候选区：1）应用随机采样模块减少数据规模；2）采用DBSCAN算法聚类，去除离群数据，得到最大簇；3）利用QuickHull算法计算凸包，构建特征三角形边界；4）计算由凸包点集中3个点所构成的最大面积三角形顶点，分别以3个顶点为中心，取端点阈值（$\theta $）范围内区域作为特征像元候选区。预处理的影像经最小噪声分离变换减少计算量后，采用PPI算法计算纯净像元指数，利用特征像元候选区提取纯净像元指数大于5的纯净像元，将这些像元的NDVI和DFI算术平均值作为端元特征值代入像元三分模型计算f_PV、f_NPV和f_BS，并分析其时空变化。结果: AEEE算法提取的神木市2000—2022年端元特征值与PPI-2DSP算法选取的端元特征值相近，相对误差平均值约7.35%；将其应用于像元三分模型，估算得到神木市的f_PV和f_NPV，与传统方法相比年平均误差分别为4.79%和5.05%，符合精度要求。在时间层面上，2000—2022年神木市的f_PV和f_NPV总体呈波动增长趋势，分别以年平均0.52%和0.22%的速率增长；在空间层面上，2000—2022年神木市的f_PV和f_NPV呈东南增长快速、西北增长缓慢的趋势，其中f_PV主要以增加（39.8%）和基本不变（28.0%）2种变化强度等级为主。结论: AEEE算法适用于对光合植被、非光合植被和裸土3种端元特征值的自适应提取，能够解决PPI-2DSP算法依赖人工圈选特征像元候选区的问题。

关键词: 像元三分模型, 植被覆盖度, Landsat, 自适应端元特征值提取算法, 陕西省神木市

Abstract:

Objective: By introducing the DBSCAN clustering algorithm and QuickHull convex hull detection algorithm, an adaptive endmember eigenvalue extraction (AEEE) algorithm is proposed to address the issue of manual selection of feature pixel candidate areas in the pixel ternary model combined with the pure pixel index-2D scatter plot (PPI-2DSP) algorithm. The AEEE algorithm is utilized to assess the photosynthetic vegetation coverage (f_PV), non-photosynthetic vegetation coverage (f_NPV), and bare soil coverage (f_BS) in Shenmu city and analyze their spatiotemporal variations. The effectiveness of the algorithm is verified, providing reference for the evaluation of the ecological environment and the study of vegetation fractional cover change patterns in the region. Method: Using Landsat series satellite remote sensing images as the data source, the remote sensing data is preprocessed first. Then, the normalized difference vegetation index (NDVI) and dry fuel index (DFI) of pixels are calculated. Feature pixel candidate areas are obtained through the following 4 steps: 1) Reducing the data volume using a random sampling module; 2) Clustering with the DBSCAN algorithm to remove outlier data and identify the largest cluster; 3) Computing the convex hull using the QuickHull algorithm to construct the boundaries of feature triangles; 4) Calculating the vertices of the largest area triangle formed by three points within the convex hull point set. Regions within a specified range centered at the three vertices are selected as feature pixel candidate areas with a vertex threshold ($\theta $). After reducing the computational complexity through the Minimum Noise Fraction transformation of preprocessed images, the pure pixel index is calculated using the PPI algorithm. Pure pixels with a pure pixel index greater than 5 are extracted using feature pixel candidate areas. The arithmetic mean values of the NDVI and DFI for these pixels are used as endmember eigenvalues into the pixel ternary model to calculate f_PV, f_NPV, and f_BS, followed by an analysis of their spatiotemporal variations. Result: The eigenvalues calculated by the AEEE algorithm for Shenmu city from 2000 to 2022 are close to those selected by the PPI-2DSP algorithm, with an average relative error of approximately 7.35%. When applied to the NDVI-DFI model, the estimation of f_PV and f_NPV for Shenmu city using AEEE exhibits errors of 4.79% and 5.05%, respectively, compared to the traditional method, meeting accuracy requirements. On a temporal scale, from 2000 to 2022, f_PV an f_NPV in Shenmu city showed an overall fluctuating growth trend, increasing at average annual rates of 0.52% and 0.22%, respectively. On a spatial scale, from 2000 to 2022, f_PV and f_NPV in Shenmu city exhibited a trend of rapid growth in the southeast and slower growth in the northwest, with f_PV primarily characterized by two main change intensities: increase (39.8%) and basically unchanged (28.0%). Conclusion: The AEEE algorithm is suitable for the adaptive extraction of endmember eigenvalues for photosynthetic vegetation (PV), non-photosynthetic vegetation (NPV), and bare soil (BS). It addresses the issue of the PPI-2DSP algorithm relying on manual selection of feature pixel candidate regions.

Key words: normalized difference vegetation index (NDVI) and dry fuel index (DFI) model, vegetation fractional cover, Landsat, adaptive endmember eigenvalue extraction (AEEE) algorithm, Shenmu city of Shaanxi Province

中图分类号:

TP751.1
Q948

张凡,仇天昊,李欣悦,张姝茵,徐超,谢治国. 基于改进像元三分模型的植被覆盖度提取及时空变化分析[J]. 林业科学, 2024, 60(12): 13-26.

Fan Zhang,Tianhao Qiu,Xinyue Li,Shuyin Zhang,Chao Xu,Zhiguo Xie. Vegetation Fractional Cover Extraction and Spatiotemporal Variation Analysis Based on Improved Normalized Difference Vegetation Index (NDVI) and Dry Fuel Index (DFI) Model[J]. Scientia Silvae Sinicae, 2024, 60(12): 13-26.

图/表 11

表1

图1

图2

图3

表2

图4

表3

图5

图6

图7

图8

参考文献 0

	柴国奇, 王静璞, 王光镇, 等. 基于MODIS数据的典型草原非光合植被覆盖度估算. 国土资源遥感, 2019, 31 (3): 234- 241.
	Chai G Q, Wang J P, Wang G Z, et al. Estimation of fractional cover of non-photosynthetic vegetation in typical steppe based on MODIS data. Remote Sensing for Land & Resources, 2019, 31 (3): 234- 241.
	邓目丽, 蒋馥根, 孙　华, 等. 神木市植被覆盖度时空动态变化分析. 森林与环境学报, 2021, 41 (6): 611- 619.
	Deng M L, Jiang F G, Sun H, et al. Spatial-temporal dynamic change analysis of vegetation coverage in Shenmu city. Journal of Forest and Environment, 2021, 41 (6): 611- 619.
	冯正英, 王世东. 结合MNF变换和Canny算子的遥感影像变化检测. 计算机工程与应用, 2019, 55 (14): 266- 270. doi: 10.3778/j.issn.1002-8331.1803-0452
	Feng Z Y, Wang S D. Remote sensing image change detection based on MNF transform and canny operator. Computer Engineering and Applications, 2019, 55 (14): 266- 270. doi: 10.3778/j.issn.1002-8331.1803-0452
	侯春华, 李富平, 冯一帆, 等. 基于NDVI-DFI的矿业开发密集区地表热环境分异效应分析. 农业工程学报, 2020, 36 (3): 160- 168. doi: 10.11975/j.issn.1002-6819.2020.03.020
	Hou C H, Li F P, Feng Y F, et al. Analysis of differentiation effect of surface thermal environment in intensive mining areas based on NDVI-DFI model. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36 (3): 160- 168. doi: 10.11975/j.issn.1002-6819.2020.03.020
	黄健熙, 吴炳方, 曾　源, 等. 水平和垂直尺度乔、灌、草覆盖度遥感提取研究进展. 地球科学进展, 2005, 20 (8): 871- 881. doi: 10.3321/j.issn:1001-8166.2005.08.008
	Huang J X, Wu B F, Zeng Y, et al. Review of tree, shrub, grass cover of horizontal and vertical scale retrieval from remotely sensed data. Advance in Earth Sciences, 2005, 20 (8): 871- 881. doi: 10.3321/j.issn:1001-8166.2005.08.008
	刘逸滨, 刘宝元, 成　城, 等. 退耕还林草20年来榆林市植被覆盖度时空变化及影响因素分析. 水土保持学报, 2022, 36 (2): 197- 208,218.
	Liu Y B, Liu B Y, Cheng C, et al. Spatio-temporal changes and influencing factors of vegetation coverage in Yulin city during the past 20 years since the implementation of the “grain for green” program. Journal of Soil and Water Conservation, 2022, 36 (2): 197- 208,218.
	马　锋, 卓　静, 何慧娟, 等. 陕西省榆林市植被生态演变及其驱动机制. 水土保持通报, 2020, 40 (5): 257- 261,267,341.
	Ma F, Zhuo J, He H J, et al. Ecological evolution and driving mechanism of vegetation in Yulin city, Shaanxi Province. Bulletin of Soil and Water Conservation, 2020, 40 (5): 257- 261,267,341.
	马建明, 常晓晴, 邢艳秋, 等. 基于Landsat TM/OLI影像的哈尔滨市植被覆盖度与景观格局动态变化分析. 森林工程, 2023, 39 (5): 65- 73.
	Ma J M, Chang X Q, Xing Y Q, et al. Analysis of dynamic changes of vegetation coverage and landscape pattern in Harbin based on Landsat TM/OLI images. Forest Engineering, 2023, 39 (5): 65- 73.
	宋吉梅, 夏　楠, 海文月, 等. 基于NDVI-DFI分析新疆戈壁区植被的时空变化. 西南农业学报, 2022, 35 (12): 2867- 2875.
	Song J M, Xia N, Hai W Y, et al. Spatial-temporal variation of vegetation in Gobi region of Xinjiang based on NDVI-DFI model. Southwest China Journal of Agricultural Sciences, 2022, 35 (12): 2867- 2875.
	宋清洁, 崔　霞, 张瑶瑶, 等. 基于小型无人机与MODIS数据的草地植被覆盖度研究: 以甘南州为例. 草业科学, 2017, 34 (1): 40- 50.
	Song Q J, Cui X, Zhang Y Y, et al. Grassland fractional vegetation cover analysis using small UVAs and MODIS: a case study in Gannan prefecture. Pratacultural Science, 2017, 34 (1): 40- 50.
	王　升, 王全九, 董文财, 等. 黄土坡面不同植被覆盖度下产流产沙与养分流失规律. 水土保持学报, 2012, 26 (4): 23- 27.
	Wang S, Wang Q J, Dong W C, et al. Runoff and sediment generations and nutrient losses under different vegetation coverage in loess slope. Journal of Soil and Water Conservation, 2012, 26 (4): 23- 27.
	王光镇, 王静璞, 邹学勇, 等. 基于像元三分模型的锡林郭勒草原光合植被和非光合植被覆盖度估算. 生态学报, 2017, 37 (17): 5722- 5731.
	Wang G Z, Wang J P, Zou X Y, et al. Estimation of fractional cover of photosynthetic and non-photosynthetic vegetation in the Xilingol steppe region using the NDVI-DFI model. Acta Ecologica Sinica, 2017, 37 (17): 5722- 5731.
	王光镇. 2018. 锡林郭勒典型草原光合/非光合植被覆盖度遥感估算研究. 烟台: 鲁东大学.
	Wang G Z. 2018. Estimating fractional cover of Photosynthetic/non-photosynthetic vegetation in the Xilinguole typical grassland region with remote sensing data. Yantai: Ludong University. ［in Chinese］
	卫新东, 林良国, 冯小龙, 等. 榆林市生态安全格局构建与生态问题定量诊断. 生态学报, 2023, 43 (1): 82- 94. doi: 10.1016/j.chnaes.2021.09.017
	Wei X D, Lin L G, Fen X L, et al. Construction of ecological security pattern and quantitative diagnosis of ecological problems in Yulin city. Acta Ecologica Sinica, 2023, 43 (1): 82- 94. doi: 10.1016/j.chnaes.2021.09.017
	吴莉娟. 2015. 基于阴影情况下的植被覆盖度模型研究. 西安: 西安科技大学.
	Wu L J. 2015. The study of vegetation coverage model Based on of the shadow. Xi’an: Xi’an University of Science and Technology. ［in Chinese］
	余玉洋, 王银苹, 秦　奋, 等. 河南省植被覆盖指数变化及其对气候的响应. 森林与环境学报, 2019, 39 (3): 280- 286.
	Yu Y Y, Wang Y P, Qin F, et al. Vegetation index change and its response to climate in Henan Province. Journal of Forest and Environment, 2019, 39 (3): 280- 286.
	云增鑫. 2019. 森林立体分层的激光雷达研究. 南京: 南京大学.
	Yun Z X. 2019. Stratifying forest vertical layers using three dimensional (3-D) point cloud data. Nanjing: Nanjing University. ［in Chinese］
	张丛凯, 于　颖. ICESat-2/ATLAS数据地面高程及植被冠层高度反演精度验证. 森林工程, 2023, 39 (3): 1- 11.
	Zhang C K, Yu Y. Accuracy verification of ground elevation and vegetation canopy height inversion from ICESat-2/ATLAS data. Forest Engineering, 2023, 39 (3): 1- 11.
	张含玉, 方怒放, 史志华. 黄土高原植被覆盖时空变化及其对气候因子的响应. 生态学报, 2016, 36 (13): 3960- 3968.
	Zhang H Y, Fang N F, Shi Z H. Spatio-temporal patterns for the NDVI and its responses to climatic factors in the Loess Plateau, China. Acta Ecologica Sinica, 2016, 36 (13): 3960- 3968.
	张兴昌, 刘国彬, 付会芳. 不同植被覆盖度对流域氮素径流流失的影响. 环境科学, 2000, 21 (6): 16- 19. doi: 10.3321/j.issn:0250-3301.2000.06.004
	Zhang X C, Liu G B, Fu H F. Soil nitrogen losses of catchment by water erosion as affected by vegetation coverage. Chinese Journal of Enviromental Science, 2000, 21 (6): 16- 19. doi: 10.3321/j.issn:0250-3301.2000.06.004
	祝　聪, 彭文甫, 张丽芳, 等. 2006—2016年岷江上游植被覆盖度时空变化及驱动力. 生态学报, 2019, 39 (5): 1583- 1594.
	Zhu C, Peng W F, Zhang L F, et al. Study of temporal and spatial variation and driving force of fractional vegetation cover in upper reaches of Minjiang River from 2006 to 2016. Acta Ecologica Sinica, 2019, 39 (5): 1583- 1594.
	朱燕香, 潘剑君, 白浩然, 等. 基于Sentinel-2A影像的OPTRAM模型及其改进模型的土壤水分估算研究. 南京农业大学学报, 2020, 43 (4): 682- 689. doi: 10.7685/jnau.201910012
	Zhu Y X, Pan J J, Bai H R, et al. Soil moisture estimation with the OPTRAM model and its improved model based on Sentinel-2A data. Journal of Nanjing Agricultural University, 2020, 43 (4): 682- 689. doi: 10.7685/jnau.201910012
	Cao X, Chen J, Matsushita B, et al. Developing a MODIS-based index to discriminate dead fuel from photosynthetic vegetation and soil background in the Asian steppe area. International Journal of Remote Sensing, 2010, 31 (6): 1589- 1604. doi: 10.1080/01431160903475274
	Daughtry C S T, Hunt E R, McMurtrey J E. Assessing crop residue cover using shortwave infrared reflectance. Remote Sensing of Environment, 2004, 90 (1): 126- 134. doi: 10.1016/j.rse.2003.10.023
	Gitelson A A, Kaufman Y J, Stark R, et al. Novel algorithms for remote estimation of vegetation fraction. Remote Sensing of Environment, 2002, 80 (1): 76- 87. doi: 10.1016/S0034-4257(01)00289-9
	Gong P, Liu H, Zhang M N, et al. Stable classification with limited sample: transferring a 30-m resolution sample set collected in 2015 to mapping 10-m resolution global land cover in 2017. Science Bulletin, 2019, 64 (6): 370- 373. doi: 10.1016/j.scib.2019.03.002
	Graham R L. An efficient algorith for determining the convex hull of a finite planar set. Information Processing Letters, 1972, 1 (4): 132- 133. doi: 10.1016/0020-0190(72)90045-2
	Guerschman J P, Hill M J, Renzullo L J, et al. Estimating fractional cover of photosynthetic vegetation, non-photosynthetic vegetation and bare soil in the Australian tropical savanna region upscaling the EO-1 hyperion and MODIS sensors. Remote Sensing of Environment, 2009, 113 (5): 928- 945. doi: 10.1016/j.rse.2009.01.006
	Mele A, Vitiello A, Bonano M, et al. On the joint exploitation of satellite DInSAR measurements and DBSCAN-based techniques for preliminary identification and ranking of critical constructions in a built environment. Remote Sensing, 2022, 14 (8): 1872. doi: 10.3390/rs14081872
	Towers P C, Poblete-Echeverría C. Effect of the illumination angle on NDVI data composed of mixed surface values obtained over vertical-shoot-positioned vineyards. Remote Sensing, 2021, 13 (5): 855. doi: 10.3390/rs13050855
	Wang G Z, Wang J P, Zou X Y, et al. Estimating the fractional cover of photosynthetic vegetation, non-photosynthetic vegetation and bare soil from MODIS data: assessing the applicability of the NDVI-DFI model in the typical Xilingol grasslands. International Journal of Applied Earth Observation and Geoinformation, 2019, 76, 154- 166. doi: 10.1016/j.jag.2018.11.006
	Yan K, Gao S, Chi H J, et al. Evaluation of the vegetation-index-based dimidiate pixel model for fractional vegetation cover estimation. IEEE Transactions on Geoscience and Remote Sensing, 2021, 60, 4400514.
	Zhao T, Bai H Y, Han H Z, et al. A quantitatively divided approach for the vertical belt of vegetation based on NDVI and DEM: an analysis of Taibai Mountain. Forests, 2023, 14 (10): 1981. doi: 10.3390/f14101981

影像名称 Image name	年份 Year	选取原因 Reason for Selection
Landsat 5/TM	2000—2011	同期可选产品有Landsat 5和Landsat 7，但2003年起Landsat 7数据存在异常，故选择Landsat 5 Concurrently available products include Landsat 5 and Landsat 7, but Landsat 7 data has been abnormal since 2003, thus Landsat 5 was selected.
Landsat 7/ETM+	2012	Landsat系列影像只有Landsat 7有2012年影像数据，使用landsat_gapfill工具进行条带错误修复 Only Landsat 7 in the Landsat series has image data from 2012. The landsat_gapfill tool was used to repair stripe errors.
Landsat 8/OLI	2013—2022	2013年发射的新卫星，配备更先进的传感器，数据质量更好 A new satellite launched in 2013, equipped with more advanced sensors, providing better data quality.

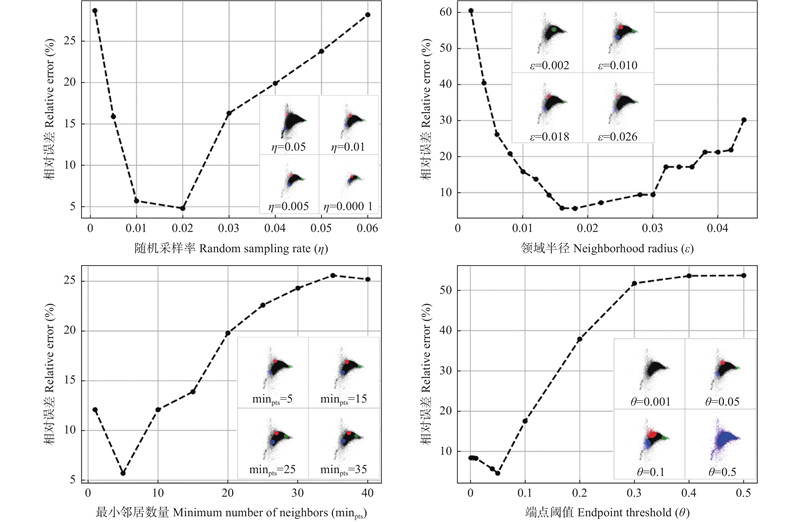

$\eta $	$\varepsilon $	min_pts	$\theta $	相对误差 Relative error(%)	$\eta $	$\varepsilon $	min_pts	$\theta $	相对误差 Relative error(%)	$\eta $	$\varepsilon $	min_pts	$\theta $	相对误差 Relative error(%)
0.01	0.014	4	0.04	10.96	0.01	0.018	4	0.04	9.37	0.02	0.016	4	0.04	17.34
0.01	0.014	4	0.05	11.50	0.01	0.018	4	0.05	9.39	0.02	0.016	4	0.05	13.67
0.01	0.014	5	0.04	10.07	0.01	0.018	5	0.04	8.55	0.02	0.016	5	0.04	14.21
0.01	0.014	5	0.05	11.58	0.01	0.018	5	0.05	8.16	0.02	0.016	5	0.05	11.15
0.01	0.014	6	0.04	10.61	0.01	0.018	6	0.04	7.65	0.02	0.016	6	0.04	11.74
0.01	0.014	6	0.05	12.40	0.01	0.018	6	0.05	7.98	0.02	0.016	6	0.05	9.78
0.01	0.016	4	0.04	9.37	0.02	0.014	4	0.04	11.95	0.02	0.018	4	0.04	24.68
0.01	0.016	4	0.05	8.63	0.02	0.014	4	0.05	10.34	0.02	0.018	4	0.05	20.07
0.01	0.016	5	0.04	7.72	0.02	0.014	5	0.04	9.40	0.02	0.018	5	0.04	19.96
0.01	0.016	5	0.05	7.35	0.02	0.014	5	0.05	8.75	0.02	0.018	5	0.05	15.94
0.01	0.016	6	0.04	8.98	0.02	0.014	6	0.04	9.37	0.02	0.018	6	0.04	15.57
0.01	0.016	6	0.05	10.18	0.02	0.014	6	0.05	9.34	0.02	0.018	6	0.05	12.72

特征值类型 Type of eigenvalue	PPI-2DSP 算法提取 Extraction using the PPI-2DSP	AEEE算法提取 Extraction using the AEEE	相对误差 Relative error (%)
BS端元的NDVI特征值 NDVI eigenvalue of the BS endmember	0.070	0.073	9.56
PV端元的NDVI特征值 NDVI eigenvalue of the PV endmember	0.354	0.363	4.42
NPV端元的NDVI特征值 NDVI eigenvalue of the NPV endmember	0.124	0.129	9.59
BS端元的DFI特征值 DFI eigenvalue of the BS endmember	2.660	3.079	14.62
PV端元的DFI特征值 DFI eigenvalue of the PV endmember	10.856	10.867	2.06
NPV端元的DFI特征值 DFI eigenvalue of the NPV endmember	12.221	11.818	3.86
