降雨和灌溉影响下毛白杨叶片的颗粒物滞纳特征变化及其生理特性响应规律

doi:10.11707/j.1001-7488.20200820

摘要/Abstract

摘要：

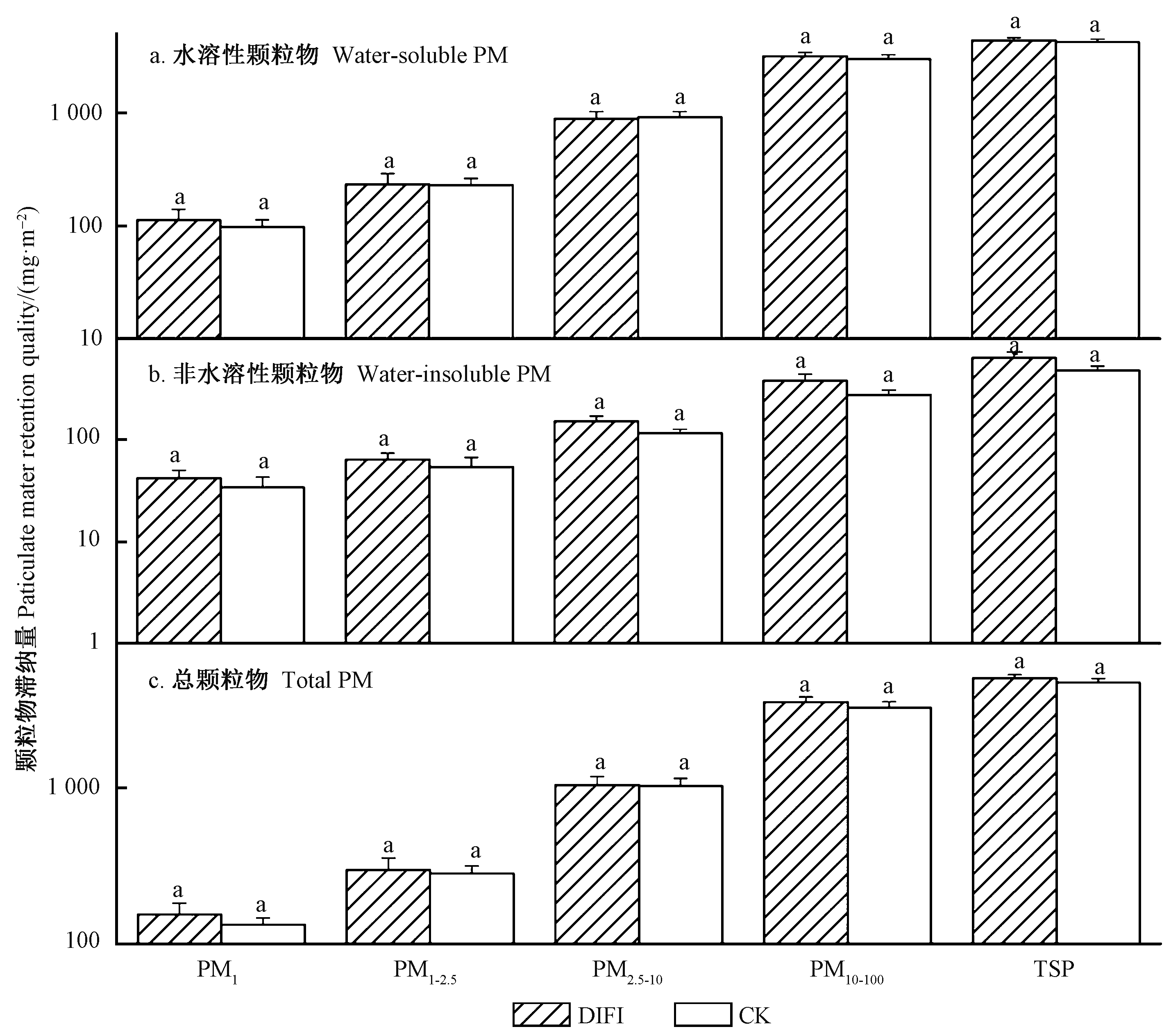

目的: 探究降雨和灌溉措施对毛白杨叶面颗粒物滞纳量的影响，分析降雨冲刷对叶片的生理性状的影响，为城市森林空气污染缓解能力提升技术的优化，以及树木生理活动与大气颗粒物污染交互作用研究提供参考。方法: 在3年生毛白杨林分中，选取充分滴灌（DIFI）和不灌溉（CK）2个水分处理，每个处理中各选5株样树，每株样树选取2根冠层下部枝条，然后设置一根枝条遮雨、另一枝条不遮雨2种处理。试验期间进行叶片颗粒物滞纳量、叶片生理性状的测定。结果: 1）DIFI处理滞纳的所有类型和径级PM的质量均略高于CK处理（水溶性PM_2.5-10除外），但均未达到显著差异（P>0.05）。2）不遮雨时叶片上各类型和各径级PM（尤其是较大径级颗粒物）的长期累积滞纳量均略低于遮雨叶片，但未达到显著水平（P>0.05）。3）遮雨和不遮雨处理中叶片上的蜡质层质量和蜡质层内PM质量在试验末期均显著降低（P < 0.01），但2个处理间却均无显著差异（P>0.05）。4）试验中、末期，不遮雨叶片的气孔导度均显著低于遮雨叶片（P < 0.05），且试验末期不遮雨叶片的正午叶水势也更低（P=0.032）。经历降雨冲刷后（不遮雨处理），虽然叶片的净光合速率（P_n）、蒸腾速率（Tr）和水分利用效率（WUE）没有显著变化（P>0.05），但P_n和WUE却一直呈降低趋势，而Tr则未一直出现该趋势。结论: 在叶片尺度上，灌溉对毛白杨颗粒物的滞纳能力影响较小，而降雨可一定程度上冲刷掉叶片上较大径级的颗粒物。叶面颗粒物的增多会显著提高毛白杨叶片的气孔导度，从而对其气体交换速率可能产生影响。

关键词: 大气颗粒物, 水溶性颗粒物, 毛白杨, 灌溉, 降雨

Abstract:

Objective: This study aims to explore the effects of rainfall and irrigation on the particulate matter on leaves that grow in the lowest part of the canopy of poplar,and analyze whether the rainfall affects the physiological traits of leaves to provide a basis for the research and development of urban forest air pollution mitigation capacity improvement technology and the in-depth understanding of the interaction between tree physiological activities and atmospheric particulate pollution. Methods: Full drip irrigation(DIFI) treatment with the control(CK) were conducted in the experiment,and in each treatment,5 trees were selected as the sample trees. Two branches were selected from the lowest part of the canopy of each tree for two experimental treatments:(i)rainfall exclusion; (ii) no rainfall exclusion. Leaves on the two branches were used to measure. Results: 1) The retention quality of all types and diameter PM in DIFI treatment was slightly higher than that in CK treatment(except for water-soluble PM_2.5-10),but there was no significant difference(P>0.05). 2) The long-term cumulative retention quality of PM of each type and diameter size on the leaves per unit area under no rainfall exclusion treatment was slightly lower than that of the leaves under rainfall exclusion treatment,but there was no significant difference (P>0.05). 3) The quality of the wax layer on the leaves and the PM in the wax layer significantly decrease at the end of the experiment(P < 0.01),but there was no significant difference between the two treatments(P>0.05). 4) At the middle and the final stage of the experiment,the stomatal conductance of the leaves under no rainfall exclusion was significantly lower than that of the leaves under rainfall exclusion(P < 0.05). And at the final stage of the experiment,the midday leaf water potential of the leaves under no rainfall exclusion was significantly lower than that of the leaves under rainfall exclusion(P=0.032).After rainfall(no rainfall exclusion),although the net photosynthetic rate(P_n),transpiration rate(Tr),and water use efficiency(WUE) of the leaves did notchange significantly(P>0.05),P_n and WUE had a decrease trend,while Trdid notalways show the trend. Conclusions: At the leaf level,irrigation has a small effect on the retention of the particulate matter on leaves of Populus tomentosa,and rainfall can wash away larger diameter particulate matter on leaves to a certain extent. The increase of foliar particulate matter can significantly improve the stomatal conductance of P. stomentosa, thus affect its gas exchange rate.

Key words: atmospheric particulate matter, water-soluble particulate matter, Populus tomentosa, irrigation, rainfall

中图分类号:

S718.43

马煦,曹治国,岳晨,金楚晗,刘俊,刘洋,修桂芳,席本野. 降雨和灌溉影响下毛白杨叶片的颗粒物滞纳特征变化及其生理特性响应规律[J]. 林业科学, 2020, 56(8): 181-190.

Xu Ma,Zhiguo Cao,Chen Yue,Chuhan Jin,Jun Liu,Yang Liu,Guifang Xiu,Benye Xi. Changes of Particulate Matter Retention Characteristics and the Response of Physiological Characteristics of Poplar Leaves Under the Influence of Rainfall and Irrigation[J]. Scientia Silvae Sinicae, 2020, 56(8): 181-190.

图/表 9

图1

图2

图3

图4

图5

图6

图7

表1

图8

参考文献 0

	程雨萌, 王云琦, 王玉杰, 等. 北京市5种典型植物滞尘特征及影响因素. 环境化学, 2016. 35 (8): 1690- 1697.
	Cheng Y M , Wang Y Q , Wang Y J , et al. Particulate matter adsorption and the main influencing factors of five typical plants in Beijing. Environmental Chemistry, 2016. 35 (8): 1690- 1697.
	范舒欣, 晏海, 齐石茗月, 等. 北京市26种落叶阔叶绿化树种的滞尘能力. 植物生态学报, 2015. 39 (7): 736- 745.
	Fan S X , Yan H , Qi S M Y , et al. Dust capturing capacities of twenty-six deciduous broad-leaved trees in Beijing. Chinese Journal of Plant Ecology, 2015. 39 (7): 736- 745.
	冯玉龙, 曹坤芳, 冯志立, 等. 四种热带雨林树种幼苗比叶重,光合特性和暗呼吸对生长光环境的适应. 生态学报, 2002. 22 (6): 901- 910.
	Feng Y L , Cao K F , Feng Z L , et al. Acclimation of lamina mass per unit area, photosynthetic characteristics and dark respiration to growth light regimes in four tropical rainforest species. Acta Ecologica Sinica, 2008. 22 (6): 901- 910.
	巩合德, 王开运, 杨万勤, 等. 川西亚高山白桦林穿透雨和茎流特征观测研究. 生态学杂志, 2004. (4): 17- 20.
	Gong H D , Wang K Y , Yang W Q , et al. Throughfall and stemflow in a Betula platyphylla forest the subalpine of Western Sichuan. Chinese Journal of Ecology, 2004. (4): 17- 20.
	何春霞, 李吉跃, 张燕香, 等. 5种绿化树种叶片比叶重、光合色素含量和δ¹³C的开度与方位差异. 植物生态学报, 2010. 34 (2): 134- 143.
	He C X , Li J Y , Zhang Y X , et al. Differences in leaf mass per area, photosynthetic pigments and δ¹³C by orientation and crown position in five greening tree species. Chinese Journal of Plant Ecology, 2010. 34 (2): 134- 143.
	李豆豆, 席本野, 王斐, 等. 毛白杨叶片膨压变化规律及其对环境因子的响应. 植物生态学报, 2018. 42 (7): 741- 751.
	Li D D , Xi B Y , Wang F , et al. Patterns of variations in leaf turgor pressure and responses to environmental factors in Populus tomentosa. Chinese Journal of Plant Ecology, 2018. 42 (7): 741- 751.
	刘欢欢, 曹治国, 贾黎明, 等. 基于超声清洗的植物叶片吸滞大气颗粒物定量评估——以银杏为例. 林业科学, 2016. 52 (12): 133- 140.
	Liu H H , Cao Z G , Jia L M , et al. Analysis of the role of ultrasonic cleaning in quantitative evaluation of the retention of tree leaves to atmospheric particles:a case study with Ginkgo biloba. Scientia Silvae Sinicae, 2016. 52 (12): 133- 140.
	刘金强, 曹治国, 郭泽敏, 等. 植物叶片表面水溶与非水溶性颗粒物滞纳量分离定量评估——以5种树种为例. 应用生态学报, 2019. 30 (5): 1763- 1771.
	Liu J Q , Cao Z G , Guo Z M , et al. Quantitative evaluation for separation of water-soluble and water-insoluble particulate matter on leaf surface of tree species:taking five tree species as examples. The Journal of Applied Ecology, 2019. 30 (5): 1763- 1771.
	马文梅, 武亚楠, 张振明. 降雨对植物叶表面颗粒物的淋洗作用. 北京林业大学学报, 2018. 40 (8): 50- 55.
	Ma W M , Wu Y N , Zhang Z M . Leaching effects of rainfall on particulate matter of plant leaf surface. Journal of Beijing Forestry University, 2018. 40 (8): 50- 55.
	芮魏, 张芳, 邓晓蓓, 等. 可吸入颗粒物与血管内皮细胞功能紊乱的关系. 环境与健康杂志, 2013. 30 (5): 467- 471.
	Rui W , Zhang F , Deng X B , et al. Relationship between inhalable particulate matter and dysfunction of vascular endothelial cells:a review of recent studies. Journal of Environment and Health, 2013. 30 (5): 467- 471.
	孙晓丹, 李海梅, 郭霄, 等. 10种灌木树种滞留大气颗粒物的能力. 环境工程学报, 2017. 11 (2): 1047- 1054.
	Sun X D , Li H M , Guo X , et al. Atmospheric particulates-retaining capacity of ten shrubs species. Chinese Journal of Environmental Engineering, 2017. 11 (2): 1047- 1054.
	王会霞, 石辉, 王彦辉. 典型天气下植物叶面滞尘动态变化. 生态学报, 2015. 35 (6): 1- 12.
	Wang H X , Shi H , Wang Y H . Dynamics of the captured quantity of particulate matter by plant leaves under typical weather conditions. Acta Ecologica Sinca, 2015. 35 (6): 1- 12.
	张罡, 安海龙, 史军娜, 等. 欧美杨对不同粒径氧化锌颗粒物的吸附与吸收能力. 北京林业大学学报, 2017. 39 (4): 46- 54.
	Zhang G , An H L , Shi J N , et al. Deposition and absorption capacity of Populus deltoides×P.nigra to different size zinc oxide aerosol. . Journal of Beijing Forestry University, 2017. 39 (4): 46- 54.
	张永娥, 余新晓, 陈丽华, 等. 北京西山侧柏林冠层不同高度处叶片水分利用效率. 应用生态学报, 2017. 28 (7): 2143- 2148.
	Zhang Y E , Yu X X , Chen L H , et al. Foliar water use efficiency of platycladusorientalis of different canopy heights in Beijing western mountains area, China. Chinese Journal of Applied Ecology, 2017. 28 (7): 2143- 2148.
	张彦群, 王建东, 龚时宏, 等. 滴灌条件下冬小麦田间土壤蒸发的测定和模拟. 农业工程学报, 2014. 30 (7): 91- 98.
	Zhang Y Q , Wang J D , Gong S H , et al. Measuring and modeling of soil evaporation for winter wheat with drip irrigation. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2014. 30 (7): 91- 98.
	张志丹, 席本野, 曹治国, 等. 植物叶片吸滞PM_2.5等大气颗粒物定量研究方法初探——以毛白杨为例. 应用生态学报, 2014. 25 (8): 2238- 2242.
	Zhang Z D , Xi B Y , Cao Z G , et al. Exploration of a quantitative methodology to characterize the retention of PM_2.5 and other atmospheric particulate matter by plant leaves:taking Populus tomentosa as an example. Chinese Journal of Applied Ecology, 2014. 25 (8): 2238- 2242.
	Admas C M , Dengler N G , Hutchinson T C . Acid rain effects on foliar history of Artemisia tilesii. Canadian Journal of Botany, 1984. 62 (3): 463- 474.
	Cao Z G , Yu G , Chen Y S , et al. Mechanisms influencing the BFR distribution patterns in office dust and implications for estimating human exposure. Journal of Hazardous Materials, 2013. 252/253, 11- 18.
	Di N , Wang Y , Clothier B , et al. Modeling soil evaporation and the response of the crop coefficient to leaf area index in mature Populus tomentosa plantations growing under different soil water availabilities. Agricultural and Forest Meteorology, 2019. 264, 125- 137.
	Dockery D W , Pope C A , Xu X , et al. An association between air pollution and mortality in six U.S. cities. New England Journal of Medicine, 1993. 329 (24): 1753- 1759.
	Dzierźanowski K , Popek R , Gawronska H , et al. Deposition of particulate matter of different size fractions on leaf surfaces and in waxes of urban forest species. International Journal of Phytoremediation, 2011. 13 (10): 1037- 1046.
	Hofman J , Wuyts K , Van Wittenberghe S , et al. On the temporal variation of leaf magnetic parameters:seasonal accumulation of leaf-deposited and leaf-encapsulated particles of a roadside tree crown. Science of the Total Environment, 2014. 493, 766- 772.
	Jouraeva V A , Johnson D L , Hassett J P , et al. Differences in accumulation of PAHs and metals on the leaves of Tilia×euchlora and Pyrus calleryana. Environment Pollution, 2002. 120 (2): 331- 338.
	Kampa M , Castanas E . Human health effects of air pollution. Environment Pollution, 2008. 151 (2): 362- 367.
	Kaupp H , Blumenstock M , McLachlan M S . Retention and mobility of atmospheric particle-associated organic pollutant PCDD/Fs and PAHs on maize leaves. New Phytologist, 2000. 148 (3): 473- 480.
	Li G , Wang L H , Sun F B , et al. Capacity of landscaping plants to accumulate airborne particulate matter in Hangzhou, China. Polish Journal of Environmental Studies, 2020. 29 (1): 153- 161.
	Liu J Q , Cao Z G , Zou S Y , et al. An investigation of the leaf retention capacity, efficiency and mechanism for atmospheric particulate matter of five greening tree species in Beijing, China. Science of The Total Environment, 2018. 616/617, 417- 426.
	McDonald A G , Bealey W J , Fowler D , et al. Quantifying the effect of urban tree planting on concentrations and depositions of PM₁₀ in two UK conurbations. Atmospheric Environment, 2007. 41 (38): 8455- 8467.
	Mori J , Sæbø A , Hanslin H M , et al. Deposition of traffic-related air pollutants on leaves of six evergreen shrub species during a mediterranean summer season. Urban Forestry & Urban Greening, 2015. 14 (2): 264- 273.
	Pariyar S , Eichert T , Goldbach H E , et al. The exclusion of ambient aerosols changes the water relations of sunflower (Helianthus annuus) and bean (Viciafaba) plants. Environmental and Experimental Botany, 2013. 88, 43- 52.
	Pariyar S , Noga G . Rainfall does not impair particulate matter accumulation on peri-urban field crops, but improves photosynthetic activity at UV exposure. Environmental and Experimental Botany, 2018. 156, 288- 297.
	Przybysz A , Sæbø A , Hanslin H M , et al. Accumulation of particulate matter and trace elements on vegetation as affected by pollution level, rainfall and the passage of time. Science of The Total Environment, 2014. 481, 360- 369.
	Qiu Y , Guan D S , Song W W , et al. Capture of heavy metals and sulfur by foliar dust in urban Huizhou, Guangdong Province, China. Chemosphere, 2009. 75 (4): 447- 452.
	Rai P K . Impacts of particulate matter pollution on plants:implications for environmental biomonitoring. Ecotoxicology and Environmental Safety, 2016. 129, 120- 136.
	Räsänen J V , Holopainen T , Joutsensaari J , et al. Particle capture efficiency of different-aged needles of Norway spruce under moderate and severe drought. Canadian Journal of Forest Research, 2014. 44 (7): 831- 835.
	Smith W H , Staskawicz B J . Removal of atmospheric particles by leaves and twigs of urban trees:some preliminary observations and assessment of research needs. Environmental Management (NY), 1977. 1 (4): 317- 330.
	Takamatsu T , Sase H , Takada J . Some physiological properties of Cryptomeria japonica leaves from Kanto, Japan:potential factors causing tree decline. Canadian Journal of Forest Research, 2001. 31 (4): 663- 672.
	Uzu G , Sobanska S , Sarret G , et al. Foliar lead uptake by lettuce exposed to atmospheric fallouts. Environmental Science and Technology, 2010. 44 (3): 1036- 1042.
	Wang H X, Shi H, Wang Y H. 2015. Effects of weather, time, and pollution level on the amount of particulate matter deposited on leaves of Ligustrum lucidum. The Scientific World Journal, 1-8.
	Xu X , Zhang Z , Bao L , et al. Influence of rainfall duration and intensity on particulate matter removal from plant leaves. Science of The Total Environment, 2017. 609, 11- 16.
	Zhang L , Zhang Z Q , Chen L X , et al. An investigation on the leaf accumulation-removal efficiency of atmospheric particulate matter for five urban plant species under different rainfall regimes. Atmospheric Environment, 2019. 208, 123- 132.

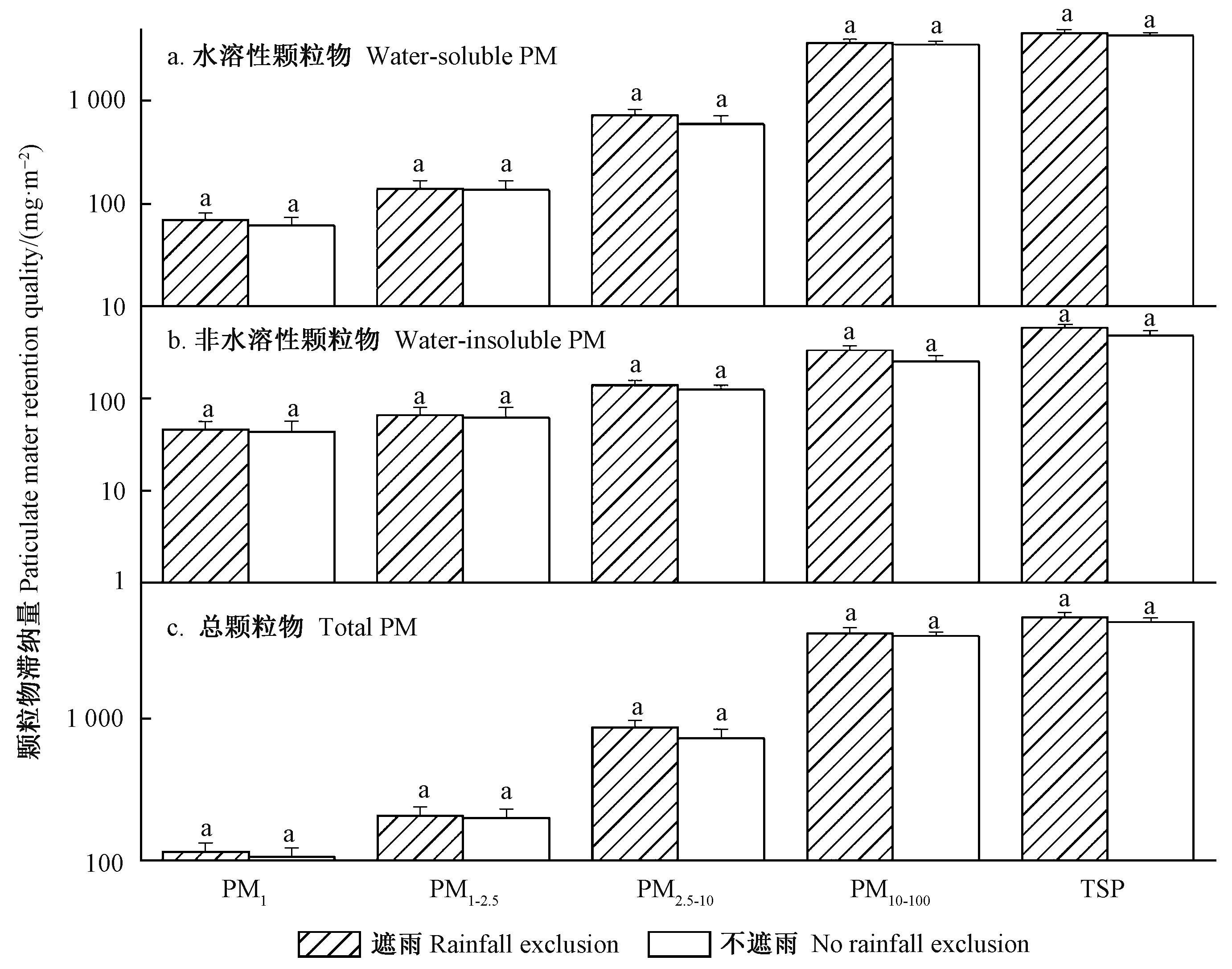

项目Item	中期Middle stage		末期Final stage
项目Item	遮雨Rainfall exclusion	不遮雨No rainfall exclusion	遮雨Rainfall exclusion	不遮雨No rainfall exclusion
P_n/(μmol·m^-2s^-1)	3.926±0.383a	3.522±0.232a	4.575±0.346a	4.154±0.405a
Tr/(mmol·m^-2s^-1)	7.146±0.405a	6.625±0.238a	6.802±0.503a	6.959±0.476a
WUE/(μmolCO₂·mmol^-1)	0.557±0.063a	0.549±0.038a	0.717±0.086a	0.623±0.069a
