基于结构方程模型的杉木公益林林分空间结构评价

doi:10.11707/j.1001-7488.20220808

摘要/Abstract

摘要：

目的: 综合评价杉木公益林林分空间结构，确定不同龄组林分空间结构现状，为制定精准可行的林分空间结构优化和经营措施提供理论依据。方法: 以湖南省平江县芦头实验林场杉木公益林为研究对象，基于30块样地实测数据，采用4株木法确定林分空间结构单元，选取全混交度、角尺度和空间密度指数作为内生潜变量水平空间结构的观测变量，林层指数、开敞度和交角竞争指数作为内生潜变量垂直空间结构的观测变量，以林分空间结构为外生潜变量，构建林分空间结构评价结构方程模型，模型输出的路径系数通过归一化处理确定各指标权重，在此基础上对林分空间结构进行综合评价。结果: 1) 林分空间结构评价结构方程模型的卡方自由度比值(χ²/df)为1.708，介于1~3之间，比较拟合指数(CFI)、非正规化拟合指数(NNFI)和递增拟合指数(IFI)分别为0.944、0.924和0.946，均大于0.90，各拟合指数均符合适配参考值，模型整体适配度良好；2) 内生潜变量水平空间结构、垂直空间结构的权重分别为0.5229、0.4771，对外生潜变量林分空间结构的影响大致相同，空间密度指数所占权重最高，是影响林分水平空间结构的关键因素，开敞度和交角竞争指数所占权重相等，是影响林分垂直空间结构的关键因素；3) 杉木幼龄林、中龄林和近熟林的综合得分分别为0.3781、0.4526和0.3775，3个龄组的林分空间结构等级处于Ⅱ、Ⅲ等级。总体来看，研究区杉木公益林林分空间结构未达到理想状态，林分空间结构较差，树种混交程度低，接近零度混交至弱度混交状态，林分拥挤程度中等，林木透光条件一般，林层结构单一，但林木间竞争强度较弱，且空间分布格局较好，处于均匀至近似随机分布状态。结论: 林分水平空间结构和垂直空间结构均是影响林分空间结构的关键因素，空间密度指数是影响林分水平空间结构的最重要因素，开敞度和交角竞争指数是影响林分垂直空间结构的最重要因素，为改善研究区整体林分空间结构，应采取多树种补植和单株抚育间伐的综合经营措施。研究区3个龄组杉木生态公益林林分空结构评价结果较客观地反映了林分空间结构现状，采用结构方程模型对林分空间结构进行评价是科学合理的，可为林分空间结构评价提供一个全新的思路。

关键词: 杉木公益林, 林分空间结构, 结构方程模型, 指标权重

Abstract:

Objective: The spatial structure of Cunninghamia lanceolata public welfare forest was comprehensively evaluated, and the current situation of spatial structure of different age groups was determined, in order to provide theoretical bases for formulating accurate and feasible stand spatial structure optimization and management measures. Method: Taking the Cunninghamia lanceolata public welfare forest in Lutou experimental forest farm of Pingjiang county, Hunan Province as the research object, based on the measured data of 30 sample plots, the stand spatial structure unit was determined by four adjacent trees.Taking the totalmingling degree, uniform angle index and spatial density index as the observed variables of the horizontal spatial structure of endogenous latent variables, taking the storey index, open degree and angle competition index as the observed variables of the vertical spatial structure of endogenous latent variables, and taking stand spatial structure as the exogenous latent variables, the stand spatial structure evaluation structural equation model was constructed. The path coefficient output from the structural equation model was normalized to determine the weight of each index. On these bases, the stand spatial structure was comprehensively evaluated. Result: 1) For the structural equation model of the evaluation of stand spatial structure, the normed Chi-square (χ²/df) was 1.708, which was between 1-3. The values of comparative fit index(CFI), non-normed fit index(NNFI) and incremental fit index(IFI) were 0.944, 0.924 and 0.946, respectively, which were all greater than 0.90. All the fitting indexes conformed to the appropriate reference value, and the overall fitness of the model was good. 2) The weights of horizontal spatial structure and vertical spatial structure of endogenous latent variables were 0.5229 and 0.4771 respectively, and their effects on the stand spatial structure of exogenous latent variables were roughly the same. The spatial density index of the observed variables was the key factor affecting the horizontal spatial structure. The open degree and competition index were equally weighted, and the both were key factors affecting the vertical spatial structure. 3) The comprehensive scores of young, middle and near-mature Cunninghamia lanceolata forests were 0.3781, 0.4526 and 0.3775 respectively. The stand spatial structure grades of the three age groups were in grade Ⅱ and Ⅲ. Overall, the spatial structure of Cunninghamia lanceolata public welfare forests in the study area did not reach the ideal state. The spatial structure of the forest was poor, and the mingling degree of tree species was low, being close from zero degree mixing to weak mixing state. The degree of crowding was medium, and the light transmission conditions of trees were general. The forest layer structure was single, but the competition intensity among trees was weak, and the spatial distribution pattern was good, which was in the state of uniform to approximate random distribution. Conclusion: Both the horizontal spatial structure and vertical spatial structure of the stand were the key factors affecting the stand spatial structure. The results of the structural equation model further found that the spatial density index was the most important factor affecting the stand horizontal spatial structure. The open degree and competition index were the important factors affecting the stand vertical spatial structure. Therefore, in order to improve the overall stand spatial structure in the study area, comprehensive management measures such as multispecies replanting and singleplant tending-thinning should be adopted. From the evaluation results of the stand spatial structure of the three age groups of Cunninghamia lanceolata ecological public welfare forests in the study area, it objectively reflected the current status of the stand spatial structure, indicating that the idea of using the structural equation model to evaluate the stand spatial structure was scientific and reasonable, and it was expected to provide a new idea for stand spatial structure evaluation.

Key words: Cunninghamia lanceolata public welfare forest, stand spatial structure, structural equation model, index weight

中图分类号:

S757

赵文菲,曹小玉,谢政锠,庞一凡,孙亚萍,李际平,莫永俊,袁达. 基于结构方程模型的杉木公益林林分空间结构评价[J]. 林业科学, 2022, 58(8): 76-88.

Wenfei Zhao,Xiaoyu Cao,Zhengchang Xie,Yifan Pang,Yaping Sun,Jiping Li,Yongjun Mo,Da Yuan. Evaluation of Stand Spatial Structure of Cunninghamia lanceolata Public Welfare Forest by Using Structural Equation Model[J]. Scientia Silvae Sinicae, 2022, 58(8): 76-88.

图/表 8

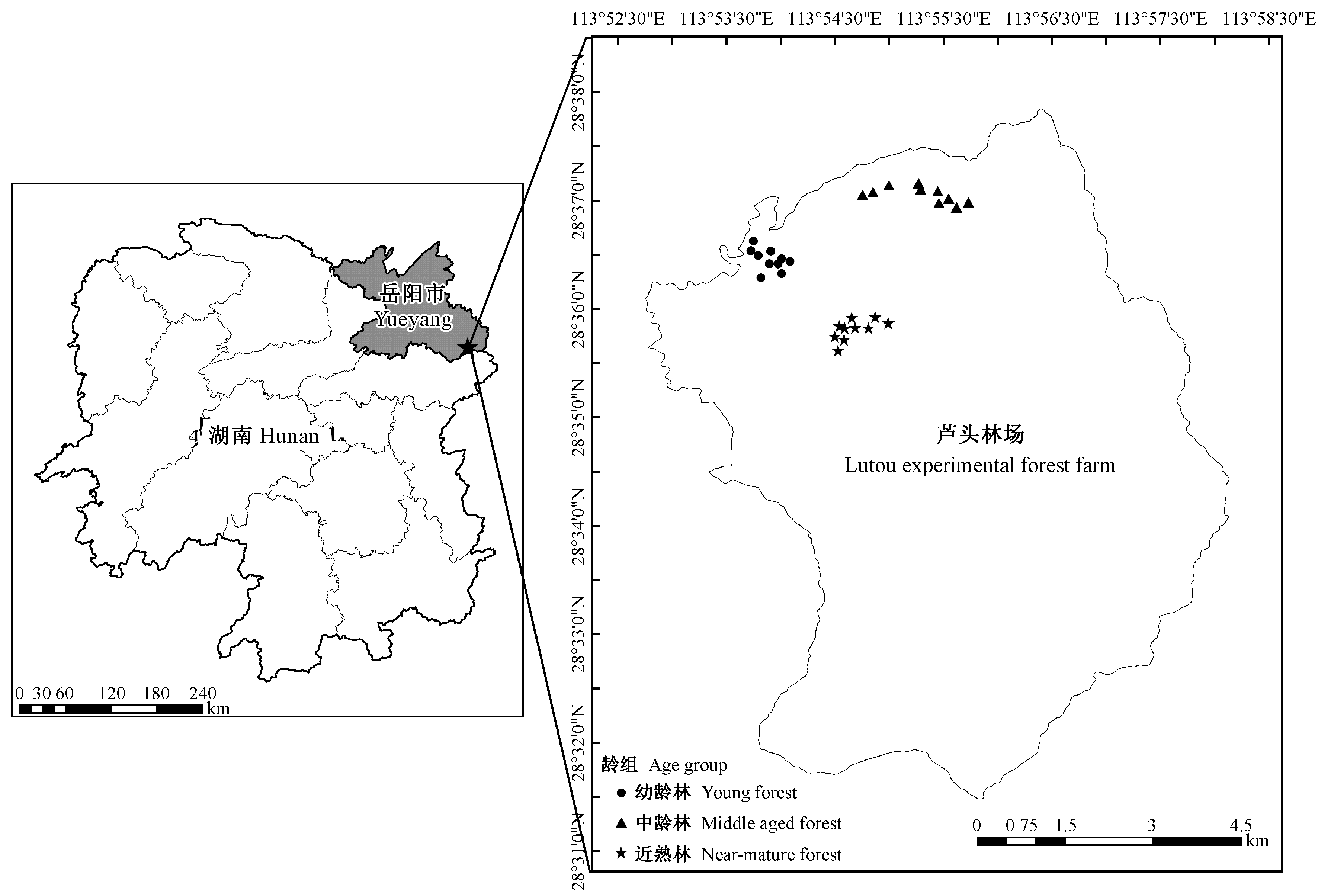

图1

表1

图2

表2

林分空间结构评价等级划分标准"

林分空间结构综合得分 Comprehensive score value of stand spatial structure	林分特征描述 The description of stand feature	评价等级 Evaluation grade
[0, 0.2)	单木所在结构单元内空间结构差。树种混交程度低，林层单一，透光条件差，单木生长处于劣势状态，林木聚集分布 The spatial structure in the structural unit where the single tree is located is poor. Themingling degree of tree species is low, the structure of forest layer is simple, the light transmission condition is poor, the growth of single tree is in an inferior position, and the trees are in contagious distribution	Ⅰ
[0.2, 0.4)	单木所在结构单元内空间结构较差。树种混交程度较低，林层多样性一般，透光条件较差，单木生长处于被压状态，林木聚集分布 The spatial structure in the structural unit where the single tree is located is slightly poor. Themingling degree of tree species is slightly low, the diversity of forest layer is general, the light transmission condition is slightly poor, the growth of single tree is in the pressed state, and the trees are in contagious distribution	Ⅱ
[0.4, 0.6)	单木所在结构单元内空间结构一般。树种混交程度中等，林层较为多样，透光条件一般，单木生长处于中庸状态，林木均匀分布 The spatial structure in the structural unit where the single tree is located is general. Themingling degree of tree species is medium, the structure of forest layer is comparatively diverse, the light transmission condition is general, the growth of single tree is in a moderate state, and the trees are in uniform distribution	Ⅲ
[0.6, 0.8)	单木所在结构单元内空间结构较好。混交树种较多，林层结构较为复杂，透光条件较好，单木生长处于优势状态，林木接近随机分布 The spatial structure in the structural unit where the single tree is located is slightly good. There are a number of mixed tree species, the structure of forest layer structure is complex, the light transmission condition is good, the growth of single tree is in a dominant state, and the trees are close to random distribution	Ⅳ
[0.8, 1.0]	单木所在结构单元内空间结构好。林木处于理想的生长状态：树种丰富，林层多为3层以上的复层林，透光条件好，单木生长处于优势状态，林木随机分布 The spatial structure in the structural unit where the single tree is located is good. The trees are in an ideal growth state: the tree species is abundant, the structure of forest layer is mostly multi-layer forest with more than 3 layers, the light transmission condition is good, the growth of single tree is in a dominant state, and the trees are in random distribution	Ⅴ

表2

表3

图3

表4

表5

参考文献 0

	白超. 2016. 空间结构参数及其在锐齿栎天然林结构动态分析中的应用. 北京: 中国林业科学研究院.
	Bai C. 2016. Spatial structure parameters and the application on studying structure dynamics of natural Quercus aliena var. acuteserrata forest. Beijing: Chinese Academy of Forestry. [in Chinese]
	曹小玉, 李际平, 委霞. 中亚热带典型林分空间结构对土壤养分含量的影响. 林业科学, 2020, 56 (1): 20- 28.
	Cao X Y , Li J P , Wei X . Effects of spatial structure on soil nutrient content in typical forests in the contral-subtropics of China. Scientia Silvae Sinicae, 2020, 56 (1): 20- 28.
	陈亚南, 杨华, 马士友, 等. 长白山2种针阔混交林空间结构多样性研究. 北京林业大学学报, 2015, 37 (12): 48- 58.
	Chen Y N , Yang H , Ma S Y , et al. Spatial structure diversity of semi-natural and plantation stands of Larix gmelinii in Changbai Mountains, northeastern China. Journal of Beijing Forestry University, 2015, 37 (12): 48- 58.
	程开明. 结构方程模型的特点及应用. 统计与决策, 2006, (10): 22- 25. doi: 10.3969/j.issn.1002-6487.2006.10.008
	Cheng K M . Characteristics and application of structural equation model. Statistics and Decision, 2006, (10): 22- 25. doi: 10.3969/j.issn.1002-6487.2006.10.008
	代林利, 陈义堂, 伍丽华, 等. 不同林分密度杉木林养分积累与垂直空间分配. 应用生态学报, 2022, 33 (2): 311- 320.
	Dai L L , Chen Y T , Wu L H , et al. Characteristics of nutrient accumulation and vertical spatial distribution in Cunninghamia lanceolata plantation with different stand densities. Chinese Journal of Applied Ecology, 2022, 33 (2): 311- 320.
	董灵波, 刘兆刚, 马妍, 等. 天然林林分空间结构综合指数的研究. 北京林业大学学报, 2013, 35 (1): 16- 22.
	Dong L B , Liu Z G , Ma Y , et al. A new composite index of stand spatial structure for natural forest. Journal of Beijing Forestry University, 2013, 35 (1): 16- 22.
	樊星火, 葛红艳, 张参参, 等. 江西省生态公益林典型林分土壤肥力状况研究. 北京林业大学学报, 2018, 40 (11): 84- 92.
	Fan X H , Ge H Y , Zhang C C , et al. Variations in soil fertility of typical non-commercial forest types in Jiangxi Province of eastern China. Journal of Beijing Forestry University, 2018, 40 (11): 84- 92.
	郝月兰. 2012. 基于林分空间结构优化的采伐木确定方法研究. 北京: 中国林业科学研究院.
	Hao Y L. 2012. Study on cutting tree determining method based on forest stand spatial structure optimization. Beijing: Chinese Academy of Forestry. [in Chinese]
	和敬渊, 王新杰, 王开, 等. 杨桦次生林林分空间结构参数多元分布研究. 北京林业大学学报, 2021, 43 (2): 22- 33.
	He J Y , Wang X J , Wang K , et al. Multivariate distribution of spatial structure parameters of Populus davidiana-Betula platyphylla secondary forest. Journal of Beijing Forestry University, 2021, 43 (2): 22- 33.
	侯琼. 2020. 基于结构方程模型的高中生区域认知能力影响因素分析. 长沙: 湖南师范大学.
	Hou Q. 2020. The analysis on influencing factors of high school students' regional cognitive ability based on structural equation model. Changsha: Hunan Normal University. [in Chinese]
	惠刚盈, GadowK, AlbertM. 角尺度——一个描述林木个体分布格局的结构参数. 林业科学, 1999, 35 (1): 37- 42.
	Hui G Y , Gadow K , Albert M . The neighbourhood pattern: a new structure parameter for describing distribution of forest tree position. Scientia Silvae Sinicae, 1999, 35 (1): 37- 42.
	惠刚盈, 胡艳波, 赵中华, 等. 基于交角的林木竞争指数. 林业科学, 2013, 49 (6): 68- 73.
	Hui G Y , Hu Y B , Zhao Z H , et al. A forest competition index based on intersection angle. Scientia Silvae Sinicae, 2013, 49 (6): 68- 73.
	惠刚盈, 胡艳波, 赵中华. 再论"结构化森林经营". 世界林业研究, 2009, 22 (1): 14- 19.
	Hui G Y , Hu Y B , Zhao Z H . Further discussion on structure-based forest management. World Forestry Research, 2009, 22 (1): 14- 19.
	惠刚盈, 赵中华, 胡艳波. 结构化森林经营技术指南. 北京: 中国林业出版社, 2010.
	Hui G Y , Zhao Z H , Hu Y B . Guide for structure-based forest management. Beijing: China Forestry Publishing House, 2010.
	惠刚盈, 张弓乔, 赵中华, 等. 天然混交林最优林分状态的π值法则. 林业科学, 2016a, 52 (5): 1- 8.
	Hui G Y , Zhang G Q , Zhao Z H , et al. A new rule of π value of natural mixed forest optimal stand state. Scientia Silvae Sinicae, 2016a, 52 (5): 1- 8.
	惠刚盈, 赵中华, 张弓乔. 基于林分状态的天然林经营措施优先性研究. 北京林业大学学报, 2016b, 38 (1): 1- 10.
	Hui G Y , Zhao Z H , Zhang G Q . Priority of management measures for natural forests based on the stand state. Journal of Beijing Forestry University, 2016b, 38 (1): 1- 10.
	李际平, 郭瑞, 卿东升, 等. 基于GM(1, 1)的天然次生林空间结构预测. 中南林业科技大学学报, 2020, 40 (1): 9- 21.
	Li J P , Guo R , Qing D S , et al. Prediction of stand spatial structure of natural secondary forest based on GM (1, 1). Journal of Central South University of Forestry & Technology, 2020, 40 (1): 9- 21.
	李际平, 刘素青. 亚热带天然混交林森林生态系统经营的决策模型. 南京林业大学学报(自然科学版), 2008, 32 (5): 110- 114. doi: 10.3969/j.issn.1000-2006.2008.05.024
	Li J P , Liu S Q . Decision model of forest ecosystem in subtropical nature mixed forest. Journal of Nanjing Forestry University (Natural Sciences Edition), 2008, 32 (5): 110- 114. doi: 10.3969/j.issn.1000-2006.2008.05.024
	李建军, 李际平, 刘素青, 等. 红树林空间结构均质性指数. 林业科学, 2010, 46 (6): 6- 14.
	Li J J , Li J P , Liu S Q , et al. Homogeneity index of stand spatial structure of mangrove ecological system. Scientia Silvae Sinicae, 2010, 46 (6): 6- 14.
	李建军, 刘帅, 张会儒, 等. 洞庭湖森林生态系统空间结构均质性评价. 生态学报, 2013, 33 (12): 3732- 3741.
	Li J J , Liu S , Zhang H R , et al. Heterogeneity evaluation of forest ecological system spatial structure in Dongting Lake. Acta Ecologica Sinica, 2013, 33 (12): 3732- 3741.
	李显良, 张贵, 李建军. 熵权-云模型法在环洞庭湖区林分空间结构评价中的应用. 中南林业科技大学学报, 2021, 41 (4): 12- 19.
	Li X L , Zhang G , Li J J . Application of entropy weight cloud model method in evaluation of stand spatial structure around Dongting Lake. Journal of Central South University of Forestry & Technology, 2021, 41 (4): 12- 19.
	林存学. 2013. 开敞度对次生林林冠下人工栽植红松生长发育的影响研究. 哈尔滨: 东北林业大学.
	Lin C X. 2013. Effects of opening degree on growth of Korean pine trees under canopy of secondary forest. Harbin: Northeast Forestry University. [in Chinese]
	林富成, 王维芳, 门秀莉, 等. 兴安落叶松人工林空间结构优化. 北京林业大学学报, 2021, 43 (4): 68- 76.
	Lin F C , Wang W F , Men X L , et al. Spatial structure optimal of Larix gmelinii plantation. Journal of Beijing Forestry University, 2021, 43 (4): 68- 76.
	刘玉平, 杨志高, 李丹, 等. 基于加权三角网的林分空间结构综合指数模型. 中南林业科技大学学报, 2020, 40 (9): 79- 87.
	Liu Y P , Yang Z G , Li D , et al. Comprehensive index model of forest stand spatial structure based on weighted triangulation network. Journal of Central South University of Forestry & Technology, 2020, 40 (9): 79- 87.
	罗耀华, 陈庆诚, 张鹏云. 兴隆山阴暗针叶林空间格局及其利用光能的对策. 生态学报, 1984, 4 (1): 10- 20.
	Luo Y H , Chen Q C , Zhang P Y . Spatial pattern of shade and dark coniferous forest in Xinglong Mountain and countermeasures of light energy utilization. Acta Ecologica Sinica, 1984, 4 (1): 10- 20.
	吕勇, 臧颢, 万献军, 等. 基于林层指数的青椆混交林林层结构研究. 林业资源管理, 2012, (3): 81- 84.
	Lü Y , Zang H , Wan X J , et al. Storey structure study of Cyclobalanopsis myrsinaefolia mixed stand based on storey index. Forest Resources Management, (3): 81- 84.
	任玫玫. 2017. 金沟岭林场云冷杉林竞争与更新特征研究. 北京: 北京林业大学.
	Ren M M. 2017. The study of the competition and the characteristics of regeneration in spruce-fir forest. Beijing: Beijing Forestry University. [in Chinese]
	沈海龙, 王龙, 林存学, 等. 开敞度调控对阔叶红松人工天然混交林上层阔叶树的影响. 林业科学, 2014, 50 (2): 22- 30.
	Shen H L , Wang L , Lin C X , et al. Effect of community structure regulation on upper-layer broad-leaved trees in a mixed forest of planted Korean pine and naturally-regenerated broad-leaved trees. Scientia Silvae Sinicae, 2014, 50 (2): 22- 30.
	舒韦维, 卢立华, 李华, 等. 林分密度对杉木人工林林下植被和土壤性质的影响. 生态学报, 2021, 41 (11): 4521- 4530.
	Shu W W , Lu L H , Li H , et al. Effects of stand density on understory vegetation and soil properties of Cunninghamia lanceolata plantation. Acta Ecologica Sinica, 2021, 41 (11): 4521- 4530.
	汤孟平, 娄明华, 陈永刚, 等. 不同混交度指数的比较分析. 林业科学, 2012, 48 (8): 46- 53.
	Tang M P , Lou M H , Chen Y G , et al. Comparative analyses on differentmingling indices. Scientia Silvae Sinicae, 2012, 48 (8): 46- 53.
	万盼, 刘文桢, 刘瑞红, 等. 结构化经营对栎松混交林林分空间结构及稳定性的影响. 林业科学, 2020, 56 (4): 35- 45.
	Wan P , Liu W Z , Liu R H , et al. Effects of structure-based forest management on stand space structure and its stability of mixed oak-pine forest. Scientia Silvae Sinicae, 2020, 56 (4): 35- 45.
	王姣. 2016. 基于结构方程模型的审计质量评价研究. 哈尔滨: 哈尔滨工业大学.
	Wang J. 2016. A SEM-based study on the audit quality evaluation. Harbin: Harbin Institute of Technology. [in Chinese]
	王酉石, 储诚进. 结构方程模型及其在生态学中的应用. 植物生态学报, 2011, 35 (3): 337- 344.
	Wang Y S , Chu C J . A brief introduction of structural equation model and its application in ecology. Chinese Journal of Plant Ecology, 2011, 35 (3): 337- 344.
	王长义, 王大鹏, 赵晓雯, 等. 结构方程模型中拟合指数的运用与比较. 现代预防医学, 2010, 37 (1): 7- 9.
	Wang C Y , Wang D P , Zhao X W , et al. The comparision of goodness index of structural equation model. Modern Preventive Medicine, 2010, 37 (1): 7- 9.
	温忠麟, 侯杰泰, 马什赫伯特. 结构方程模型检验: 拟合指数与卡方准则. 心理学报, 2004, 36 (2): 186- 194.
	Wen Z L , Hou J T , Marsh H W . Structural equation model testing: cutoff criteria for goodness of fit indices and Chi-square test. Acta Psychologica Sinica, 2004, 36 (2): 186- 194.
	吴明隆. 结构方程模型: AMOS的操作与应用. 重庆: 重庆大学出版社, 2009.
	Wu M L . Structural equation model: operation and application of AMOS. Chongqing: Chongqing University Press, 2009.
	阎舟. 2019. 基于结构方程模型的我国物流企业竞争力影响因素研究. 长沙: 中南林业科技大学.
	Yan Z. 2019. Research on influencing factors of competitiveness of China's logistics enterprises based on structural equation model. Changsha: Central South University of Forestry & Technology. [in Chinese]
	俞立平, 潘云涛, 武夷山. 基于结构方程的学术期刊评价研究. 情报学报, 2010, 29 (1): 136- 141.
	Yu L P , Pan Y T , Wu Y S . Research on academic journal evaluation based on structural equation modeling. Journal of the China Society for Scientific and Technical Information, 2010, 29 (1): 136- 141.
	张君钰, 杨培华, 李卫忠, 等. 油松林林分空间结构分析及评价指数构建. 西北林学院学报, 2020, 35 (5): 166- 172.
	Zhang J Y , Yang P H , Li W Z , et al. Analysis of stand spatial structure and construction of evaluation index of Pinus tabulaeformis forest. Journal of Northwest Forestry University, 2020, 35 (5): 166- 172.
	张雄清, 张建国, 段爱国. 基于单木水平和林分水平的杉木兼容性林分蓄积量模型. 林业科学, 2014, 50 (1): 82- 87.
	Zhang X Q , Zhang J G , Duan A G . Compatibility of stand volume model for Chinese fir based on tree-level and stand-level. Scientia Silvae Sinicae, 2014, 50 (1): 82- 87.
	张毅锋, 汤孟平. 天目山常绿阔叶林空间结构动态变化特征. 生态学报, 2021, 41 (5): 1959- 1969.
	Zhang Y F , Tang M P . Analysis on spatial structure dynamic characteristics of evergreen broad-leaved forest in Tianmu Mountain. Acta Ecologica Sinica, 2021, 41 (5): 1959- 1969.
	赵中华, 惠刚盈, 刘文桢. 小陇山林区2种锐齿栎次生林林分的结构特征. 西北农林科技大学学报(自然科学版), 2019, 47 (8): 75- 82.
	Zhao Z H , Hui G Y , Liu W Z . Stand structural characteristics of two Quercus aliena secondary forests on the Xiaolongshan forest area. Journal of Northwest A & F University(Natural Science Edition), 2019, 47 (8): 75- 82.
	朱光玉, 徐奇刚, 吕勇. 湖南栎类天然次生林林分空间结构对灌木物种多样性的影响. 生态学报, 2018, 38 (15): 5404- 5412.
	Zhu G Y , Xu Q G , Lü Y . Effects of stand spatial structure on species diversity of shrubs in Quercus spp. natural secondary forests in Hunan Province. Acta Ecologica Sinica, 2018, 38 (15): 5404- 5412.
	Baskent E Z , Keles S . Spatial forest planning: a review. Ecological Modelling, 2005, 188 (2/4): 145- 173.
	Bentler P M . Comparative fit indices in structural models. Psychological Bulletin, 1990, 107 (2): 238- 246.
	Cong J , Shen H L , Yang W H , et al. Effect of microenvironmental quantitative regulation on growth of Korean pine trees planted under secondary forest. Journal of Forestry Research, 2011, 22 (2): 175- 181.
	D Dǎnescu A , Albrecht A T , Bauhus J . Structural diversity promotes productivity of mixed, uneven-aged forests in southwestern Germany. Oecologia, 2016, 182 (2): 319- 333.
	Doncaster C P . Structural equation modeling and natural systems. Fish and Fisheries, 2007, 8, 367- 370.
	Feist G J , Barron F X . Predicting creativity from early to late adulthood: intellect, potential, and personality. Journal of Research in Personality, 2003, 37, 62- 88.
	Fraver S , Dodds K J , Kenefic L S , et al. Forest structure following tornado damage and salvage logging in north. Canadian Journal of Forest Research, 2017, 47 (4): 560- 564.
	Getzin S , Wiegand T , Wiegand K , et al. Heterogeneity influences spatial patterns and demographics in forest stands. Journal of Ecolofy, 2008, 96, 807- 820.
	Grace J B . Structural equation modeling and natural systems. Cambridge: Cambridge University Press, 2006.
	Hegyi F. 1974. A simulation model for managing Jack-pine stands//Fries J. Growth models for tree and stand simulation. Department of Forest Yield Research, Royal College of Forestry, Stockholm, 74-90.
	Hu L , Bentler P M . Fit indices in covariance structure modeling: sensitivity to underparameterized model misspeciffication. Psychological Methods, 1998, 3 (4): 434- 453.
	Jonsson M , Wardle D A . Structural equation modelling reveals plant-community drivers of carbon storage in boreal forest ecosystems. Biology Letters, 2010, 6, 116- 119.
	Laughlin D C , Abella S R , Covington W W , et al. Species richness and soil properties in Pinus ponderosa forests: a structural equation modeling analysis. Journal of Vegetation Science, 2007, 18, 231- 242.
	Li J J , Zhu K W , Liu S , et al. Introducing tree neighbouring relationship factors in forest pattern spatial analysis: weighted Delaunay triangulation method. Journal of Forestry Research, 2021, 32, 1941- 1951.
	Li Y F , Hui G Y , Zhao Z H , et al. The bivariate distribution characteristics of spatial structure in natural Korean pine broad-leaved forest. Journal of Vegetation Science, 2012, 23 (6): 1180- 1190.
	Libório M P , Martinuci O S , Laudares S , et al. Measuring Intra-Urban inequality with structural equation modeling: a theory-grounded indicator. Sustainability, 2020, 12 (20): 8610.
	Liu N , Wang D W , Guo Q X . Exploring the influence of large trees on temperate forest spatial structure from the angle of mingling. Forest Ecology and Management, 2021, 492, 119220.
	Rozas V . Structural heterogeneity and tree spatial patterns in an old-growth deciduous lowland forest in Cantabria, northern Spain. Plant Ecology, 2006, 185, 57- 72.
	Steiger J H, Lind J M. 1980. Statistically-based tests for the number of common factors. The Annual Meeting of the Psychometrika Society, Iowa City, IA.
	Yang J , Yang W H , Wang F , et al. Driving factors of soluble organic nitrogen dynamics in paddy soils: structure equation modeling analysis. Pedosphere, 2020, 30 (6): 801- 809.
	Zhang G G , Hui G Y , Zhang G Q , et al. A novel comprehensive evaluation method of forest state based on unit circle. Forests, 2018, 10 (1): 5.
	Zhao X J , Pan W , Chen L . Disentangling the relationships between business model innovation for low or zero carbon buildings and its influencing factors using structural equation modelling. Journal of Cleaner Production, 2018, 178, 154- 165.
	Zhao X , Li Y J , Song H , et al. Agents affecting the productivity of pine plantations on the loess plateau in China: a study based on structural equation modeling. Forests, 2020, 11 (12): 1328.

龄组 Age group	样地号 Plot code	树种组成 Species composition	平均胸径 Mean DBH/cm	平均树高 Mean height/m	平均冠幅 Mean crown/m	坡位 Slope position	坡度 Gradient/(°)
幼龄林 Young forest	1	10杉	4.6	3.2	1.8	中Mesoslope	28
	2	10杉	5.8	3.6	1.9	上Upslope	30
	3	10杉-柳	4.1	2.3	1.5	中Mesoslope	28
	4	10杉	4.9	2.6	1.8	上Upslope	29
	5	10杉	5.1	3.0	2.1	中Mesoslope	32
	6	10杉	4.7	2.8	1.9	下Downslope	29
	7	10杉+马	6.3	4.0	2.1	下Downslope	31
	8	10杉	8.5	4.8	2.0	中Mesoslope	24
	9	10杉	6.1	3.6	2.3	上Upslope	20
	10	10杉+毛	6.8	4.1	2.2	上Upslope	25
中龄林 Middle aged forest	11	10杉-山	11.2	6.1	2.9	中Mesoslope	28
	12	10杉+黄	10.9	5.4	2.2	下Downslope	30
	13	10杉+山	10.6	6.0	2.1	下Downslope	25
	14	10杉	12.4	6.1	3.1	中Mesoslope	23
	15	10杉+柳	11.9	5.9	3.0	中Mesoslope	30
	16	10杉-黄	10.3	5.8	2.8	下Downslope	24
	17	10杉	12.0	8.1	2.5	中Mesoslope	32
	18	10杉	12.4	8.8	3.1	中Mesoslope	20
	19	10杉-青	10.5	7.9	2.8	中Mesoslope	18
	20	10杉	11.9	7.6	2.7	中Mesoslope	25
近熟林 Near-mature forest	21	10杉	13.5	8.8	3.4	中Mesoslope	28
	22	10杉-毛	13.0	9.2	3.4	中Mesoslope	31
	23	10杉	12.3	8.9	3.0	下Downslope	29
	24	10杉	16.1	10.9	4.3	中Mesoslope	25
	25	10杉-毛	14.9	11.2	3.2	下Downslope	26
	26	10杉	15.6	9.9	3.9	中Mesoslope	27
	27	10杉	13.9	9.7	3.2	中Mesoslope	31
	28	10杉+苦	13.6	9.4	2.9	中Mesoslope	30
	29	9杉1毛	16.1	10.7	3.1	中Mesoslope	28
	30	10杉	14.8	10.3	3.9	下Downslope	22

模型拟合指数Model fitting index	统计值Statistical value	参考值Reference value	是否适配Degree of adaptation
χ²/df	1.708	1~3	是Fit
CFI	0.944	>0.90	是Fit
NNFI	0.924	>0.90	是Fit
IFI	0.946	>0.90	是Fit

目标层Target layer	准则层Criterion layer	权重Weight	指标层Index layer	权重Weight
林分空间结构 Stand spatial structure	水平空间结构 Horizontal spatial structure	0.522 9	全混交度Totalmingling degree	0.338 6
			角尺度Uniform angle index	0.291 3
			空间密度指数Spatial density index	0.370 1
	垂直空间结构 Vertical spatial structure	0.477 1	林层指数Storey index	0.306 8
			开敞度Open degree	0.346 6
			交角竞争指数Angle competition index	0.346 6

龄组 Age group	全混交度 Total mingling degree	角尺度 Uniform angle index	空间密度指数 Spatial density index	林层指数 Storey index	开敞度 Open degree	交角竞争指数 Angle competition index	综合得分 Comprehensive score	等级 Grade
幼龄林 Young forest	0.029 8±0.04a	0.424 6±0.03b	0.552 7±0.06a	0.150 5±0.04b	0.402 2±0.09a	0.254 3±0.02b	0.378 1±0.11a	Ⅱ
中龄林 Middle aged forest	0.056 9±0.04a	0.451 3±0.02a	0.539 7±0.15a	0.248 8±0.07a	0.270 2±0.07b	0.279 6±0.03b	0.452 6±0.09a	Ⅲ
近熟林 Near-mature forest	0.043 9±0.03a	0.466 9±0.02a	0.548 3±0.11a	0.291 8±0.05a	0.140 0±0.05c	0.381 9±0.08a	0.377 5±0.08a	Ⅱ
