户外用重组竹防蓝变处理工艺及性能

doi:10.11707/j.1001-7488.20211214

摘要/Abstract

摘要：

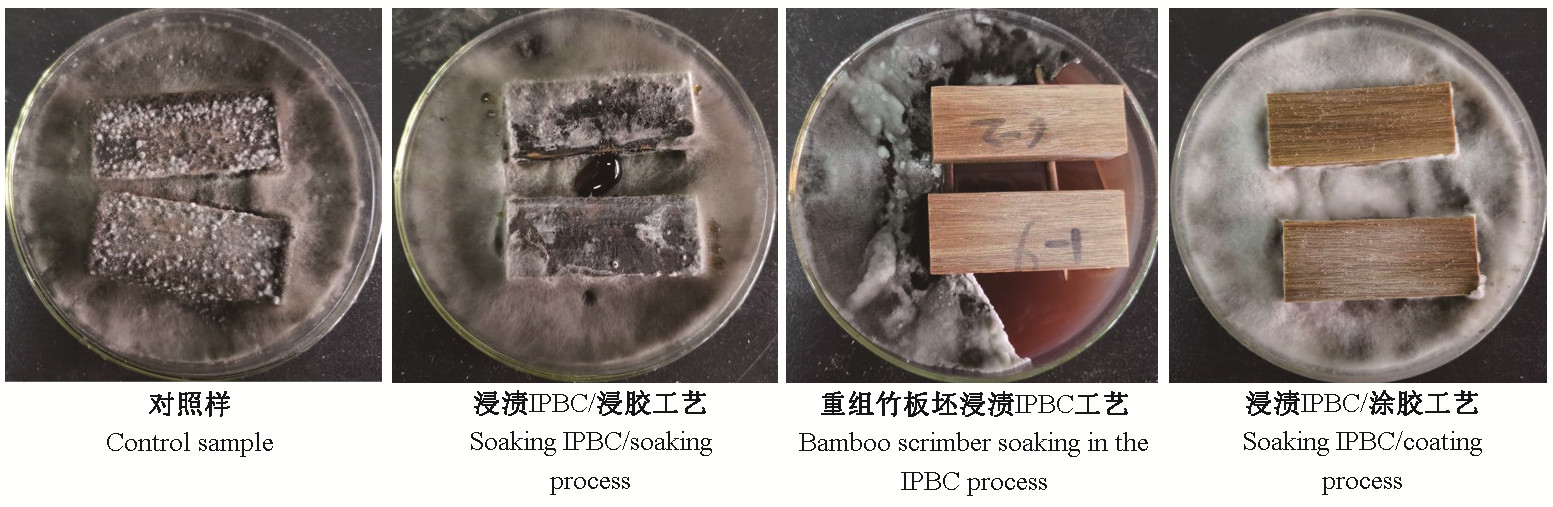

目的: 研究抗菌处理工艺对重组竹防蓝变性能的影响，为户外用重组竹制备提供技术支持。方法: 以有机碘化物3-碘代-2丙炔基甲氨酸丁酯(IPBC)为抗菌剂，采用浸渍IPBC/浸胶、浸渍IPBC/涂胶、重组竹板坯浸渍IPBC 3种抗菌处理工艺，通过实验室和室外防蓝变试验分析3种处理工艺制备户外用重组竹对蓝变菌的防治效力，利用扫描电镜(SEM)、计算机断层扫描仪(CT)和激光扫描共聚焦显微镜(LSCM)研究浸渍IPBC/涂胶工艺中抗菌剂在竹纤维化单板和重组竹内的分布。结果: 实验室防蓝变试验结果显示，对照样和采用浸渍IPBC/浸胶工艺制备的重组竹对可可球二孢菌的感染等级均为4级; 采用浸渍IPBC/涂胶和重组竹板坯浸渍IPBC工艺制备的重组竹对可可球二孢菌的感染等级分别达1级和0级。室外防蓝变试验结果显示，在成都室外多雨环境中，对照样、采用浸渍IPBC/浸胶和重组竹板坯浸渍IPBC工艺制备的重组竹在2个月内均开始出现蓝变; 而采用浸渍IPBC/涂胶工艺制备的重组竹在12个月内仍未发生蓝变，CT检测结果表明竹纤维化单板疏解时产生的裂隙、薄壁细胞腔、导管内壁、纤维细胞的胞间层裂隙中均有抗菌剂存在。采用浸渍IPBC/涂胶工艺制备重组竹时，酚醛树脂胶黏剂在竹材细胞壁上形成一层胶膜，将抗菌剂包裹在竹材与PF树脂胶黏剂之间，并形成有效固着，从而减少抗菌剂流失。结论: 采用浸渍IPBC/涂胶工艺制备的重组竹对蓝变菌具有有效防治效力，可广泛应用于室外环境中。

关键词: 蓝变, 重组竹, 抗菌剂, 3-碘代-2丙炔基甲氨酸丁酯

Abstract:

Objective: The aim of this study was to investigate the effects of antibacterial agent treatment processes on the anti-blue stain bamboo scrimber and to provide technical support for its outdoor applications. Method: In the paper, the 3-iodo-2-propynyl butylcarbamate(IPBC) was used as an antibacterial agent. The anti-blue stain properties of bamboo scrimber manufactured by the soaking IPBC/soaking process, the soaking IPBC/coating process, and bamboo scrimber soaking in the IPBC process were studied through the indoor laboratory method and outdoor exposure test. Meanwhile, the scanning electron microscope(SEM), laser scanning confocal microscope(LSCM) and computed tomography(CT) were applied to investigate the distribution of IPBC in the bamboo fiber bundles and bamboo scrimber manufactured by the soaking IPBC/coating process. Result: The indoor experimental results showed that the grade of infected blue stain of the control sample and the bamboo scrimber manufactured by soaking IPBC/soaking process reached 4 level, while those of the bamboo scrimber manufactured by the soaking IPBC/coating process and bamboo scrimber soaking in the IPBC process reached 1 and 0 level, respectively. The outdoor exposure test was carried out in high humidity environments of Chengdu, Sichuan Province. The results indicated that the blue stain occurred on the surface of the control sample, the bamboo scrimber manufactured by soaking IPBC/soaking process and bamboo scrimber soaking in the IPBC process for about two months. Whereas, no blue stain occurred on the surface of the bamboo scrimber manufactured by the soaking IPBC/coating process for a duration of 12 months. The antibacterial agent was found in the cracks, parenchyma cells, vessels, intercellular cracks et al., which was confirmed by CT and LSCM result. The anti-blue stain efficiency of the bamboo scrimber manufactured by the soaking IPBC/coating process was due to the uniform distribution of IPBC in the bamboo fiber bundles, the formation of phenol-formaldehyde resin film on the bamboo fiber bundles enclosed the IPBC in the bamboo scrimber, which formed an effective fixation system of the PF resin during the curing process at high temperature, and then it acted as an antibacterial agent inhibitor and decreased the loss of antibacterial agent. Conclusion: The bamboo scrimber manufactured by soaking IPBC/coating process could be efficient for the prevention and amelioration of the blue stain and could be wildly used in outdoor environments.

Key words: blue stain, bamboo scrimber, antibacterial agent, 3-iodo-2-propynyl butylcarbamate(IPBC)

中图分类号:

S781.72

张亚梅,余养伦,于文吉. 户外用重组竹防蓝变处理工艺及性能[J]. 林业科学, 2021, 57(12): 140-146.

Yamei Zhang,Yanglun Yu,Wenji Yu. Processes and Properties of Anti-Blue Stain Bamboo Scrimber for Outdoor Application[J]. Scientia Silvae Sinicae, 2021, 57(12): 140-146.

图/表 8

表1

表2

图1

图2

图3

图4

图5

图6

参考文献 0

	安鑫, 覃道春, 靳肖贝, 等. 3种国外竹制竹帘层积材防霉处理技术. 浙江农林大学学报, 2015, 32 (3): 404- 409.
	An X , Qin D C , Jin X B , et al. Enhancing mold-resistance of laminated bamboo curtain lumber using three non-native bamboo species. Journal of Zhejiang A & F University, 2015, 32 (3): 404- 409.
	费本华, 刘嵘, 刘贤淼, 等. 竹材纹孔结构及表征方法研究进展. 林业工程学报, 2019, 4 (2): 13- 18.
	Fei B H , Liu R , Liu X M , et al. A review of structure and characterization methods of bamboo pits. Journal of Forestry Engineering, 2019, 4 (2): 13- 18.
	符永碧, 施振华, 利群. 引起橡胶和马尾松木材蓝变的真菌——可可球二孢. 林业科学研究, 1988, 2 (2): 195- 199.
	Fu Y B , Shi Z H , Li Q . A blue-staining fungus of the timbers of Hevea brasiliensis and Pinus massoniana. Forest Research, 1988, 2 (2): 195- 199.
	黄道榜, 王威, 陈勇花, 等. 基于响应面法的重组竹硅铝溶胶防霉剂研究. 林业工程学报, 2018, 3 (3): 29- 34.
	Huang D B , Wang W , Chen Y H , et al. Optimization of silica-alumina sol anti-mold agent of bamboo scrimber using response surface methodology. Journal of Forestry Engineering, 2018, 3 (3): 29- 34.
	金菊婉, 周定国. 木质复合材料防腐方法综述. 南京林业大学学报(自然科学版), 2009, 33 (6): 121- 126. doi: 10.3969/j.issn.1000-2006.2009.06.028
	Jin J W , Zhou D G . A review of preservation methods for wood-based composites. Journal of Nanjing Forestry University(Natural Sciences Edition), 2009, 33 (6): 121- 126. doi: 10.3969/j.issn.1000-2006.2009.06.028
	李红晨, 何盛, 张仲凤, 等. 竹材显微构造与孔隙结构研究进展. 竹子学报, 2019, 38 (3): 52- 58, 77. doi: 10.3969/j.issn.1000-6567.2019.03.008
	Li H C , He S , Zhang Z F , et al. Research progress of microstructure and porous structure of bamboo. Journal of Bamboo Research, 2019, 38 (3): 52- 58, 77. doi: 10.3969/j.issn.1000-6567.2019.03.008
	林琳, 高欣, 柯清, 等. 木结构建筑用材防霉方法的现状. 家具与室内装饰, 2016, (4): 66- 67. doi: 10.3969/j.issn.1006-8260.2016.04.021
	Lin L , Gao X , Ke Q , et al. Present situation of the methods for the wood structure building material mould prevention. Furniture & Interior Design, 2016, (4): 66- 67. doi: 10.3969/j.issn.1006-8260.2016.04.021
	刘嵘, 杨淑敏, 李晖, 等. 毛竹材导管分子的纹孔特征. 南京林业大学学报(自然科学版), 2017, 41 (6): 163- 168.
	Liu R , Yang S M , Li H , et al. Characteristics of pits in the vessel element of moso bamboo(Phyllostachys edulis(Carr. )J. Houz.). Journal of Nanjing Forestry University(Natural Science Edition), 2017, 41 (6): 163- 168.
	彭冠云, 王玉荣, 任海青, 等. 基于同步辐射X射线相衬显微CT技术的竹木复合材料胶合界面特征研究. 光谱学与光谱分析, 2013, 33 (3): 829- 833. doi: 10.3964/j.issn.1000-0593(2013)03-0829-05
	Peng G Y , Wang Y R , Ren H Q , et al. Investigation of characteristic microstructures of adhesive interface in wood/bamboo composite material by synchrotron radiation X-ray phase contrast microscopy. Spectroscopy and Spectral Analysis, 2013, 33 (3): 829- 833. doi: 10.3964/j.issn.1000-0593(2013)03-0829-05
	覃道春, 魏万姝, 靳肖贝, 等. 水洗对防霉重组竹防霉性能的影响. 木材工业, 2015, 29 (5): 43- 47.
	Qin D C , Wei W S , Jin X B , et al. Effect of washing on antimold performance of bamboo scrimber treated with antimold chemical. China Wood Industry, 2015, 29 (5): 43- 47.
	秦莉, 于文吉, 余养伦. 重组竹材耐腐防霉性能的研究. 木材工业, 2010, 24 (4): 9- 11.
	Qin L , Yu W J , Yu Y L . Mold and decay resistance of reconstituted bamboo lumber. China Wood Industry, 2010, 24 (4): 9- 11.
	单海斌, 刘杏娥, 杨淑敏, 等. 计算机断层扫描技术(CT)在木材无损检测中的应用与发展. 浙江农林大学学报, 2013, 30 (1): 123- 128.
	Shan H B , Liu X E , Yang S M , et al. Applications and development of CT in the wood non-destructive testing. Journal of Zhejiang A & F University, 2013, 30 (1): 123- 128.
	孙照斌, 田芸. 龙竹材纵向气体渗透性测定. 林业科技开发, 2006, 20 (4): 44- 47.
	Sun Z B , Tian Y . Study on the gas permeability of bamboo timber of Dendrocalamus giganteus in the longitudinal direction. China Forestry Science and Technology, 2006, 20 (4): 44- 47.
	魏万姝, 覃道春. 4种防霉剂对重组竹性能的影响. 东北林业大学学报, 2011, 39 (4): 93- 95.
	Wei W Z , Qin D C . Effects of four mold inhibitor on properties of reconsolidated bamboo. Journal of Northeast Forestry University, 2011, 39 (4): 93- 95.
	肖忠平, 陆继圣. IPBC防腐处理材的防腐性和抗流失性研究. 西北林学院学报, 2010, 25 (5): 187- 190.
	Xiao Z P , Lu J S . Decay and leaching resistance of wood and wood-based panels treated with IPBC. Journal of Northwest Forestry University, 2010, 25 (5): 187- 190.
	肖忠平, 张苏俊, 陆继圣. 戊唑醇和IPBC防腐处理材的FTIR分析. 木材加工机械, 2009, 20 (2): 15- 16, 30.
	Xiao Z P , Zhang S J , Lu J S . FTIR analysis of wood treated with tebuconazole or IPBC preservation. Wood Processing Machinery, 2009, 20 (2): 15- 16, 30.
	于文吉, 祝荣先, 余养伦, 等. 高强度竹基纤维复合材料制造技术研究报告. 科技资讯, 2016, (7): 163- 164.
	Yu W J , Zhu R X , Yu Y L , et al. Manufacturing technology and application of high-performance bamboo-based fiber composite. Science & Technology Information, 2016, (7): 163- 164.
	于文吉. 我国重组竹产业发展现状与趋势分析. 木材工业, 2012, 26 (1): 11- 14.
	Yu W J . Current status and future development of bamboo scrimber industry in China. China Wood Industry, 2012, 26 (1): 11- 14.
	余养伦, 秦莉, 于文吉. 室外地板用竹基纤维复合材料制备技术. 林业科学, 2014, 50 (1): 133- 139.
	Yu Y L , Qin L , Yu W J . Manufacturing technology of bamboo-based fiber composites used as outdoor flooring. Scientia Silvae Sinicae, 2014, 50 (1): 133- 139.
	张明刚, 瞿欣, WinkowskiKaren, 等. 一种新型水分散型IPBC杀菌剂及其性能. 精细与专用化学品, 2008, 16 (9): 15- 17.
	Zhang M G , Qu X , Karen K , et al. A new water dispersible biocide IPBC and its properties. Fine and Specialty Chemicals, 2008, 16 (9): 15- 17.
	张建, 袁少飞, 范慧, 等. 5种防腐防霉剂对重组竹材抑菌效果的影响. 浙江林业科技, 2016, 36 (5): 8- 12.
	Zhang J , Yuan S F , Fan H , et al. Effect of different antimildew and antiseptic agents on reconstructed bamboo timber. Journal of Zhejiang Forestry Science and Technology, 2016, 36 (5): 8- 12.
	赵博识, 于志明, 张扬, 等. 可可球二孢的培养及其侵染橡胶木表面性能的研究. 北京林业大学学报, 2020, 42 (3): 160- 167.
	Zhao B S , Yu Z M , Zhang Y , et al. Growth of Lasiodiplodia theobromae and its dyeing effect on the surface properties of rubber wood. Journal of Beijing Forestry University, 2020, 42 (3): 160- 167.
	Volkmer T , Landmesser H , Genoud A , et al. Penetration of 3-iodo-2-propynyl butylcarbamate(IPBC) in coniferous wood pre-treated with Physisporinus vitreus. Journal of Coatings Technology and Research, 2010, 7 (6): 721- 726.

分级Grade	试样感染面积Infected area of sample
0	试样表面无菌丝、霉点No mycelial and mould on the surface of sample
1	试样表面感染面积 < 1/4 The infected area on the surface of sample < 1/4
2	试样表面感染面积1/4~1/2 The infected area on the surface of sample 1/4-1/2
3	试样表面感染面积1/2~3/4 The infected area on the surface of sample 1/2-3/4
4	试样表面感染面积 > 3/4 The infected area on the surface of sample > 3/4

样品 Samples	试样表面感染等级 Grade of infection	防治效力 Preventing efficiency(%)
对照样Control sample	4	0
浸渍IPBC/浸胶工艺Soaking IPBC/soaking process	4	0
重组竹板坯浸渍IPBC工艺Bamboo scrimber soaking in the IPBC process	0	100
浸渍IPBC/涂胶工艺Soaking IPBC/coating process	0~1	75~100
