林业科学 ›› 2020, Vol. 56 ›› Issue (10): 70-82.doi: 10.11707/j.1001-7488.20201008

• 论文与研究报告 • 上一篇    下一篇

山核桃贝壳杉烯氧化酶基因CcKO的克隆和表达分析

梁璧,张佳琦,任飞,胡恒康,徐川梅,胡渊渊,黄有军,娄和强,张启香*

  1. 浙江农林大学林业与生物技术学院 省部共建亚热带森林培育国家重点实验室 杭州 311300
  • 收稿日期:2019-11-18 出版日期:2020-10-25 发布日期:2020-11-26
  • 通讯作者: 张启香
  • 基金资助:
    国家自然科学基金项目(31670682);国家自然科学基金项目(31800563);国家自然科学基金项目(31600547);国家自然科学基金项目(31971672);浙江省自然科学基金项目(LY18C150002);浙江省农业(果品)新品种选育重大科技专项(2016C02052-13)

Cloning and Expression Analysis of Ent-Kaurene Oxidase Gene CcKo in Carya cathayensis

Bi Liang,Jiaqi Zhang,Fei Ren,Hengkang Hu,Chuanmei Xu,Yuanyuan Hu,Youjun Huang,Heqiang Lou,Qixiang Zhang*

  1. State Key Laboratory of Subtropical Silviculture College of Forestry and Biotechnology, Zhejiang A & F University Hangzhou 311300
  • Received:2019-11-18 Online:2020-10-25 Published:2020-11-26
  • Contact: Qixiang Zhang

摘要:

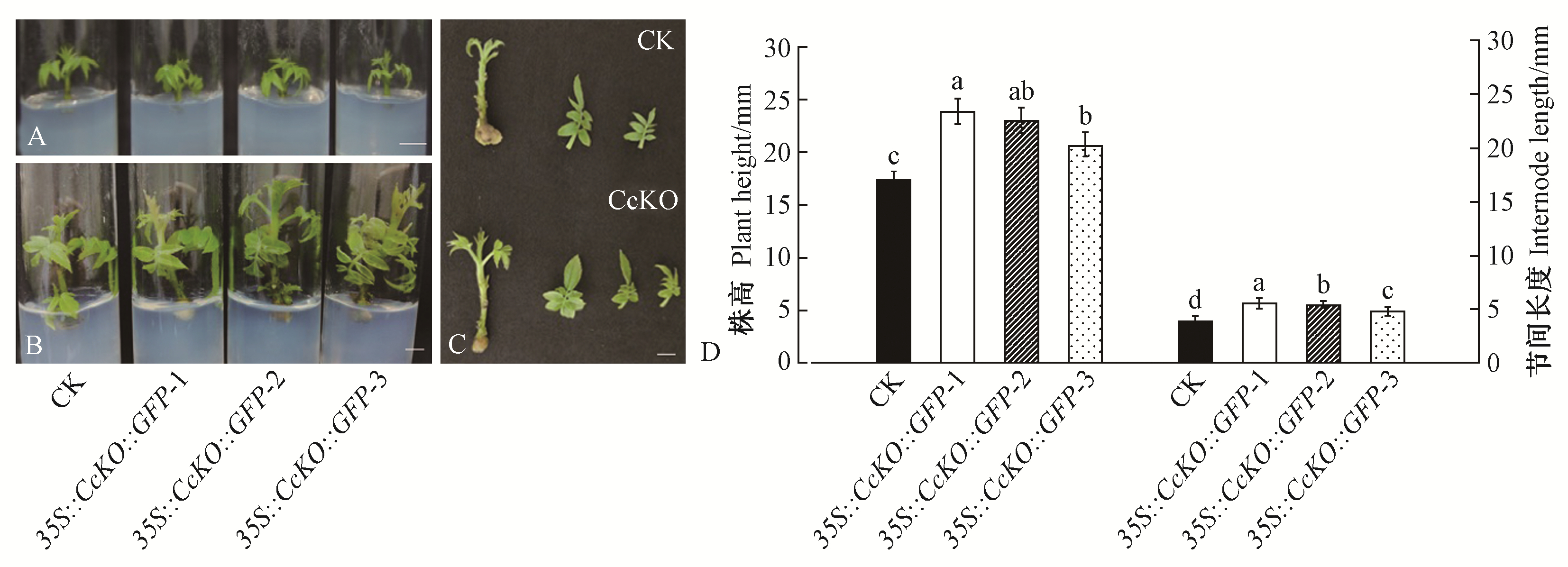

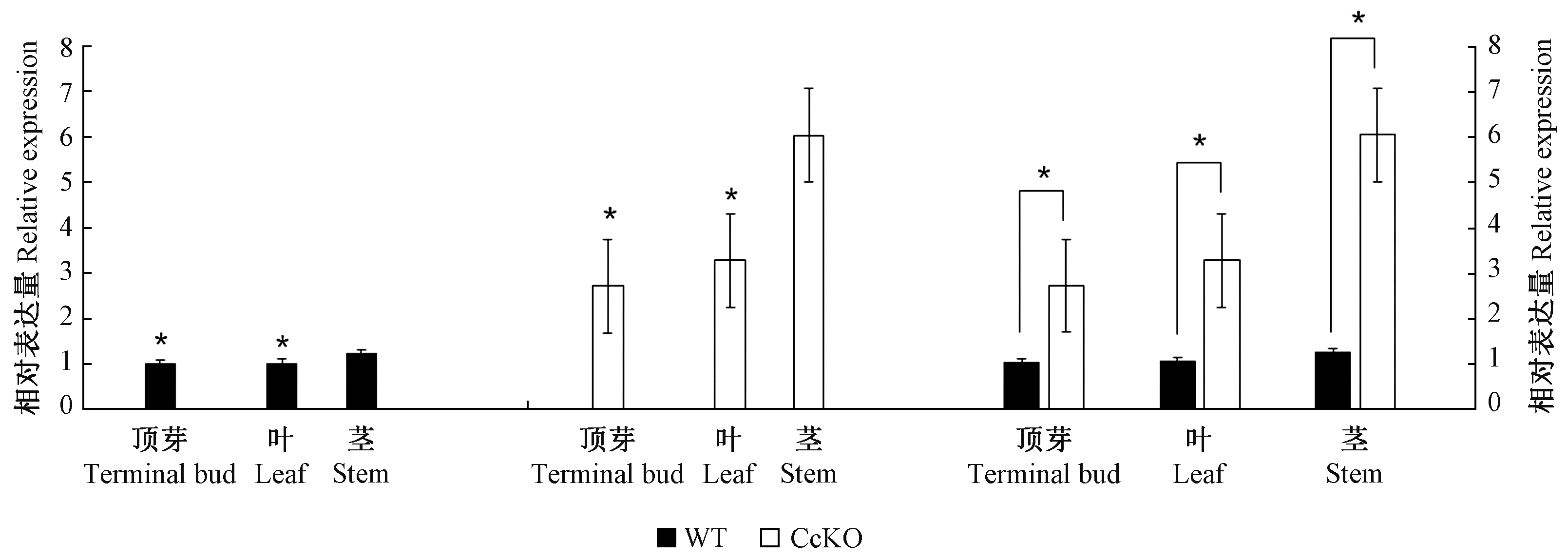

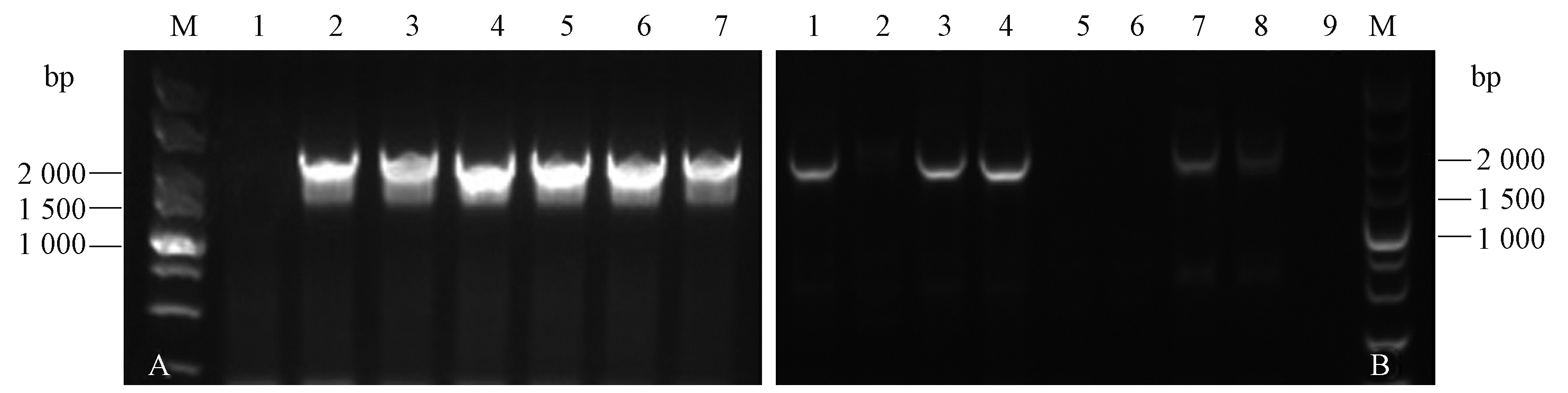

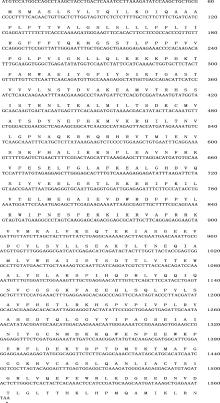

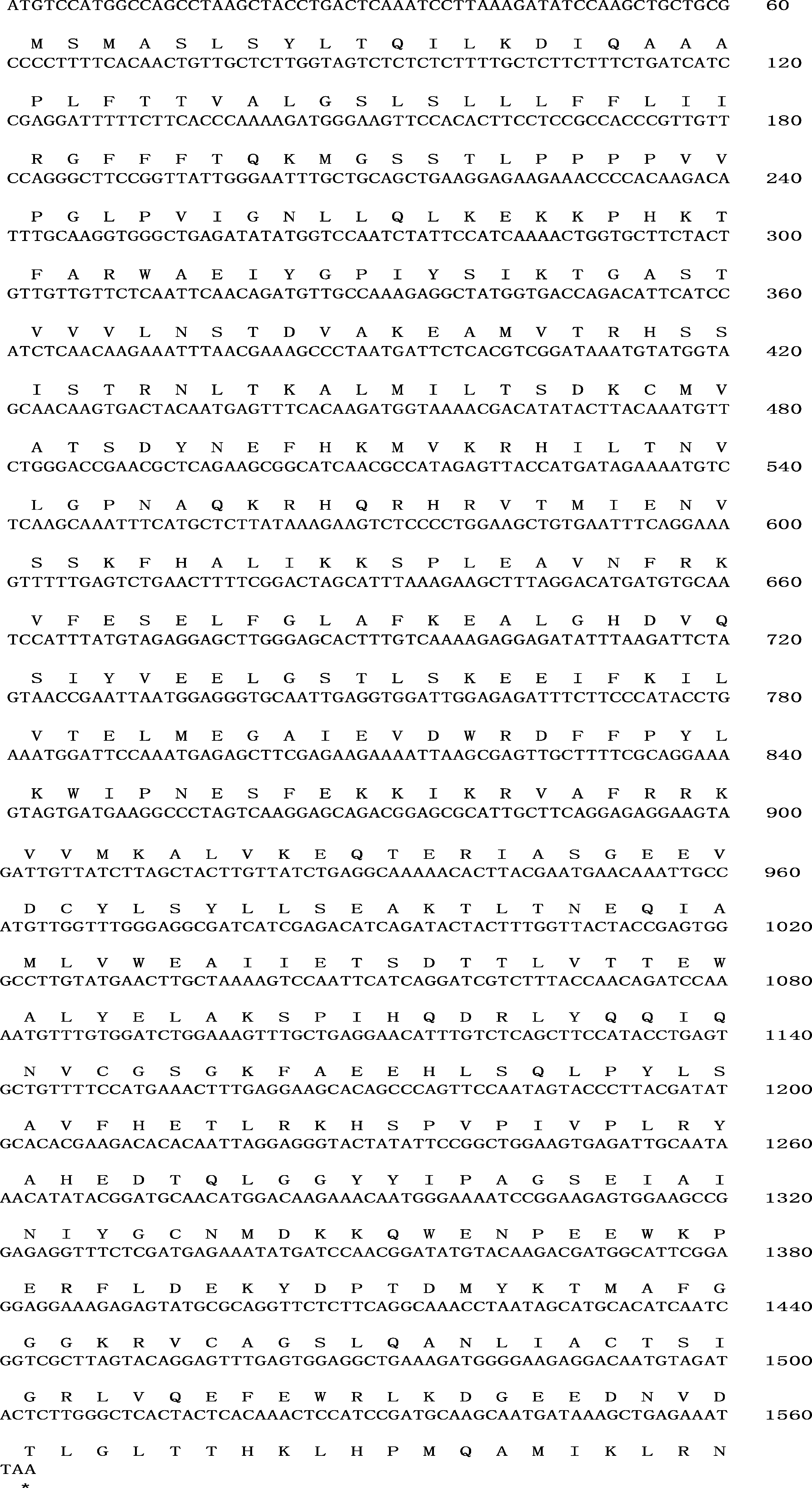

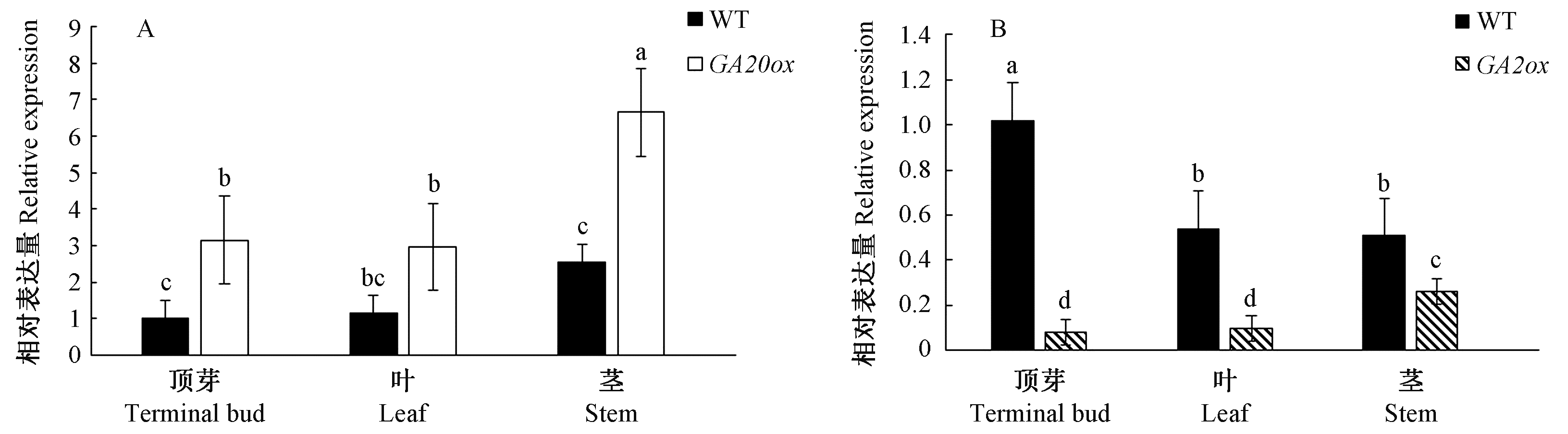

目的: 内根-贝壳杉烯氧化酶(KO)是赤霉素(GAs)生物合成途径关键酶,也是植物GAs生物合成抑制剂多效唑的靶酶,若GAs生物合成途径中在KO基因位点发生阻塞,会影响植株的正常生长。本研究克隆山核桃CcKO基因(Caca0733S0131)及其启动子并进行表达分析,以利于进一步探究山核桃CcKO基因在植物生长和发育过程中,尤其是与株高调控相关的生物学功能,从而助力山核桃优新种质的创制。方法: 以山核桃体细胞胚为试验材料,采用同源重组及PCR扩增技术,克隆获得山核桃KO的基因及启动子序列,并进一步构建了具有强启动子的35S∷CcKO∷GFP过表达载体和CcKOpro∷GUS启动子表达载体;利用BLAST在线工具得到该基因编码的氨基酸序列,并对其进行生物信息学分析和同源性分析;进一步通过农杆菌介导法将启动子表达载体及过表达载体转入核桃体细胞胚并进行植株再生试验,分别获得阳性再生植株,从而深入分析山核桃CcKO基因的生物学功能。结果: 通过克隆,获得1条山核桃CcKO开放阅读框,其全长为1 563 bp,共编码520个氨基酸,相对分子量为59.076 kDa。氨基酸同源性分析表明,山核桃CcKO含有细胞色素P450核心功能域FXXGXRXCXG和氨基端的跨膜结构域。BLAST结果表明,山核桃CcKO氨基酸序列与核桃JrKO氨基酸序列同源性为96%,与白梨、苹果、板栗、欧洲栓皮栎的氨基酸同源性分别为71%、79%、77%、76%。对核桃体细胞胚进行遗传转化:启动子表达经GUS染色和PCR验证表明,CcKOpro∷GUS启动子表达载体被成功转入核桃体细胞胚中,且山核桃CcKO基因主要定位于维管束中;过量表达经荧光检测显示及PCR验证表明,35S∷CcKO∷GFP过表达载体被成功转入核桃体细胞胚中;表型分析结果显示,阳性再生植株株高显著高于对照,且山核桃CcKO基因的表达丰度越高,其株高越高;实时荧光定量PCR及相关分析表明,该基因表达具有空间差异,茎中表达量显著高于其他组织部位,且过量表达可使核桃阳性再生植株GAs合成通路下游GA20ox表达量升高而GA2ox表达量下降。结论: 山核桃CcKO基因编码区全长1 563 bp,编码520个氨基酸,该基因所编码的氨基酸序列与核桃JrKO氨基酸序列同源性最高,同源性为96%;启动子表达载体定位结果表明该基因主要定位于维管束。过量表达山核桃CcKO基因的核桃再生植株中,KO mRNA表达量明显升高,植株表现出明显的伸长特征,并且CcKO过量表达可使其GA20ox表达量上调,GA2ox表达量下调。本研究结果可为进一步分析KO基因在山核桃及核桃生长发育过程中的作用提供参考。

关键词: 山核桃, 核桃, 内根-贝壳杉烯氧化酶, 启动子, 遗传转化, 基因表达

Abstract:

Objective: Ent-kaurene oxidase (KO) is the key enzyme of gibberellins(GAs) biosynthetic pathway and the target enzyme of the plant GAs biosynthesis inhibitor paclobutrazol. Blocking of KO gene in the GAs biosynthetic pathway will affect the normal growth of plants. In this research, we cloned and analyzed the expression of CcKO (Caca0733S0131)gene and its promoter in Carya cathayensis, which is beneficial to further explore the function of CcKO in plant growth and development, especially the biological function related to plant height regulation, so as to help the creation of superior new germplasm of C. cathayensis. Method: The somatic embryos of C. cathayensis were used to clone the sequence of KO gene and its promoter by homologous recombination and PCR amplification. 35S∷CcKO∷GFP overexpression vectors and CcKOpro∷GUS expression vectors were further constructed. The amino acid sequence of this gene was obtained by BLAST online tool, and bioinformatics analysis and homology analysis were performed as well. Furthermore, the overexpression vector and promoter expression vector were transformed into Juglans regia somatic embryos which was mediated by Agrobacterium, and the plant regeneration experiments were carried out to obtain the positive regenerated plants to further analyze the biological functions of CcKO. Result: A C. cathayensis CcKO open reading frame (ORF) was obtained, which was 1 563 bp and encoding 520 amino acids and molecular weight was 59.076 kDa. Amino acids homology analysis exhibited that CcKO contained a core functional domain of cytochrome P450 FXXGXRXCXG and transmembrane region near the N-terminus. BLAST analysis indicated that the amino acid sequence of CcKO was 96% homologous with JrKO, while 71%, 79%, 77% and 76% homologous with the amino acid sequences of Pyrus bretschneideri, Malus domestica, Castanea mollissima and Quercus suber. Heterologous genetic transformation of J. regia somatic embryos: The expression vector of CcKOpro∷GUS was successfully transferred into walnut somatic embryos by GUS staining and PCR verification, and CcKO gene was mainly located in vascular bundles; The overexpression vector of 35S∷CcKO∷GFP was successfully transformed into walnut somatic embryos by fluorescence detection and PCR verification; The phenotypic analysis showed that the plant height of the positive regenerated plants was significantly higher than the control. Moreover, the higher the expression abundance of CcKO, the higher the plant height. Real-time quantitative PCR and related analysis showed that the expression of the gene has spatially differences, and the expression level of stem was significantly higher than other tissues, and KO overexpression could increase the expression of GA20ox and decrease the expression of GA2ox in the GAs biosynthetic pathway of the J. regia positive regenerated plants. Conclusion: The coding region of CcKO was 1 563 bp and encoded 520 amino acids. The amino acid sequence encoded by this gene has the highest homologous with J. regia JrKO amino acid sequence, with the homologous of 96%; The promoter expression vector showed that the gene was mainly located in the vascular bundle. Real-time quantitative PCR and related analysis showed that the relative expression of KO mRNA in J. regia positive regenerated plants was significantly increased, and the regenerated plants showed obvious elongation characteristics as well. Moreover, the overexpression of CcKO in regenerated plants could result in the up-regulation of GA20ox expression and the down-regulation of GA2ox expression. The results of this study provide a basis for further analysis of the role of this gene in the growth and development of C. cathayensis and J. regia.

Key words: Carya cathayensis, Juglans regia, ent-kaurene oxidase gene, promoter, genetic transformation, gene expression
