镁铝层状双氢氧化物/三聚氰胺磷酸盐复配阻燃剂对中密度纤维板的协效阻燃机理分析

doi:10.11707/j.1001-7488.20220515

摘要/Abstract

摘要：

目的: 探究镁铝层状双氢氧化物(MgAl-LDHs)与三聚氰胺磷酸盐(MP)复配阻燃剂的协同阻燃机理，为MgAl-LDHs与磷氮阻燃剂复配阻燃剂应用于阻燃纤维板制备提供理论基础。方法: 采用氧指数仪和锥形量热仪测试阻燃中密度纤维板的阻燃性能，通过氧指数、热释放速率、总热释放量、烟释放速率、烟释放总量变化和协效比计算，分析复配阻燃剂的释热性能及其在生烟特性方面的协效作用，运用热重分析、傅里叶红外光谱分析以及热重-傅里叶红外光谱联用分析技术探讨MgAl-LDHs与MP之间的凝聚相和气相阻燃机理。结果: 复配阻燃剂制备出中密度纤维板的氧指数为31.9%，复配阻燃剂在氧指数协效比计算中未表现出协效作用，而锥形量热仪协效比计算表现出协效作用，热解分析表明复配阻燃剂对木粉的阻燃效果优于MgAl-LDHs和MP单独阻燃作用。燃烧过程中MP催化MgAl-LDHs快速分解，释放大量水蒸气和CO₂，吸收纤维板热量，降低表面温度，使燃烧难以维持，同时水蒸气和CO₂稀释可燃气体和氧气浓度，降低燃烧速率。复配阻燃剂的阻燃机理主要为气相阻燃，凝聚相阻燃作用不明显，气相阻燃是“冷却效应”和“稀释效应”共同作用的结果，320 ℃前主要为气相阻燃，380 ℃后复配阻燃剂进入凝聚相阻燃。结论: MgAl-LDHs与MP复配阻燃剂的协同阻燃作用机理表现在3方面：1) 温度范围增大，MgAl-LDHs低温分解，与MP复配后复配阻燃剂初始分解温度为198 ℃；2) MgAl-LDHs分解释放水蒸气和CO₂，MP分解释放氨气冲淡燃烧表面可燃气体，协同发挥“稀释效应”作用；3) MP催化成炭和MgAl-LDHs高温熔融的覆盖协同作用。

关键词: 镁铝层状双氢氧化物, 三聚氰胺磷酸盐, 中密度纤维板, 阻燃, 协效作用

Abstract:

Objective: The objective of this study was to analyze synergistic flame retardant mechanism of magnesium-aluminum layered double hydroxides(MgAl-LDHs) and melamine phosphate(MP), and to provide theoretical bases of MgAl-LDHs and MP compound flame retardant for fiberboard. Method: The flame retardant performance of medium density fiberboard was tested using oxygen index meter and cone calorimeter. The synergistic effect on heat release performance and smoke generation characteristics of compound flame retardants was performed through synergy ratio of limiting oxygen index (LOI), heat release rate(HRR), total heat release(THR), smoke production rate(SPR) and total smoke release(TSR). Furthermore, the thermogravimetric, fourier infrared spectroscopy and thermogravimetric-fourier infrared spectroscopy combined techniques were used to discuss the condensed phase and gas phase flame retardant mechanisms between MgAl-LDHs and MP. Result: The oxygen index of medium density fiberboard that produced with MgAl-LDHs and MP compound flame retardant was 31.9%. The compound flame retardant did not show a synergistic effect in the calculation of the oxygen index synergy ratio. However, the ratio calculation of cone calorimeter showed a synergistic effect. The pyrolysis analysis showed that the flame retardant effect of compound flame retardant on wood powder was better than that using MgAl-LDHs or MP alone. During the combustion process, MP catalyzed MgAl-LDHs rapid decomposition to release a large amount of water vapor and carbon dioxide, and to absorb the heat of the medium density fiberboard to further reduce the surface temperature. The result led to the combustion difficult to maintain, and simultaneously water vapor and carbon dioxide diluted the combustible gas and oxygen concentration for reducing combustion rate. The flame retardant mechanisms of compound flame retardant were mainly the gas phase flame retardant, and there was not an obvious condensed phase. The gas phase flame retardant was the result of the combined action from a cooling effect and a dilution effect. The compound flame retardant was mainly gas phase flame retardant before 320 ℃ and transformed into condensed phase flame retardant after 380 ℃. Conclusion: The synergistic mechanisms of MgAl-LDHs and MP compound flame retardant shown in three aspects: 1) The decompose temperature range of compound flame retardant was increased and its initial decompose temperature was 198 ℃, meaning that the MgAl-LDHs would decompose in a lower temperature. 2) MgAl-LDHs and MP were released a large amount of water vapor, carbon dioxide and ammonia gas during thermal decomposition, these gas diluted the combustible gas on combustion surface and presented dilution effects. 3) Synergistic effect of MP catalyzed carbon formation and MgAl-LDHs high temperature melting coverage.

Key words: magnesium-aluminum layered double hydroxides (MgAl-LDHs), melamine phosphate (MP), medium density fiberboard, flame retardant, saynergistic effect

中图分类号:

S781.9

张丽芳,梁善庆,姜鹏,张龙飞. 镁铝层状双氢氧化物/三聚氰胺磷酸盐复配阻燃剂对中密度纤维板的协效阻燃机理分析[J]. 林业科学, 2022, 58(5): 140-150.

Lifang Zhang,Shanqing Liang,Peng Jiang,Longfei Zhang. Synergistic Mechanism Analysis of MgAl-LDHs/MP Compound Flame Retardant in Medium Density Fiberboard[J]. Scientia Silvae Sinicae, 2022, 58(5): 140-150.

图/表 13

表1

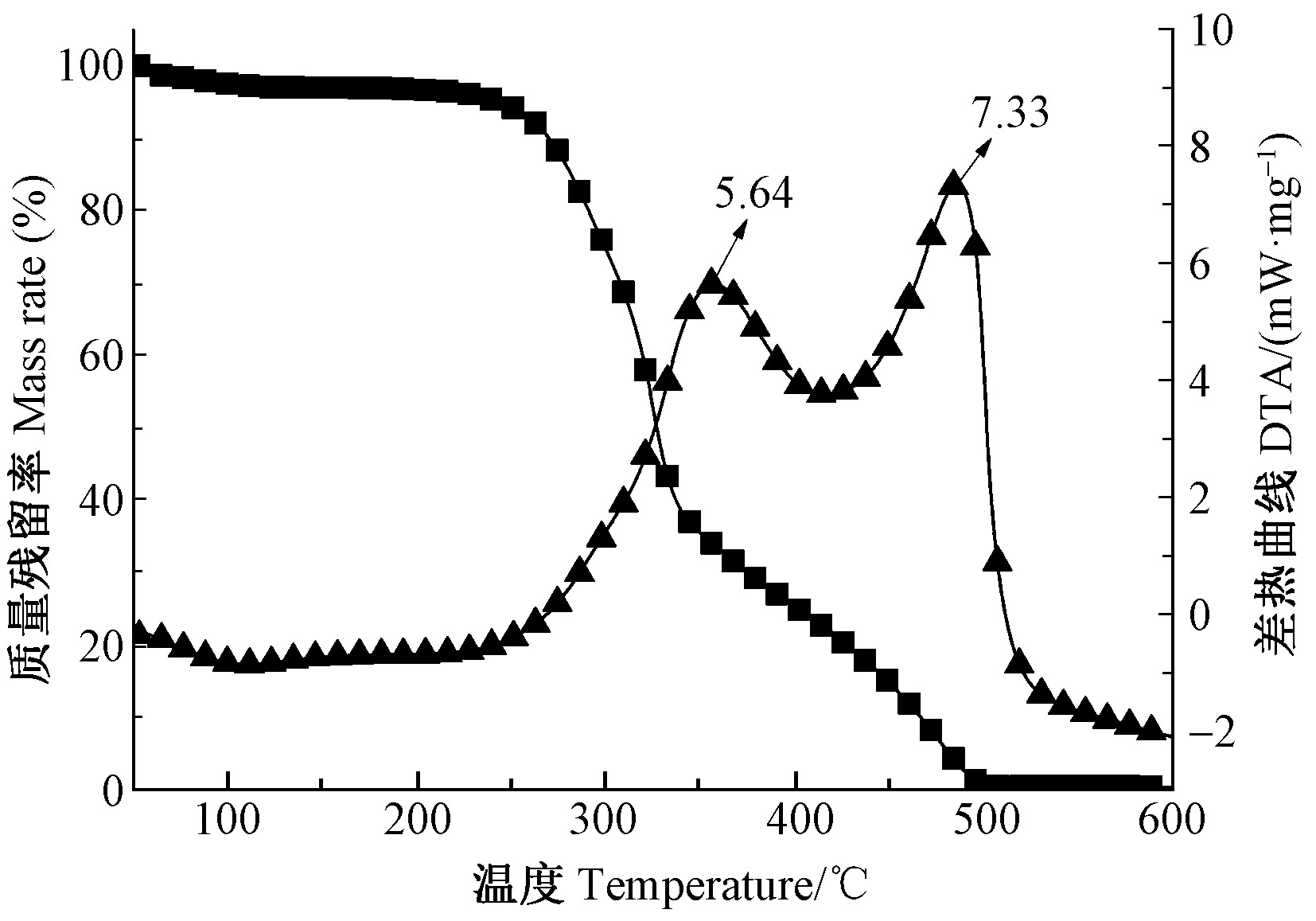

图1

表2

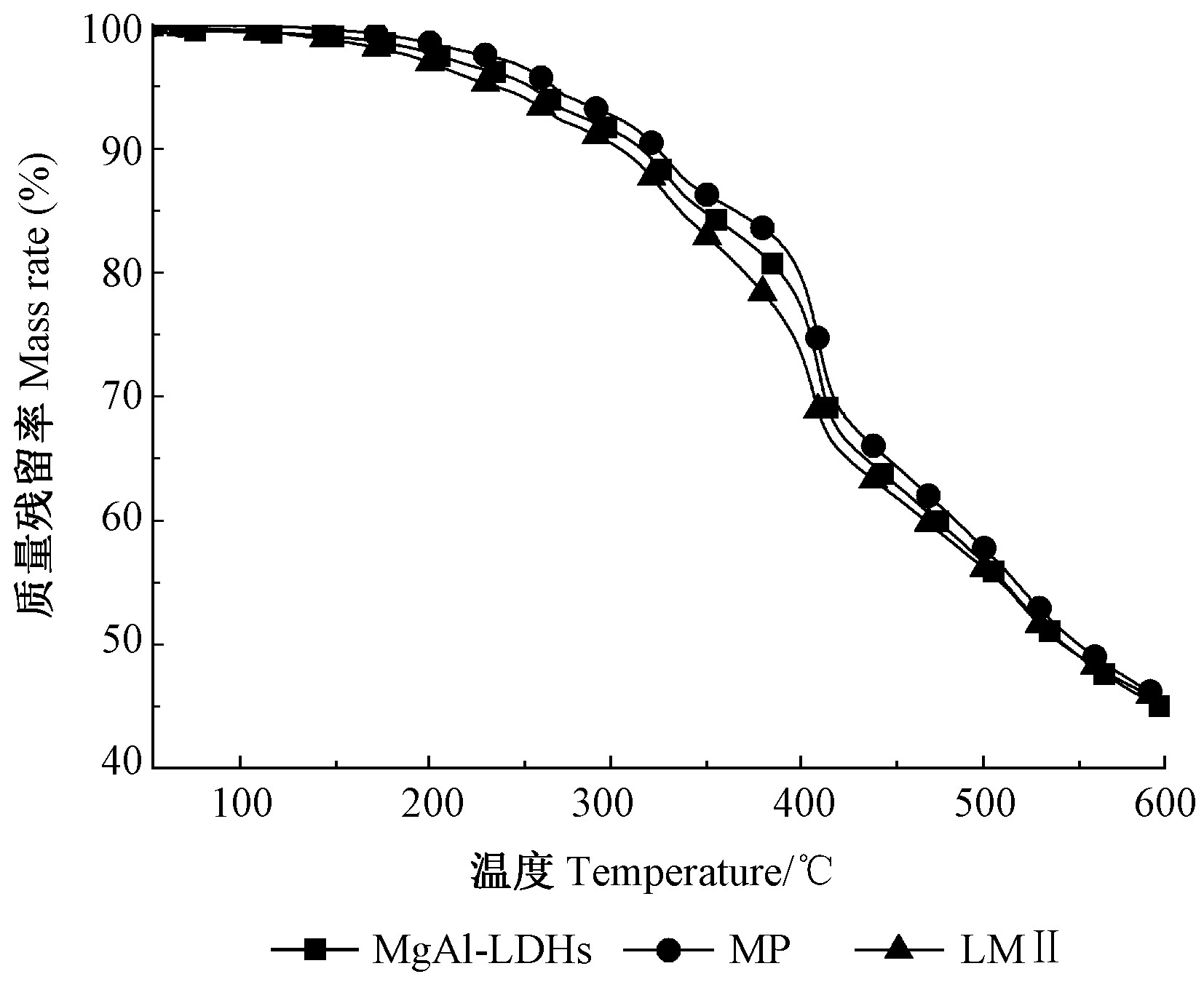

图2

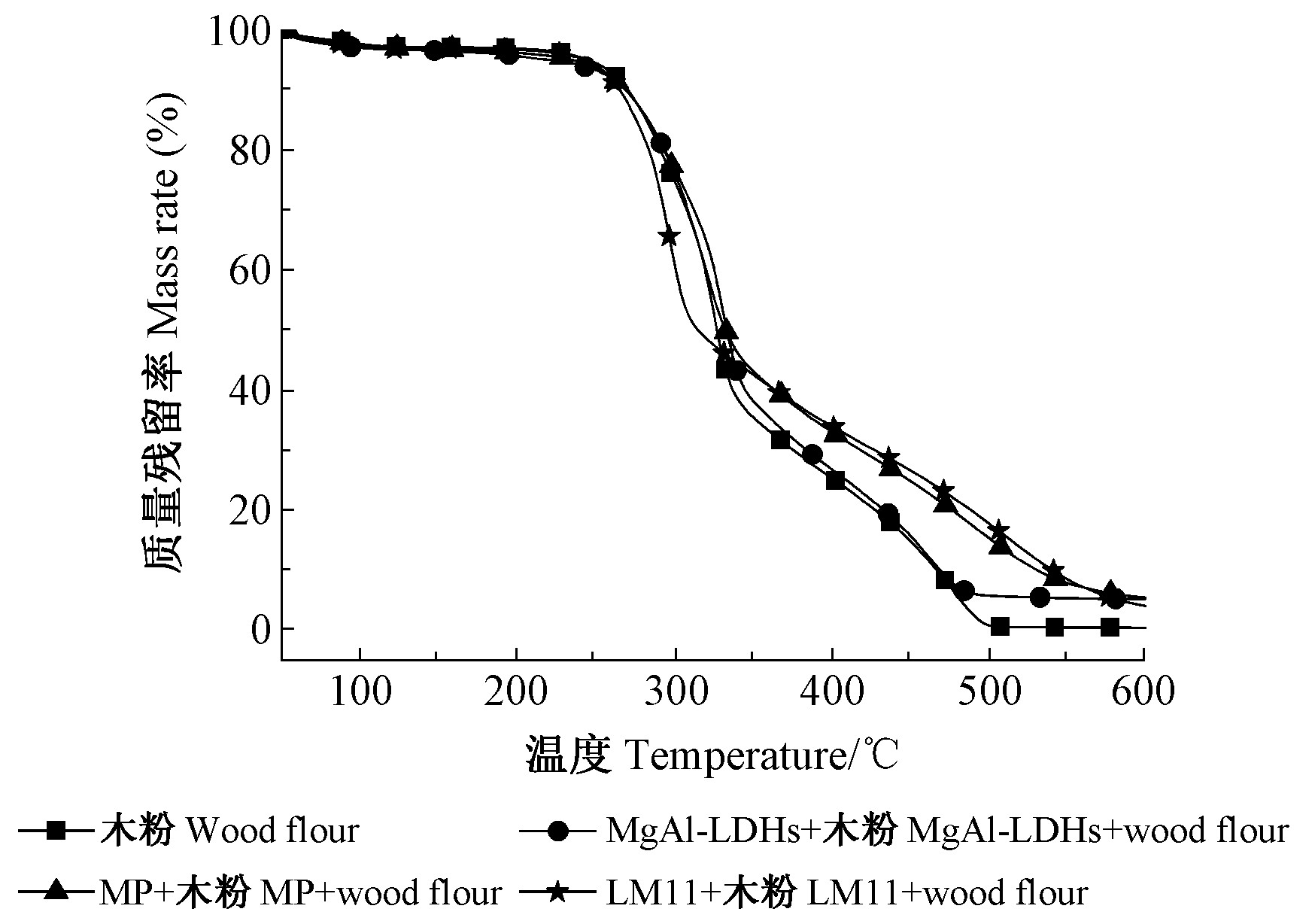

图3

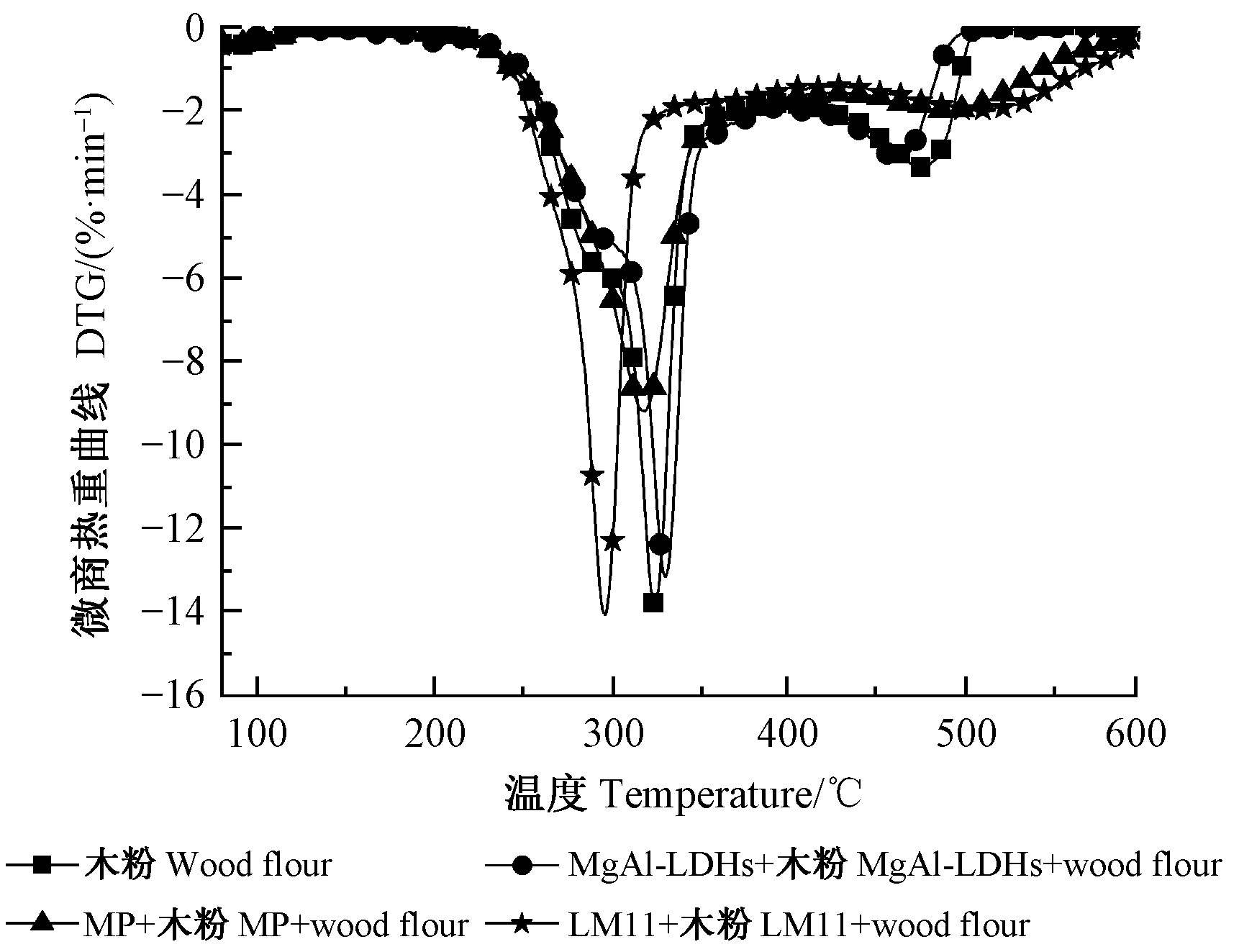

图4

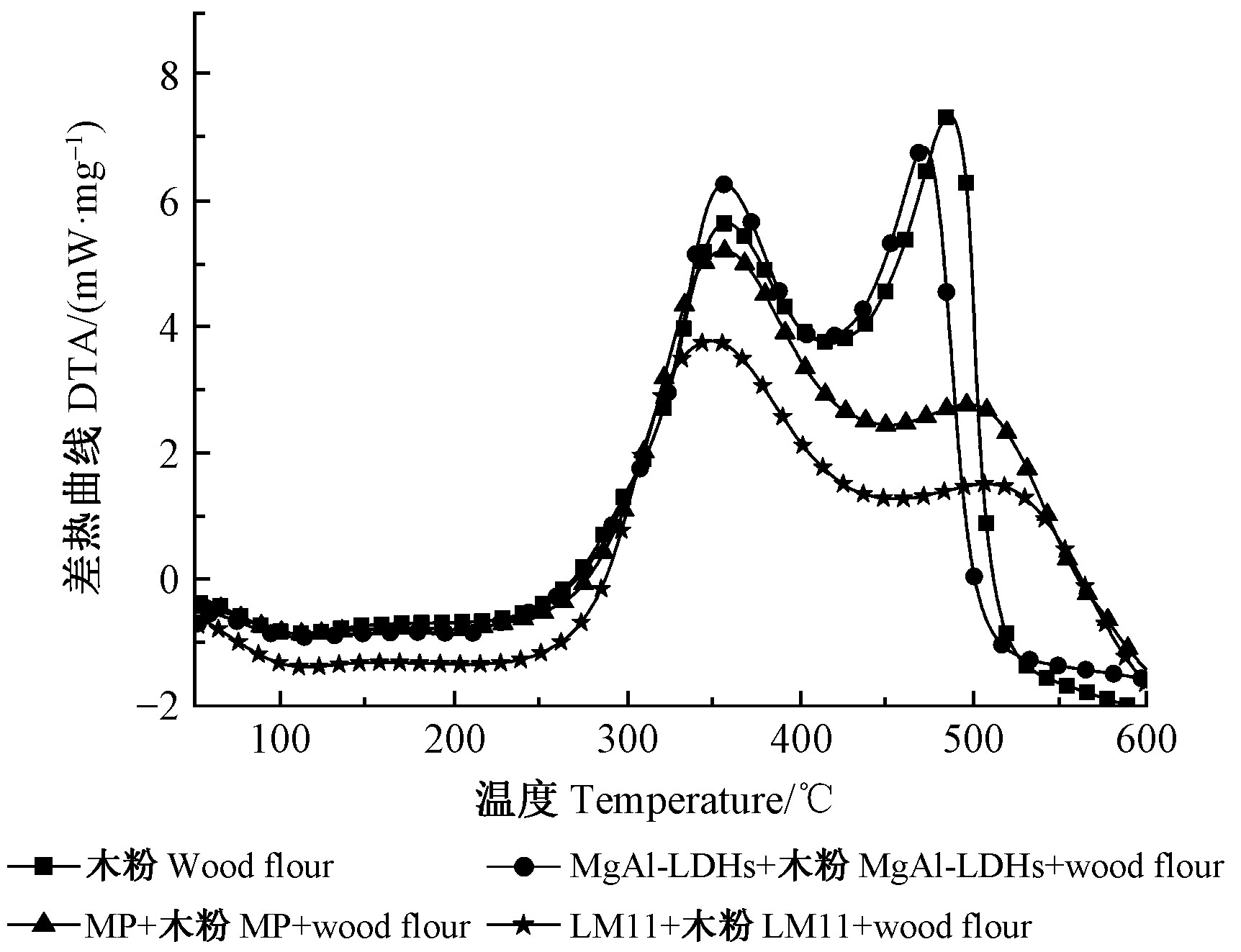

图5

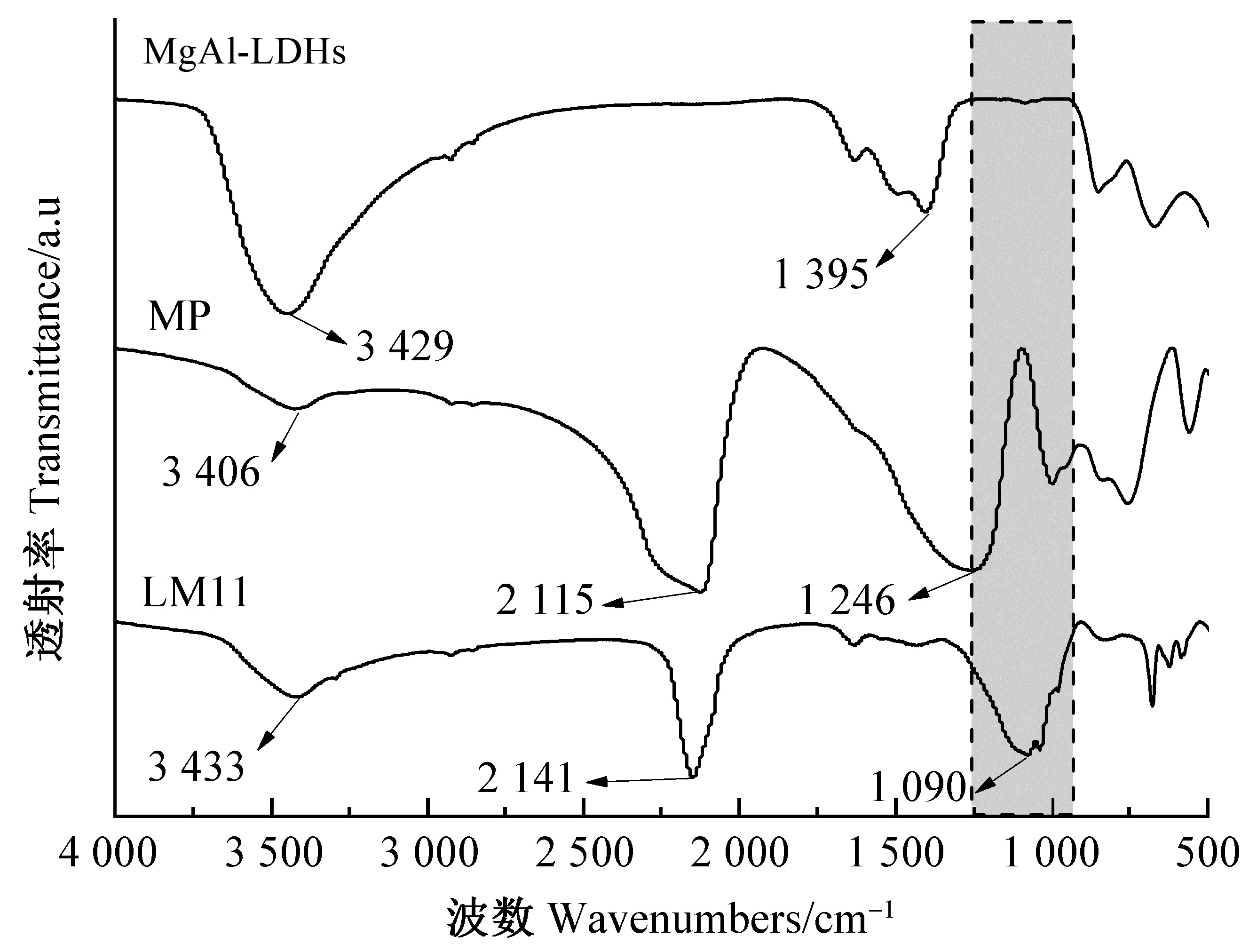

图6

图7

图8

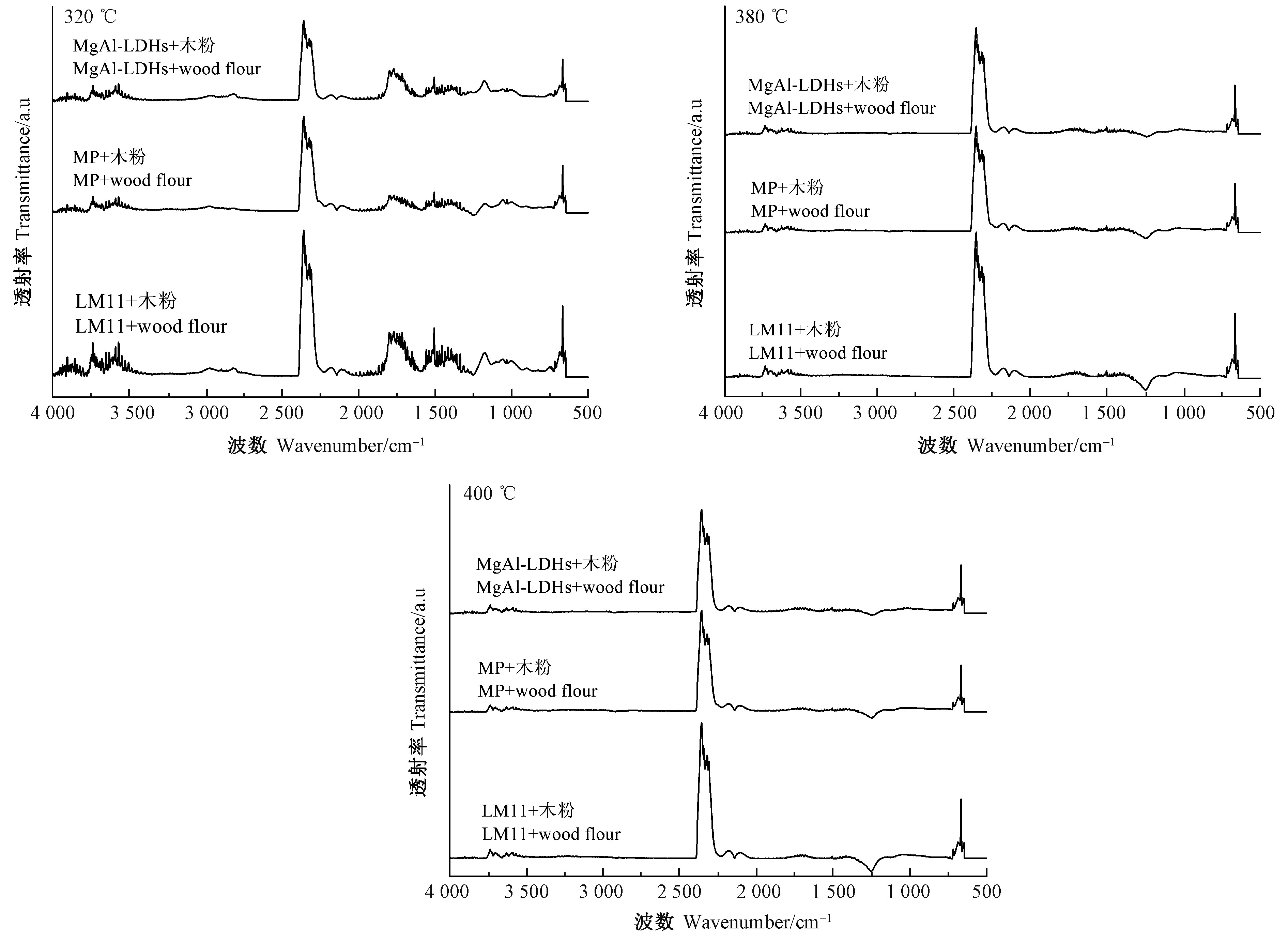

图9

图10

图11

参考文献 0

	陈旬, 袁利萍, 胡云楚, 等. 聚磷酸铵和改性海泡石处理木材的阻燃抑烟作用. 中南林业科技大学学报, 2013, 33 (10): 147- 152.
	Chen X , Yuan L P , Hu Y C , et al. Effects of treating woods with modified sepiolite and ammonium polyphosphate on theirs flame retardant and smoke suppression properties. Journal of Central South University of Forestry & Technology, 2013, 33 (10): 147- 152.
	高誉鹏, 王李波, 张瑞阳, 等. 表面改性MgAl-CO₃-LDHs的制备及其阻燃性研究. 塑料工业, 2012, 40 (11): 92- 95.
	Gao Y P , Wang L B , Zhang R Y , et al. Study on the preparation and flame retardant property of surface modified MgAl-CO₃-LDHs. China Plastics Industry, 2012, 40 (11): 92- 95.
	顾忠基, 姜彬, 朱萍, 等. Mg/Al-LDHs纳米阻燃剂的制备及其在饰面人造板中的应用. 林业工程学报, 2016, 1 (4): 39- 44.
	Gu Z J , Jiang B , Zhu P , et al. Preparation and application of Mg/Al-LDHs nano flame retardant in veneer wood-based panel. Journal of Forestry Engineering, 2016, 1 (4): 39- 44.
	韩易, 谷晓昱, 扈中武, 等. 水滑石在膨胀阻燃涂料中的阻燃抑烟性能的研究. 材料导报, 2016, 30 (8): 109- 112.
	Han Y , Gu X Y , Hu Z W , et al. Effects of layered double hydroxide on the fire performance of intumescent flame retardant coating. Materials Review, 2016, 30 (8): 109- 112.
	郝畅, 郭垂根. 复配阻燃剂对木材阻燃与力学性能的影响. 消防科学与技术, 2016, 35 (5): 663- 667. doi: 10.3969/j.issn.1009-0029.2016.05.022
	Hao C , Guo C G . Effect of compound flame retardant on flame retardant and mechanical properties of Pinus sylvestris. Fire Science and Technology, 2016, 35 (5): 663- 667. doi: 10.3969/j.issn.1009-0029.2016.05.022
	贾潞, 马建中, 高党鸽, 等. 层状双氢氧化物/聚合物纳米复合材料. 化学进展, 2018, 30 (S1): 295- 303.
	Jia L , Ma J Z , Gao D G , et al. Layered double hydroxides/polymer nanocomposites. Progress in Chemistry, 2018, 30 (S1): 295- 303.
	贾莹莹, 宋永明, 于富磊, 等. 磷酸脒基脲与聚磷酸铵协同阻燃的木粉/HDPE复合材料. 林业科学, 2013, 49 (5): 154- 159.
	Jia Y Y , Song Y M , Yu F L , et al. Synergistic fire retarding study of guanylurea phosphate and ammonium polyphosphate treated wood flour/HDPE composite. Scientia Silvae Sinicae, 2013, 49 (5): 154- 159.
	李来丙, 孙增印. 三聚氰胺磷酸盐的绿色合成及阻燃性研究. 工程塑料应用, 2017, 45 (8): 112- 117.
	Li L B , Sun Z Y . Green synthesis and flame retardancy of melamine phosphate. Engineering Plastics Application, 2017, 45 (8): 112- 117.
	李冉冉, 朱少敏. 复合型阻燃剂的合成及性能分析. 消防科学与技术, 2016, 35 (5): 672- 675.
	Li R R , Zhu S M . Synthesis and performance analysis of compound flame retardant. Fire Science and Technology, 2016, 35 (5): 672- 675.
	任佳奇, 母军, 储德淼, 等. 三聚氰胺聚磷酸盐-双季戊四醇-硼酸锌复配改善木塑复合材料的阻燃及抗紫外老化性能. 东北林业大学学报, 2020, 48 (8): 117- 122.
	Ren J Q , Mu J , Chu D M , et al. Improvement of flame retardancy and UV-aging resistance of WPC by MPP/DPER/ZB. Journal of Northeast Forestry University, 2020, 48 (8): 117- 122.
	唐启恒, 卢希珍, 郭文静, 等. 三聚氰胺聚磷酸盐和次磷酸铝阻燃纤维板燃烧特性研究. 林业工程学报, 2020, 5 (6): 29- 35.
	Tang Q H , Lu X Z , Guo W J , et al. Research on the combustion characteristics of high density fiberboard treated with MPP and AP. Journal of Forestry Engineering, 2020, 5 (6): 29- 35.
	吴振增, 谢拥群, 陈汀杰, 等. 硼酸锌与氯化石蜡对超轻质植物纤维基材料的协同阻燃效应. 福建农林大学学报(自然科学版), 2015, 44 (5): 548- 553.
	Wu Z Z , Xie Y Q , Chen T J , et al. Effects of synergistic flame retardancy of zinc borate and chloroparaffin on ultra-low density wood fiber-based material. Journal of Fujian Agriculture and Forestry University (Natural Science Edition), 2015, 44 (5): 548- 553.
	夏燎原, 田梁材, 胡云楚, 等. 改性13X分子筛在聚磷酸铵阻燃碎料板中的协同作用与烟气转化行为. 林产化学与工业, 2014, 34 (3): 31- 36.
	Xia L Y , Tian L C , Hu Y C , et al. Synergistic effect between modified 13X molecular sieves and ammonium polyphosphate on the flammable properties and smoke conversion behavior of shaving-board. Chemistry and Industry of Forest Products, 2014, 34 (3): 31- 36.
	闫顺, 徐路平, 文泽伟, 等. 无机氢氧化物/硼酸在阻燃芦苇基纤维板中的协效作用. 林产化学与工业, 2020, 40 (1): 101- 105.
	Yan S , Xu L P , Wen Z W , et al. Synergistic effect of inorganic hydroxide/boric acid in flame retardant reed fiberboard. Chemistry and Industry of Forest Products, 2020, 40 (1): 101- 105.
	杨守禄, 刘明, 姬宁, 等. 氢氧化铝/硼酸锌复配改性中密度纤维板的阻燃性能. 西北林学院学报, 2020, 35 (3): 197- 201.
	Yang S L , Liu M , Ji N , et al. Flame-retardant property of aluminum hydroxide/zinc borate modified medium density fiberboard. Journal of Northwest Forestry University, 2020, 35 (3): 197- 201.
	姚潇翎, 滑亚婷, 杜春贵, 等. LDHs阻燃剂的研究进展及其在木质材料阻燃中的应用展望. 林产工业, 2018, 45 (2): 39- 43. 39-43, 53
	Yao X L , Hua Y T , Du C G , et al. Research progress of LDHs fire retardant and its application prospect in wood materials fire retarding. China Forest Products Industry, 2018, 45 (2): 39- 43. 39-43, 53
	詹满军, 陈志林, 储富祥. 复合型阻燃剂对无醛超低密度纤维板性能的影响. 林产化学与工业, 2019, 39 (3): 87- 93.
	Zhan M J , Chen Z L , Chu F X . Effect of hybrid flame retardant on properties of formaldehyde-free ultra-low density fiberboard. Chemistry and Industry of Forest Products, 2019, 39 (3): 87- 93.
	张丽芳, 梁善庆, 张龙飞, 等. 无机镁铝水滑石制备阻燃MDF的性能分析. 木材工业, 2016, 30 (6): 9- 13.
	Zhang L F , Liang S Q , Zhang L F , et al. Properties of fire-retardant medium density fiberboard made with inorganic magnesium-aluminum layered double hydroxide(MgAl-LDH). China Wood Industry, 2016, 30 (6): 9- 13.
	张泽江, 梅秀娟, 冯良荣, 等. 三聚氰胺磷酸盐阻燃剂的合成及性能表征. 合成化学, 2003, 11 (3): 260- 264.
	Zhang Z J , Mei X J , Feng L R , et al. Preparation and characterization of melamine phosphate as a flame retardant. Chinese Journal of Synthetic Chemistry, 2003, 11 (3): 260- 264.
	张泽江, 覃文清, 兰彬, 等. 纳米LDH_S阻燃剂与APP协效阻燃剂对PS阻燃性能与机理的研究. 消防科学与技术, 2005, 24 (5): 596- 599.
	Zhang Z J , Qin W Q , Lan B , et al. Study on performance and mechanism of coordinated fire-retardant PS with both nano-LDHs and APP. Fire Science and Technology, 2005, 24 (5): 596- 599.
	Dong M Z , Gu X Y , Zhang S , et al. Effects of acidic sites in HA zeolite on the fire performance of polystyrene composite. Industrial & Engineering Chemistry Research, 2013, 52 (26): 9145- 9154.
	Gao L P , Zheng G Y , Zhou Y H , et al. Synergistic effect of expandable graphite, melamine polyphosphate and layered double hydroxide on improving the fire behavior of rosin-based rigid polyurethane foam. Industrial Crops and Products, 2013, 50, 638- 647.
	Guo B T , Liu Y Z , Zhang Q , et al. Efficient flame-retardant and smoke-suppression properties of Mg-Al-layered double-hydroxide nanostructures on wood substrate. ACS Applied Materials & Interfaces, 2017, 9 (27): 23039- 23047.
	Jiang P , Gu X Y , Zhang S , et al. Flammability and thermal degradation of poly (lactic acid)/polycarbonate alloys containing a phosphazene derivative and trisilanollsobutyl POSS. Polymer, 2015, 79, 221- 231.
	Liu Y , Gao Y S , Wang Q , et al. The synergistic effect of layered double hydroxides with other flame retardant additives for polymer nanocomposites: a critical review. Dalton Transactions (Cambridge, England: 2003), 2018, 47 (42): 14827- 14840.
	Matusinovic Z , Lu H D , Wilkie C A . The role of dispersion of LDH in fire retardancy: the effect of dispersion on fire retardant properties of polystyrene/Ca-Al layered double hydroxide nanocomposites. Polymer Degradation and Stability, 2012, 97 (9): 1563- 1568.
	Shi L , Li D Q , Wang J R , et al. Synthesis flame-retardant and smoke-suppressant properties of a borate-intercalated layered double hydroxide. Calys and Clay Minerals, 2005, 53 (3): 294- 300.
	Wang D Y , Das A , Leuteritz A , et al. Thermal degradation behaviors of a novel nanocomposite based on polypropylene and Co-Al layered double hydroxide. Polymer Degradation and Stability, 2011, 96 (3): 285- 290.
	Wang Z , Shen X P , Qian T M , et al. Fabrication of superhydrophobic Mg/Al layered double hydroxide (LDH) coatings on medium density fiberboards (MDFs) with flame retardancy. Materials, 2018, 11 (7): 1113.
	Zhang S , Yan Y X , Wang W J , et al. Intercalation of phosphotungstic acid into layered double hydroxides by reconstruction method and its application in intumescent flame retardant poly (lactic acid) composites. Polymer Degradation and Stability, 2018, 147, 142- 150.
	Zhao C X , Liu Y , Wang D Y , et al. Synergistic effect of ammonium polyphosphate and layered double hydroxide on flame retardant properties of poly(vinyl alcohol). Polymer Degradation and Stability, 2008, 93 (7): 1323- 1331.

名称 Name	镁铝层状双氢氧化物 MgAl-LDHs(%)	三聚氰胺磷酸盐 MP(%)	密度 Density/(g·cm^-3)	氧指数 LOI(%)	氧指数差值 LOI difference(%)
对照样Control	0	0	0.75	23.5	—
MgAl-LDHs	15	0	0.74	26.0	2.5
MP	0	15	0.77	34.6	11.1
LM11	15	15	0.76	31.9	8.4

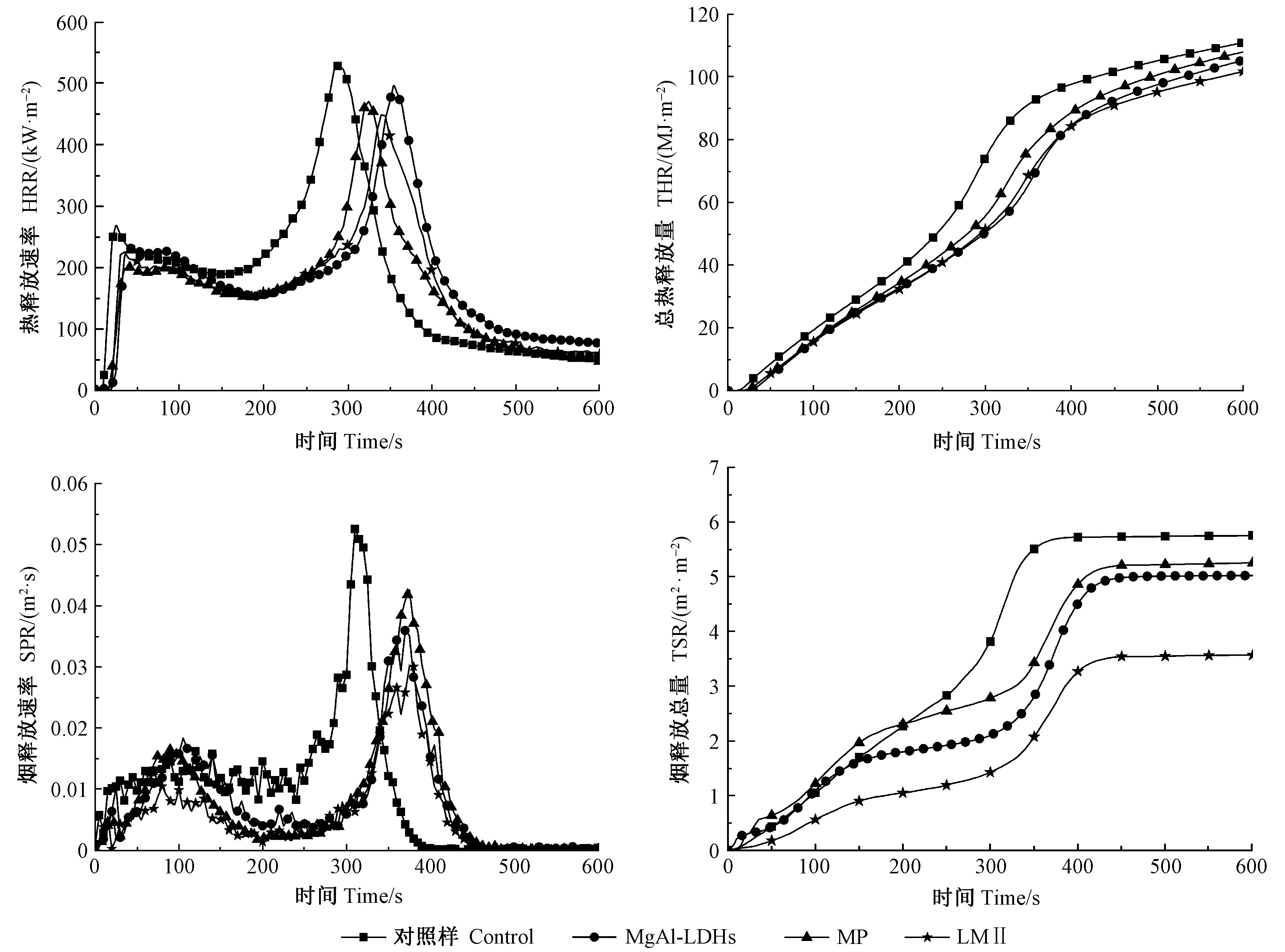

名称 Name	镁铝层状双氢氧化物 MgAl-LDHs(%)	三聚氰胺磷酸盐 MP(%)	热释放速率 HRR/(kW·m^-2)	热释放总量 THR/(MJ·m^-2)	烟释放速率 SPR/(m²·s^-1)	总烟释放量 TSR/(m²·m^-2)
对照样Control	0	0	528.42	110.94	0.053	5.75
MgAl-LDHs	15	0	497.11	107.68	0.037	4.99
MP	0	15	469.54	106.37	0.040	5.25
LM11	15	15	431.86	101.39	0.024	4.60
