林业科学 ›› 2021, Vol. 57 ›› Issue (5): 119-129.doi: 10.11707/j.1001-7488.20210511
由珈齐,李明泽*,范文义,全迎,王斌,莫祝坤,祝子枭
收稿日期:
2020-04-10
出版日期:
2021-05-25
发布日期:
2021-07-09
通讯作者:
李明泽
基金资助:
Jiaqi You,Mingze Li*,Wenyi Fan,Ying Quan,Bin Wang,Zhukun Mo,Zixiao Zhu
Received:
2020-04-10
Online:
2021-05-25
Published:
2021-07-09
Contact:
Mingze Li
摘要:

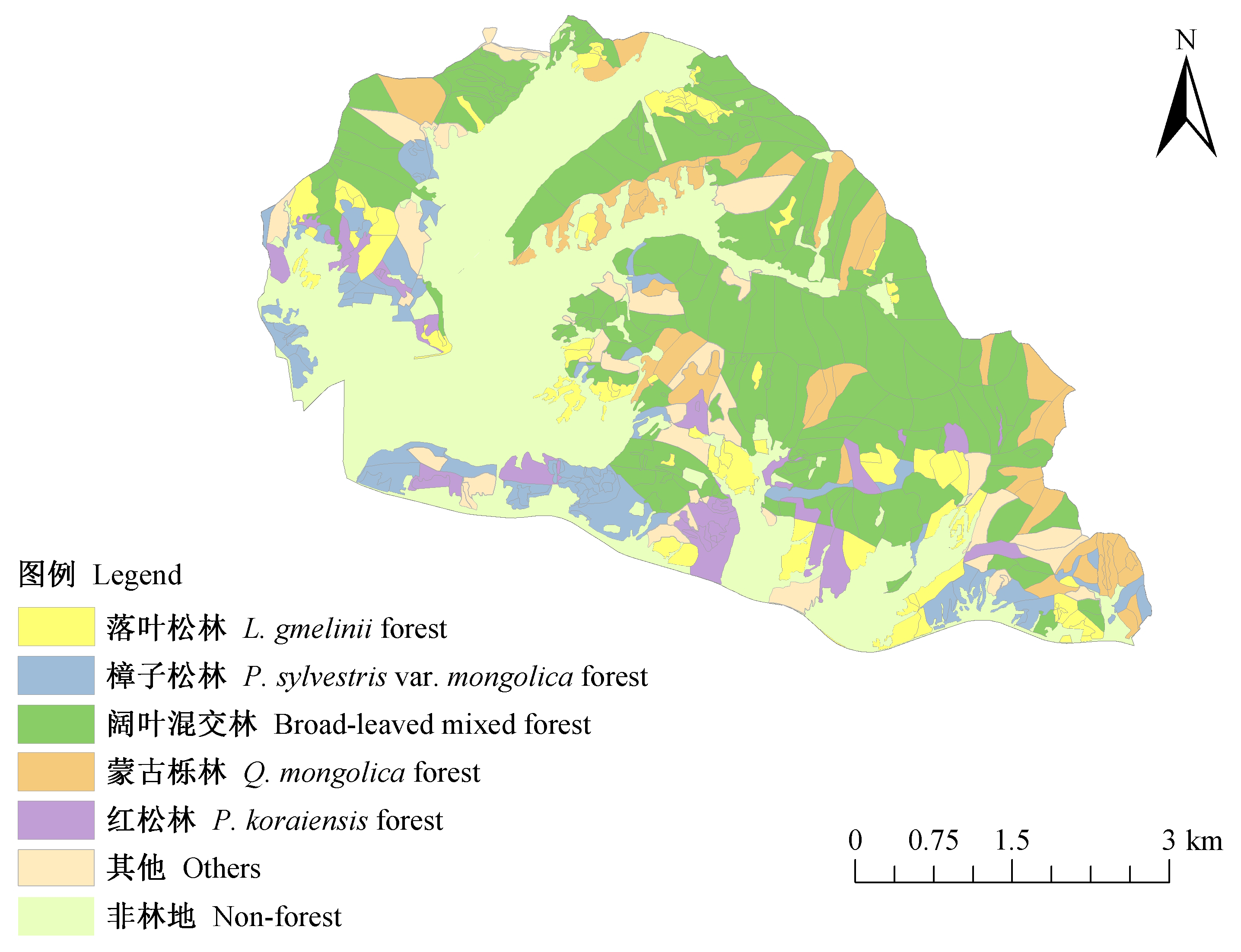

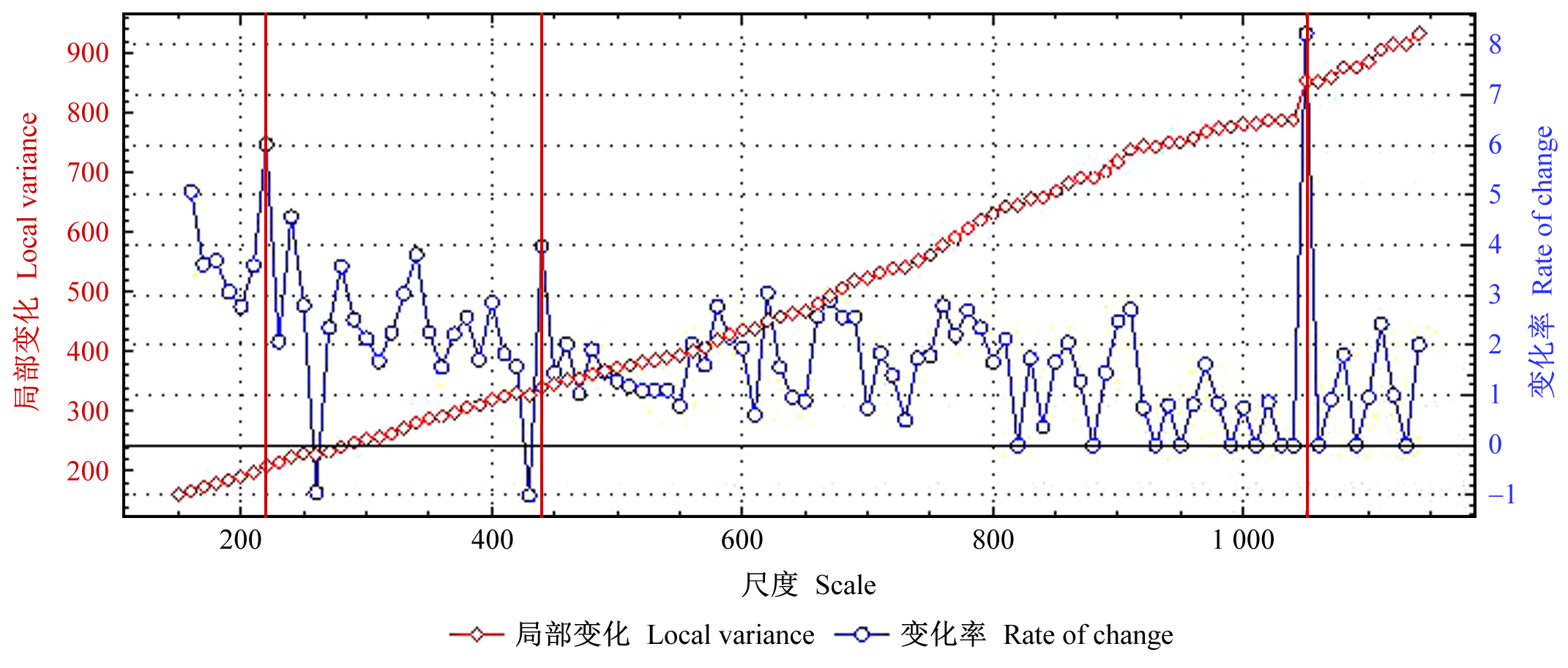

目的: 探讨随机森林、支持向量机分类器下机载高光谱影像和激光雷达点云数据源对林分类型识别的影响,并检验叶绿素在林分类型识别中的作用,为提高林分类型分类精度提供科学依据,为森林资源管理和监测提供技术支持。方法: 以东北林业大学帽儿山实验林场老山施业区为研究区,以机载高光谱影像和激光雷达点云为数据源,在多尺度影像分割基础上,从高光谱影像中提取光谱、纹理和叶绿素指数等特征,从LiDAR点云中提取高度、强度等特征。通过随机森林的特征选择,选取重要性较高的特征变量,在随机森林和支持向量机分类器下,以影像分割数据为试验样本,设置6种分类方案(随机森林分类器下高光谱影像与激光雷达点云数据结合、高光谱影像数据、激光雷达点云数据,支持向量机分类器下高光谱影像与激光雷达点云数据结合、高光谱影像数据、激光雷达点云数据),对阔叶混交林、樟子松林、落叶松林、红松林和蒙古栎林5种林分类型进行识别,比较不同分类器下不同数据源的分类效果。结果: 高光谱影像数据共提取34个特征变量,激光雷达点云数据共提取72个特征变量,经特征选择后,高光谱影像数据和激光雷达点云数据各选取11个重要性较高的特征(共22个),其中高光谱影像数据提取的归一化植被指数(NDVI)重要性最大。6种分类方案中,随机森林分类器下高光谱影像与激光雷达点云数据结合的分类精度最高(88.02%),支持向量机分类器下激光雷达点云数据的分类精度最低(76.19%)。多源数据协同的平均分类精度(86.22%)高于单源数据(79.98%),随机森林分类器的平均分类精度(82.92%)高于支持向量机分类器(81.19%)。叶绿素指数参与分类后,分类精度提高约3.32%。5种林分类型中,阔叶混交林分类效果最好,平均分类精度为92.62%,红松林分类效果最差,平均分类精度为49.67%。结论: 多数据源较单源数据可更好地提高分类精度,即2种数据协同可以提高林分类型识别精度;单一数据源相比,高光谱影像数据源的分类效果更好,光谱特征是林分类型识别的重要影响因子;林分类型识别时,不同机器学习模型相比,随机森林分类器较支持向量机分类器分类效果更优;叶绿素作为生物化学参数对林分类型识别有积极影响。
中图分类号:
由珈齐,李明泽,范文义,全迎,王斌,莫祝坤,祝子枭. 基于高光谱和激光雷达数据的林分类型识别[J]. 林业科学, 2021, 57(5): 119-129.
Jiaqi You,Mingze Li,Wenyi Fan,Ying Quan,Bin Wang,Zhukun Mo,Zixiao Zhu. Stand Type Identification Based on Hyperspectral and LiDAR Data[J]. Scientia Silvae Sinicae, 2021, 57(5): 119-129.
表1
高光谱数据提取特征计算公式"
特征类型 Feature type | 特征名称 Feature name | 描述或公式 Description or formula |
植被指数 Vegetation index | 归一化植被指数 Normalized differential vegetation index | 式中:ρNIR为近红外波段反射率,ρRED为红光波段反射率 In the formula: ρNIR is the reflectance of near-infrared band, ρRED is the reflectance of RED band |
增强型植被指数 Enhanced vegetation index | 式中:ρBLUE为蓝光波段反射率 In the formula: ρBLUE is the reflectance of BLUE band | |
比值植被指数 Ratio vegetation index | ||
大气阻抗植被指数 Atmospherically resistant vegetation index | ||
改进红边归一化植被指数 Modified red edge NDVI | 式中:ρ750为750波段反射率,ρ705为705波段反射率,ρ445为445波段反射率 In the formula: ρ750 is the reflectance of 750 band, ρ705 is the reflectance of 705 band, and ρ445 is the reflectance of 445 band | |
红边归一化植被指数 Red edge NDVI | ||
光化学反射指数 Photochemical reflectance index | 式中:ρ531为531波段反射率,ρ570为570波段反射率 In the formula: ρ531 is the reflectance of 531 band, ρ570 is the reflectance of 570 band | |
植物衰老反射指数 Plant senescence reflectance index | 式中:ρ680为680波段反射率,ρ500为500波段反射率 In the formula: ρ680 is the reflectance of 680 band, ρ500 is the reflectance of 500 band | |
Vogelmann红边指数1 Vogelmann red edge index 1 | 式中:ρ740为740波段反射率,ρ720为720波段反射率 In the formula: ρ740 is the reflectance of 740 band, ρ720 is the reflectance of 720 band | |
水波段指数 Water band index | 式中:ρ900为900波段反射率,ρ970为970波段反射率 In the formula: ρ900 is the reflectance of 900 band, ρ970 is the reflectance of 970 band | |
叶绿素指数 Chlorophyll index | MERIS陆地叶绿素指数 MERIS terrestrial chlorophyll index | 式中:ρ753.75为753.75波段反射率,ρ708.75为708.75波段反射率,ρ681.25为681.25波段反射率 In the formula: ρ753.75 is the reflectance of the 753.75 band, ρ708.75 is the reflectance of the 708.75 band, and ρ681.25 is the reflectance of the 681.25 band |
改进的MERIS陆地叶绿素指数 Modified MTCI | 式中:ρ750为750波段反射率,ρ710为710波段反射率,ρ680为680波段反射率 In the formula: ρ750 is the reflectance of the 750 band, ρ710 is the reflectance of the 710 band, and ρ680 is the reflectance of the 680 band |
表2
各林分样本数量"
项目 Item | 阔叶混交林 Broad-leaved mixed forest | 樟子松林 P. sylvestris var. mongolica forest | 落叶松林 L. gmelinii forest | 红松林 P. koraiensis forest | 蒙古栎林 Q. mongolica forest | 总计 Total |
训练样本Training sample | 1 358 | 374 | 224 | 74 | 47 | 2 077 |
检验样本Validation sample | 453 | 125 | 75 | 25 | 16 | 692 |
样本量Sample size | 1 810 | 499 | 299 | 98 | 63 | 2 769 |
图4
选取的特征重要性排序 a、b、c分别为激光雷达点云、高光谱影像、激光雷达点云+高光谱影像保留的特征变量。AII_90%为所有回波累计强度的90%;H1_max为首次回波高度的最大值;I1_1%为首次回波强度的1%;I_min为所有回波强度的最小值;I_max为所有回波强度的最大值;I1_cv为首次回波强度的偏度;I_90%为所有回波强度的90%;H_mean为所有回波高度的均值;AIH_99%为所有回波累计高度的99%;I_95%为所有回波强度的95%;H_95%为所有回波高度的95%;green_range为绿色波段卷积核范围内平均灰度范围;blue_mean为蓝色波段卷积核范围内平均灰度;green_mean为绿色波段卷积核范围内平均灰度;red_range为红色波段卷积核范围内平均灰度范围。"
表3
随机森林和支持向量机分类器的分类结果"
指标Indicator | 随机森林RF | 支持向量机SVM | ||||||
高光谱影像+激光雷达点云 Hyperspectral+ LiDAR | 高光谱影像 Hyperspectral | 激光雷达点 云LiDAR | 高光谱影像+激光雷达点云 Hyperspectral+ LiDAR | 高光谱影像 Hyperspectral | 激光雷达 点云LiDAR | |||
总体精度OA(%) | 88.02 | 84.13 | 76.62 | 84.42 | 82.97 | 76.19 | ||
Kappa系数Kappa coefficient | 0.77 | 0.69 | 0.52 | 0.71 | 0.68 | 0.53 | ||
阔叶混交林 Broad-leaved mixed forest | 生产者精度PA (%) | 95.32 | 93.60 | 85.89 | 94.13 | 93.78 | 85.68 | |
用户精度UA (%) | 94.07 | 92.78 | 92.51 | 92.05 | 93.16 | 91.17 | ||
落叶松林 L. gmelinii forest | 生产者精度PA (%) | 76.81 | 61.54 | 52.31 | 71.67 | 62.50 | 56.36 | |
用户精度UA (%) | 70.67 | 46.38 | 45.33 | 57.33 | 53.33 | 41.33 | ||
樟子松林 P. sylvestris var. mongolica forest | 生产者精度PA (%) | 73.29 | 66.04 | 50.88 | 65.82 | 66.67 | 55.37 | |
用户精度UA (%) | 85.60 | 80.77 | 46.03 | 83.20 | 75.20 | 53.60 | ||
红松林 P. koraiensis forest | 生产者精度PA (%) | 72.22 | 66.67 | 70.59 | 76.47 | 52.38 | 45.45 | |
用户精度UA (%) | 54.17 | 52.17 | 50.00 | 54.17 | 45.83 | 41.67 | ||
蒙古栎林 Q.mongolicaforest | 生产者精度PA (%) | 81.82 | 90.91 | 87.50 | 53.33 | 47.06 | 53.85 | |
用户精度UA (%) | 64.29 | 71.43 | 50.00 | 50.00 | 50.00 | 43.75 |
