亚麻油/混合蜡乳液构建木材内双层疏水体系

doi:10.11707/j.1001-7488.20210413

摘要/Abstract

摘要：

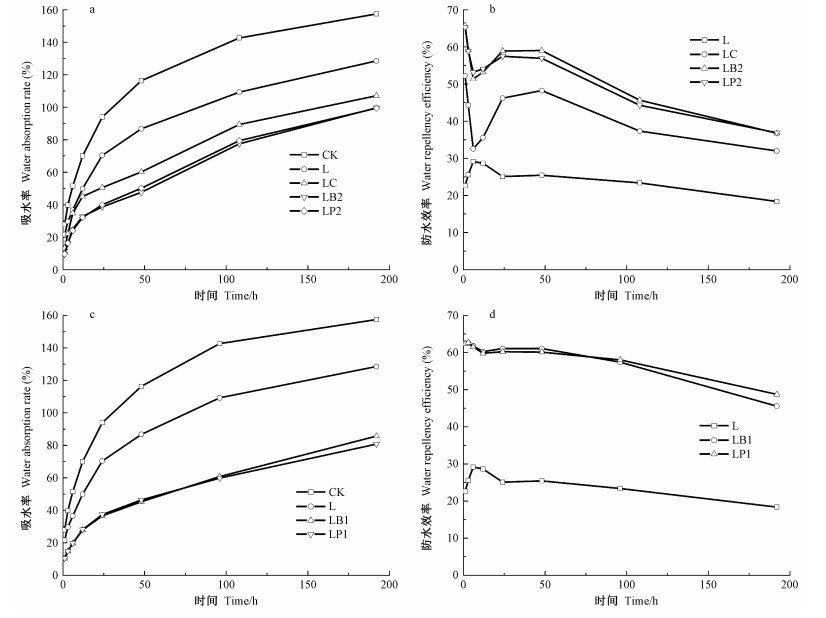

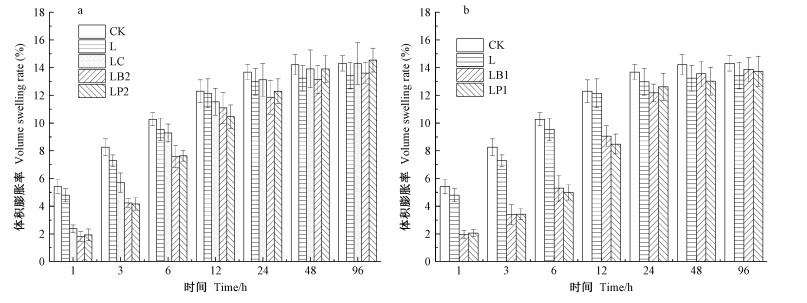

目的: 利用环保、价廉的混合蜡和亚麻油乳液在木材内外表面构建双层疏水屏障，使其同时具备粗糙结构和连续防水层，进而兼具疏水和防水效果。方法: 配制亚麻油乳液、亚麻油/棕榈蜡乳液、亚麻油/混合蜡（蜂蜡/棕榈蜡、石蜡/棕榈蜡）乳液，对乳液性能进行评价。采用两步法和一步法浸渍杨木试件，通过70 ℃（两步法）和90~103 ℃（一步法）后处理温度在木材内外表面构建双层疏水屏障，并对处理材的表面疏水性、吸水性和尺寸稳定性进行测试。结果: 1）亚麻油乳液的平均粒径为195.6 nm，在室温下贮存稳定性良好，60天内粒径变化率仅为2.45%；亚麻油乳液与混合蜡乳液复合后的离心稳定性良好；2）亚麻油乳液在木材横向和纵向输水通道内均有分布，干燥后可在木材内表面形成连续油膜，并与混合蜡乳液构成双层疏水屏障；3）亚麻油/蜡改性方法能够有效提高木材的表面疏水性，两步法和一步法处理材横切面的接触角均在150°左右，且不随时间变化；而一步法处理材弦切面的疏水性好于两步法；4）亚麻油/蜡乳液复合改性材的吸水率降低，一步法的防水效率明显优于两步法，经过196 h泡水后，LB1和LP1处理材的防水效率保持在45%以上；复合改性方法亦能显著降低处理材前期的体积膨胀率，但最终影响差别不大。结论: 利用亚麻油/混合蜡乳液浸渍木材，仅通过后期干燥温度控制即可在木材内外表面形成兼具粗糙结构和连续防水层的双层疏水体系，赋予处理材优良的疏水性和防水性，是一种环保、节能、价廉的木材疏水改性方法。

关键词: 木材, 蜡, 亚麻油, 乳液, 疏水性

Abstract:

Objective: The aim of current study is to improve the hydrophobicity and water repellency of wood by constructing double layer hydrophobic system in wood internal and external surfaces comprising a continuous linseed oil film with rough wax structure. Method: Linseed oil, mixed wax and oil/wax hybrid emulsions were prepared and their properties were tested. The two- and one-step impregnation process was used to modify cathay poplar (Populus cathayana), followed by the heat treatment at 70 ℃ (two-step process) or 90-103 ℃ (one-step process) to form double layer hydrophobic barrier. The internal morphology of samples was characterized by field emission scanning electron microscopy (FE-SEM), and the weight percent gain, surface hydrophobicity, water absorption and volume swelling rate of treated samples were measured. Result: 1) The average particle size of linseed oil emulsion was about 195.6 nm, and its change rate under 60 days room-temperature storage was only 2.45%. The wax/oil hybrid emulsions also presented great stabilities after centrifugation test. 2) FE-SEM images showed that both two- and one-step treatment processes could produce oil-wax double layer hydrophobic system with water repellent film and rough structures. 3) The initial contact angle of treated wood on cross sections was nearly 150° and kept a good stability within 80 s detection, the one-step process treated wood presented a better performance than that of the two-step on the tangential section. 4) The hybrid emulsions could further improve water repellency, and the water repellency efficiency(WRE) was above 35% and 45% with two- and one-step treatment, respectively. Clearly, one-step method performed better properties and simpler process. Conclusion: Linseed oil/mixed waxes hybrid emulsions could improve the hydrophobicity and water repellency of poplar at the same time, it may be an eco-friendly, energy-saving and low cost method for wood hydrophobic modification.

Key words: wood, wax, linseed oil, emulsion, hydrophobicity

中图分类号:

S781.7

陈悰,王望,曹金珍. 亚麻油/混合蜡乳液构建木材内双层疏水体系[J]. 林业科学, 2021, 57(4): 124-132.

Cong Chen,Wang Wang,Jinzhen Cao. Double Layer Wood Hydrophobic System Construction Via Linseed Oil/Mixed Waxes Hybrid Emulsions[J]. Scientia Silvae Sinicae, 2021, 57(4): 124-132.

图/表 10

表1

图1

图2

表2

表3

图3

图4

图5

图6

图7

参考文献 0

	刘滨. 石蜡和聚丙烯材料超疏水表面的构筑. 杭州: 浙江大学硕士学位论文, 2016.
	Liu B . Fabrication of paraffin and polypropylene superhydrophobic surfaces. Hangzhou: MS thesis of Zhejiang University, 2016.
	章伟伟. 环保型超疏水抗潮功能纸张的研究. 广州: 华南理工大学博士学位论文, 2014.
	Zhang W W . Environmentally friendly functional paper with superhydrophobic surface and moisture resistance. Guangzhou: PhD thesis of South China University of Technology, 2014.
	Bayer I S , Fragouli D , Martorana P J , et al. Solvent resistant superhydrophobic films from self-emulsifying carnauba wax-alcohol emulsions. Soft Matter, 2011, 7 (18): 7939- 7943. doi: 10.1039/c1sm05710c
	Eriksson D , Geladi P , Ulvcrona T . Near-infrared spectroscopy for the quantification of linseed oil uptake in Scots pine (Pinus sylvestris L. ). Wood Material Science & Engineering, 2011, 6 (4): 170- 176.
	Fadl N A , Basta A H . Enhancement of the dimensional stability of natural wood by impregnates. Pigment & Resin Technology, 2005, 34 (2): 72- 87.
	Fredriksson M , Wadso L , Ulvcrona T . Moisture sorption and swelling of Norway spruce (Picea abies (L. ) Karst. ) impregnated with linseed oil. Wood Material Science & Engineering, 2010, 5 (3/4): 135- 142.
	Humar M , Lesar B . Efficacy of linseed- and tung-oil-treated wood against wood-decay fungi and water uptake. International Biodeterioration & Biodegradation, 2013, 85, 223- 227.
	Kocaefe D , Huang X , Kocaefe Y . Dimensional stabilization of wood. Current Forestry Reports, 2015, 1 (3): 151- 161. doi: 10.1007/s40725-015-0017-5
	Lazzari M , Chiantore O . Drying and oxidative degradation of linseed oil. Polymer Degradation and Stability, 1999, 65 (2): 303- 313. doi: 10.1016/S0141-3910(99)00020-8
	Liu M , Tu X , Liu X , et al. A comparative study on the effects of linseed oil and shellac treatment on the hygroscopicity, dimensional stability, and color changes of Chinese ash wood. BioResources, 2020, 15 (4): 8085- 8092.
	Moghaddam M S , Heydari G , Tuominen M , et al. Hydrophobisation of wood surfaces by combining liquid flame spray (LFS) and plasma treatment: dynamic wetting properties. Holzforschung, 2016, 70 (6): 527- 537. doi: 10.1515/hf-2015-0148
	Nakajima A , Fujishima A , Hashimoto K , et al. ChemInform abstract: preparation of transparent superhydrophobic boehmite and silica films by sublimation of aluminum acetylacetonate. Advanced Materials, 1999, 11 (16): 1365- 1368. doi: 10.1002/(SICI)1521-4095(199911)11:16<1365::AID-ADMA1365>3.0.CO;2-F
	Panov D, Terziev N, Daniel G. 2010. Using plant oils as hydrophobic substances for wood protection//41st Annual Meeting of the International Research Group on Wood Protection. Biarritz, France, 9-13 May 2010, IRG Secretariat.
	Piao C , Winandy J E , Shupe T F . From hydrophilicity to hydrophobicity: a critical review: Part Ⅰ. Wettability and surface behavior. Wood and Fiber Science, 2010, 42 (4): 490- 510.
	Quéré D . Wetting and roughness. Annual Review of Materials Research, 2008, 38, 71- 99. doi: 10.1146/annurev.matsci.38.060407.132434
	Rowell R M . Handbook of wood chemistry and wood composites. Florida: CRC Press, 2012.
	Schneider M H . Hygroscopicity of wood impregnated with linseed oil. Wood Science and Technology, 1980, 14 (2): 107- 114. doi: 10.1007/BF00584040
	Scholz G , Bulcke J V D , Boone M , et al. Investigation on wax-impregnated wood. Part 1: Microscopic observations and 2D X-ray imaging of distinct wax types. Holzforschung, 2010, 64 (5): 581- 585.
	Singh T , Singh A P . A review on natural products as wood protectant. Wood Science and Technology, 2012, 46 (5): 851- 870. doi: 10.1007/s00226-011-0448-5
	Stamm A J . Wood and cellulose science. Science, 1964, 147 (3658): 595- 596.
	Tarkow H , Turner H D . The swelling pressure of wood. Forest Products Journal, 1958, 8 (7): 193- 197.
	Terziev N , Panov D . Plant oils as "green" substances for wood protection. Porto: Minimising the Environmental Impact of the Forest Products Industries., 2011.
	Ulvcrona T , Flæte P O , Alfredsen G . Effects of lateral wood zone on brown rot resistance of untreated and linseed oil-impregnated Scots pine wood. European Journal of Wood and Wood Products, 2012, 70 (5): 771- 773. doi: 10.1007/s00107-012-0604-0
	Wei C , Fadeev A Y , Meng C H , et al. Ultrahydrophobic and ultralyophobic surfaces: some comments and examples. Langmuir, 1999, 15 (10): 3395- 3399. doi: 10.1021/la990074s

样品编号Sample No.	两步法处理Two-step treatment(%)		一步法处理One-step treatment(%)
样品编号Sample No.	亚麻油乳液Linseed oil emulsion	蜡乳液Wax emulsion	一步法处理One-step treatment(%)
CK	—	—
L	20	—
LC2	20	4C
LB2	20	4BC
LP2	20	4PC
LB1			20L+4BC
LP1			20L+4PC

样品编号Sample No.	离心前Before centrifugation /nm		离心后After centrifugation /nm
样品编号Sample No.	平均粒径Average particle size	d₉₀	平均粒径Average particle size	d₉₀
L	199.0	326.4	201.0	302.2
LB	204.0	357.1	204.4	325.5
LP	205.2	350.0	205.6	361.9

样品编号Sample No.	第一步First step(%)		第二步Second step(%)
样品编号Sample No.	WPG	偏差Std.	WPG	偏差Std.
L	31.58	2.20
LC	30.30	2.37	33.06	2.28
LB2	31.00	2.53	34.34	2.47
LP2	29.36	3.46	33.54	3.69
LB1	35.60	3.00
LP1	34.70	1.41
