林业科学 ›› 2021, Vol. 57 ›› Issue (3): 126-134.doi: 10.11707/j.1001-7488.20210313
杨雨桐1,张卿硕2,符韵林2,孙静2,*
收稿日期:
2019-05-15
出版日期:
2021-03-01
发布日期:
2021-04-07
通讯作者:
孙静
基金资助:
Yutong Yang1,Qingshuo Zhang2,Yunlin Fu2,Jing Sun2,*
Received:
2019-05-15
Online:
2021-03-01
Published:
2021-04-07
Contact:
Jing Sun
摘要:

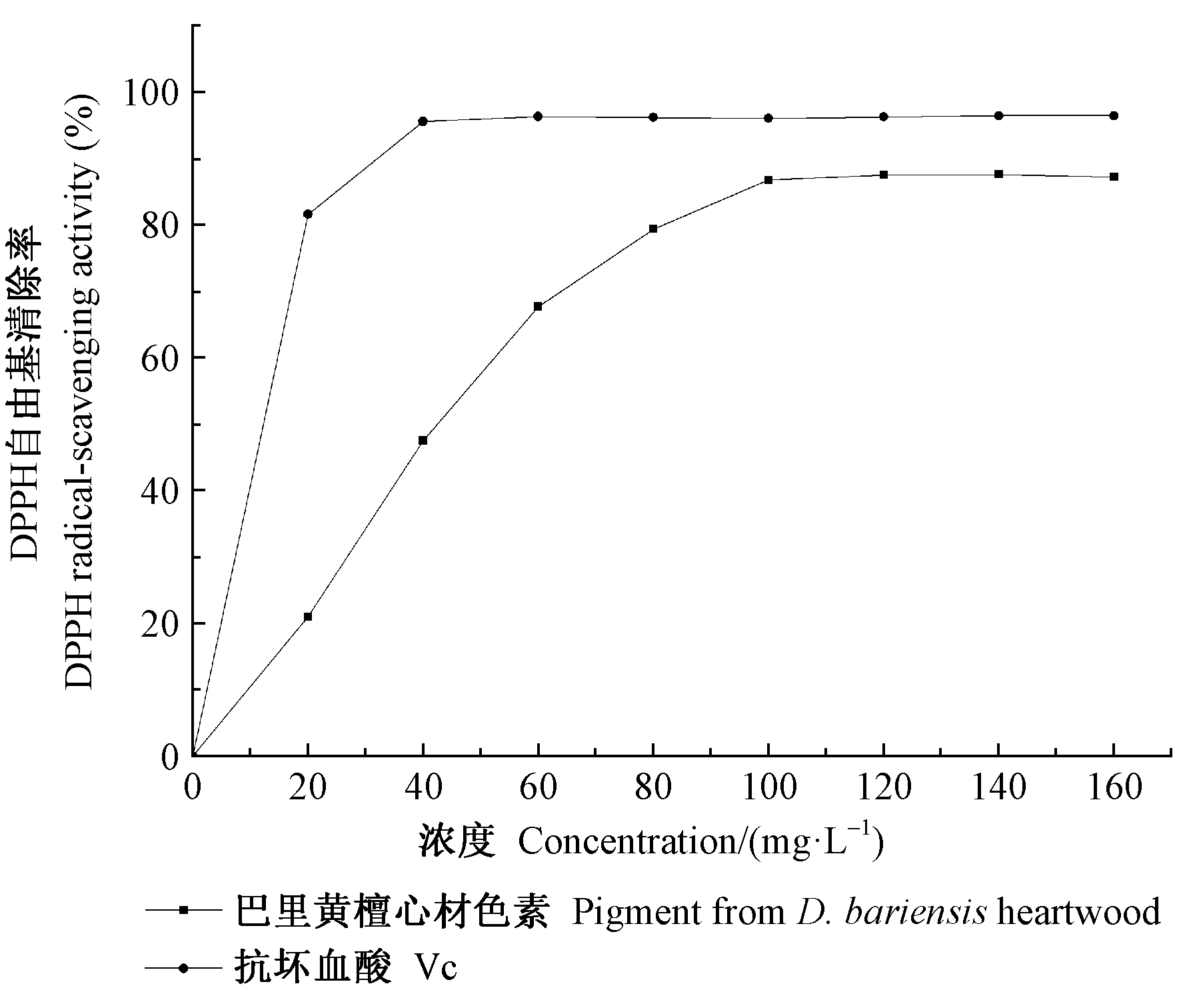

目的: 分析巴里黄檀心材色素成分,探究色素的稳定性和抗氧化性,为充分利用巴里黄檀资源提供理论基础和技术支撑,为同类红木资源的高效利用提供参考。方法: 从巴里黄檀木制品加工废料(刨花)中提取色素,使用超高效液相色谱-串联四级杆-静电场轨道阱高分辨质谱(UPLC-Q-EXACTIVE-MS)法分离鉴定色素成分,对色素主要成分进行定量;探究pH、金属离子、温度和紫外光照对色素稳定性的影响;以抗坏血酸(Vc)为阳性对照,分析色素对DPPH自由基和ABTS自由基的清除能力。结果: 从巴里黄檀心材色素中鉴定出荭草素、葛根素、牡荆素、异鼠李素、天竺葵素、矢车菊素、高车前素、白杨素、黄豆黄素、蓟黄素、樱花素、柚皮苷、染料木素、锦葵素、香叶木素、美迪紫檀素、芒柄花黄素、高丽槐素和6-羟基黄酮共19种黄酮类化合物,其中芒柄花黄素相对含量为2.27%;色素在酸性条件下稳定性较好,在碱性条件下稳定性差,pH>9后溶液出现沉淀;K+、Na+、Ba2+、Ca2+、Mg2+对色素几乎无影响,Al3+对色素有增色作用,Gr6+、Cu2+、Fe3+使色素产生沉淀,破坏作用较大;色素高温加热2 h内稳定性较好,长时间高温加热对色素有增色作用;紫外光照射对色素有缓慢增色作用;色素对DPPH自由基和ABTS自由基具有一定清除能力。结论: 巴里黄檀心材色素为黄酮类色素;色素在酸性至中性环境下较为稳定,在碱性条件下不稳定,Gr6+、Cu2+、Fe3+存在时不稳定,长时间高温加热和光照对色素稳定性影响较大;色素具有一定抗氧化能力。
中图分类号:
杨雨桐,张卿硕,符韵林,孙静. 巴里黄檀心材色素成分及其稳定性和抗氧化性[J]. 林业科学, 2021, 57(3): 126-134.
Yutong Yang,Qingshuo Zhang,Yunlin Fu,Jing Sun. Components, Stability and Antioxidant Activity of Pigment from Dalbergia bariensis Heartwood[J]. Scientia Silvae Sinicae, 2021, 57(3): 126-134.
表2
巴里黄檀心材色素中黄酮类成分离子结构信息"
峰号 No. | 保留时间 Retention time/min | 分子式 Formula | 一级质谱 MS(m/z) | 理论值 Theoretical value(m/z) | 二级质谱 MS2(m/z) | 化学成分 Component | 文献来源 Reference |
1 | 4.738 | C21H20O11 | 449.099 02 | [M+H]449.107 84 | 413.085 45 329.064 42 149.022 92 | 荭草素 Orientin | |
2 | 4.825 | C21H20O9 | 417.109 27 | [M+H]417.118 01 | 297.074 92 267.063 96 | 葛根素 Puerarin | |
3 | 5.094 | C21H20O10 | 433.104 27 | [M+H]433.112 92 | 397.090 55 313.069 58283.059 14 | 牡荆素 Vitexin | |
4 | 5.494 | C16H12O7 | 317.057 15 | [M+H]317.057 75 | 285.038 51 273.075 01149.022 90 | 异鼠李素 Isorhamnetin | |
5 | 6.109 | C15H10O5 | 271.051 83 | [M+H]271.052 27 | 271.059 11 | 天竺葵素 Pelargonidin | 胡莉等,2014 |
6 | 6.159 | C15H10O6 | 287.046 74 | [M+H]287.047 19 | 259.059 14 231.064 36149.022 96 | 矢车菊素 Cyanidin | 胡莉等,2014 |
7 | 6.205 | C16H12O6 | 301.062 24 | [M+H]301.062 89 | 301.069 70 245.079 86 167.033 36 | 高车前素 Hispidulin | |
8 | 6.522 | C15H10O4 | 255.056 89 | [M+H]255.057 36 | 255.064 32 229.085 13 | 白杨素 Chrysin | |
9 | 6.896 | C16H12O5 | 285.067 27 | [M+H]285.067 93 | 285.074 83 270.051 45 | 黄豆黄素 Glycitein | |
10 | 7.022 | C17H14O6 | 315.077 62 | [M+H]315.078 49 | 283.059 05 255.064 21 211.074 71 153.054 12 | 蓟黄素 Cirsimaritin | |
11 | 7.138 | C16H14O5 | 287.082 84 | [M+H]287.083 58 | 285.074 74 269.079 80 167.033 34 | 樱花素 Sakuranetin | |
12 | 7.243 | C27H32O14 | 579.175 86 | [M-H] 579.178 66 | 579.168 15 489.137 36 459.127 04 369.095 73 339.085 46 151.038 09 | 柚皮苷 Naringin | |
13 | 7.775 | C15H10O5 | 269.051 24 | [M-H] 269.052 27 | 269.065 12 254.057 63 | 染料木素 Genistein | |
14 | 7.867 | C17H14O7 | 331.072 57 | [M+H]331.073 40 | 331.080 14 316.056 73 271.059 20 | 锦葵素 Malvidin | 胡莉等,2014 |
15 | 8.14 | C16H12O6 | 301.062 24 | [M+H]301.062 84 | 284.031 19 256.036 19 228.077 18 151.037 99 | 香叶木素 Diosmetin | |
16 | 8.164 | C16H14O4 | 269.087 92 | [M-H] 269.088 66 | 269.043 79 254.056 67241.048 75 133.027 13 | 美迪紫檀素 Medicarpin | |
17 | 9.265 | C16H12O4 | 269.072 46 | [M+H]269.073 01 | 269.079 83 254.056 27 213.090 50 | 芒柄花黄素 Formononetin | |
18 | 9.474 | C16H12O5 | 285.067 28 | [M+H]285.067 93 | 151.038 54 123.043 85 | 高丽槐素 Maackiain | |
19 | 10.043 | C15H10O3 | 239.061 94 | [M+H]239.062 45 | 239.068 47 211.074 86193.064 03 165.069 46123.080 22 | 6-羟基黄酮 6-hydroxyflavone |
郭丽冰, 黄丽容, 赵丽华. 降香行气止痛、活血止血有效部位的药理筛选. 中药材, 2007, 30 (6): 696- 698.
doi: 10.3321/j.issn:1001-4454.2007.06.027 |
|
Guo L B , Huang L R , Zhao L H . Pharmacological screening of effective parts of Dalbergia odorifera for reducing incense, relieving pain and promoting blood circulation to stop bleeding. Journal of Chinese Medicinal Materials, 2007, 30 (6): 696- 698.
doi: 10.3321/j.issn:1001-4454.2007.06.027 |
|
郭丽冰, 王蕾. 降香中黄酮类化学成分研究. 中草药, 2008, 39 (8): 1147- 1149. | |
Guo L B , Wang L . Chemical constituents of flavonoids in Dalbergia odorifera. Chinese Traditional and Herbal Drugs, 2008, 39 (8): 1147- 1149. | |
韩晓俊, 王越平, 覃丹. 媒染剂在天然染料对毛织物染色中的作用. 毛纺科技, 2007, 7 (2): 14- 17.
doi: 10.3969/j.issn.1003-1456.2007.02.003 |
|
Han X J , Wang Y P , Qin D . The role of mordants in dyeing wool fabrics with natural dyes. Wool Textile Journal, 2007, 7 (2): 14- 17.
doi: 10.3969/j.issn.1003-1456.2007.02.003 |
|
胡莉, 仲伶俐, 毛建霏, 等. 高效液相色谱测定粮食、蔬菜和水果中的花青素. 分析试验室, 2012, 31 (12): 43- 47. | |
Hu L , Zhong L L , Mao J F , et al. Determination of anthocyanins in grains, vegetables and fruits by high performance liquid chromatography. Chinese Journal of Analysisl Laboratory, 2012, 31 (12): 43- 47. | |
季鹏, 赵文明, 于桐. 柚皮素的最新研究进展. 中国新药杂志, 2015, 24 (12): 1382- 1386, 1392. | |
Ji P , Zhao W M , Yu T . The latest research progress of naringin. Chinese Journal of New Drugs, 2015, 24 (12): 1382- 1386, 1392. | |
姜爱莉, 孙利芹. 降香抗氧化成分的提取及活性研究. 精细化工, 2004, 21 (7): 525- 528.
doi: 10.3321/j.issn:1003-5214.2004.07.014 |
|
Jiang A L , Sun L Q . Extraction and activity of antioxidant components from Dalbergia odorifera. Fine Chemicals, 2004, 21 (7): 525- 528.
doi: 10.3321/j.issn:1003-5214.2004.07.014 |
|
刘荣华, 温新潮, 张普照, 等. 交趾黄檀异黄酮类化学成分研究. 中草药, 2015, 46 (19): 2851- 2855.
doi: 10.7501/j.issn.0253-2670.2015.19.006 |
|
Liu R H , Wen X C , Zhang P Z , et al. Chemical constituents of isoflavones from Dalbergia cochinchinensis Pierre. Chinese Traditional and Herbal Drugs, 2015, 46 (19): 2851- 2855.
doi: 10.7501/j.issn.0253-2670.2015.19.006 |
|
鲁晓翔. 黄酮类化合物抗氧化作用机制研究进展. 食品研究与开发, 2012, 33 (3): 220- 224.
doi: 10.3969/j.issn.1005-6521.2012.03.064 |
|
Lu X X . Research progress on antioxidant mechanism of flavonoids. Food Research and Development, 2012, 33 (3): 220- 224.
doi: 10.3969/j.issn.1005-6521.2012.03.064 |
|
马玉翠, 吴翠, 王尉, 等. 樱花素标准样品的研制. 中国实验方剂学杂志, 2017, 23 (9): 59- 64. | |
Ma Y C , Wu C , Wang W , et al. Development of sakuranetin standard samples. Chinese Journal of Experimental Traditional Medical Formulae, 2017, 23 (9): 59- 64. | |
全桂静. 仙人掌果红色素稳定性及抗氧化性的研究. 中国调味品, 2017, 42 (11): 130- 132, 136.
doi: 10.3969/j.issn.1000-9973.2017.11.029 |
|
Quan G J . Study on stability and antioxidant activity of red pigment from cactus fruit. China Condiment, 2017, 42 (11): 130- 132, 136.
doi: 10.3969/j.issn.1000-9973.2017.11.029 |
|
唐克华, 于华忠, 龚剑, 等. 红檵木花色素的微波提取与特性研究. 西北植物学报, 2005, 25 (3): 568- 574.
doi: 10.3321/j.issn:1000-4025.2005.03.026 |
|
Tang K H , Yu H Z , Gong J , et al. Microwave extraction and characterization of anthocyanidins from Loropetalum chinense var. rubrum. Acta Botanica Boreali-Occidentalia Sinica, 2005, 25 (3): 568- 574.
doi: 10.3321/j.issn:1000-4025.2005.03.026 |
|
吴敏, 张杰, 曾凡骏. 天然花青素稳定性研究现状. 中国食品添加剂, 2008, (5): 50- 53.
doi: 10.3969/j.issn.1006-2513.2008.05.003 |
|
Wu M , Zhang J , Zeng F J . Research status of stability of natural anthocyanins. China Food Additives, 2008, (5): 50- 53.
doi: 10.3969/j.issn.1006-2513.2008.05.003 |
|
翟东群, 姜笑梅, 殷亚方. 红木资源现状及变化趋势. 木材工业, 2014, 28 (2): 26- 30.
doi: 10.3969/j.issn.1001-8654.2014.02.006 |
|
Zhai D Q , Jiang X M , Yin Y F . Present situation and trend of rosewood resources. China Wood Industry, 2014, 28 (2): 26- 30.
doi: 10.3969/j.issn.1001-8654.2014.02.006 |
|
宗鑫凯, 赖富丽, 王祝年, 等. 牛大力化学成分研究. 中药材, 2009, 32 (4): 520- 521.
doi: 10.3321/j.issn:1001-4454.2009.04.016 |
|
Zong X K , Lai F L , Wang Z N , et al. Chemical constituents of gorengxmox (Millettia speciosa Champ). Journal of Chinese Medicinal Materials, 2009, 32 (4): 520- 521.
doi: 10.3321/j.issn:1001-4454.2009.04.016 |
|
张永忠, 陈学颖, 孙艳梅. 四种异黄酮抗氧化活性的比较研究. 食品科学, 2008, 29 (2): 383- 386.
doi: 10.3321/j.issn:1002-6630.2008.02.085 |
|
Zhang Y Z , Chen X Y , Sun Y M . Comparative study on antioxidant activities of four isoflavones. Food Science, 2008, 29 (2): 383- 386.
doi: 10.3321/j.issn:1002-6630.2008.02.085 |
|
植中强, 李红缨, 杨海贵. 天然食用色素提取工艺与稳定性研究的状况. 广州化工, 1999, 27 (4): 18- 20. | |
Zhi Z Q , Li H M , Yang H G . The research status of extraction technology and stability of natural edible pigments. Guangzhou Chemical Industry, 1999, 27 (4): 18- 20. | |
Alcázar S C , Osorio J F , Forster T , et al. Obtaining bixin from semi-defatted annatto seeds by a mechanical method and solvent extraction: process integration and economic evaluation. Food Research International, 2017, 99 (1): 393. | |
Aravantinos G , Oreopoulou V , Tzia C , et al. Utilisation of orange by-products-orange peel carotenoids. Journal of the Science of Food and Agriculture, 1992, 59 (1): 77- 79.
doi: 10.1002/jsfa.2740590111 |
|
Bekhta P , Niemz P . Effect of high temperature on the change in color, dimensional stability and mechanical properties of spruce wood. Holzforschung, 2003, 57 (5): 539- 546.
doi: 10.1515/HF.2003.080 |
|
Bierhaus A , Zhang Y , Quehenberger P , et al. The dietary pigment curcumin reduces endothelial tissue factor gene expression by inhibiting binding of AP-1 to the DNA and activation of NF-KB. Thrombosis and Haemostasis, 1997, 77 (4): 772- 782.
doi: 10.1055/s-0038-1656049 |
|
Blanca E B , Peralta C J , Rubén F G , et al. Neocandenatone, an isoflavan-cinnamylphenol quinone methide pigment from Dalbergia congestiflora. Cheminform, 2004, 65 (7): 925- 928. | |
Bojilov D , DagnonS , Ivanov I . New insight into the flavonoid composition of Chenopodium botrys. Phytochemistry Letters, 2017, 20, 316- 321.
doi: 10.1016/j.phytol.2017.01.015 |
|
Chang T C , Lin H Y , Wang S Y , et al. Study on inhibition mechanisms of light-induced wood radicals by Acacia confusa heartwood extracts. Polymer Degradation and Stability, 2014, 105, 42- 47.
doi: 10.1016/j.polymdegradstab.2014.03.036 |
|
Choi H S , Park J A , Hwang J S , et al. A Dalbergia odorifera extract improves the survival of endotoxemia model mice by inhibiting HMGB1 release. BMC Complementary and Alternative Medicine, 2017, 17 (1): 212.
doi: 10.1186/s12906-017-1725-0 |
|
Chulwon K , Seok-Geun L , Mo Y W , et al. Formononetin-induced oxidative stress abrogates the activation of STAT3/5 signaling axis and suppresses the tumor growth in multiple myeloma preclinical model. Cancer Letters, 2018, 431, 123- 141.
doi: 10.1016/j.canlet.2018.05.038 |
|
Cui X B , Qian X C , Huang P , et al. Simultaneous determination of ten flavonoids of crude and wine-processed Radix scutellariae aqueous extracts in rat plasma by UPLC-ESI-MS/MS and its application to a comparative pharmacokinetic study. Biomedical Chromatography, 2015, 29 (7): 1112- 1123.
doi: 10.1002/bmc.3398 |
|
Du X , Zhang J P . Preparation and stability of ethanol-soluble red pigment from the bark of Larix gmelinii. Journal of Beijing Forestry University, 2005, 6, 67- 70. | |
Fan J X , Wang S , Meng X S , et al. Study of cancer cell apoptosis induced by Schizonepeta tenuifolia with microfluidic chip technology. Acta Pharmaceutica Sinica, 2017, 52 (1): 126- 131. | |
Fattahi M , Nazeri V , Torrasclaveria L , et al. Identification and quantification of leaf surface flavonoids in wild-growing populations of Dracocephalum kotschyi by LC-DAD-ESI-MS. Food Chemistry, 2013, 141 (1): 139- 146.
doi: 10.1016/j.foodchem.2013.03.019 |
|
Feng J , Xiao Y , Guo Z , et al. Purification of compounds from lignum Dalbergia odorifera using two-dimensional preparative chromatography with Click oligo (ethylene glycol) and C18 column. Journal of Separation Science, 2011, 34 (3): 299- 307.
doi: 10.1002/jssc.201000609 |
|
Gou K J , Zeng R , Dong Y , et al. Anti-inflammatory and analgesic effects of Polygonum orientale L. extracts. Front Pharmacol, 2017, 8, 562.
doi: 10.3389/fphar.2017.00562 |
|
Gutiérrez Z , Cinthya G , Arriaga A M , et al. Stability in candy products of neocandenatone, a non-genotoxic purple pigment from Dalbergia congestiflora heartwood. Food Research International, 2014, 65, 263- 271.
doi: 10.1016/j.foodres.2014.03.048 |
|
Hong C , Wei Z B , Hai L , et al. Study on microwave assisted extraction of red pigment from purslane and its stability. Guangzhou Chemical Industry, 2018, 46 (21): 58- 60. | |
Huang Y , Zhang P , He F , et al. Simultaneous determination of four bioactive flavonoids from Polygonum orientale L. in dog plasma by UPLC-ESI-MS/MS and application of the technique to pharmacokinetic studies. Journal of Chromatography B, 2014, 957, 96- 104.
doi: 10.1016/j.jchromb.2014.02.055 |
|
Imran K M , Yoon D , Lee T J , et al. Medicarpin induces lipolysis via activation of Protein Kinase A in brown adipocytes. BMB Reports, 2018, 51 (5): 249- 254.
doi: 10.5483/BMBRep.2018.51.5.228 |
|
Inggrid H M , Ja ka , Santoso H . Natural red dyes extraction on roselle petals. IOP Conference Series: Materials Science and Engineering, 2016, 162 (1): 12- 29. | |
Ji B C , Guo W T , Ma H R , et al. Isoliquiritigenin suppresses IL-1β induced apoptosis and inflammation in chondrocyte-like ATDC5 cells by inhibiting NF-κB and exerts chondroprotective effects on a mouse model of anterior cruciate ligament transection. International Journal of Molecular Medicine, 2017, 40 (6): 1709- 1718. | |
Lee C , Lee J W , Jin Q , et al. Inhibitory constituents of the heartwood of Dalbergia odorifera on nitric oxide production in RAW 264. 7 macrophages. Bioorganic & Medicinal Chemistry Letters, 2013, 23 (14): 4263- 4266. | |
Li S , Li J , Dai W , et al. Genistein suppresses aerobic glycolysis and induces hepatocellular carcinoma cell death. British Journal of Cancer, 2017, 117, 1518- 1528.
doi: 10.1038/bjc.2017.323 |
|
Palasuwan A , Soogarun S , Lertlum T , et al. Inhibition of Heinz body induction in an in vitro model and total antioxidant activity of medicinal Thai plants. Asian Pacific Journal of Cancer Prevention Apjcp, 2005, 6 (4): 458. | |
Prokudina E A , Havlí?ek L. , Al-Maharik N , et al. Rapid UPLC-ESI-MS/MS method for the analysis of isoflavonoids and other phenylpropanoids. Journal of Food Composition and Analysis, 2012, 26 (1/2): 36- 42. | |
Seetharam A J , Rajan S S . Structure of 6-hydroxyflavone. Acta Crystallographica, 1992, 48 (9): 1714- 1715. | |
Wu Q , Wang M , Sciarappa W J , et al. LC/UV/ESI-MS analysis of isoflavones in edamame and tofu soybeans. Journal of Agricultural and Food Chemistry, 2004, 52 (10): 2763- 2769.
doi: 10.1021/jf035053p |
|
Yao Z , Qi J , Wang L . Isolation, fractionation and characterization of melanin-like pigments from chestnut (Castanea mollissima) shells. Journal of Food Science, 2012, 77 (6): 671- 676.
doi: 10.1111/j.1750-3841.2012.02714.x |
|
You T T , Zhou S K , Wen J L , et al. Chemical composition, properties, and antimicrobial activity of the water-soluble pigment from Castanea mollissima shells. Journal of Agricultural and Food Chemistry, 2014, 62 (8): 1936- 1944.
doi: 10.1021/jf4045414 |
