林木联合采育机机械臂避障路径规划

doi:10.11707/j.1001-7488.20210218

摘要/Abstract

摘要：

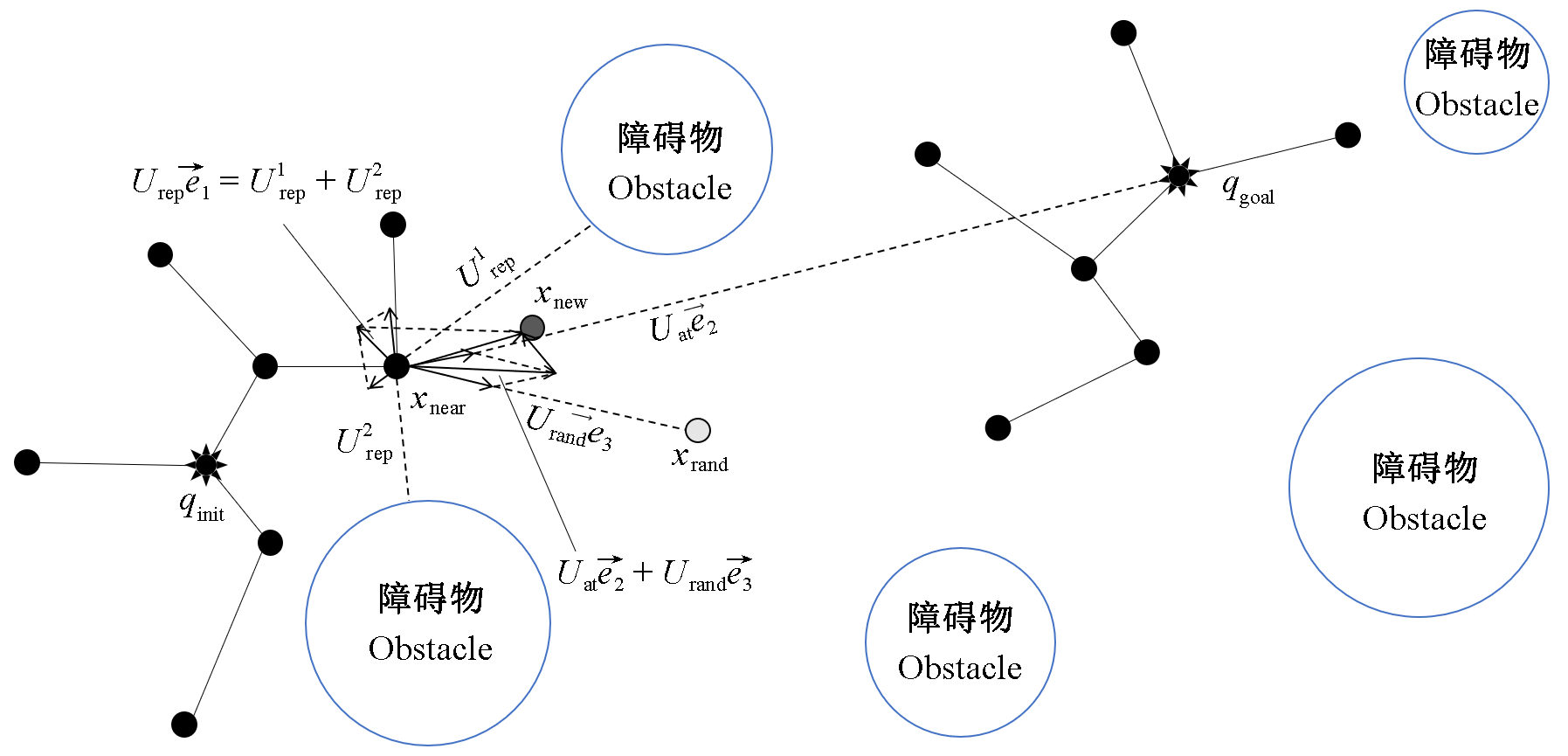

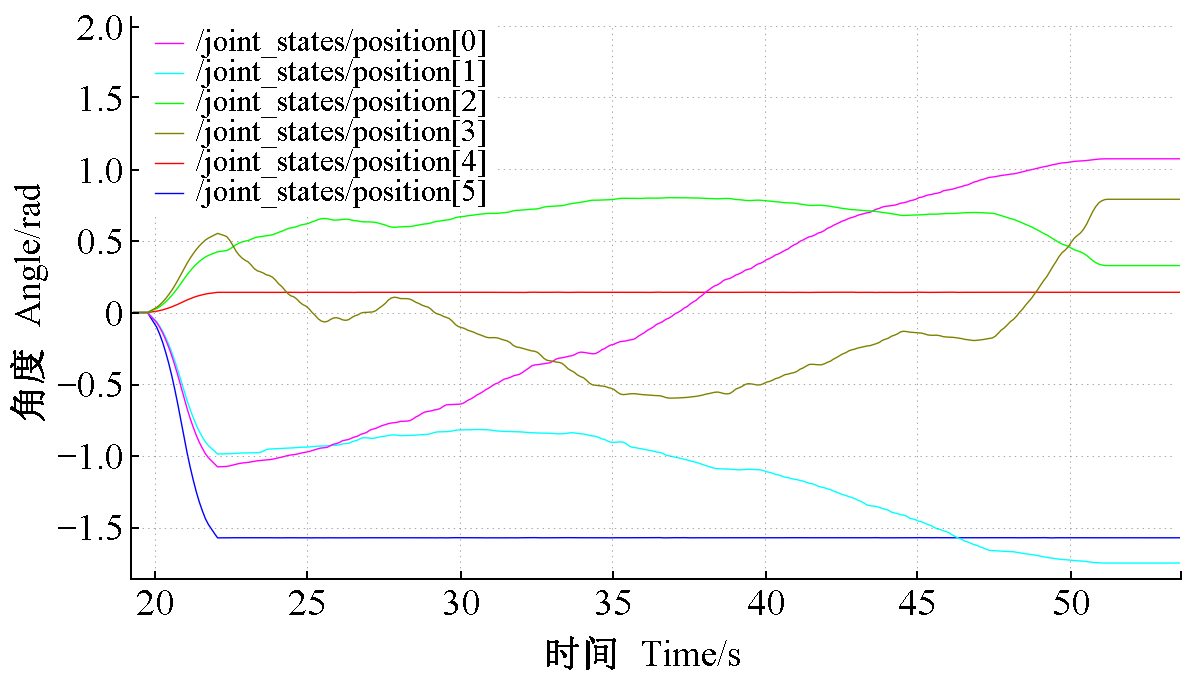

目的: 针对林木联合采育机在林区复杂环境中的避障作业要求，提出一种新型机械臂避障路径规划方法，为林业机械装备发展提供理论依据。方法: 首先，对林木联合采育机机械臂进行运动学分析，同时为解决经典快速搜索随机树随机性强、路径不平滑、计算时间长的问题，引入改进人工势场思想，提出规避搜索随机树（A-RRT）算法进行路径搜索，运用B样条曲线拟合与机械臂能量最小逆解法优化运动路径；其次，采用多点碰撞检测法，实现机械臂的稳定以及快速规划避障路径。结果: 1）林木联合采育机机械臂在林区复杂环境中能够成功避开障碍物，到达目标点；2）无论是在单一障碍物还是在多个障碍物环境中，机械臂各关节角度变换相对平滑；3）相比经典RRT算法、偏置RRT算法和双向RRT算法，本研究提出的路径规划算法搜索效率分别提高95.9%、56.9%和40.5%，机械臂避障规划效率有效提升。结论: 本研究提出的林木联合采育机机械臂避障算法具有较好的避障效果和较快的搜索速度，可降低林业环境工作劳动强度，提高机械装备采伐、抚育以及归楞的工作效率。

关键词: 林木联合采育机, 机械臂, 快速搜索随机树, 避障规划

Abstract:

Objective: A novel method of obstacle avoidance path planning for a manipulator was proposed in response to meet the requirements of obstacle avoidance operations of forestry felling & cultivation machine in complex environments of forest areas. This method was expected to provide a theoretical basis for the development of forestry machinery and equipment. Method: Firstly, the kinematic analysis of the manipulator of the forestry felling & cultivation machine was carried out. At the same time, in order to solve the problems of strong random unsmooth path and long calculation time of the classic rapidly-exploring random tree, the idea of improving the artificial potential field was introduced. An avoid rapidly-exploring random tree(avoid-rapidly exploring random tree, A-RRT) algorithm was utilized for path search, which used B-spline curve fitting and the minimum inverse solution of the manipulator energy to optimize the motion path. Then the multi-point collision detection method was used, to realize the stability and rapid planning of the obstacle avoidance path of the manipulator. Result: Through experimental simulation analysis, the results showed that: 1) the manipulator of forestry felling & cultivation machine could successfully avoid obstacles and reach the target point in the obstacle environments. 2) Whether in a single obstacle or multiple obstacle environments, the angle transformation of each joint of manipulator was relatively smooth. 3) Compared with the classic RRT algorithm, biasing RRT algorithm and bidirectional RRT algorithm, the proposed path planning algorithm in this study improved the search efficiency by 95.9%, 56.9% and 40.5% respectively, which effectively improved the efficiency of robotic arm obstacle avoidance planning. Conclusion: The proposed obstacle avoidance algorithm of the manipulator of forestry felling & cultivation machine in this paper might have a better obstacle avoidance effect and a faster searching speed, which could reduce the labor intensity of the forestry environments, and could also improve the efficiency of the harvesting, tending and pilling of forestry mechanical equipment.

Key words: forestry felling & cultivation machine, manipulator, rapidly-exploring random tree, obstacle avoidance planning

中图分类号:

TP242.6
S776

杨英浩,刘晋浩,郑一力,黄青青. 林木联合采育机机械臂避障路径规划[J]. 林业科学, 2021, 57(2): 179-192.

Yinghao Yang,Jinhao Liu,Yili Zheng,Qingqing Huang. Obstacle Avoidance Path Planning of Manipulator of Forestry Felling & Cultivation Machine[J]. Scientia Silvae Sinicae, 2021, 57(2): 179-192.

图/表 16

图1

表1

图2

图3

图4

图5

表2

图6

图7

图8

图9

表3

图10

图11

图12

图13

参考文献 0

	鲍际平, 刘晋浩, 魏占国, 等. CFJ30轮式采伐联合机底盘传动方案的研究. 湖北农业科学, 2009, 48 (10): 2573- 2575, 2580. doi: 10.3969/j.issn.0439-8114.2009.10.077
	Bao J P , Liu J H , Wei Z G , et al. Study on the transmission scheme of CFJ30 wheeled log harvester chassis. Hubei Agricultural Sciences, 2009, 48 (10): 2573- 2575, 2580. doi: 10.3969/j.issn.0439-8114.2009.10.077
	陈满意, 张桥, 张弓, 等. 多障碍环境下机械臂避障路径规划的研究. 计算机集成制造系统, 2019,
	Chen M Y , Zhang Q , Zhang G , et al. Research on obstacle avoidance path planning of manipulator in multiple obstacles environment. Computer Integrated Manufacturing Systems, 2019,
	耿志斌, 姜树海, 崔嵩鹤. 林木采伐及木材精深加工机器人研究进展. 世界林业研究, 2020, 33 (5): 53- 58.
	Geng Z B , Jiang S H , Cui S H . Research on robot for forest harvesting and wood deep processing. World Forestry Research, 2020, 33 (5): 53- 58.
	姬伟, 程风仪, 赵德安, 等. 基于改进人工势场的苹果采摘机器人机械手避障方法. 农业机械学报, 2013, 44 (11): 253- 259. doi: 10.6041/j.issn.1000-1298.2013.11.043
	Ji W , Cheng F Y , Zhao D A , et al. Obstacle avoidance method of apple harvesting robot manipulator. Transactions of the Chinese Society for Agricultural Machinery, 2013, 44 (11): 253- 259. doi: 10.6041/j.issn.1000-1298.2013.11.043
	廖旭恩. 如何开展林业机械采伐有效提高作业效率. 林业勘查设计, 2019, (1): 102- 103.
	Liao X E . How to carry out forestry machinery harvesting to effectively improve work efficiency. Forest Investigation Design, 2019, (1): 102- 103.
	刘成菊, 韩俊强, 安康. 基于改进RRT算法的RoboCup机器人动态路径规划. 机器人, 2017, 39 (1): 8- 15.
	Liu C J , Han J Q , An K . Dynamic path planning based on an improved RRT algorithm for RoboCup robot. Robot, 2017, 39 (1): 8- 15.
	刘延鹤, 傅万四, 张彬, 等. 林业机器人发展现状与未来趋势. 世界林业研究, 2020, 33 (1): 38- 43.
	Liu Y H , Fu W S , Zhang B , et al. Development status and future trends of forestry robots. World Forestry Research, 2020, 33 (1): 38- 43.
	彭光宇, 董洪波, 马斌. 两种DH模型的机器人运动学建模对比研究. 机械研究与应用, 2019, 32 (6): 62- 65.
	Peng G Y , Dong H B , Ma B . Comparative study of robot kinematics modeling based on two DH models. Mechanical Research & Application, 2019, 32 (6): 62- 65.
	彭云龙, 张伟, 张艳, 等. 我国森林抚育现状分析及对策研究. 河北农机, 2018, (7): 49.
	Peng Y L , Zhang W , Zhang Y , et al. Analysis of current situation of forest tending in my country and countermeasures. Hebei Agricultural Machinery, 2018, (7): 49.
	戚春华, 朱守林, 王效亮, 等. 森林采运作业环境成本分析. 森林工程, 2003, (6): 3- 5. doi: 10.3969/j.issn.1001-005X.2003.06.002
	Qi C H , Zhu S L , Wang X L , et al. Environmental costs of forest operations. Forest Engineering, 2003, (6): 3- 5. doi: 10.3969/j.issn.1001-005X.2003.06.002
	汪首坤, 邸智, 王军政, 等. 基于A^*改进算法的机械臂避障路径规划. 北京理工大学学报, 2011, 31 (11): 1302- 1306.
	Wang S K , Di Z , Wang J Z , et al. Path planning method for manipulator to avoid obstacle based on advanced A^* algorithm. Transactions of Beijing Institute of Technology, 2011, 31 (11): 1302- 1306.
	熊有伦. 机器人技术基础. 武汉: 华中科技大学出版社, 1996.
	Xiong Y L . Fundamentals of robot techniques. Wuhan: Huazhong University of Science and Technology Press, 1996.
	徐海燕, 姜树海. 森林作业机器人研究动态. 世界林业研究, 2017, 30 (2): 51- 55.
	Xu H Y , Jiang S H . Research trend of forest operating robots. World Forestry Research, 2017, 30 (2): 51- 55.
	许晓东, 莫晓勇, 邓海燕, 等. 桉树人工林抚育间伐优化模型. 福建农林大学学报: 自然科学版, 2020, 49 (3): 341- 347.
	Xu X D , Mo X Y , Deng H Y , et al. Optimizing models of tending and thinning for Eucalyptus plantation. Journal of Fujian Agriculture and Forestry University: Natural Science Edition, 2020, 49 (3): 341- 347.
	尹斌. 冗余机械臂运动学及避障路径规划研究. 哈尔滨: 哈尔滨工业大学硕士学位论文, 2014,
	Yin B . Research on kinematics and obstacle avoidance path planning for redundant manipulator. Harbin: MS thesis of Harbin Institute of Technology, 2014,
	由弘扬, 贺帅, 刘宏伟, 等. 基于bi_RRT算法的九自由度机械臂路径规划. 计算机仿真, 2019, 36 (7): 308- 313.
	You H Y , He S , Liu H W , et al. The mechanical arm of 9-dof path planning based on bi_RRT algorithm. Computer Simulation, 2019, 36 (7): 308- 313.
	余卓平, 李奕姗, 熊璐. 无人车运动规划算法综述. 同济大学学报: 自然科学版, 2017, (8): 1150- 1159.
	Yu Z P , Li Y S , Xiong L . A review of the motion planning problem of autonomous vehicle. Journal of Tongji University: Natural Science, 2017, (8): 1150- 1159.
	赵玉刚, 李伟, 郭峰, 等. 基于Cox-de Boor递推的任意次NURBS曲线插补算法的研究与仿真. 组合机床与自动化加工技术, 2012, (6): 45- 48.
	Zhao Y G , Li W , Guo F , et al. The random degree NURBS curve interpolation and simulation based on Cox-de Boor algorithm. Modular Machine Tool & Automatic Manufacturing Technique, 2012, (6): 45- 48.
	周国相, 吴立东, 王玉林. 对森林抚育采伐的目的及效果的分析. 林业勘查设计, 2004, (1): 12- 13.
	Zhou G X , Wu L D , Wang Y L . Analysis on the purpose and effect of forest tending and harvesting. Forest Investigation Design, 2004, (1): 12- 13.
	周玉申. 先进的林业技术装备是现代林业建设的支撑和保证. 木材加工机械, 2011, 22 (4): 27- 29, 39.
	Zhou Y S . The advanced forestry technical equipment is the support and guarantee of modern forestry construction. Forestry and Grassland Machinery, 2011, 22 (4): 27- 29, 39.
	朱宏辉, 明瑞冬, 朱轶. 基于改进RRT^*算法的路径规划. 武汉理工大学学报, 2017, 39 (2): 72- 76.
	Zhu H W , Ming R D , Zhu Y . Path planning based on improved RRT^* algorithm. Journal of Wuhan University of Technology, 2017, 39 (2): 72- 76.
	祝敬, 杨马英. 基于改进人工势场法的机械臂避障路径规划. 计算机测量与控制, 2018, 26 (10): 205- 210.
	Zhu J , Yang M Y . Path planning of manipulator to avoid obstacle based on improved artificial potential field method. Computer Measurement & Control, 2018, 26 (10): 205- 210.
	Brockerhoff E G , Jactel H , Parrotta J A , et al. Plantation forests and biodiversity: oxymoron or opportunity?. Biodiversity and Conservation, 2008, 17 (5): 925- 951.
	Chan T F , Dubey R V . A weighted least-norm solution based scheme for avoiding joint limits for redundant joint manipulators. Transactions on Robotics and Automation, IEEE, 1995, 11 (2): 286- 292.
	Dong X , Mendoza-Trejo O , Morales D O , et al. Simulation-based comparison between two crane-bunk systems for loading work when considering energy-optimal motion planning. International Journal of Forest Engineering, 2019, 31 (1): 70- 77.
	Dubey R V , Euler J A , Babcock S M . Real-time implementation of an optimization scheme for seven-degree-of-freedom redundant manipulators. Transactions on Robotics and Automation, IEEE, 1991, 7 (5): 579- 588.
	Hartenberg R S , Denavit J . A kinematic notation for lower pair mechanisms based on matrices. Journal of Applied Mechanics, 1955, 77 (2): 215- 221.
	Hera P L , Morales D O . What do we observe when we equip a forestry crane with motion sensors?. Croatian Journal of Forest Engineering, 2019, 40 (2): 259- 280.
	Kim D H , Lim S J , Lee D . A RRT-based motion planning of dual-arm robot for(Dis) assembly tasks. International Symposium on Robotics, IEEE, 2014, 1- 6.
	LaValle S M . Rapidly-exploring random trees: a new tool for path planning. Algorithmic & Comutational Robotics New Directions, 1998, 1 (1): 293- 308.
	Mohamed H A F , Yahya S , Moghavvemi M , et al. A new inverse kinematics method for three dimensional redundant manipulator. The International Conference on Control, Automation, and Systems, IEEE, 2009, 1557- 1562.
	Morales D O , La Hera P , Westerberg S , et al. Path-constrained motion analysis: an algorithm to understand human performance on hydraulic manipulators. Transactions on Human-Machine Systems, IEEE, 2014, 45 (2): 187- 199.
	Morales D O , Westerberg S , Hera P X L , et al. Increasing the level of automation in the forestry logging process with crane trajectory planning and control. Journal of Field Robotics, 2014, 31 (3): 343- 363.
	Oyama E , Agah A , MacDorman K F , et al. A modular neural network architecture for inverse kinematics model learning. Neurocomputing, 2001, 38, 797- 805.
	Ratcliffe S , Holzwarth F , Nadrowski K , et al. Tree neighbourhood matters-tree species composition drives diversity-productivity patterns in a near-natural beech forest. Forest Ecology and Management, 2015, 335, 225- 234.
	Sheng L , Yiqing W , Qingwei C , et al. A new geometrical method for the inverse kinematics of the hyper-redundant manipulators. International Conference on Robotics and Biomimetics, IEEE, 2006, 1356- 1359.
	Urmson C , Simmons R . Approaches for heuristically biasing RRT growth. International Conference on Intelligent Robots and Systems, IEEE, 2003, 1178- 1183.
	Weghe M V , Ferguson D , Srinivasa S S . Randomized path planning for redundant manipulators without inverse kinematics. International Conference on Humanoid Robots, IEEE, 2007, 477- 482.
	Xia Y , Wang J . A dual neural network for kinematic control of redundant robot manipulators. Transactions on Systems, Man, and Cybernetics, Part B(Cybernetics), IEEE, 2001, 31 (1): 147- 154.

关节Jointi	α_i-1/rad	α_i-1/dm	d_i/dm	θ_i/rad	工作范围Workspace/(°·dm^-1)
1	0	0	0	θ₍₁₎	(-90~90)
2	p_i/2	L₁=5.8	0	θ₂	(-60~90)
3	0	L₂=13.2	0	θ₃	(-90~90)
4	0	L₃=45	0	θ₄	(-120~0)
5	0	L₄=33	0	p_i/2	(90)
6	p_i/2	0	d=20	0	(1.41~20)

参数名称Parameter name	相关取值Related values
初始点Initial	(65，35，45)，(8，8，8)
目标点Target	(-79，43，-15)，(92，92，92)
初始角度Initial angle /(rad·dm^-1)	[0.493 9 0.584 4 0.423 4 -1.018 1 1.570 8 1.410 0]
扩展步长Expansion step /dm	2
引力增量(k_s) Gravity increment	2
斥力增量(k_p) Repulsion increment	10
限制增量(k_x) Limit increment	0.9
偏执概率(k) Paranoid probability	0.5

算法	Algorithm	地图1 Map one			地图2 Map two			地图3 Map three			地图4 Map four			平均 Avg.
算法	Algorithm	最小 Min.	最大 Max.	平均 Avg.	最小 Min.	最大 Max.	平均 Avg.	最小 Min.	最大 Max.	平均 Avg.	最小 Min.	最大 Max.	平均 Avg.	平均 Avg.
RRT	时间Time/s	4.85	17.59	9.29	5.67	15.92	9.31	3.09	16.37	9.40	4.22	31.90	14.92	10.73
RRT	次数Steps/s	773	2 084	1 239	854	1 931	1 238	506	1 909	1 208	661	2 828	1 655	1 335
LRRT	时间Time/s	0.59	1.76	1.22	0.52	0.91	0.71	0.44	1.48	0.83	0.27	1.77	0.95	0.93
LRRT	次数Steps/s	48	82	70	56	67	69	58	91	82	40	189	111	83
HRRT	时间Time/s	0.47	0.98	0.63	0.36	1.22	0.79	0.36	1.55	1.07	0.26	4.13	1.59	1.02
HRRT	次数Steps/s	45	63	56	47	97	65	49	88	79	37	227	108	77
biRRT	时间Time/s	0.52	1.11	0.87	0.51	1.09	0.72	0.31	1.16	0.66	0.41	0.99	0.70	0.74
biRRT	次数Steps/s	94	183	143	86	108	113	55	187	108	74	165	114	119
A-RRT	时间Time/s	0.31	0.64	0.49	0.21	0.50	0.36	0.16	0.69	0.43	0.32	0.71	0.47	0.44
A-RRT	次数Steps	56	95	75	42	62	56	29	70	56	38	44	48	59
