小径木半圆指接数学模型及出材理论

doi:10.11707/j.1001-7488.20200516

摘要/Abstract

摘要：

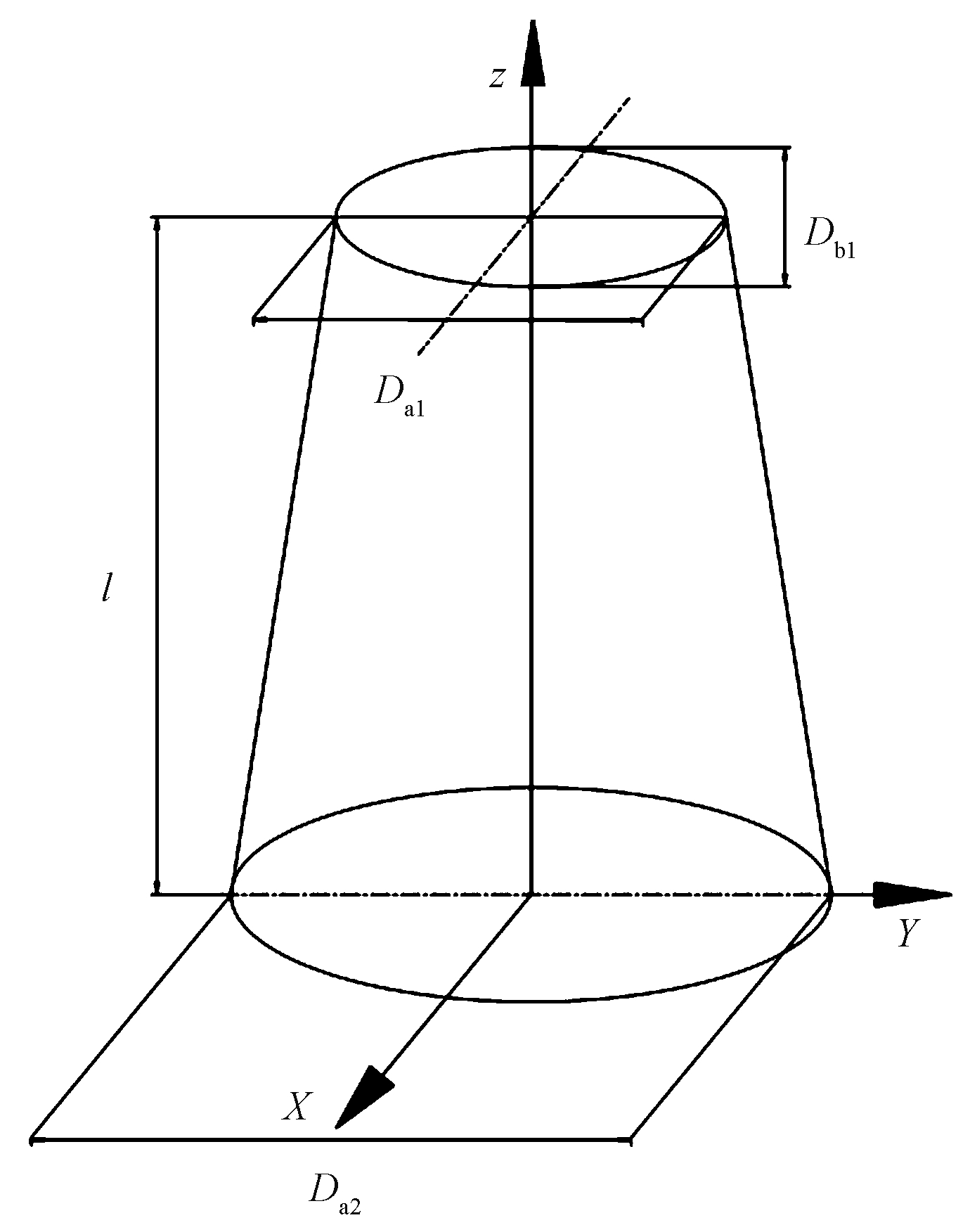

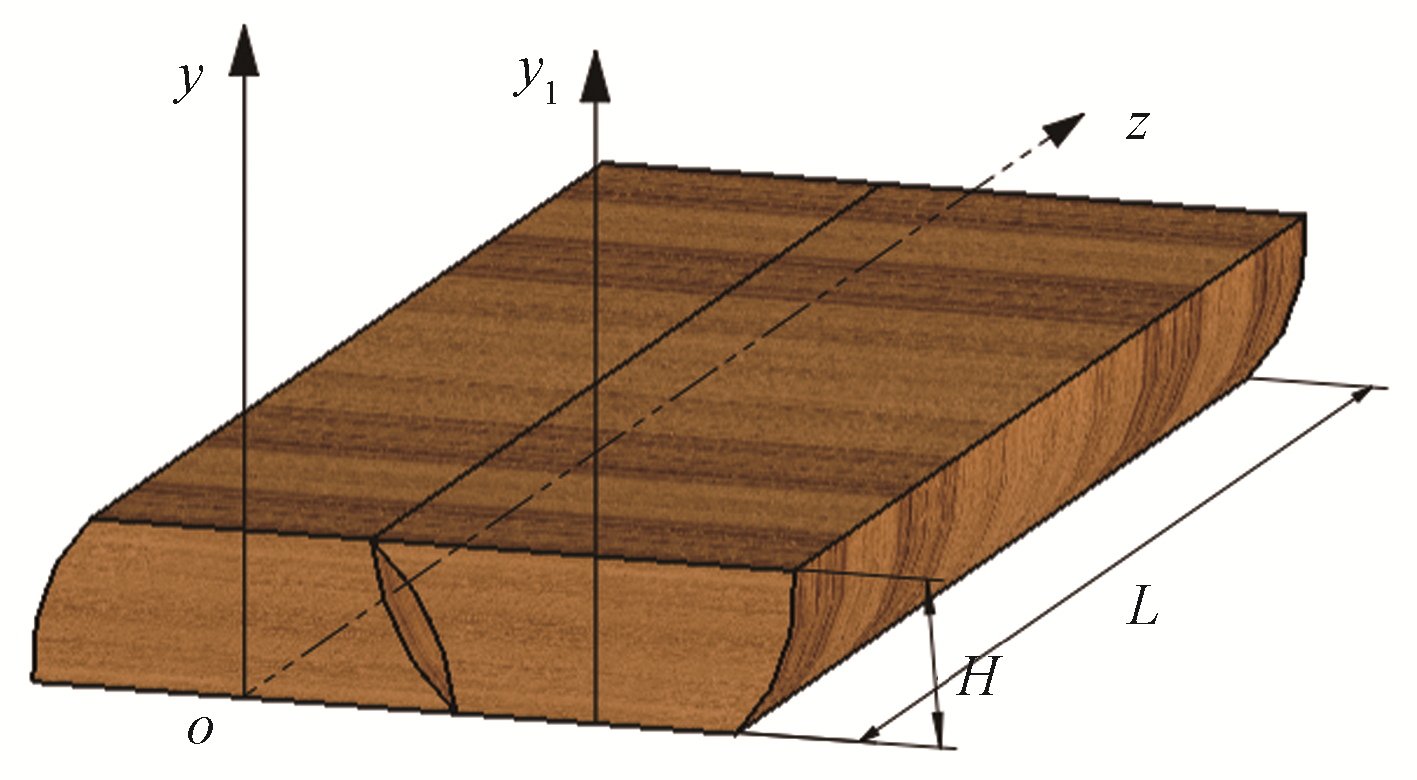

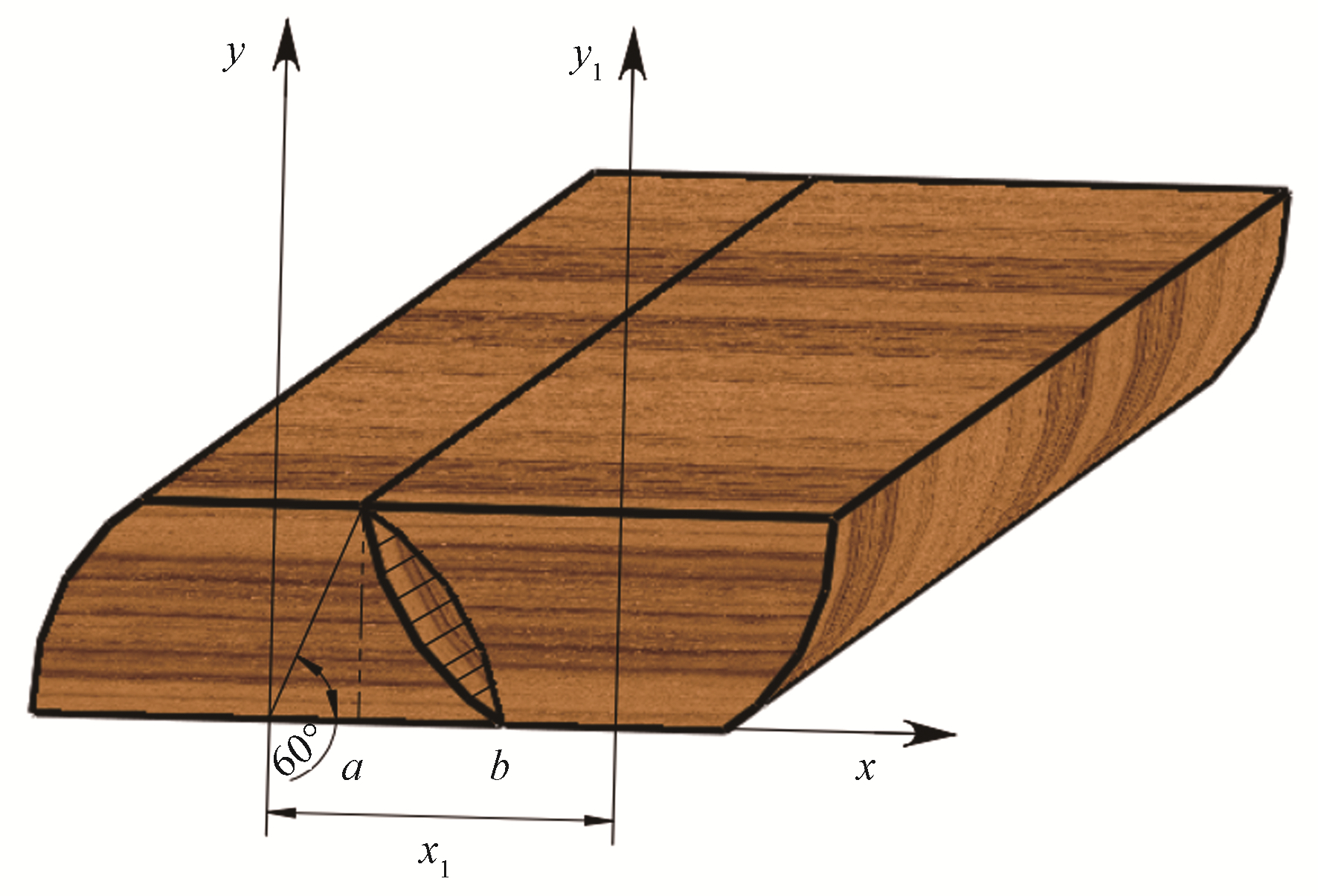

目的: 采用半圆指接工艺对小径木进行拼接加工，以拓宽小径级木材利用范围，提高小径木出材率。方法: 以理想原木为基础，建立小径木半圆指接数学模型。以圆心角60°去板皮拼接，求出小径木材积、板皮材积、指接铣去木材材积后得到小径木有效材积。选取直径120~190 mm的小径木，通过实际测量5组小径木长径和短径，分别计算出小径木半圆指接出材率。结果: 指接材出材率随直径增加而增大，当直径为190 mm时，根据理想数学模型求出小径木材积为32 022.51 mm³，由板皮材积模型求出其去除板皮材积为966.46 mm³，依照指接数学模型得出指接处需要铣去的废料材积为3 907.93 mm³，基于以上数据求出小径木半圆指接出材率为84.78%，其出材率最高。结论: 采用半圆指接加工工艺，可提高小径木出材率；建立小径木数学模型、小径木半圆指接数学模型及相关材积公式，可为相关研究提供理论基础；选择的直径越大，出材率越高，可为实际选材提供参考。

关键词: 小径木, 半圆锯解, 指接工艺, 数学模型, 出材率

Abstract:

Objective: Small-diameter log is integrated by half-sectional finger joint process in order to improve its recovery. Methods: The mathematical model of the ideal log and log integrated by half-sectional figure joint was established, respectively. The slab was cut to process finger-joint when the central angle was set as 60°. Additionally, the volumes of log, slab and finger joint section were calculated to obtain the effective volume of small-diameter log. Logs with diameters of 120-190 mm were chosen. The long-diameter and short-diameter of 5 groups of small-diameter log were measured, and their recoveries were calculated. Results: The recovery of finger-joint log increased with an increasing diameter. When the diameter of log was 190 mm, according to the mathematical model of the ideal log, the volume of log was 32 022.51 mm³; according to the mathematical model of the slab, the removal volume was 966.46 mm³; according to the mathematical model of the finger joint, the removal volume was 3 907.93 mm³. According to the above data, the recovery of log was 84.78% and reached to the maximum. Conclusion: Half-sectional finger joint process could improve the recovery of small-diameter log. The established mathematical model of the ideal log, the mathematical model of log integrated by half-sectional figure joint and the corresponding formula could provide theoretical bases for correlational studies. The recovery of log would be larger with an increasing diameter, which could provide references for actual selection of logs.

Key words: small-diameter log, half-sectional sawing, finger-joint process, mathematical model, recovery

中图分类号:

S784

杨春梅,曲文,蒋婷,刘九庆,马岩,缪骞,于文吉. 小径木半圆指接数学模型及出材理论[J]. 林业科学, 2020, 56(5): 143-149.

Chunmei Yang,Wen Qu,Ting Jiang,Jiuqing Liu,Yan Ma,Qian Miao,Wenji Yu. Mathematical Model and Recovery Theory of Small-Diameter Log Integrated by Half-Sectional Finger Joint[J]. Scientia Silvae Sinicae, 2020, 56(5): 143-149.

图/表 8

图1

图2

图3

图4

图5

图6

图7

表1

参考文献 0

	郝志强, 危力全, 宋润惠. 指接材指榫的加工方法. 林业机械与木工设备, 1997. (7): 25- 27.
	Hao Z Q , Wei L Q , Song R H . Processing method of finger joints and finger files. Forestry Machinery & Woodworking Equipment, 1997. (7): 25- 27.
	靳肖贝. 阻燃竹集成材的制造与性能评价. 北京:中国林业科学研究院硕士学位论文, 2015.
	Jin X B . Preparation and performance of bamboo laminated lumber treated with flame retardant. Beijing:MS thesis of Chinese Academy of Forestry, 2015.
	李荣荣. 小径级杉木六棱柱集成材制造技术的研究. 南京:南京林业大学博士学位论文, 2016.
	Li R R . The research of manufacturing technology for small diameter Chinese fir hexagonal glulam. Nanjing:PhD thesis of Nanjing Forestry University, 2016.
	马岩, 许洪刚, 杨春梅, 等. 小径木双面刨切单板的材积计算与效益分析. 林业科学, 2016. 52 (11): 142- 147. doi: 10.11707/j.1001-7488.20161117
	Ma Y , Xu H G , Yang C M , et al. Volume calculation method and benefit analysis of small-diameter wood sided sliced veneer. Scientia Silvae Sinicae, 2016. 52 (11): 142- 147. doi: 10.11707/j.1001-7488.20161117
	马岩. 理想原木材积通式和缺陷原木模型与材积推导. 东北林业大学学报, 1990. 18 (4): 81- 94.
	Ma Y . Common scale formulation of ideal log and model and scale detecting fault log research. Journal of Northeast Forestry University, 1990. 18 (4): 81- 94.
	马岩. 利用板材端面纹理判断和识别板材几何参数的数学描述理论. 生物数学学报, 2005. 20 (2): 245- 250. doi: 10.3969/j.issn.1001-9626.2005.02.022
	Ma Y . Mathematical description research on judging and distinguishing parameter of plank by vein of section. Journal of Biomathematics, 2005. 20 (2): 245- 250. doi: 10.3969/j.issn.1001-9626.2005.02.022
	马玉英. 提高原木出材率的工艺措施. 林业科技, 2003. 28 (3): 44- 45.
	Ma Y Y . The technical measures to improve the rate of recovery. Forestry Science and Technology, 2003. 28 (3): 44- 45.
	齐英杰, 马岩. 原木裁板皮过程的建模理论与仿真方法. 林业科学, 2008. 44 (12): 112- 115.
	Qi Y J , Ma Y . Modeling theory and simulation method of logs being cut out board paper process. Scientia Silvae Sinicae, 2008. 44 (12): 112- 115.
	童雀菊. 几种径向下锯模型的比较. 南京林业大学学报, 1996. 20 (2): 54- 59.
	Tong Q J . Comparative analysis on various radial sawing patterns. Journal of Nanjing Forestry University, 1996. 20 (2): 54- 59.
	谭志林. 浅谈集成材生产工艺. 内蒙古林业, 2007. (6): 22- 23.
	Tan Z L . Discussion on glulam production process. Inner Mongolia Forestry, 2007. (6): 22- 23.
	张金菊, 申世杰. 集成材概述. 木材加工机械, 2006. 17 (2): 43- 47. doi: 10.3969/j.issn.1001-036X.2006.02.011
	Zhang J J , Shen S J . Overview of glulam. Woodworking Machinery, 2006. 17 (2): 43- 47. doi: 10.3969/j.issn.1001-036X.2006.02.011
	张爱霞. 谈森工林区当前制材工业的特点. 农村实用科技信息, 2014. (3): 48.
	Zhang A X . Discussion on the characteristics of the current wood industry in forest industry zone. Rural Practical Science and Technology Information, 2014. (3): 48.
	朱国玺, 马岩, 卢军, 等. 短周期工业用材多锯片剖分过程的数学模拟研究. 林业科学, 1994. 30 (6): 556- 561.
	Zhu G X , Ma Y , Lu J , et al. The mathematical simulate research of the short felling cycle pole-timbers on sawing were ripped by slasher saw. Scientia Silvae Sinicae, 1994. 30 (6): 556- 561.
	Castellani M , Rowlands H . Evolutionary artificial neural network design and training for wood veneer classification. Engineering Applications of Artificial Intelligence, 2009. 22 (4/5): 732- 741.
	Li R R , Cao P X , Guo X L , et al. A novel sawing method for small-diameter log. Wood Research, 2015. 60 (2): 293- 300.
	Sandberg D , Walinder M , Wiklund M . The concept of value activation:a better utilization of wood. Stockholm:KTH Royal Institute of Technology, 1997. 13
	Sillett , S C , Van Pelt R , Koch G W , et al. Increasing wood production through old age in tall trees. Forest Ecology and Management, 2009. 259 (5): 976- 994.

编号 No.	小径木1 Log 1	小径木2 Log 2	小径木3 Log 3	小径木4 Log 4	小径木5 Log 5
D_b1/mm	120	140	160	170	190
D_a1/mm	124	146	170	180	190
D_a2/mm	124	146	177	200	240
1/q	1	1	1.04	1.11	1.26
S₀	11 680.8	16 045.4	22 307.3	25 342.16	32 022.51
S₁	306.53	399.56	588.34	645.66	966.46
S₂	1 163.95	2 305.26	3 122.27	3 501	3 907.93
η(%)	83.13	83.14	83.50	83.63	84.78
