多脉铁木叶绿体基因组的序列特征和系统发育

doi:10.11707/j.1001-7488.20200507

摘要/Abstract

摘要：

目的: 多脉铁木是中国特有种，为浙江省珍稀濒危野生植物和极小种群保护对象。在浙江，多脉铁木的野生植株数量极其稀少，低龄个体极少，种群面临衰退。叶绿体基因组在进化过程中相对保守，可为亲缘关系分析和系统发育研究提供有用信息。本研究在组装叶绿体基因组的基础上，对序列特征进行分析，以明确多脉铁木叶绿体基因组的大小、结构和基因组成等信息；通过系统发育分析，明确其与近缘种的关系和分类地位。方法: 利用CTAB法提取多脉铁木的基因组DNA，并构建测序文库，用HiSeq X Ten进行高通量测序，策略为双端测序；借助NovoPlasty组装叶绿体基因组；用PCR方法克隆边界序列并进行测序验证；SSR的检测采用MISA软件；利用PhyML 3.0构建系统发育树。结果: 去除接头和低质量的序列，共得到19 869 412条clean reads。序列组装结果表明，多脉铁木叶绿体基因组的全长为159 583 bp，具一个典型的四分体结构，大单拷贝区、小单拷贝区及反向重复序列的长度分别为88 514、18 953、26 058 bp。多脉铁木叶绿体基因组中共有131个基因，其中蛋白编码基因85个、tRNA基因36个、rRNA基因8个，其中的ycf1和ycf15为假基因，它们的序列长度均短于正常基因。多脉铁木叶绿体基因组上共有58个SSR，其中单碱基重复有53个。序列比对结果表明，多脉铁木与天目铁木的相似性最高，达99.1%，与铁木的相似性最低，为98.7%。构建系统发育树的最佳模型为GTR+G+I，其中的AIC（赤池信息标准）和BIC（贝叶斯信息标准）分别为556 643.629 64和556 954.642 07。系统发育分析结果表明，12种植物在发育树上可分为两大组，桦木族的日本桤木和红桤木聚为一组，榛族的10种植物聚于另一组；多脉铁木与铁木属其他3个种聚于同一分支，支持率均为100%。结论: 在高通量测序的基础上，组装完成多脉铁木的叶绿体基因组，它与天目铁木、毛果铁木和铁木叶绿体基因组的相似性较高，在系统发育树上聚为一组。多脉铁木叶绿体基因组的组装、序列比对和系统发育分析，可为后续开展遗传结构和群体遗传多样性研究奠定基础。

关键词: 多脉铁木, 叶绿体基因组, 组装, 系统发育

Abstract:

Objective: Ostrya multinervis is a species endemic to China, and it is listed as a rare and endangered wild plant, and a species with extremely small population in Zhejiang Province. The wild O. multinervis trees are found to be very rare in Zhejiang Province with very few young-aged plants and a declining population. During the evolution process, the chloroplast genomes are relatively conserved and thus provide useful information for genetic relationship analysis and phylogenetic studies. In the present study, based on the assembly of chloroplast genome, sequence characteristics were determined to confirm its structure and gene organization. By phylogenetic analysis, relationships and taxonomic ranks with its relative were identified. Methods: Genomic DNA of O. multinervis was extracted by using CTAB method, and a library was constructed for high-throughput sequencing with HiSeq X Ten with the paired-end strategy. The chloroplast genome was assembled by using NovoPlasty, and PCR was applied to isolate the border sequences following sequencing verification. SSR loci were detected by MISA and a phylogenetic tree was generated using PhyML 3.0. Results: A total of 19 869 412 clean reads were obtained by getting rid of both adaptors and low quality sequences. The result indicated that the complete O. multinervis chloroplast genome was 159 583 bp in length containing a typical quadripartite structure, and the lengths of large single copy, small single copy, and inverted repeat were 88 514 bp, 18 953 bp, and 26 058 bp, respectively. The O. multinervis chloroplast genome contains 131 genes, with 87 protein-coding genes, 36 tRNA genes, and 8 rRNA genes. Among them, ycf1 and ycf15 were pseudogenes, and their sequences were shorter than normal ones. A total of 58 SSR loci were predicted from O. multinervis plastome, and 53 of which were mononucleotide repeats. Multiple sequence comparison showed the highest similarity between O. multinervis and O. rehderiana (99.1%) and the lowest was between O. multinervis and O. japonica (98.7%). The best fit model for constructing a phylogenetic tree was GTR+G+I, and the Akaike information criterion and Bayesian information criterion were 556 643.629 64 and 556 954.642 07, respectively. The phylogenetic analysis indicated that 12 plants could be divided into two groups, and Alnus japonica and A. rubra from the tribe Betuleae were grouped into one clade, while 10 plants from tribe Coryleae were grouped into another clade. O. multinervis and the other three Ostrya species clustered in the same clade with 100% of bootstrap support. Conclusion: Based on the high-throughput sequencing, the chloroplast genome of O. multinervis was assembled, and its structure and gene organizations were confirmed. Higher similarities in chloroplast genome sequences were found between O. multinervis and other three Ostrya species, and they shared the same clade. The assembly, sequence comparison and phylogenetic analysis provide a basis for genetic structure and population diversity studies in the future.

Key words: Ostrya multinervis, chloroplast genome, assembly, phylogenetic analysis

中图分类号:

S718.46

蒋明,柯世省,王军峰. 多脉铁木叶绿体基因组的序列特征和系统发育[J]. 林业科学, 2020, 56(5): 60-68.

Ming Jiang,Shisheng Ke,Junfeng Wang. Characterization and Phylogenetic Analysis of Ostrya multinervis Chloroplast Genome[J]. Scientia Silvae Sinicae, 2020, 56(5): 60-68.

图/表 7

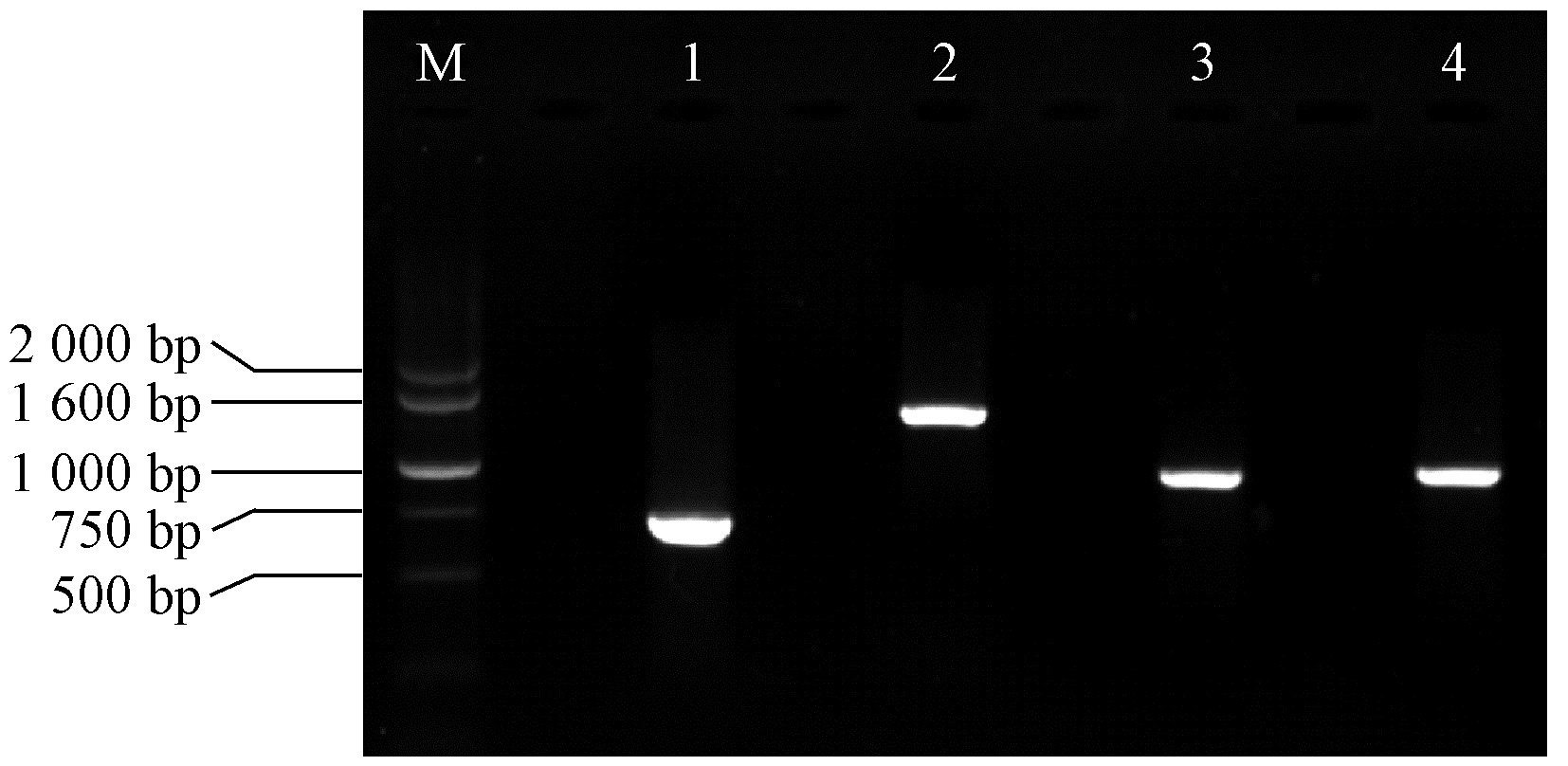

图1

表1

图2

表2

图3

图4

图5

参考文献 0

	乐笑玮, 崔敏燕, 杨淑贞, 等. 濒危植物天目铁木种子休眠及萌发特征研究. 华东师范大学学报:自然科学版, 2013. (6): 150- 158.
	Le X W , Cui M Y , Yang S Z , et al. Characters on the seed dormancy and germination of an endangered species, Ostrya rehderiana, in Tianmu Mountain, China. Journal of East China Normal University:Natural Science, 2013. (6): 150- 158.
	吴世斌, 库伟鹏, 周小荣, 等. 浙江省极小种群多脉铁木年龄结构与动态. 浙江农业科学, 2018. 59 (8): 1381- 1384.
	Wu S B , Ku W P , Zhou X R , et al. Age structure and dynamics of Ostrya multinervis, a species with extreme small population in Zhejiang. Journal of Zhejiang Agricultural Sciences, 2018. 59 (8): 1381- 1384.
	吴世斌, 库伟鹏, 周小荣, 等. 浙江文成珍稀植物多脉铁木群落结构及物种多样性. 浙江农林大学学报, 2019. 36 (1): 31- 37.
	Wu S B , Ku W P , Zhou X R , et al. Structural characteristics and species diversity for survival of the rare plant Ostrya multinervis. Journal of Zhejiang A&F University, 2019. 36 (1): 31- 37.
	张若蕙, 刘洪愕, 沈锡康, 等. 多脉铁木家化栽培研究. 浙江林学院学报, 1992. 8 (2): 167- 173.
	Zhang R H , Liu H E , Shen X K , et al. Domestication of Ostrya multinervis Rehd. Journal of Zhejiang A&F University, 1992. 8 (2): 167- 173.
	张若蕙,楼炉焕,李根有. 1994.浙江珍稀濒危植物.杭州:浙江科学技术出版社.
	Zhang R H, Lou L H, Li G Y. 1994. Rare plants of Zhejiang. Hangzhou: Zhejiang Science & Technology Press.[in Chinese]
	中国科学院中国植物志编委会. 1979.中国植物志:第21卷.北京:科学出版社.
	Flora of China Editorial Committee of Chinese Academy of Sciences. 1979. Flora of China: volume 21. Beijing: Science Press.[in Chinese]
	Amiryousefi A , Hyvönen J , Poczai P . IRscope:an online program to visualize the junction sites of chloroplast genomes. Bioinformatics, 2018. 34 (17): 3030- 3031.
	Chen Z D , Manchester S R , Sun H Y . Phylogeny and evolution of the Betulaceae as inferred from DNA sequences, morphology, and paleobotany. American Journal of Botany, 1999. 86 (8): 1168- 1181.
	Daniell H , Lin C S , Yu M , et al. Chloroplast genomes:diversity, evolution, and applications in genetic engineering. Genome Biology, 2016. 17 (1): 134. doi: 10.1186/s13059-016-1004-2
	Danilova M N , Kudryakova N V , Andreeva A A , et al. Differential impact of heat stress on the expression of chloroplast-encoded genes. Plant Physiology and Biochemistry, 2018. 129, 90- 100.
	Darzentas N . Circoletto:visualizing sequence similarity with Circos. Bioinformatics, 2010. 26 (20): 2620- 2621.
	Dierckxsens N , Mardulyn P , Smits G . NOVOPlasty:de novo assembly of organelle genomes from whole genome data. Nucleic Acids Research, 2017. 45 (4): e18. doi: 10.1093/nar/gkw955
	Dugas D V , Hernandez D , Koenen E J , et al. Mimosoid legume plastome evolution:IR expansion, tandem repeat expansions, and accelerated rate of evolution in clpP. Scientific Reports, 2015. 5, 16958. doi: 10.1038/srep16958
	Greiner S , Sobanski J , Bock R . Why are most organelle genomes transmitted maternally?. Bioessays, 2015. 37 (1): 80- 94.
	Guindon S , Dufayard J F , Lefort V , et al. New algorithms and methods to estimate maximum-likelihood phylogenies:assessing the performance of PhyML 3.0. Systematic Biology, 2010. 59 (3): 307- 321.
	Guisinger M M , Kuehl J V , Boore J L , et al. Extreme reconfiguration of plastid genomes in the angiosperm family Geraniaceae:rearrangements, repeats, and codon usage. Molecular Biology and Evolution, 2010. 28 (1): 583- 600.
	Hirao T , Watanabe A , Kurita M , et al. Complete nucleotide sequence of the Cryptomeria japonica D.Don. chloroplast genome and comparative chloroplast genomics:diversified genomic structure of coniferous species. BMC Plant Biology, 2008. 8, 70. doi: 10.1186/1471-2229-8-70
	Hu Y H , Chen X , Feng X J , et al. Characterization of the complete chloroplast genome of the endangered species Carya sinensis (Juglandaceae). Conservation Genetics Resources, 2016. 8 (4): 467- 470.
	Kuang D Y , Wu H , Wang Y L , et al. Complete chloroplast genome sequence of Magnolia kwangsiensis (Magnoliaceae):implication for DNA bar coding and population genetics. Genome, 2011. 54 (8): 663- 673.
	Kyalo C M , Gichira A W , Li Z Z , et al. Characterization and comparative analysis of the complete chloroplast genome of the critically endangered species Streptocarpus teitensis (Gesneriaceae). BioMed Research International, 2018. 2018, 1507847. doi: 10.1038/s41438-019-0171-1
	Laslett D , Canback B . ARAGORN, a program to detect tRNA genes and tmRNA genes in nucleotide sequences. Nucleic Acids Research, 2004. 32 (1): 11- 16.
	Li J , Guo H , Wang Y , et al. High-throughput SSR marker development and its application in a centipede grass (Eremochloa ophiuroides (Munro) Hack.) genetic diversity analysis. PLoS One, 2018. 13 (8): e0202605. doi: 10.1371/journal.pone.0202605
	Li Y , Xu W , Zou W , et al. Complete chloroplast genome sequences of two endangered Phoebe (Lauraceae) species. Botanical Studies, 2017. 58 (1): 37. doi: 10.1186/s40529-017-0192-8
	Lohse M , Drechsel O , Kahlau S , et al. OrganellarGenomeDRAW-a suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Research, 2013. 41 (1): 575- 581.
	Lowe T M , Eddy S R . tRNAscan-SE:A program for improved detection of transfer RNA genes in genomic sequence. Nucleic Acids Research, 1997. 25 (5): 955- 964.
	Ma J , Yang B , Zhu W , et al. The complete chloroplast genome sequence of Mahonia bealei (Berberidaceae) reveals a significant expansion of the inverted repeat and phylogenetic relationship with other angiosperms. Gene, 2013. 528 (2): 120- 131.
	Petit R J , Duminil J , Fineschi S , et al. Comparative organization of chloroplast, mitochondrial and nuclear diversity in plant populations. Molecular Ecology, 2005. 14 (3): 689- 701.
	Pogson B J , Ganguly D , Albrecht-Borth V . Insights into chloroplast biogenesis and development. Biochimica et Biophysica Acta, 2015. 1847 (9): 1017- 1024.
	Song M , Kuo L Y , Huiet L , et al. A novel chloroplast gene reported for flagellate plants. American Journal of Botany, 2018. 105 (1): 117- 121.
	Thode V A , Sanmartín I , Lohmann L G . Contrasting patterns of diversification between Amazonian and Atlantic forest clades of Neotropical lianas (Amphilophium, Bignonieae) inferred from plastid genomic data. Molecular Phylogenetics and Evolution, 2019. 133, 92- 106.
	Tillich M , Beick S , Schmitz-Linneweber C . Chloroplast RNA-binding proteins:repair and regulation of chloroplast transcripts. RNA Biology, 2010. 7 (2): 172- 178.
	Tuler A C , Carrijo T T , Nóia L R , et al. SSR markers:a tool for species identification in Psidium (Myrtaceae). Molecular Biology Reports, 2015. 42 (11): 1501- 1513.
	Twyford A D , Ness R W . Strategies for complete plastid genome sequencing. Molecular Ecology Resources, 2017. 17 (5): 858- 868.
	Walker J F , Jansen R K , Zanis M J , et al. Sources of inversion variation in the small single copy (SSC) region of chloroplast genomes. American Journal of Botany, 2015. 102 (11): 1751- 1752.
	Wang S , Shi C , Gao L Z . Plastid genome sequence of a wild woody oil species, Prinsepia utilis, provides insights into evolutionary and mutational patterns of Rosaceae chloroplast genomes. PLoS One, 2013. 8 (9): e0073946. doi: 10.1371/journal.pone.0073946
	Wicke S , Schneeweiss G M , Muller K F , et al. The evolution of the plastid chromosome in land plants:gene content, gene order, gene function. Plant Molecular Biology, 2011. 76 (3-5): 273- 297.
	Wolf P G , Der J , Duffy A , et al. The evolution of chloroplast genes and genomes in ferns. Plant Molecular Biology, 2010. 76 (3-5): 251- 261.
	Wolf P G , Rowe C A , Hasebe M . High levels of RNA editing in a vascular plant chloroplast genome:analysis of transcripts from the fern Adiantum capillus-veneris. Gene, 2004. 339 (9): 89- 97.
	Wyman S K , Jansen R K , Boore J L . Automatic annotation of organellar genomes with DOGMA. Bioinformatics, 2004. 20 (17): 3252- 3255.
	Xie Z , Merchant S . The plastid-encoded ccsA gene is required for heme attachment to chloroplast c-type cytochromes. The Journal of Biological Chemistry, 1996. 271 (9): 4632- 4639.
	Yamburenko M V , Zubo Y O , Börner T . Abscisic acid affects transcription of chloroplast genes via protein phosphatase 2C-dependent activation of nuclear genes:repression by guanosine-3'-5'-bisdiphosphate and activation by sigma factor 5. Plant Journal, 2015. 82 (6): 1030- 1041.
	Yan L , Lai X , Li X , et al. Analyses of the complete genome and gene expression of chloroplast of sweet potato (Ipomoea batata). PLoS One, 2015. 10 (4): e0124083. doi: 10.1371/journal.pone.0124083
	Yang J , Yue M , Niu C , et al. Comparative analysis of the complete chloroplast genome of four endangered herbals of Notopterygium. Genes, 2017. 8 (4): 124. doi: 10.3390/genes8040124
	Yu Z , Peng S , Yang P . The complete chloroplast genome of the southern Chinese pine Pinus tabuliformis (Pinales:Pinaceae). Mitochondrial DNA Part A, 2017. 28 (1): 13- 14.
	Zhang Y , Ma J , Yang B , et al. The complete chloroplast genome sequence of Taxus chinensis var.mairei (Taxaceae):loss of an inverted repeat region and comparative analysis with related species. Gene, 2014. 540 (2): 201- 209.

区域Region	A(%)	T(%)	C(%)	G(%)	长度Length/bp	GC(%)
LSC	32.1	33.7	17.6	16.6	88 514	34.2
SSC	34.9	35.2	15.7	14.1	18 953	29.8
IRa/IRb	28.9	28.6	20.5	22.0	26 058	42.5
合计Total	31.4	32.3	18.5	17.8	159 583	36.4

基因类别 Gene category	基因名称 Gene name	数量 Number
转运RNA Transfer RNA	trnA-UGC(×2)^, trnC-GCA,* trnD-GTC, trnE-TTC, trnF-GAA, trnfM-CAT, trnG-GCC, trnH-GTG, trnI-CAT(×2), trnI-GAU(×2)^, trnL-CAA(×2), trnL-TAG,* trnL-UAA^, trnM-CAT,* trnN-GTT(×2), trnP-TGG, trnQ-TTG, trnR-ACG(×2), trnR-TCT, trnS-CGA^, trnS-GCT,* trnS-GGA, trnS-TGA, trnT-GGT, trnT-TGT, trnV-GAC(×2), trnV-UAC^, trnW-CCA,* trnY-GTA	36
核糖体RNA Ribosome RNA	rrn4.5(×2), rrn5(×2), rrn16(×2), rrn23(×2)	8
核糖体蛋白小亚基 Small subunit of ribosome	rps2, rps3, rps4, rps7(×2), rps8, rps11, rps12(×2)^*, rps14,* rps15, rps16^, rps18,* rps19	14
核糖体蛋白大亚基Large subunit of ribosome	rpl2(×2)^, rpl14,* rpl16^, rpl20,* rpl22, rpl23(×2), rpl32, rpl33, rpl36	11
RNA聚合酶亚基RNA polymerase subunits	rpoA, rpoB, rpoC1^, rpoC2*	4
NADH脱氢酶亚基 Subunits of NADH dehydrogenase	ndhA^, ndhB(×2)^, ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhK	12
光系统I亚基Subunits of photosystem I	psaA, psaB, psaC, psaI, psaJ	5
光系统II亚基Subunits of photosystem II	psbA, psbB, psbC, psbD, psbE, psbF, psbH, psbI, psbJ, psbK, psbL, psbM, psbN, psbT, psbZ	15
细胞色素亚基Subunits of cytochrome	petA, petB^, petD^, petG, petL, petN	6
ATP合成酶亚基Subunits of ATP synthase	atpA, atpB, atpE, atpF^, atpH,* atpI	6
Rubisco大亚基Large subunit of Rubisco	rbcL	1
成熟酶Maturase	matK	1
蛋白酶Protease	clpP^**	1
被膜蛋白Envelope membrane protein	cemA	1
乙酰CoA亚基Subunit of acetyl-CoA	accD	1
细胞色素C合成酶Synthase of cytochrome C	ccsA	1
翻译起始因子Translational initiation factor	infA	1
未知功能蛋白Unknown function	ycf1, Ψycf1, ycf2(×2), ycf3^*, ycf4,* Ψycf15	7
合计Total		131
