杨树皮储藏蛋白基因启动子的克隆和功能研究*

摘要/Abstract

摘要：

杨树树皮储藏蛋白BSP是类似种子储藏蛋白的氮素储藏物,冬季在韧皮部薄壁细胞中大量积累,是落叶树氮代谢中的重要成分。为了研究BSP基因启动子在转基因植物中的表达特性,探索其在植物基因工程研究中潜在的应用价值,我们用PCR方法从美洲黑杨基因组中DNA扩增得到了BSA启动子片段。与GUS基因融合构建中间载体后,转化烟草,获得了一批PCR检测为阳性的转化再生植株。经GUS组织化学检测,发现若干转基因烟草的茎和叶柄韧皮部以及叶脉都呈GUS染色阳性,初步证明杨树BSP基因启动子确有韧皮部表达特性,可介导GUS基因在转基因烟草韧皮部特异表达。

关键词: 杨树, 韧皮部特异性启动子, GUS基因, 转基因烟草

Abstract:

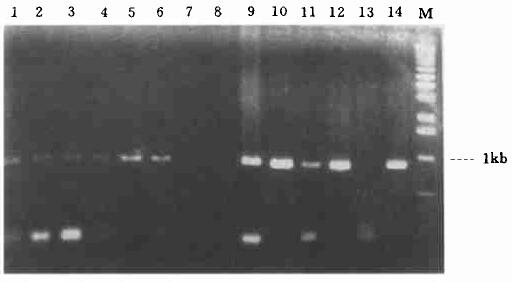

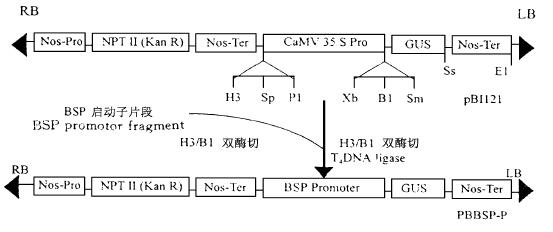

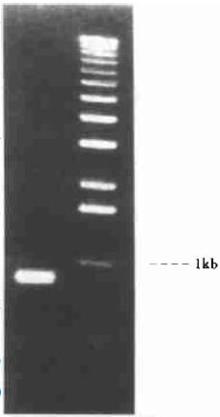

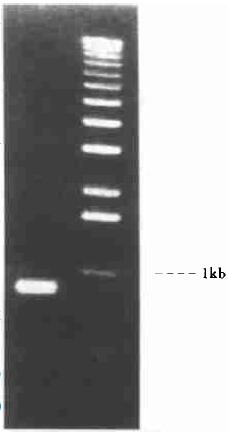

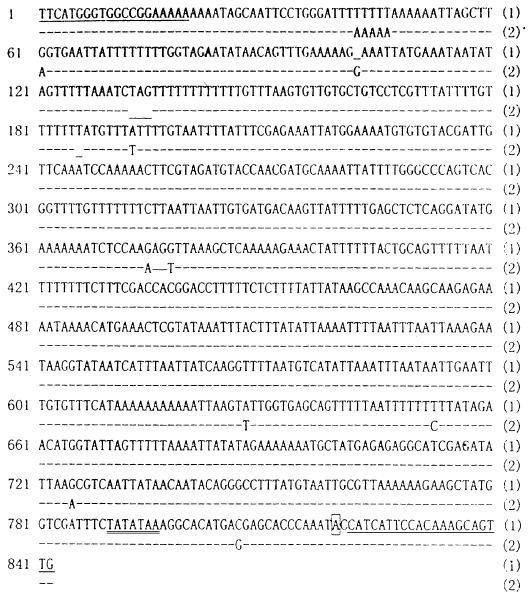

Bark storage protein(BSP)of poplar, anitrogen reserve similar to seed storage protein, plays an important role in the nitrogen metabolism of deciduous trees.They present in large quantities in the phloem parenchyma cells in winter.In order to learn the expression pattern of BSP gene promoter in transgenic plants, and to explore its potential application in plant genetic engineering for phloem-specific expression of interested genes.BSP gene promoter fragment was amplified by PCR method from Populus deltoides genome DNA.Intermediate vector was constructed by inserting the promoter sequence upstream of GUS gene in pBI121, resulting in the replacement of the original CaMV 35S promoter by the BSP promoter. Regenerated tobacco plants obtained by transformation were analyzed by PCR to select the putative transgenic plans.Histochemical localization of GUS activity indicated that BSP promoter could confer a phloemspecific expression of GUS gene.

Key words: Populus deltoides, Phloem-specific promoter, GUS gene, Transgenic tobacco plants

蒋浩,秦红敏,田颖川,DeanW.Gabriel. 杨树皮储藏蛋白基因启动子的克隆和功能研究^*[J]. 林业科学, 1999, 35(5): 46-50.

Hao Jiang,Hongmin Qin,Yingchuan Tian,W.Gabriel Dean. CLONINGOF A PROMOTER FRAGMENTOF BARK STORAGE PROTEIN GENE FROM POPULUS DELTOIDES AND ITS FUNCTION IN TRANSGENIC TOBACCO PLANTS[J]. Scientia Silvae Sinicae, 1999, 35(5): 46-50.

图/表 5

图1

图2

图3

图4

图5

参考文献 0

	贾盘兴, 蔡金科, 等. 微生物遗传学实验技术. 科学出版社. 1992. 108- 113.
	Bustos MM , Guiltinan MJ , Jordano J , et al. Regulation of β- glucuronidase expression in trangenic tobacco plants by an A/T-rich, cis-acting sequence found upstream of a French bean β-phaseolin gene. The Plant Cell, 1989. 1, 839- 853.
	Castresana C , Garcia-Luque I , Alonso E , et al. Both positive and negative elements mediate expression of a photoregulated CAB gene from Nicotiana plumbaginofolia. EMBO J., 1988. 7, 1929- 1936. doi: 10.1002/j.1460-2075.1988.tb03030.x
	Coleman GD , Chen THH . Sequence of a poplar storage protein gene. Plant Physiology, 1993. 102, 1347- 1348. doi: 10.1104/pp.102.4.1347
	Czarnecka E , Nagao RT , Key JL , et al. Characterization of Gmhsp26-A, a stress gene encoding a divergent heat shock protein of soybean: heavy-metal-induced inhibition intron processing. Molecular Cell Biology, 1988. 8, 1113- 1122. doi: 10.1128/MCB.8.3.1113
	Jefferson RA . Assaying chimeric genes in plants: the GUS gene fusion system. Plant Molecular Biology Reporter, 1987. 5, 387- 405. doi: 10.1007/BF02667740
	Lam E , Kano - Murakami Y , Gilmartin P , et al. A metal-dependent DNA- binding protein interacts with a constitutive element of a light- responsive promoter. Plant Cell, 1990. 2, 857- 866.
	Riggs CD , Voelker TA , Chrispeels MJ . Cotyledon nuclear proteins bind to DNA fragments harboring regulatory elements of phytohem agglutinin genes. Plant Cell, 1989. 1, 609- 621. doi: 10.1677/jme.0.0020085
	Sambrook J, Fritsch E F, Maniatis T.1989. Molecular Cloning, Cold Spring Harbor Laboratory Press,
	Tjaden G , Coruzzi GM . A novel AT-rich DNA binding protein that combines an HMG I- like DNA binding domain with a putative transcription domain. The Plant Cell, 1994. 6, 107- 118.
	Yamamoto S , Nishihara M , Morikaw a H , et al. Promoter analysis of seed storage protein genes from Canavalia gladiata D.C.. Plant Molecular Biology, 1995. 27, 729- 741. doi: 10.1007/BF00020226
