气鼓轮砂带砂光饰面中密度纤维板的磨削力与表面粗糙度

doi:10.11707/j.1001-7488.LYKX20220353

摘要/Abstract

摘要：

目的: 探究气鼓轮砂带砂光参数对磨削力的影响以及磨削力与砂光表面粗糙度的关系，为更好控制气鼓轮砂带砂光木（板）材的表面粗糙度提供理论参考。方法: 开展气鼓轮砂带砂光饰面中密度纤维板的单因素试验，运用流体腔理论建立气鼓轮砂带砂光饰面中密度纤维板的有限元模型，基于有限元模型和单因素试验，探究气鼓轮气压、进给量、轴平行度误差对磨削力和砂光表面粗糙度的影响，并分析磨削力与砂光表面粗糙度的关系。结果: 随着气鼓轮气压、进给量、轴平行度误差增加，试件总磨削力增大，但其引起总磨削力增大的原因不同；试件接触中心节点法向应力大小主要与气鼓轮气压有关；对应同一试件的中间区域（6~59 mm），气鼓轮气压组和进给量组试件的局部磨削力近似相等，轴平行度误差组试件的局部磨削力与位置近似线性相关；气鼓轮气压对试件磨削力和表面粗糙度影响较小，进给量可较明显改善试件表面粗糙度；试件表面粗糙度与局部磨削力的线性拟合相关系数R²为0.975，与总磨削力的线性拟合相关系数R²为0.871，表面粗糙度与局部磨削力的线性相关性更好。结论: 气鼓轮砂带砂光饰面中密度纤维板的有限元模型可以准确计算试件磨削力；分析气鼓轮磨削力与试件砂光表面粗糙度的关系时，选择试件局部磨削力比试件总磨削力和试件法向应力更好。

关键词: 表面粗糙度, 中密度纤维板, 有限元模型, 磨削力

Abstract:

Objective: In order to provide theoretical reference for better controlling the sanding surface roughness of the wood board with air-drum belt sanding, the effect of sanding parameters on grinding force and the relationship between grinding force and sanding surface roughness were studied. Method: The main research contents included: we carried out the single factor tests on the air-drum belt sanding MDF (medium-density fiberboard), established the finite element model of the air-drum belt sanding MDF, based on fluid cavity theory. By combining the finite element model with the single factor tests, we investigated the influence of air drum pressure, feed rate and axis parallelism error on the sanding force and the sanding surface roughness, and analyzed the relationship between sanding force and surface roughness. Result: With the increase of air drum pressure, feed rate and axial parallelism error, the sanding force of the specimen increased, but the reasons for the increase of the sanding force were different. The normal stress at the contact center of the specimen was mainly related to the air pressure of the air drum. Corresponding to the measuring point in the middle area (6-59 mm), the local sanding force of the specimen in the air drum pressure group and the feed group were approximately equal, and the local sanding force of the measuring point was approximately linearly related to the position during contact of the specimen in the axial parallelism error group. The air pressure of the air drum had little effect on the sanding force and surface roughness of the specimen, while the feed rate can significantly improve the surface roughness of the specimen. The linear fitting correlation coefficient R² between the surface roughness of the specimen and the local sanding force was 0.975, the linear fitting correlation coefficient R² with the total sanding force was 0.871, and the linear correlation coefficient between the surface roughness and the local sanding force is better. Conclusion: The finite element model of the air-drum belt-sanded MDF can accurately predict the sanding force of specimen. When analyzing the relationship between the grinding force and the surface roughness of specimen, choosing the local grinding force of specimen is better than the total grinding force and the normal stress of specimen.

Key words: surface roughness, medium density fiberboard, finite element model, sanding force

中图分类号:

S777

刘彩梅,伍希志,吴雨阳,李贤军. 气鼓轮砂带砂光饰面中密度纤维板的磨削力与表面粗糙度[J]. 林业科学, 2024, 60(3): 131-140.

Caimei Liu,Xizhi Wu,Yuyang Wu,Xianjun Li. Sanding Force and Surface Roughness of Air-Drum Belt Sanding Finished MDF[J]. Scientia Silvae Sinicae, 2024, 60(3): 131-140.

图/表 19

图1

表1

图2

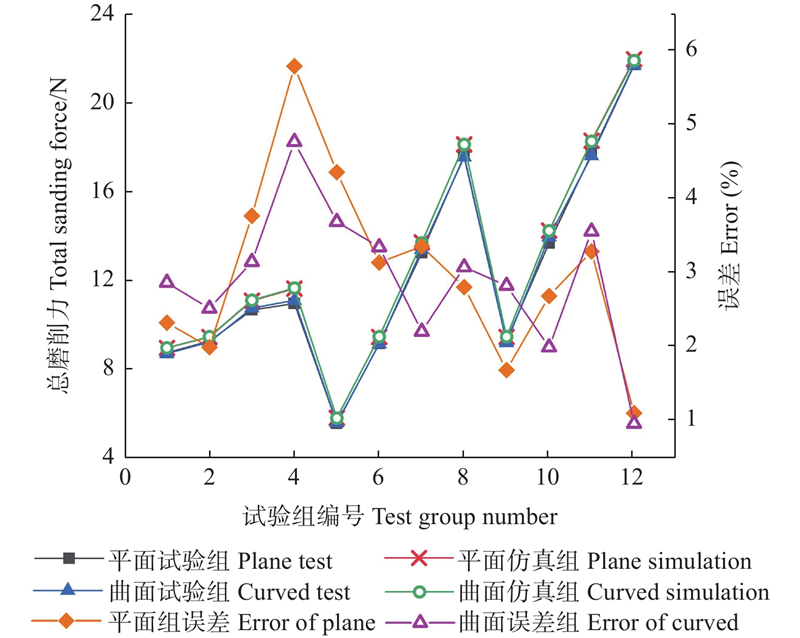

图3

表2

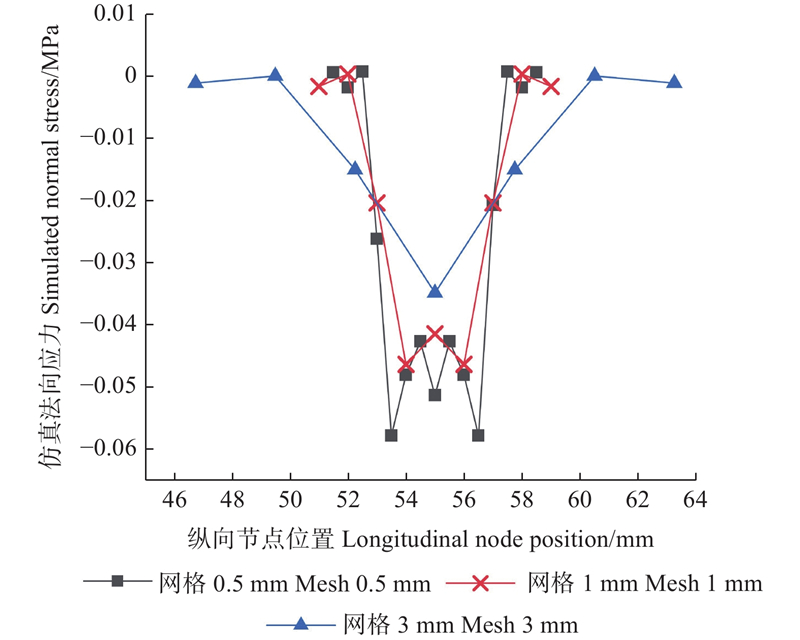

图4

图5

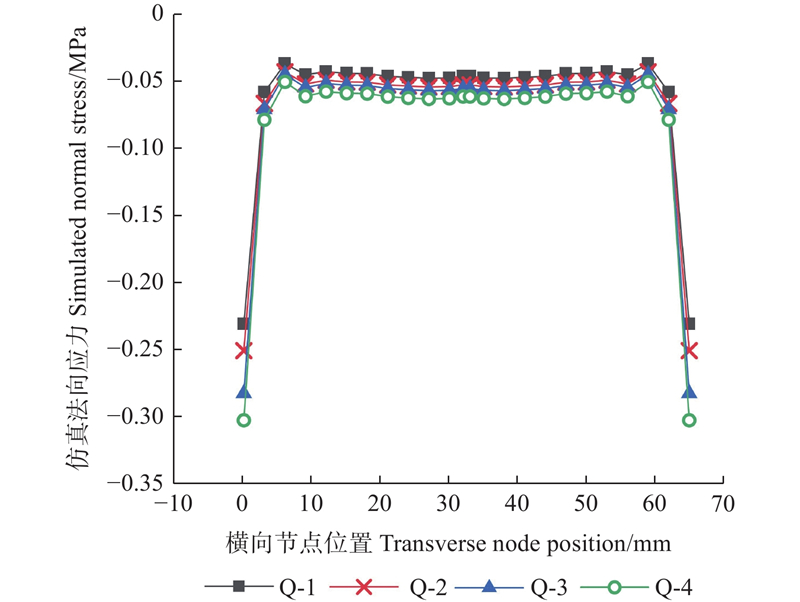

图6

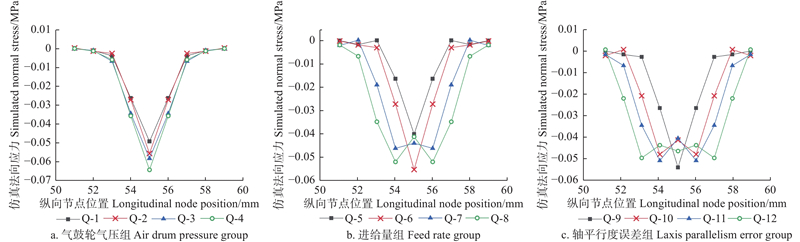

图7

图8

图9

图10

图11

图12

图13

图14

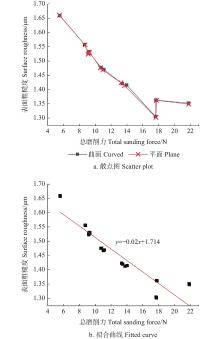

图15

图16

图17

参考文献 0

	黄　云. 砂带磨削技术的研究现状和发展方向简介. 金刚石与磨料磨具工程, 2020, 40 (3): 1- 4.
	Huang Y. Brief introduction of research status and development direction of belt grinding technology. Diamond & Abrasives Engineering, 2020, 40 (3): 1- 4.
	李晓旭, 陈永光, 李　黎. 木质材料砂带磨削的若干问题. 木材加工机械, 2010, 21 (3): 44- 48, 43.
	Li X X, Chen Y G, Li L. Abrasive belt sanding technology of wood-based panel. Wood Processing Machinery, 2010, 21 (3): 44- 48, 43.
	彭晓瑞, 张占宽, 王宝刚, 等. 异形表面刷式砂光主要参数对木材表面粗糙度的影响. 木材工业, 2012, 26 (6): 46- 49.
	Peng X R, Zhang Z K, Wang B G, et al. Effect of sanding parameter on wood surface roughness using brush sander. China Wood Industry, 2012, 26 (6): 46- 49.
	谢国如. 砂带磨削及其应用研究. 精密制造与自动化, 2004, (4): 14- 16.
	Xie G R. Research on abrasive belt grinding and its application. Precise Manufacturing & Automation, 2004, (4): 14- 16.
	张莲洁, 孟庆军, 金维洙, 等. 浅谈国内外木材表面粗糙度的研究现状及发展趋势. 林业机械与木工设备, 2000, 28 (6): 7- 9. doi: 10.3969/j.issn.2095-2953.2000.06.002
	Zhang L J, Meng Q J, Jin W Z, et al. Discussion on the research status and development trend of wood surface roughness at home and abroad. Forestry Machinery & Woodworking Equipment, 2000, 28 (6): 7- 9. doi: 10.3969/j.issn.2095-2953.2000.06.002
	de Sampaio Alves M C, Santiago L F F, Gonçalves M T T, et al. Effects of belt speed, pressure and grit size on the sanding of Pinus elliottii wood. Cerne, 2015, 21 (1): 45- 50. doi: 10.1590/01047760201521011216
	Hendarto B, Shayan E, Ozarska B, et al. Analysis of roughness of a sanded wood surface. The International Journal of Advanced Manufacturing Technology, 2006, 28 (7): 775- 780.
	Kilic M, Hiziroglu S, Burdurlu E. Effect of machining on surface roughness of wood. Building and Environment, 2006, 41 (8): 1074- 1078. doi: 10.1016/j.buildenv.2005.05.008
	Luo B, Jin S, Cheng F, et al. Study on sanding force, power consumption and quality of calibrating sanding recombinant bamboo. Wood Research, 2017, 62 (6): 983- 994.
	Luo B, Zhang J, Bao X, et al. The effect of granularity on surface roughness and contact angle in wood sanding process. Measurement, 2020, 165, 108133. doi: 10.1016/j.measurement.2020.108133
	Song Z L, Guo G X. Analysis of factors affecting surface roughness of medium density fiberboard. China Wood Based Panels, 2003, 2, 12- 14.
	Sulaiman O, Hashim R, Subari K, et al. Effect of sanding on surface roughness of rubberwood. Journal of Materials Processing Technology, 2009, 209 (8): 3949- 3955. doi: 10.1016/j.jmatprotec.2008.09.009
	Sydor M, Mirski R, Stuper-Szablewska K, et al. Efficiency of machine sanding of wood. Applied Sciences, 2021, 11 (6): 2860. doi: 10.3390/app11062860
	Thoma H, Peri L, Lato E. Evaluation of wood surface roughness depending on species characteristics. Maderas Ciencia y Tecnología, 2015, 17 (2): 285- 292.
	Varasquim F M F A , Alves M C S, Gonçalves M T T, et al. 2012. Influence of belt speed, grit sizes and pressure on the sanding of Eucalyptus grandis wood. Cerne, 18(2): 231−237.
	Wu X Z, Niu H, Li X J, et al. A study on the GA-BP neural network model for surface roughness of basswood-veneered medium-density fiberboard. Holzforschung, 2020, 74 (10): 979- 988. doi: 10.1515/hf-2019-0248
	Xu M J, Li L, Luo B, et al. Study on sanding force and sanding optimal parameters of Manchurian ash. European Journal of Wood and Wood Products, 2015, 73 (3): 385- 393. doi: 10.1007/s00107-015-0905-1

编号 Number	气鼓轮气压 Air drum pressure/ MPa	进给量 Feed rate/ mm	轴平行度误差 Axis parallelism error/mm
Z-1/ Q-1	0.040	0.75	0
Z-2/Q-2	0.045	0.75	0
Z-3/ Q-3	0.050	0.75	0
Z-4/ Q-4	0.055	0.75	0
Z-5/ Q-5	0.045	0.50	0
Z-6/Q-6	0.045	0.75	0
Z-7/ Q-7	0.045	1.00	0
Z-8/ Q-8	0.045	1.25	0
Z-9/ Q-9	0.045	0.75	0
Z-10/Q-10	0.045	0.75	0.5
Z-11/ Q-11	0.045	0.75	1.0
Z-12/ Q-12	0.045	0.75	1.5

部件Part	材料Material	材料参数Material parameters
气囊Airbag	橡胶Rubber	C₁₀=0.408 0，C₀₁=0.314 7
砂布Abrasive cloth	帆布Canvas	E₁=3 020 MPa，μ₁=0.27
试件Specimen	椴木饰面中密度纤维板Basswood veneer MDF	E₂=10 300 MPa，μ₂=0.3
