三段式立木胸径测量方法及装置设计与试验

doi:10.11707/j.1001-7488.20210512

摘要/Abstract

摘要：

目的: 针对现阶段我国森林资源清查立木胸径测量中围尺适用性差、操作复杂、效率低和卡尺携带性差、量程短等问题，设计一款高效、准确、便携、适用于大胸径树木测量，集成自动读数、记录和上传功能的立木胸径测量装置，以解决林业勘测人员的实际工作需求。方法: 基于三段式切臂和双角度传感器提出一种立木胸径测量方法，设计测量装置，并通过试验评估装置的有效性。结果: 1）通过15个圆柱体200次测量，平均绝对误差（MAE）为0.19 cm（0.79%），均方根误差（RMSE）为0.25 cm（0.94%）；2）通过不同径阶218株立木测量，MAE为0.22 cm（0.89%）、RMSE为0.42 cm（1.23%）；3）在83株立木小样地进行效率试验，平均每株立木测量耗时8.67 s。结论: 基于三段式切臂和双角度传感器方法研制的立木胸径测量装置，具有机电结构简单、可折叠、携带方便、操作简便、作业效率高等优点，同时适用于大胸径树木测量，可实现立木胸径数据测量、上传和入库的一体化，满足森林资源清查精度要求。

关键词: 立木胸径, 三段式, 角度传感器

Abstract:

Objective: Presently, during the diameter at breast height(DBH)measuring process of nation continuous forest inventory, there are some shortages such as poor applicability, complex operation and low efficiency, and calipers are poor portability and short range. In order to solve the actual work needs of forestry surveyors, an efficient, accurate, portable tree DBH measurement device with integrated automatic reading, recording and uploading functions was expected to be designed. Method: A new DBH measurement method and device based on three-segment arms and two angle sensors was designed in this study, and the effectiveness of the device had also been evaluated in experiments. Result: 1) The results showed that 200 measurements of 15 cylinders had a 0.19 cm(0.79%)mean absolute deviation(MAE)and a 0.25 cm(0.94%)root mean square error(RMSE). 2) The results showed that measuring 218 trees of different diameter classes had a 0.22 cm(0.89%)mean absolute deviation(MAE)and a 0.42 cm(1.23%)root mean square error(RMSE). 3) The average measuring time of each tree was 8.67 s from the efficiency test in a 83-tree sample plot. Conclusion: The device developed by this paper may be advantageous to simple mechanical and electrical structure, suitable for big tree measurement, foldable design, convenient to carry and keep, simple operation and high efficiency, and be more suitable for measurement of large trees and realized the integration of measuring, uploading and inputting of DBH data, which would be accorded with the survey accuracy standard of continuous forest inventory.

Key words: diameter at breast height(DBH), three-stage, angle sensor

中图分类号:

S758.7

孙林豪,翁卫松,方陆明,任俊俊. 三段式立木胸径测量方法及装置设计与试验[J]. 林业科学, 2021, 57(5): 130-139.

Linhao Sun,Weisong Weng,Luming Fang,Junjun Ren. Design and Experiment of Three-Stage Measurement Method and Device for Tree DBH[J]. Scientia Silvae Sinicae, 2021, 57(5): 130-139.

图/表 15

图1

图2

图3

图4

表1

图5

图6

图7

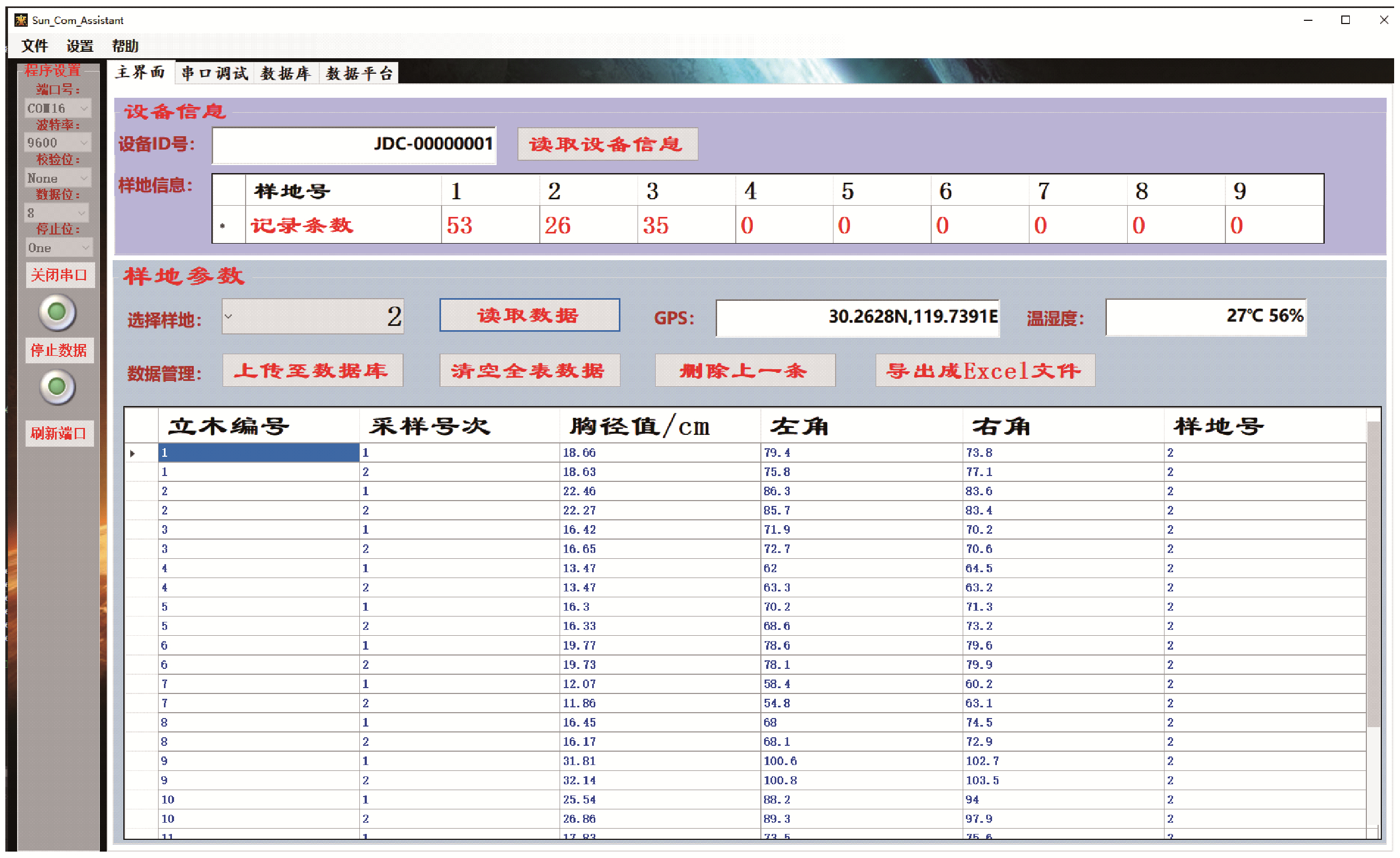

图8

图9

图10

表2

表3

图11

表4

参考文献 0

	陈金星. 2016. 便携式测树仪的研制及应用研究. 北京: 北京林业大学博士学位论文.
	Cheng J X. 2016. The development and application of Mini dendrometer. Beijing: PhD thesis of Beijing Forestry University. [in Chinese]
	陈金星, 张茂震, 赵平安, 等. 一种基于拉绳传感器的树木直径记录仪. 西北林学院学报, 2013, 28 (4): 188- 192. doi: 10.3969/j.issn.1001-7461.2013.04.39
	Chen J X , Zhang M Z , Zhao P A , et al. A drawware sensor based tree diameter recorder. Journal of Northwest Forestry University, 2013, 28 (4): 188- 192. doi: 10.3969/j.issn.1001-7461.2013.04.39
	冯仲科, 徐伟恒, 杨立岩. 利用手持式超站测树仪测量林分空间结构参数. 农业工程学报, 2015, 31 (6): 213- 217.
	Feng Z K , Xu W H , Yang L Y . Forest stand spatial structure measurement method using handheld tree measurement smart station. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31 (6): 213- 217.
	冯仲科, 赵春江, 聂玉藻, 等. 精准林业. 北京: 中国林业出版社, 2002.
	Feng Z K , Zhao C J , Nie Y Z . Precision forestry. Beijing: China Forestry Publishing House, 2002.
	关炳福. 关于森林资源连续清查工作中提高样木胸径测量精度的探讨. 内蒙古林业调查设计, 2010, 33 (5): 63- 64. doi: 10.3969/j.issn.1006-6993.2010.05.028
	Guan B F . Study on the enhancement of accuracy diameter at breast height measurement in national forest inventory. Inner Mongolia Forestry Investigation and Design, 2010, 33 (5): 63- 64. doi: 10.3969/j.issn.1006-6993.2010.05.028
	黄晓东, 冯仲科, 解明星, 等. 自动测量胸径和树高便携设备的研制与测量精度分析. 农业工程学报, 2015a, 31 (18): 92- 99.
	Huang X D , Feng Z K , Xie M X , et al. Design and experiment of forest intelligent surveying and mapping instrument. Transactions of the Chinese Society for Agricultural Machinery, 2015a, 31 (18): 92- 99.
	黄晓东, 冯仲科. 基于数码相机的样木胸径获取方法. 农业机械学报, 2015b, 46 (9): 266- 272.
	Huang X D , Feng Z K . Obtainment of sample tree's DBH based on digital camera. Transactions of the Chinese Society for Agricultural Machinery, 2015b, 46 (9): 266- 272.
	刘海洋, 冯仲科, 呼诺, 等. 手持式高精度立木胸径测量设备设计与试验. 农业机械学报, 2018, 49 (9): 189- 194.
	Liu H Y , Feng Z K , Hu N , et al. Design and experiment of portable high precision equipment for tree diameter measurement. Transactions of the Chinese Society for Agricultural Machinery, 2018, 49 (9): 189- 194.
	刘金成, 冯仲科, 范永祥. 电子条码尺立木胸径自动测量研究. 农业机械学报, 2017, 48 (12): 1- 9. doi: 10.6041/j.issn.1000-1298.2017.12.001
	Liu J C , Feng Z K , Fan Y X . Automatic measurement of DBH with electronic bar. Transactions of the Chinese Society for Agricultural Machinery, 2017, 48 (12): 1- 9. doi: 10.6041/j.issn.1000-1298.2017.12.001
	刘清旺, 李世明, 李增元, 等. 无人机激光雷达与摄影测量林业应用研究进展. 林业科学, 2017, 53 (7): 134- 148.
	Liu Q W , Li S M , Li Z Y , et al. Review on the applications of UAV-based LiDAR and photogrammetry in forestry. Scientia Silvae Sinicae, 2017, 53 (7): 134- 148.
	孟宪宇. 测树学. 北京: 中国林业出版社, 1996.
	Meng X Y . Forest mensutation. Beijing: China Forestry Publishing House, 1996.
	孙林豪, 方陆明, 唐丽华, 等. 便携式树木胸径测量系统的研制. 北京林业大学学报, 2018, 40 (9): 82- 89.
	Sun L H , Fang L M , Tang L H , et al. Developing protable system for measuring diameter at breast height. Journal of Beijing Forestry University, 2018, 40 (9): 82- 89.
	王智超, 冯仲科, 闫飞, 等. 全站仪测树的内外业一体化方法研究. 西北林学院学报, 2013, 28 (6): 134- 138. doi: 10.3969/j.issn.1001-7461.2013.06.27
	Wang Z C , Feng Z K , Yan F , et al. Integrated indoor and field forest measurement by using total station. Journal of Northwest Forestry University, 2013, 28 (6): 134- 138. doi: 10.3969/j.issn.1001-7461.2013.06.27
	吴小平, 岳德鹏, 陈金星, 等. RD1000电子测树仪立木因子测定及适用性研究. 西北林学院学报, 2016, 31 (2): 219- 224. doi: 10.3969/j.issn.1001-7461.2016.02.37
	Wu X P , Yue D P , Chen J X , et al. Measurement of stumpage factors and its applicability of the RD1000. Journal of Northwest Forestry University, 2016, 31 (2): 219- 224. doi: 10.3969/j.issn.1001-7461.2016.02.37
	鄢前飞. 林业数字式测径仪的研制. 中南林业科技大学学报, 2008, 28 (2): 95- 99. doi: 10.3969/j.issn.1673-923X.2008.02.011
	Yan Q F . Development of forestry digital measurer of diameter. Journal of Central South University of Forestry & Technology, 2008, 28 (2): 95- 99. doi: 10.3969/j.issn.1673-923X.2008.02.011
	杨磊, 徐伟恒, 孔雷, 等. 林木直径测量方法现状与展望. 四川林业科技, 2018, 39 (2): 65- 70.
	Yang L , Xu W H , Kong L , et al. The present situation and prospects of tree diameter measuring methods. Journal of Sichuan Forestry Science and Technology, 2018, 39 (2): 65- 70.
	Binot J M , Pothier D , Lebel J . Comparison of relative accuracy and time requirement between the caliper, the diameter tape and an electronic tree measuring fork. The Forestry Chronicle, 1995, 71 (2): 197- 200. doi: 10.5558/tfc71197-2
	Fan Y X , Feng Z K , Mannan A , et al. Estimating tree position, diameter at breast height, and tree height in real-time using a mobile phone with RGB-D SLAM. Remote Sensing, 2018, 10 (11): 1845. doi: 10.3390/rs10111845
	Hui G , Zhao X , Zhao Z , et al. Evaluating tree species spatial diversity based on neighborhood relationships. Forest Science, 2011, 57 (4): 292- 300.
	Jiang L , Li W B , Kan J M , et al. An implementation of remote monitoring standing tree diameter at breast height. Telkomnika Indonesian Journal of Electrical Engineering, 2013, 11 (11): 6507- 6513.
	Liang X L , Hyyppä J . Automatic stem mapping by merging several terrestrial laser scans at the feature and decision levels. Sensors, 2013, 13 (2): 1614- 1634. doi: 10.3390/s130201614
	Mokroš M , Výbošt'ok J , Tomaštík J , et al. High precision individual tree diameter and perimeter estimation from close-range photogrammetry. Forests, 2018a, 9 (11): 696. doi: 10.3390/f9110696
	Mokroš M , Liang X L , Surový P , et al. Evaluation of close-range photogrammetry image collection methods for estimating tree diameters. ISPRS International Journal of Geo-Information, 2018b, 7 (3): 93.
	Van Laar A , Akça A . Forest mensuration. Berlin: Springer Netherlands, 2007.
	West P W . Tree and forest measurement. Berlin: Springer Verlag, 2009.

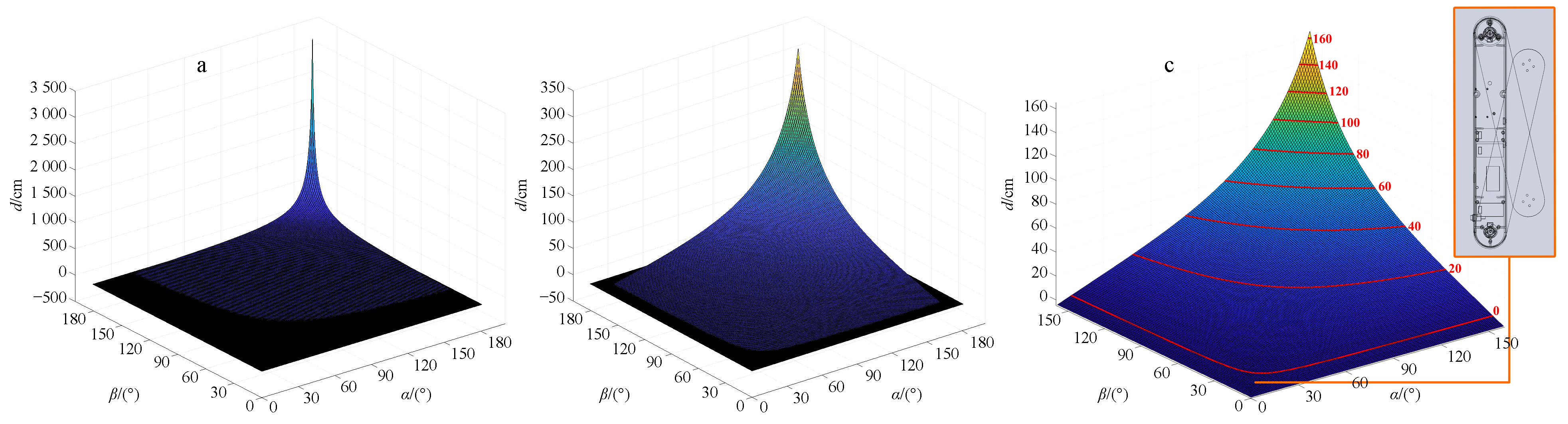

变量Variable	α+β≤/(°)
变量Variable	80	100	120	140	160	180	200	220	240	260	280	300	320	340	359.824
d_max/cm	5.92	8.99	12.32	16.01	20.17	25.00	30.75	37.84	46.96	59.34	77.42	106.96	165.14	337.90	39 060.30

测量情景 Measuring situation	测量次数 Number of measurements	MAE/cm	MAPE(%)	RMSE/cm	RRMSE(%)
S1，S2	50	0.09	0.85	0.11	1.03
S3	50	0.10	0.96	0.13	1.12
S4，S5	50	0.27	0.63	0.33	0.72
S6	50	0.30	0.73	0.35	0.82
总体Total	200	0.19	0.79	0.25	0.94

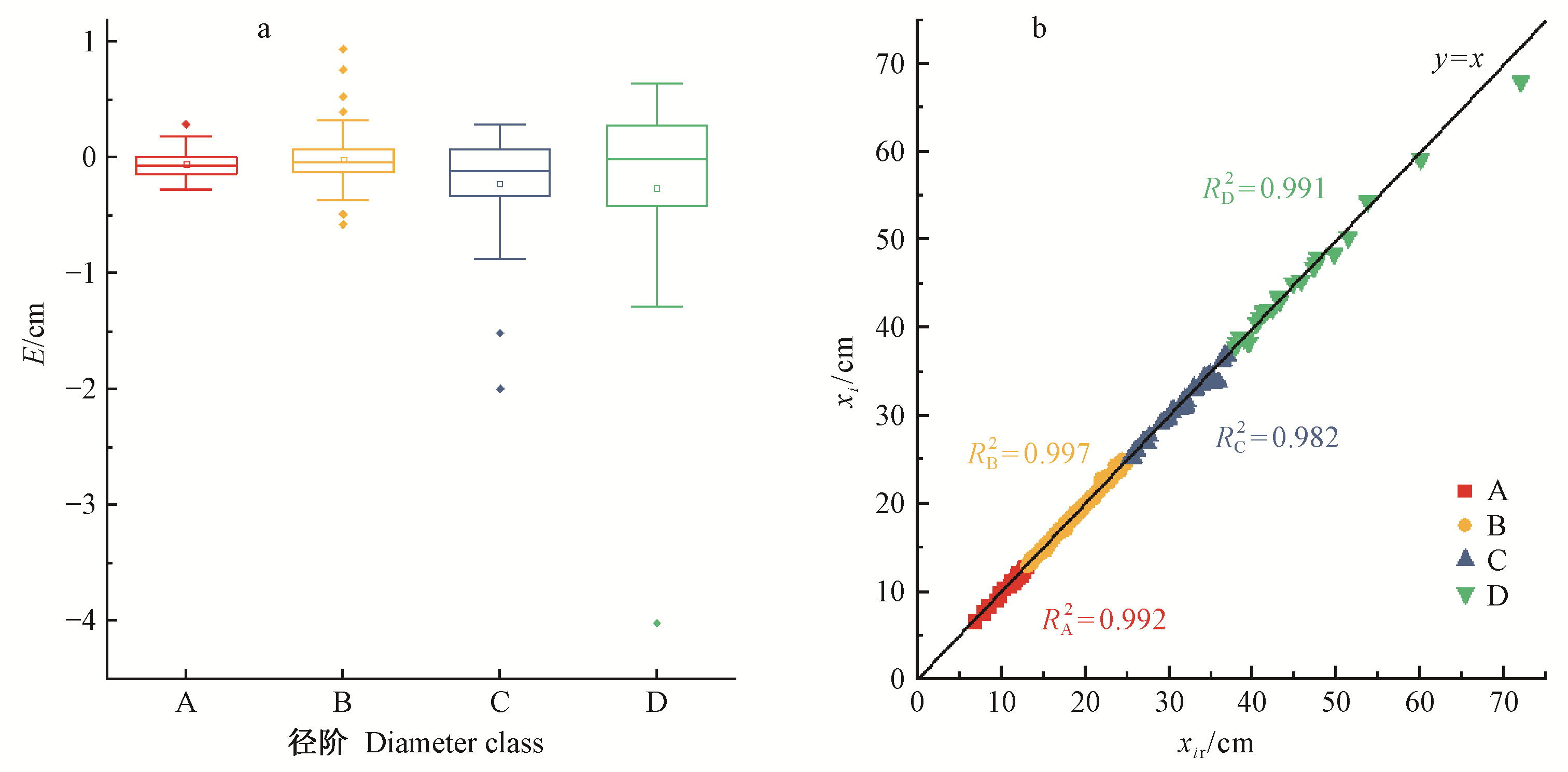

径阶Diameter class	株数Tree number	MAE/cm	MAPE(%)	RMSE/cm	RRMSE(%)
A	41	0.12	1.05	0.14	1.22
B	119	0.14	0.75	0.20	1.01
C	33	0.32	1.01	0.53	1.56
D	25	0.58	1.14	0.97	1.63
总体Total	218	0.22	0.89	0.42	1.23

测量方式 Measuring method	人数Number of person	外业耗时(替换耗时) Outside time(replacement time)/min	内业耗时 Inside time/min	总耗时(无替换总耗时) Total time(no replacement total time)/min	单木平均耗时(无替换单木平均耗时) Average time per tree(average time per tree without replacement)/s
传统围尺Tape meter	2	45	7	52	37.59
传统卡尺Traditional caliper	2	31(7)	14	45(38)	32.53(27.47)
电子围尺E-taper	1	21	0	21	15.18
电子卡尺E-caliper	1	17(3)	0	17(14)	12.29(10.12)
本研究装置The device in this paper	1	12	0	12	8.67
