丹江口库区产水量时空动态与情景模拟

doi:10.11707/j.1001-7488.20201102

Abstract

Abstract:

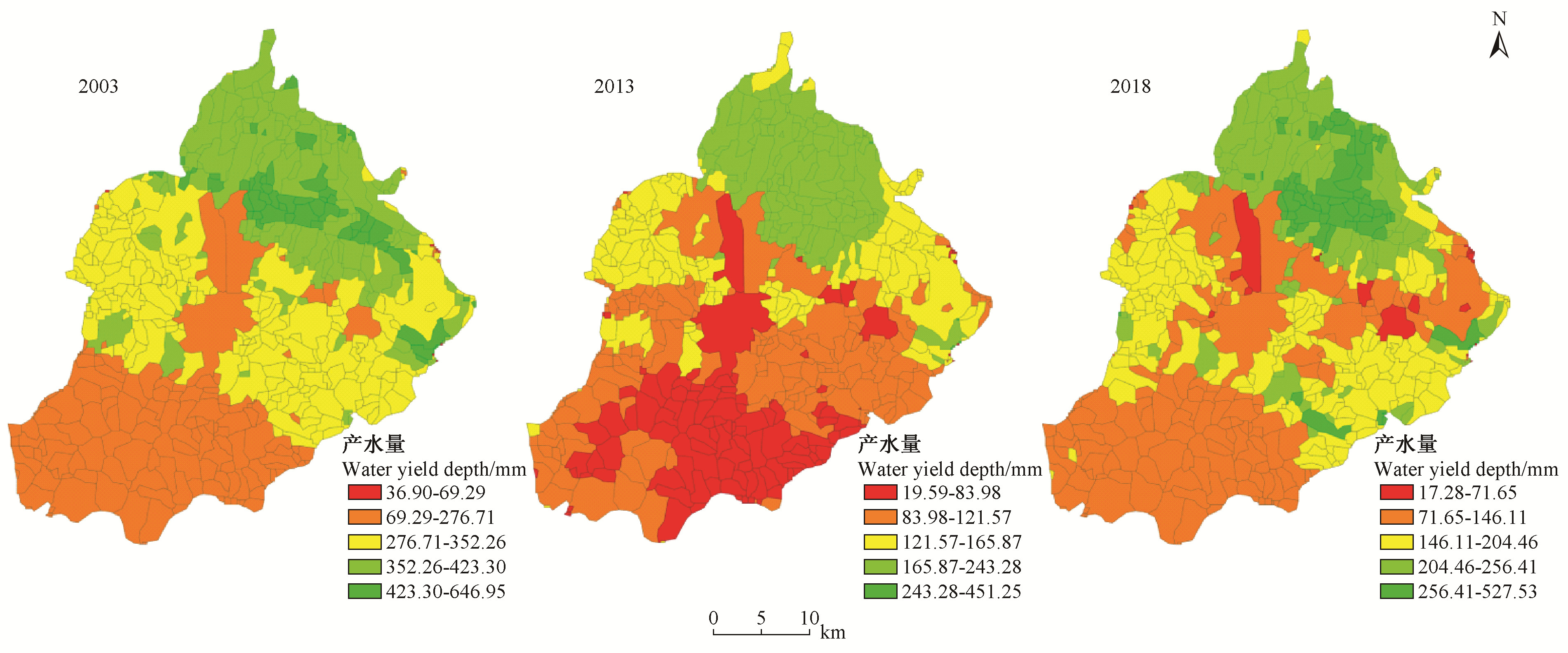

Objective: The InVEST model and scenario analysis were used to study the spatial-temporal dynamics of water yield in Danjiangkou reservoir area, in order to provide a scientific basis for the improvement and control of water conservation capacity in the reservoir area. Method: The InVEST model was used to quantitatively study the changes of temporal of water yield in 2003, 2013, and 2018. The changes of water yield depth under different land use/cover types were analyzed and compared. The effects of annual precipitation and land use/cover type changes on water yield were investigated by scenario simulation method. Result: The annual water yield of Danjiangkou from 2003 to 2018 showed a trend of a weakening followed by a strengthening, including the annual water yield depth of 310.09 mm and water yield of 1.36 billion m³ in 2003, the annual water yield depth of 146.67 mm and water yield of 525 million m³ in 2013, and the annual water yield depth of 166.06 mm and water yield of 728 million m³ in 2018, which decreased by 46.47% in 15 years. On the whole, the water yield per unit area is not evenly distributed in space. The northern hilly and mountainous areas are 39.84%-57.79% higher than the southern ones. The water yield depth of each land use/cover type showed a trend of a decrease followed by a slow increase. The highest water yield depth was urbanized land (530.35 mm), followed by cropland (292.85 mm), orangery (284.07 mm) and woodland (273.76 mm). Scenario simulation shows that annual precipitation and land use/cover type are the main factors affecting water yield. The contribution rate of precipitation in 2013 was 92.43%, and the change of land use/cover type contributes 64.71% to 2018. Conclusion: The InVEST model can be used to monitor the spatial-temporal dynamic changes of water yield in the reservoir area, and pay close attention to the influence of precipitation and land use/cover type changes on water yield, therefore providing a scientific basis for the improvement of water conservation capacity in the reservoir area.

Key words: InVEST model, water yield, scenario simulation, Danjiangkou City, water source conservation

CLC Number:

S719
Q148

Jian Zhang,Gang Lei,Lianghua Qi. Temporal and Spatial Dynamics and Scenario Simulation of Water Yield in Danjiangkou Reservoir Area[J]. Scientia Silvae Sinicae, 2020, 56(11): 12-20.

Figures/Tables 8

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Table 1

Table 2

References 0

	陈骏宇, 刘钢, 白杨. 基于InVEST模型的太湖流域水源涵养服务价值评估. 水利经济, 2016, 34 (2): 25- 29, 84.
	Chen J Y , Liu G , Bai Y . Evaluation of service value of water conservation in Taihu Lake basin based on InV EST model. Journal of Economics of Water Resources, 2016, 4 (2): 25- 29, 84.
	陈姗姗. 2016.南水北调水源区水源涵养与土壤保持生态系统服务功能研究——以商洛市为例.西安: 西北大学博士学位论文.
	Chen S S. 2016. Evaluation of ecological service function of water retention and soil conservation in water source area for the South-to-North Water Transfer——a case study in Shangluo City. Xi'an: PhD thesis of Northwest University.[in Chinese]
	程一凡. 2019.基于InVEST模型的三江源国家公园水源涵养量变化与草地生态补偿研究.昆明: 云南财经大学硕士学位论文.
	Cheng Y F. 2019. Study on the change of water conservation capacity and grassland ecological compensation in Sanjiangyuan national park based on InVEST model. Kunming: MS thesis of Yunnan University of Finance and Economics.[in Chinese]
	丁霞, 程昌锦, 漆良华, 等. 丹江口库区湖北水源区不同密度马尾松人工林水源涵养能力. 生态学杂志, 2019, 38 (8): 2291- 2301.
	Ding X , Cheng C J , Qi L H , et al. Evaluation of water conservation capacity of Pinus massoniana plantation with different densities in Hubei water source area of Danjiangkou reservoir area. Chinese Journal of Ecology, 2019, 38 (8): 2291- 2301.
	顾晋饴, 李一平, 杜薇. 基于InVEST模型的太湖流域水源涵养能力评价及其变化特征分析. 水资源保护, 2018, 34 (3): 62- 7, 84.
	Gu J Y , Li Y P , Du W . Evaluation on water source conservation capacity and analysis of its variation characteristics of Taihu Lake basin based on InVEST model. Water Resources Protection, 2018, 34 (3): 62- 7, 84.
	李亦秋, 邓欧, 张冬有, 等. 丹江口库区土地利用及其生态系统服务价值情景模拟. 农业工程学报, 2011, 27 (5): 329- 335. doi: 10.3969/j.issn.1002-6819.2011.05.057
	Li Y Q , Deng O , Zhang D Y , et al. Land use and ecosystem service value scenarios simulation in Danjiangkou Reservoir Area. Transactions of the Chinese Society of Agricultural Engineering, 2011, 27 (5): 329- 335. doi: 10.3969/j.issn.1002-6819.2011.05.057
	柳晶辉, 杨坤, 张力. 丹江口库区土地利用/覆被与景观格局变化. 长江流域资源与环境, 2008, 17 (3): 456- 460. doi: 10.3969/j.issn.1004-8227.2008.03.025
	Liu J H , Yang K , Zhang L . On land use/cover change and landscape pattern in Dangjiangk reservoir area. Resources and Environment in the Yangtze Basin, 2008, 17 (3): 456- 460. doi: 10.3969/j.issn.1004-8227.2008.03.025
	刘智方, 唐立娜, 高莉洁, 等. 生态系统服务模型应用的研究. 环境科学与技术, 2016, 39 (s1): 387- 392.
	Liu Z F , Tang L N , Gao L J , et al. Research of the application of ecosystem services model. Environmental Science & Technology, 2016, 39 (s1): 387- 392.
	吕乐婷, 任甜甜, 李赛赛, 等. 基于InVEST模型的大连市产水量时空变化分析. 水土保持通报, 2019, 39 (4): 144- 150, 157.
	Lü L T , Ren T T , Li S S , et al. Analysis on spatio-temporal variation of water supply in Dalian City based on InVEST model. Bulletin of Soil and Water Conservation, 2019, 39 (4): 144- 150, 157.
	吕乐婷, 任甜甜, 孙才志, 等. 1980-2016年三江源国家公园水源供给及水源涵养功能时空变化研究. 生态学报, 2020, 40 (3): 993- 1003.
	Lü L T , Ren T T , Sun C Z , et al. Spatial and temporal changes of water supply and water conservation function in Sanjiangyuan National Park from 1980 to 2016. Acta Ecologica Sinica, 2020, 40 (3): 993- 1003.
	潘韬, 吴绍洪, 戴尔阜, 等. 基于InVEST模型的三江源区生态系统水源供给服务时空变化. 应用生态学报, 2013, 24 (1): 183- 189.
	Pan T , Wu S H , Dai E F , et al. Spatiotemporal variation of water source supply service in Three Rivers Source Area of China based on InVEST model. Chinese Journal of Applied Ecology, 2013, 24 (1): 183- 189.
	邱问心, 张勇, 俞佳骏, 等. InVEST模型水源涵养模块实地应用的可行性验证. 浙江农林大学学报, 2018, 35 (5): 810- 817.
	Qiu W X , Zhang Y , Yu J J , et al. Feasibility verification with field application of a water conservation module using the InVEST Model. Journal of Zhejiang A & F University, 2018, 35 (5): 810- 817.
	唐尧, 祝炜平, 张慧, 等. InVEST模型原理及其应用研究进展. 生态科学, 2015, 34 (3): 204- 208.
	Tang Y , Zhu W P , Zhang H , et al. A review on principle and application of the InVEST model. Ecological Science, 2015, 34 (3): 204- 208.
	王耕, 韩冬雪. 基于InVEST模型的大凌河上游汇水区水源涵养功能评估. 水土保持通报, 2018, 38 (3): 206- 211.
	Wang G , Han D X . Evaluation of water conservation function in Daling river catchment based on InVEST model. Bulletin of Soil and Water Conservation, 2018, 38 (3): 206- 211.
	徐慧. 2017.丹江口水库调蓄水效应遥感监测分析——以土地覆被变化为例.武汉: 湖北大学硕士学位论文.
	Xu H. 2017. Impact monitoring of water diversion and impoundment in Danjiangkou reservoir based on time-series remote sensing data-a case study on land cover change. Wuhan: MS thesis of Hubei University.[in Chinese]
	杨洁, 谢保鹏, 张德罡. 基于InVEST模型的黄河流域产水量时空变化及其对降水和土地利用变化的响应. 应用生态学报, 2020, 31 (8): 2731- 2739.
	Yang J , Xie B P , Zhang D G . Spatio-temporal variation of water yield and its response to precipitation and land use change in the Yellow River Basin based on InVEST model. Chinese Journal of Applied Ecology, 2020, 31 (8): 2731- 2739.
	赵亚茹, 周俊菊, 雷莉, 等. 基于InVEST模型的石羊河上游产水量驱动因素识别. 生态学杂志, 2019, 38 (12): 3789- 3799.
	Zhao Y R , Zhou J J , Lei L , et al. Identification of drivers for water yield in the upstream of Shiyang River based on InVEST model. Chinese Journal of Ecology, 2019, 38 (12): 3789- 3799.
	周文佐, 刘高焕, 潘剑君. 土壤有效含水量的经验估算研究——以东北黑土为例. 干旱区资源与环境, 2003, 17 (4): 88- 95.
	Zhou W Z , Liu G H , Pan J J . Soil available water capacity and it's empirical and statistical models. Journal of Arid Land Resources and Environment, 2003, 17 (4): 88- 95.
	Droogers P , Allen R G . Estimating reference evapotranspiration under inaccurate data conditions. Irrigation & Drainage Systems, 2002, 16 (1): 33- 45.
	Faber J H , Wensem J . Wensem elaborations on the use of the ecosystem services concept for application in ecological risk assessment for soils. Science of the Total Environment, 2012, 415, 3- 8.
	Jatin A , Gosain A K , Khosa R . Prediction of land use changes based on land change modeler and attribution of changes in the water balance of Ganga basin to land use change using the SWAT model. The Science of the Total Environment, 2018, 644 (7): 503- 519.
	Lang Y Q , Song W , Deng X Z . Projected land use changes impacts on water yields in the karst mountain areas of China. Physics and Chemistry of the Earth, 2018, 104, 66- 75.
	Lang Y , Song W , Zhang Y . Responses of the water-yield ecosystem service to climate and land use change in Sancha River Basin, China. Physics and Chemistry of the Earth, 2017, 101, 102- 111.
	Leh M D K , Matlock M D , Cummings E C , et al. Quantifying and mapping multiple ecosystem services change in West Africa. Agriculture, Ecosystems and Environment, 2013, 165 (5): 6- 18.
	Lü N , Sun G , Feng X , et al. Water yield responses to climate change and variability across the North-South Transect of Eastern China (NSTEC). Journal of Hydrology, 2013, 481 (12): 96- 105.
	Lü X , Zuo Z G , Xiao P Q . Evaluation of water conservation capacity of loess plateau typical mountain ecosystems based on InVEST model simulation. Iop Conference Series-Earth and Environmentai Science, 2017, 69 (1): 12- 30.
	Nelson E M G , Regeta J . Modeling multiple ecosystem services, biodiversity conservation, commodity production, and tradeoffs at landscape scales. Frontiers in Ecology and the Environment, 2009, 7 (1): 4- 11.
	Pamukcu P , Erdem N , Serengil Y , et al. Ecohydrologic modelling of water resources and land use for watershed conservation. Ecological Informatics, 2016, 36 (9): 31- 41.
	Redhead J W , Stratford C , Sharps K , et al. Empirical validation of the InVEST water yield ecosystem service model at a national scale. Science of the Total Environment, 2019, 569 (7): 1418- 1426.
	Rimal B , Sharma R , Kunwar R , et al. Effects of land use and land cover change on ecosystem services in the Koshi River Basin, Eastern Nepal. Ecosystem Services, 2019, 38, 100963.
	Su C H , Fu B J . Evolution of ecosystem services in the Chinese Loess Plateau under climatic and land use changes. Global & Planetary Change, 2013, 101 (12): 119- 128.
	Terrado M , Acuña V , Ennaanay D , et al. Impact of climate extremes on hydrological ecosystem services in a heavily humanized Mediterranean basin. Ecological Indicators, 2014, 37 (1): 199- 209.
	Wang L T , Wang S , Zhou Y , et al. Landscape pattern variation, protection measures, and land use/land cover changes in drinking water source protection areas:a case study in Danjiangkou Reservoir, China. Global Ecology and Conservation, 2020, 21, e00827.
	Zhang L , Dawes W R , Walker G R . Response of mean annual evapotranspiration to vegetation changes at catchment scale. Water Resources Research, 2001, 37 (3): 701- 708.

年份Year	W_O/10⁸ m³	W_L/10⁸ m³	W_C/10⁸ m³	W_T/10⁸ m³	ΔW_C/10⁸ m³	ΔW_L/10⁸ m³
2013	5.25	5.68	10.5	-5.68	-5.25	-0.43
2018	7.28	9.7	8.6	-3.74	-1.32	-2.42

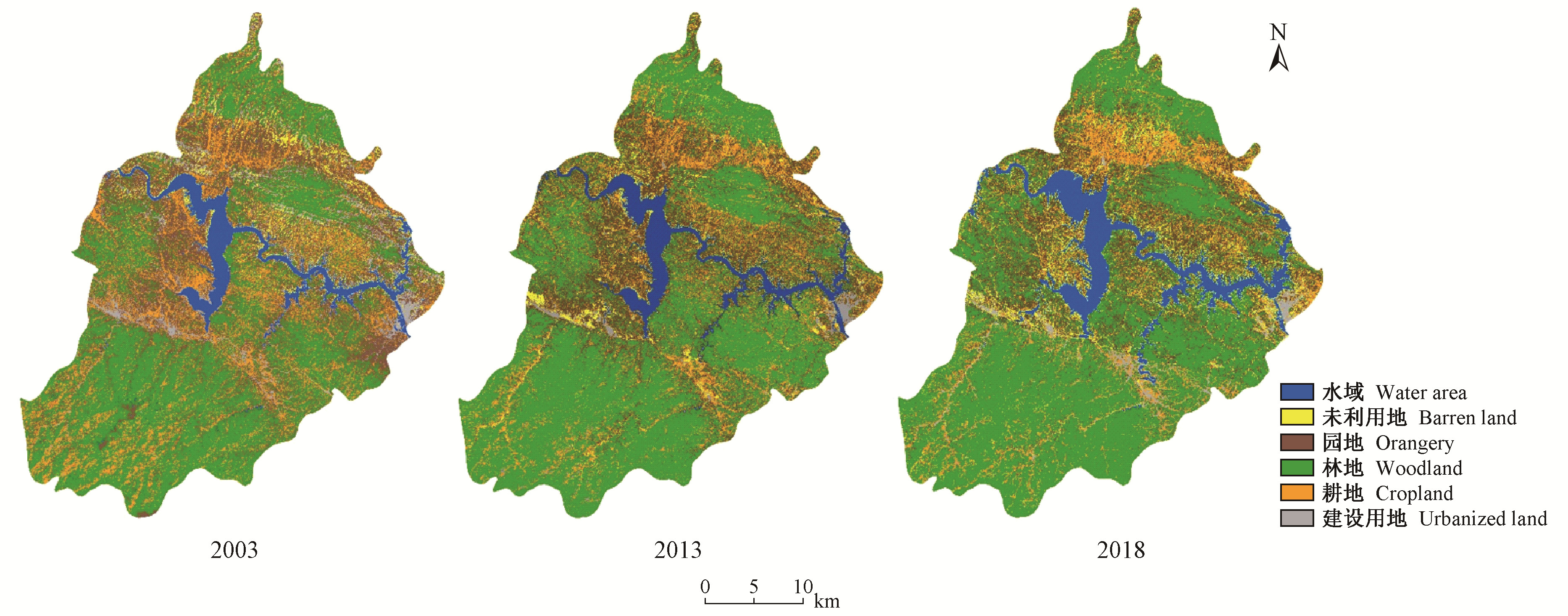

年份Year	项目 Item	水域 Water area	林地 Woodland	耕地 Cropland	园地 Orangery	建设用地 Urbanized land	未利用地 Barren land
2003	面积Area/hm²	17 101	127 153	52 277	85 409	19 400	10 240
	比例Proportion(%)	5.49	40.81	16.78	27.41	6.23	3.28
2013	面积Area/hm²	23 188	151 753	41 694	65 765	18 448	10 732
	比例Proportion(%)	7.44	48.70	13.38	21.11	5.92	3.45
2018	面积Area/hm²	27 617	158 413	36 600	56 043	21 953	10 954
	比例Proportion(%)	8.86	50.84	11.75	17.99	7.04	3.52
