土壤镉污染对香樟幼苗光合和生理特性的影响

doi:10.11707/j.1001-7488.20200619

Abstract

Abstract:

Objective: In this study,the effect of different concentrations of cadmium pollution on physiological and biochemical characteristics of Cinnamomum camphora seedlings was investigated,which aims to reveal the response mechanism of photosynthetic and other physiological characteristics of C. camphora under cadmium stress,so as to provide data accumulation and scientific basis for the remediation of contaminated soil. Method: In this study,an indoor pot experiment was conducted with one-year-old C. camphora seedlings that were subjected to 4 treatments of different contents of cadmium in contaminated soil,including 0 mg·kg^-1 (CK),1 mg·kg^-1 (Cd1),10 mg·kg^-1 (Cd2) and 30 mg·kg^-1 (Cd3),and each treatment had 5 replicates. Samples were collected and analyzed on days 0,15,30,and 60. The photosynthetic characteristics parameters,the contents of chlorophyll,proline,soluble sugar,soluble protein,malondialdehyde (MDA),and the activities of superoxide dismutase (SOD) and peroxidase (POD) of C. camphora seedlings were tested to explore the tolerance of C. camphora to cadmium and its potential and feasibility for phytoremediation. Result: The net photosynthetic rate (P_n) of C. camphora leaves did not change significantly under different concentrations of cadmium pollution in 0-15 days. P_n of the seedlings treated with contaminated soil for 30 days and 60 days was lower than that of the control,and P_n of seedlings treated with high Cd²⁺concentration (Cd3) was the lowest with an average deceases of approximate 22.33% compared with that of the control. In addition,the content of chlorophyll in C. camphora under different concentrations of cadmium contaminated soils decreased,and chlorophyll in medium and high concentrations of cadmium (Cd2 and Cd3) significantly reduced. The content of proline (Pro),soluble sugar and soluble protein in C. camphora leaves was increased by cadmium pollution of different concentrations,and the content was the highest under high concentration Cd²⁺ stress (Cd3). After 30 days and 60 days,the activity of SOD in medium and high concentration cadmium treatment (Cd2 and Cd3) was significantly higher than that in the control as well as low concentration cadmium stress. During the whole treatment period,POD activity increased with the pollution time and the cadmium concentration. However,the medium and high concentration cadmium stress had a significant effect on the increase of MDA content. Conclusion: The results suggest physiological and biochemical indexes of C. camphora,such as the photosynthesis parameters,osmotic adjustment substances and antioxidant protective enzymes,are closely related to stress time and pollution concentration. But,C. camphora seedlings grow well under different concentrations of cadmium stress,reflecting that C. camphora has strong cadmium tolerance and thus has potential value for remediation of heavy metal contaminated soil.

Key words: Cinnamomum camphora, cadmium stress, photosynthesis, physiological and biochemical characteristics

CLC Number:

S718.43

Jihai Zhou,Kun Cheng,Ruru Gao,Honglang Duan,Haiyan Pu,Zhinong Jin. Photosynthesis and Other Physiological Characteristics of Cinnamomum camphora Seedlings under Cadmium Stress[J]. Scientia Silvae Sinicae, 2020, 56(6): 193-201.

Figures/Tables 6

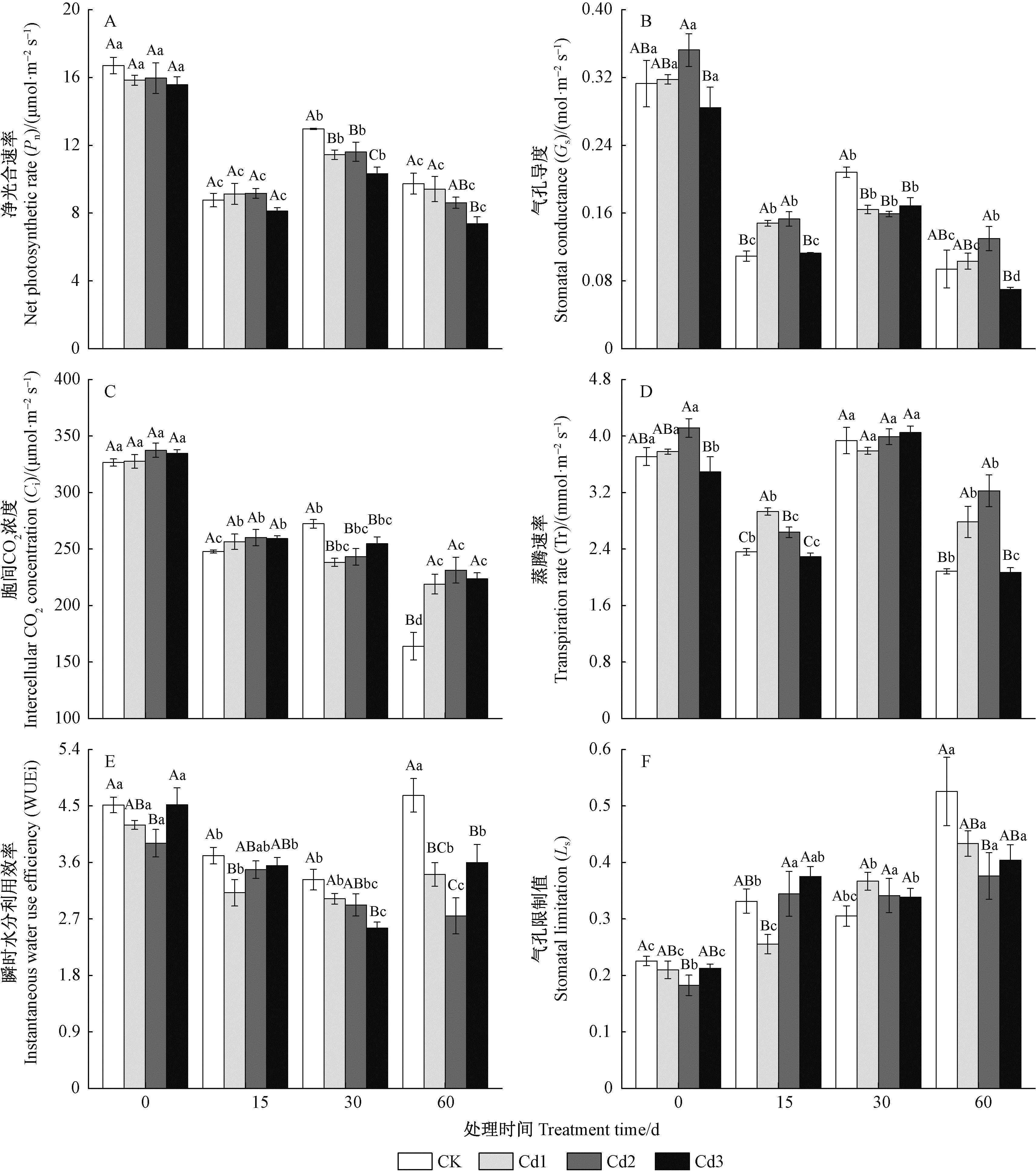

Fig.1

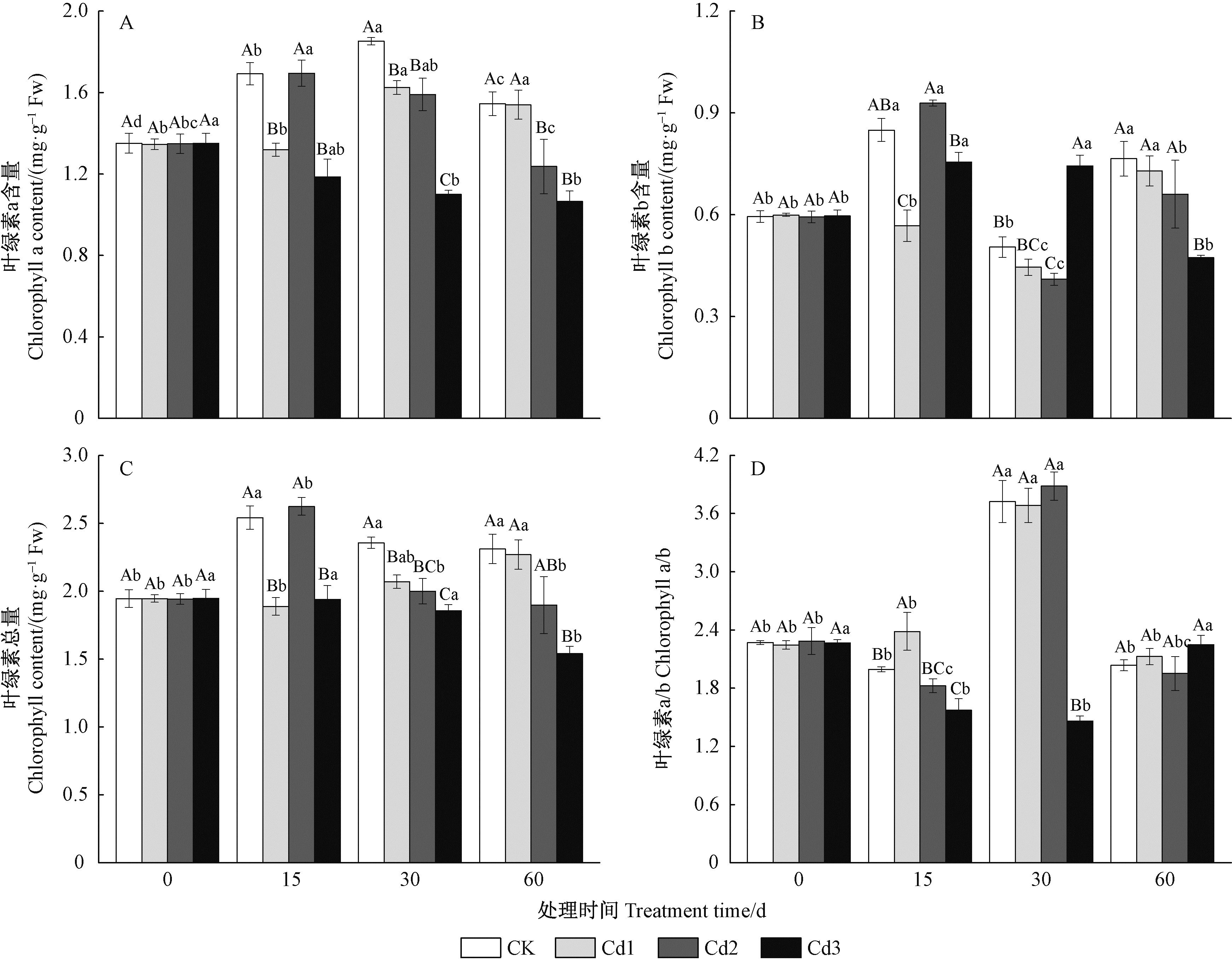

Fig.2

Table 1

Fig.3

Table 2

Fig.4

References 0

	陈良华, 赖娟, 胡相伟, 等. 接种丛枝菌根真菌对受镉胁迫美洲黑杨雌、雄株光合生理的影响. 植物生态学报, 2017. 41 (4): 480- 488.
	Chen L H , Lai J , Hu X W , et al. Effects of inoculation with arbuscular mycorrhizal fungi on photosynthetic physiology in females and males of Populus deltoides exposed to cadmium pollution. Chinese Journal of Plant Ecology, 2017. 41 (4): 480- 488.
	陈顺钰, 赵雅曼, 李宗勋, 等. Pb、Cd和酸胁迫下枫香萌发种子的生理生化变化及其亚细胞结构. 农业环境科学学报, 2019. 38 (3): 510- 520.
	Chen S Y , Zhao Y M , Li Z X , et al. Biochemical changes and subcellular structure in germinating seeds of Liquidambar formosana under Pb, Cd, and acid stress. Journal of Agro-Environment Science, 2019. 38 (3): 510- 520.
	胡国涛, 杨兴, 陈小米, 等. 速生树种竹柳对重金属污染的生理响应. 环境科学学报, 2016. 36 (10): 3870- 3875.
	Hu G T , Yang X , Chen X M , et al. Physiological responses of bamboo-willow plants to heavy metal stress. Acta Scientiae Circumstantiae, 2016. 36 (10): 3870- 3875.
	简敏菲, 杨叶萍, 余厚平, 等. 不同浓度Cd污染对苎麻叶绿素及其光合荧光特性的影响. 植物生理学报, 2015. 51 (8): 1331- 1338.
	Jian M F , Yang Y P , Yu H P , et al. Influences of different cadmium concentration stress on chlorophyll and its photosynthetic fluorescence characteristics of ramie (Boehmeria nivea). Plant Physiology Journal, 2015. 51 (8): 1331- 1338.
	李合生. 植物生理生化实验原理和技术. 北京: 科学出版社. 1999. 134- 260.
	Li H S . Principles and techniques of plant physiological and biochemical experiments. Beijing: Science Press. 1999. 134- 260.
	刘沙沙, 李兵, 冯翔, 等. 3种植物对镉污染土壤修复的试验研究. 中国农学通报, 2018. 34 (22): 103- 108.
	Liu S S , Li B , Feng X , et al. Three kinds of plants:remediation on soil contaminated by cadmium. Chinese Agricultural Science Bulletin, 2018. 34 (22): 103- 108.
	陆秀君, 关欣, 许有博, 等. 镉对刺槐幼苗生长和与渗透调节有关物质含量的影响. 中国土壤与肥料, 2008. (6): 82- 83.
	Lu X J , Guan X , Xu Y B , et al. Effects of cadmium on growth of Robinia pseudoacacia seedlings and contents of substances related to osmotic regulation. Soil and Fertilizer Sciences in China, 2008. (6): 82- 83.
	吕波, 王宇函, 姜存仓. 脯氨酸缓解酸性土壤上小白菜铝毒胁迫的效应及其潜在机制. 农业环境科学学报, 2018. 37 (5): 868- 874.
	Lü B , Wang Y H , Jiang C C . Effects of proline application and their potential mechanisms on pakchoi under aluminum stress in acidic soil. Journal of Agro-Environment Science, 2018. 37 (5): 868- 874.
	祁金洋, 牛喆, 张静, 等. 重金属铅对绢毛委陵菜光合特性及荧光参数的影响. 草地学报, 2018. 26 (2): 447- 452.
	Qi J Y , Niu Z , Zhang J , et al. Effects of heavy metal lead on photosynthetic characteristics and fluorescence parameters of Potentilla sericea L. Acta Agrestia Sinica, 2018. 26 (2): 447- 452.
	汤叶涛, 关丽捷, 仇荣亮, 等. 镉对超富集植物滇苦菜抗氧化系统的影响. 生态学报, 2010. 30 (2): 324- 332.
	Tang Y T , Guan L J , Qiu R L , et al. Antioxidative defense to cadmium in hyperaccumulator Picris divaricata V. Acta Ecologica Sinica, 2010. 30 (2): 324- 332.
	王怡霖, 王卫锋, 张芸香, 等. 碧玉杨叶形态结构与生理特性对干旱的响应. 林业科学, 2019. 55 (4): 42- 50.
	Wang Y L , Wang W F , Zhang Y X , et al. Responses of leaf morphological structure and physiological characteristics of Populus euramericana cv. 'BYu' to drought stress. Scientia Silvae Sinicae, 2019. 55 (4): 42- 50.
	杨波, 陈银萍, 柯昀琪, 等. EDDS对Cd胁迫下三叶鬼针草生长和抗氧化酶系统及Cd积累的影响. 农业环境科学学报, 2018. 37 (5): 875- 882.
	Yang B , Chen Y P , Ke Y Q , et al. Effects of EDDS on growth, antioxidant enzyme, and Cd accumulation of Bidens pilosa L. seedlings under Cd stress. Journal of Agro-Environment Science, 2018. 37 (5): 875- 882.
	杨树深, 杨军, 杨俊兴, 等. 土壤添加剂对蜈蚣草吸收转运铅、镉的影响. 生态学杂志, 2017. 36 (6): 1650- 1657.
	Yang S S , Yang J , Yang J X , et al. Effects of soil additives on the uptake and translocation of lead and cadmium by Pteris vittata L. Chinese Journal of Ecology, 2017. 36 (6): 1650- 1657.
	杨叶萍, 简敏菲, 余厚平, 等. 镉胁迫对苎麻(Boehmeria nivea)根系及叶片抗氧化系统的影响. 生态毒理学报, 2016. 11 (4): 184- 193.
	Yang Y P , Jiang M F , Yu H P , et al. Influence on the antioxidant system in roots and leaves of Boehmeria nivea under different cadmium stress. Asian Journal of Ecotoxicology, 2016. 11 (4): 184- 193.
	曾星, 李伟亚, 陈章, 等. 龙葵修复镉污染土壤的研究进展. 草业科学, 2019. 36 (5): 1308- 1316.
	Zeng X , Li W Y , Chen Z , et al. Solanum nigrum mediated remediation of Cd contaminated soil. Pratacultural Science, 2019. 36 (5): 1308- 1316.
	张丽萍, 刘志强, 金竹萍, 等. H₂S对镉胁迫下白菜幼苗根系渗透胁迫的调节作用. 农业环境科学学报, 2016. 35 (2): 247- 252.
	Zhang L P , Liu Z Q , Jin Z P , et al. Regulation of H₂S on Cd-induced osmotic stress in roots of Chinese cabbage seedling. Journal of Agro-Environment Science, 2016. 35 (2): 247- 252.
	张军, 王文科, 耿雅妮, 等. 黑麦草抗氧化酶对Cd、Zn和Pb复合污染的响应. 农业环境科学学报, 2018. 37 (6): 1117- 1124.
	Zhang J , Wang W K , Geng Y N , et al. The response to the combined pollution of cadmium, zinc, and lead by the antioxidant enzyme activity of Lolium perenne L. Journal of Agro-Environment Science, 2018. 37 (6): 1117- 1124.
	赵秀峰, 张强, 程滨, 等. 硒对砷胁迫下小白菜生理特性及砷吸收的影响. 环境科学学报, 2017. 37 (9): 3583- 3589.
	Zhao X F , Zhang Q , Cheng B , et al. Effects of selenium on the physiological characteristics and as uptake of pak choi under as stress. Acta Scientiae Circumstantiae, 2017. 37 (9): 3583- 3589.
	朱凰榕, 周良华, 阳峰, 等. 两种景天修复Cd/Zn污染土壤效果的比较. 生态环境学报, 2019. 28 (2): 403- 410.
	Zhu H R , Zhou L H , Yang F , et al. Phytoremediation effects and contrast of Sedum alfredii and Sedum plumbizincicola on Cd/Zn contaminated soil. Ecology and Environmental Sciences, 2019. 28 (2): 403- 410.
	Adel P , Perez P , Morcuende R , et al. Acclimatory responses of stomatal conductance and photosynthesis to elevated CO₂ and temperature in wheat crops grown at varying levels of N supply in a Mediterranean environment. Plant Science, 2005. 169 (5): 908- 916.
	Ali B , Qian P , Jin R , et al. Physiological and ultra-structural changes in Brassica napus seedlings induced by cadmium stress. Biologia Plantarum, 2014. 58 (1): 131- 138.
	Baker A J M , Reeves R D , Hajar A S M . Heavy metal accumulation and tolerance in British population of the metallophyte Thlaspi caerulescens J & C. Presl (Brassicaceae). New Phytologist, 1994. 127 (1): 61- 68.
	Batool R , Hameed M , Ashraf M , et al. Structural and functional response to metal toxicity in aquatic Cyperus alopecuroides Rottb. Limnologica-Ecology and Management of Inland Waters, 2014. 48 (7): 46- 56.
	Ho J R , Ma H W , Wang Y C , et al. Extraction of heavy metals from contaminated soil by Cinnamomum camphora. Ecotoxicology, 2014. 23 (10): 1987- 1995.
	Kaznina N M , Titov A F . The influence of cadmium on physiological processes and productivity of Poaceae plants. Biology Bulletin Reviews, 2014. 4 (4): 335- 348.
	Llugany M , Tolrà R , Martín S R , et al. Cadmium-induced changes in glutathione and phenolics of Thlaspi and Noccaea species differing in Cd accumulation. Journal of Plant Nutrition and Soil Science, 2013. 176 (6): 851- 858.
	Sanderson D V , Voutchkov M , Benkeblia N . Bioaccumulation of cadmium in potato tuber grown on naturally high levels cadmium soils in Jamaica. Science of the Total environment, 2019. 649 (2): 909- 915.
	Sinisha A K , Puthur J T . Comparative study on the zinc and cadmium tolerance potential of twelve prominent rice cultivars. Journal of Crop Science and Biotechnology, 2018. 21 (3): 201- 210.
	Stoláriková-Vaculíková M , Romeo S , Minnocci A , et al. Anatomical, biochemical and morphological responses of poplar Populus deltoides clone Lux to Zn excess. Environmental and Experimental Botany, 2015. 109 (1): 235- 243.
	Yilmaz S H , Kaplan M , Temizgul R , et al. Antioxidant enzyme response of sorghum plant upon exposure to aluminum, chromium and lead heavy metals. Turkish Journal of Biochemistry, 2017. 42 (4): 503- 512.
	Yu C , Peng X L , Yan H , et al. Phytoremediation ability of Solanum nigrum L. to Cd-contaminated soils with high levels of Cu, Zn, and Pb. Water, Air, & Soil Pollution, 2015. 226 (4): 157- 166.
	Zhan J , Sun Q . Diversity of free-living nitrogen-fixing microorganisms in wastelands of copper mine tailings during the process of natural ecological restoration. Journal of Environmental Sciences-China, 2011. 23 (3): 476- 487.
	Zhang F , Shi W , Jin Z , et al. Response of antioxidative enzymes in cucumber chloroplasts to cadmium toxicity. Journal of Plant Nutrition, 2003. 26 (9): 1779- 1788.
	Zhou J H , Cheng K , Zheng J Y , et al. Physiological and biochemical characteristics of Cinnamomum camphora in response to Cu and Cd-contaminated soil. Water Air and Soil Pollution, 2019. 230 (1): 15- 25.

关系曲线Relation curve	y=k ln(x)+y_asym
处理Treatment	R²	y_asym	95%CI	k	95%CI
CK	0.86	22.09a	21.09，23.10	5.42	4.90，5.40
Cd1	0.80	22.29a	20.97，23.61	6.06	5.34，6.78
Cd2	0.82	22.13a	20.57，23.68	6.31	5.43，7.19
Cd3	0.74	21.58a	20.28，22.89	5.69	5.05，6.33

处理时间 Treatment time/d	处理 Treatment	脯氨酸 Proline content/ (μg·g^-1 Fw)	可溶性糖 Soluble sugar content/ (mg·g^-1Fw)	可溶性蛋白 Soluble protein content/ (mg·g^-1 Fw)
0	CK	49.99±2.88Ab	20.34±1.44Ac	0.53±0.023Aa
	Cd1	51.35±3.34Ab	20.56±1.33Ad	0.55±0.028Aa
	Cd2	47.61±3.41Ab	19.52±1.25Ad	0.51±0.035Ab
	Cd3	50.59±2.77Ac	20.70±1.53Ab	0.53±0.015Abc
15	CK	36.25±0.66Cc	38.39±0.54Cb	0.27±0.016Cb
	Cd1	49.51±2.73Bb	44.69±0.11Bc	0.35±0.014Bb
	Cd2	40.38±1.58Cc	40.39±1.25Cc	0.44±0.065Ab
	Cd3	59.85±0.76Ab	55.04±0.66Aa	0.47±0.102Ac
30	CK	61.48±1.35Ba	47.42±1.73Ba	0.33±0.011Cb
	Cd1	66.66±3.81Ba	49.78±1.60Bb	0.43±0.044Bb
	Cd2	86.84±2.36Aa	50.19±2.11Bb	0.54±0.046Ab
	Cd3	94.93±2.82Aa	59.24±2.25Aa	0.56±0.024Ab
60	CK	20.22±1.63Bd	44.89±1.46Ba	0.51±0.066Ba
	Cd1	23.22±2.01ABc	56.84±2.15Aa	0.56±0.028Ba
	Cd2	21.62±1.81Bd	58.24±1.56Aa	0.76±0.057Aa
	Cd3	27.85±1.14Ad	58.48±1.40Aa	0.72±0.033Aa
