荆条根系的固土功能随土壤含水率的变化

doi:10.11707/j.1001-7488.20200620

摘要/Abstract

摘要：

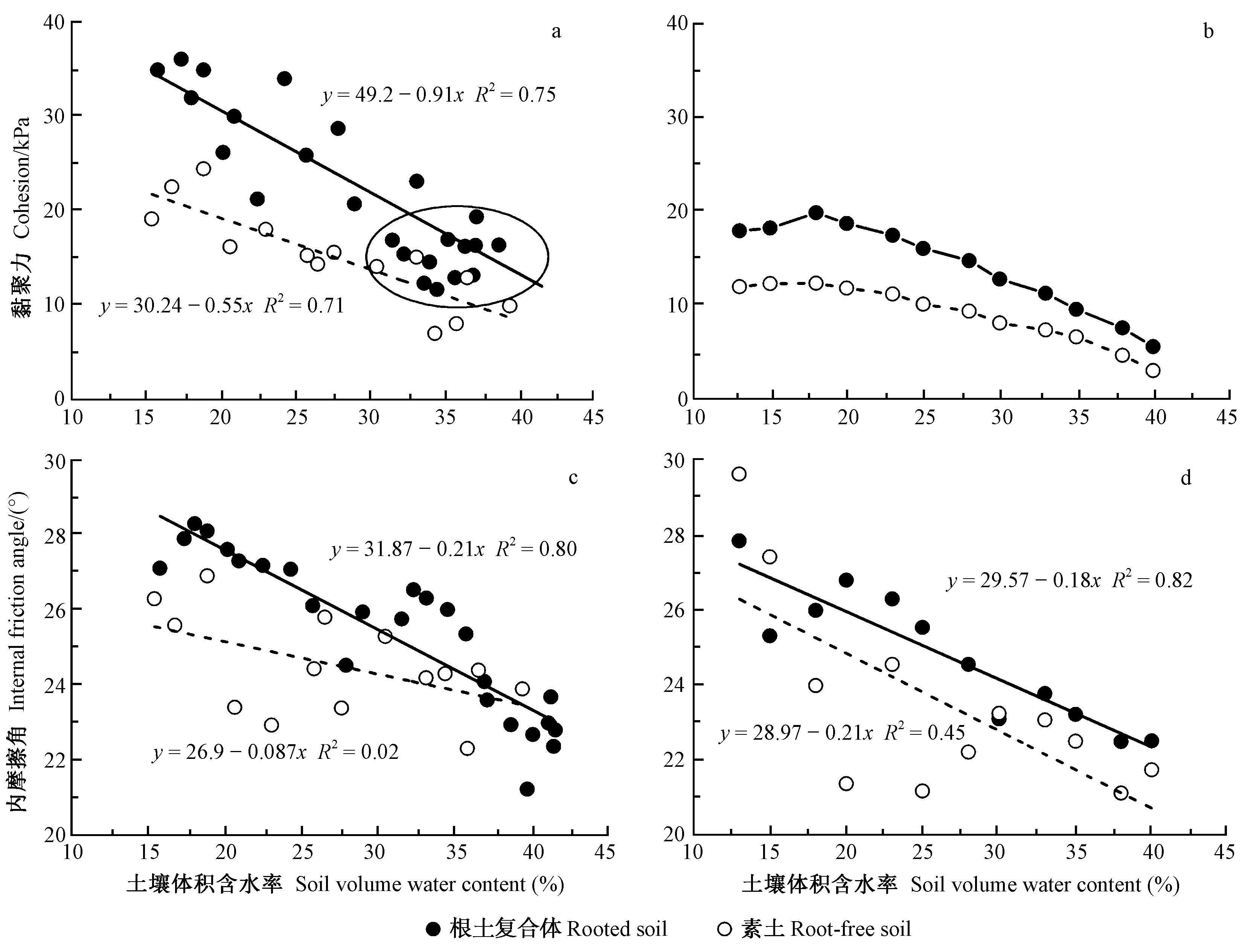

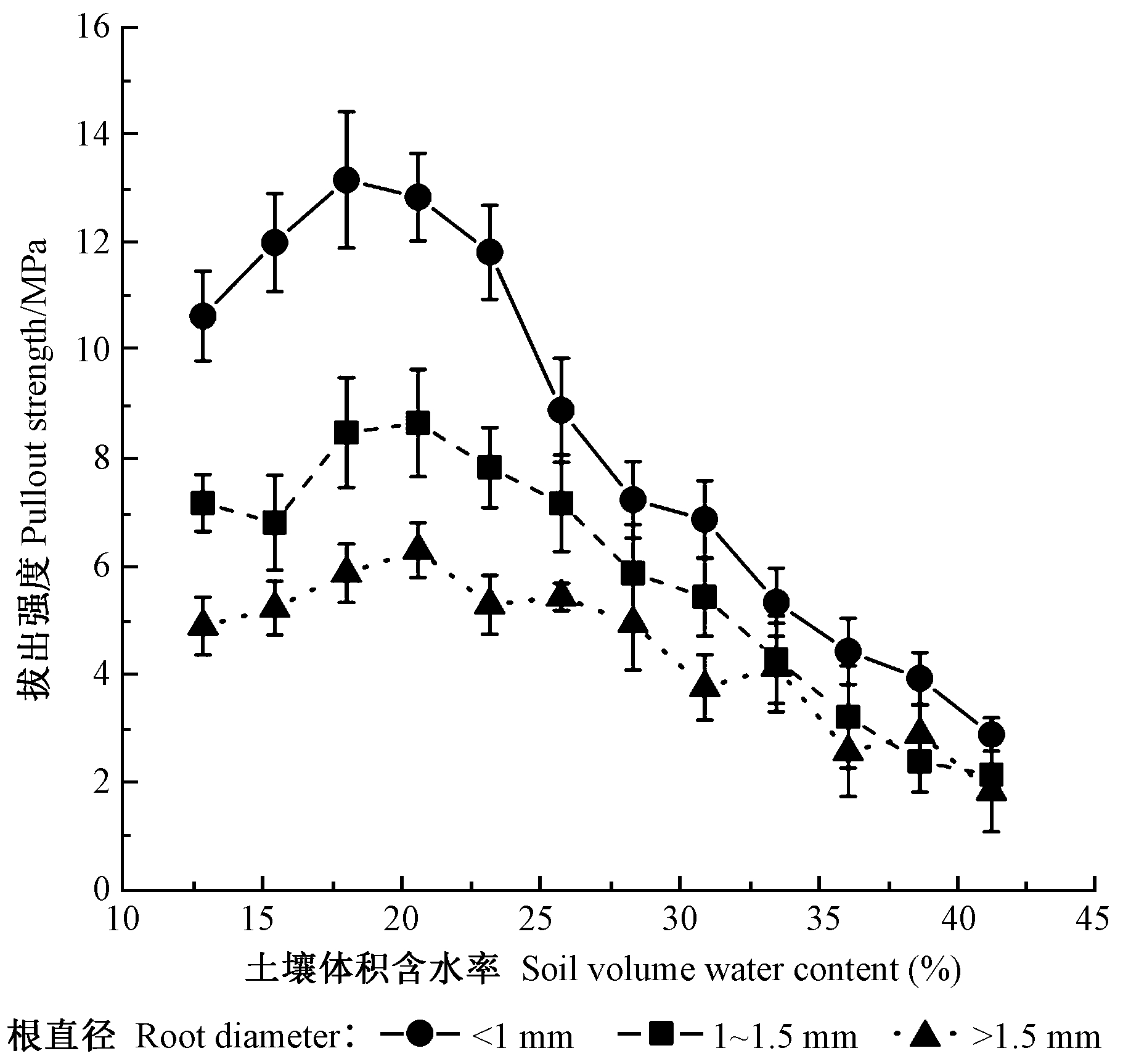

目的: 分析原状根土复合体和素土的黏聚力和内摩擦角随土壤含水率的变化规律，探索植物根系破坏方式与土壤含水率的关系，为动态分析降雨过程中边坡稳定性提供理论基础。方法: 选择北方常见灌木种荆条，在降雨后的不同时期，在预先挖好的土壤剖面取得原状根土复合体和素土样本，测定其抗剪强度指标：黏聚力c和内摩擦角φ，并辅以重塑的根土复合体和素土样本作为对比。结果: 1)荆条单根拔出强度随土壤含水率增高呈单峰曲线变化，土壤体积含水率约18%时达到最大值。2)植物根系可以显著提高土壤的抗剪强度，其中原状和重塑根土复合体黏聚力分别比原状和重塑素土高出约15.8 kPa和7.5 kPa，内摩擦角最大高出约3.1°和1.1°。3)根土复合体的黏聚力和内摩擦角与土壤体积含水率大体呈负相关。随着土壤含水率从约13%增高到约40%，原状和重塑的根土复合体样品中的土壤黏聚力的最大增加值分别降至5.9 kPa和2.6 kPa。原状根土复合体内摩擦角最大增加值降至0.1°，重塑土复合体则升至1.8°。结论: 根系可以同时提高土壤的黏聚力和内摩擦角，根系对土壤的加固效果随土壤含水率的升高而大幅度降低。因此建议在降雨较多的地区或季节，植物根系固土护坡能力应该更保守地进行评估。本研究可为土壤含水率在内的根系固土动态模型的建立提供理论依据。

关键词: 根系黏聚力增强值, 土壤体积含水率, 拔出强度, 根土复合体, 根面积比率

Abstract:

Objective: Rainfall is one of the important causes of slope instability. It is generally believed that plant roots can effectively reinforce soil and increase slope stability. In general,shallow landslides occur during and shortly after precipitation events. The function of soil reinforcement and its change dependent upon the soil volumetric water contents remain poorly studied because of the complex root-soil interactions and difficulty of the underground observations. This study investigated the influence of soil moisture on soil cohesion and internal friction angle,and identified the root failure mode under different soil moisture,which aims to expand our knowledge about the dynamics of slope stability during rainfall. Method: In this study,a common shrub species (Vitex negundo) in north China was selected. In different periods after rainfall,the undisturbed root-soil composite samples and plain soil samples without roots were collected from soil profiles. The shear strength of the undisturbed root-soil composite and plain soil samples were measured for calculating the cohesion (c) and internal friction angle (φ). Here,remolded samples of root-soil composite and plain soil were also tested for comparison. Result: 1) The increase of root pullout strength of V. negundo exhibited a single peak curve with the soil volume water content,and the strength reached the maximum value when the soil volume water content was about 18%. 2) Plant roots were able to significantly reinforce the soil. Compared with root free soil,the cohesion of the undisturbed and remolded root soil composite increased by 15.8 and 7.5 kPa,and the internal friction angle increased by 3.1° and 1.1°,respectively. 3) The cohesion and friction angle of rooted soil were negatively correlated with soil water content,generally. With the increase of soil moisture from 13% to 40%,the additional cohesion of undisturbed and remold samples decreased to 5.9 and 2.6 kPa,respectively. Additional internal friction angle of the undisturbed samples decreased to 0.1°,while that of remold samples increased to 1.8°. Conclusion: Plant roots can play an important role on both cohesion and internal friction angle,however,the reinforcement provided by roots would be decrease significantly with precipitation-driven water content increase. Thus,it is suggested that in the area or season with heavy rainfall,the additional cohesion provided by roots should be evaluated more conservatively. This study provides a theoretical basis for establishing a dynamic root reinforcement model considering soil moisture.

Key words: addition cohesion of root, soil volume water content, pull-out strength, root-soil composite, root area ratio

中图分类号:

S714.7

朱锦奇,苏伯儒,王云琦,王玉杰,李云霞. 荆条根系的固土功能随土壤含水率的变化[J]. 林业科学, 2020, 56(6): 202-208.

Jinqi Zhu,Boru Su,Yunqi Wang,Yujie Wang,Yunxia Li. Variation of Soil Reinforcement of Vitex negundo Root with Soil Moisture[J]. Scientia Silvae Sinicae, 2020, 56(6): 202-208.

图/表 5

表1

图1

图2

图3

表2

参考文献 0

	黄琨, 万军伟, 陈刚, 等. 非饱和土的抗剪强度与含水率关系的试验研究. 岩土力学, 2012. 33 (9): 2600- 2604.
	Huang K , Wan J W , Chen G , et al. Testing study of relationship between water content and shear strength of unsaturated soils. Rock and Soil Mechanics, 2012. 33 (9): 2600- 2605.
	姜献民, 尹利华, 张留俊. 膨胀土强度与含水率关系研究. 公路, 2009. (9): 127- 129.
	Jiang X M , Yin L H , Zhang L J . Research on the relationship between strength and water content of expansive soil. Highway, 2009. (9): 127- 129.
	梁斌, 莫凯. 不同含水率下重塑红黏土抗剪强度特性的研究. 山西建筑, 2010. 36 (4): 101- 102.
	Liang B , Mo K . Research on remodelling red clay's shear strength with different moisture ratios. Shanxi Architecture, 2010. 36 (4): 101- 102.
	林鸿州, 李广信, 于玉贞, 等. 基质吸力对非饱和土抗剪强度的影响. 岩土力学, 2007. 28 (9): 1931- 1936.
	Lin H Z , Li G X , Yu Y Z , et al. Influence of matric suction on shear strength behavior of unsaturated soils. Rock and Soil Mechanics, 2007. 28 (9): 1931- 1936.
	罗小龙. 含水率对黏性土体力学强度的影响. 岩土工程界, 2002. 5 (7): 52- 53.
	Luo X L . Influence of water content on shear strength of soils. Geotechnical Engineeering Field, 2002. 5 (7): 52- 53.
	缪林昌, 仲晓晨, 殷宗泽. 膨胀土的强度与含水率的关系. 岩土力学, 1999. 20 (2): 71- 75.
	Miao L C , Zhong X C , Yin Z Z . The relationship between strength and water content of expansive soil. Rock and Soil Mechanics, 1999. 20 (2): 71- 75.
	石明强. 2007.高速公路边坡生态防护与植物固坡的力学分析.武汉:武汉理工大学硕士学位论文.
	Shi M Q. 2007. Eco-protection and plant-mechanical analysis of expressway slope. Wuhan: MS thesis of Wuhan University of Technology.[in Chinese]
	宋维峰, 陈丽华, 刘秀萍. 林木根系固土作用数值分析. 北京林业大学学报, 2006. 28 (2): 80- 84.
	Song W F , Chen L H , Liu X P . Numerical analysis on the effects of forest root system on soil reinforcement. Journal of Beijing Forestry University, 2006. 28 (2): 80- 84.
	郑力文, 刘小光, 涂志华, 等. 土壤含水率与干密度对油松根-土界面摩擦性能的影响. 中国水土保持科学, 2014. 12 (6): 36- 41.
	Zheng L W , Liu X G , Tu Z H , et al. Effects of moisture content and dry density of soil on the friction characteristics between Pinus tabulaeformis root and soil. Science of Soil and Water Conservation, 2014. 12 (6): 36- 41.
	朱锦奇, 王云琦, 王玉杰, 等. 基于试验与模型的根系增强抗剪强度分析. 岩土力学, 2014. 35 (2): 449- 458.
	Zhu J Q , Wang Y Q , Wang Y J , et al. Analysis of root system enhancing shear strength based on experiment and model. Rock and Soil Mechanics, 2014. 35 (2): 449- 458.
	Abernethy B , Rutherfurd I D . The distribution and strength of riparian tree roots in relation to riverbank reinforcement. Hydrological Processes, 2001. 15 (1): 63- 79.
	Anderson C J , Coutts M P , Ritchie R M , et al. Root extraction force measurements for Sitka spruce. Forestry, 1989. 62 (2): 127- 137.
	Bischetti G B , Chiaradia E A , Simonato T , et al. Root strength and root area ratio of forest species in Lombardy (Northern Italy). Plant and Soil, 2005. 278 (1-2): 11- 22.
	Bourrier F , Kneib F , Chareyre B , et al. Discrete modeling of granular soils reinforcement by plant roots. Ecological Engineering, 2013. 61, 646- 657.
	Cohen D , Lehmann P , Or D . Fiber bundle model for multiscale modeling of hydromechanical triggering of shallow landslides. Water Resources Research, 2009. 45 (10): 1277- 1278.
	Cohen D , Schwarz M , Or D . An analytical fiber bundle model for pullout mechanics of root bundles. Journal of Geophysical Research:Earth Surface, 2011. 116 (F3): F03010.
	Comino E , Marengo P , Rolli V . Root reinforcement effect of different grass species:A comparison between experimental and models results. Soil and Tillage Research, 2010. 110 (1): 60- 68.
	Coutts M P . Root architecture and tree stability. Plant and Soil, 1983. 71 (1-3): 171- 188.
	Fan C C , Su C F . Effect of soil moisture content on the deformation behaviour of root-reinforced soils subjected to shear. Plant and Soil, 2009. 324 (1/2): 57- 69.
	Genet M , Li M , Luo T , et al. Linking carbon supply to root cell-wall chemistry and mechanics at high altitudes in Abiesgeorgei. Annals of Botany, 2011. 107 (2): 311- 320.
	Genet M , Stokes A , Salin F , et al. The influence of cellulose content on tensile strength in tree roots. Plant and Soil, 2005. 278 (1/2): 1- 9.
	Ghestem M , Veylon G , Bernard A , et al. Influence of plant root system morphology and architectural traits on soil shear resistance. Plant and Soil, 2014. 377 (1/2): 43- 61.
	Gray D H , Ohashi H . Mechanics of fiber reinforcement of sand. J Geotech Eng, 1983. 109, 335- 353.
	Gray D H, Sotir R B. 1996. Biotechnical and soil bioengineering slope stabilization: a practical guide for erosion control. John Wiley & Sons.
	Hales T C , Ford C R , Hwang T , et al. Topographic and ecologic controls on root reinforcement. Journal of Geophysical Research:Earth Surface, 2009. 114, F03013.
	Hathaway R L , Penny D . Root strength in some Populus and Salix clones. New Zealand Journal of Botany, 1975. 13 (3): 333- 344.
	Li Y , Wang Y , Wang Y , et al. Effects of Vitex negundo root properties on soil resistance caused by pull-out forces at different positions around the stem. Catena, 2017. 158, 148- 160.
	Norris J E , Di Iorio A , Stokes A , et al. Species selection for soil reinforcement and protection. Slope stability and erosion control:ecotechnological solutions. Springer, Dordrecht, 2008. 167- 210.
	O'Loughlin C L , Watson A . Root-wood strength deterioration in radiata pine after clearfelling. NZJ For Sci, 1979. 9 (3): 284- 293.
	O'Loughlin C L , Ziemer R R . The importance of root strength and deterioration rates upon edaphic stability in steepland forests. Proceedings of IUFRO Workshop P.1.07-00 Ecology of Subalpine Ecosystems as a Key to Management, 1982. 70- 78.
	Osman N , Barakbah S S . Parameters to predict slope stability-soil water and root profiles. Ecological Engineering, 2006. 28 (1): 90- 95.
	Pollen N , Simon A . Estimating the mechanical effects of riparian vegetation on stream bank stability using a fiber bundle model. Water Resources Research, 2005. 41 (7): W07025.
	Pollen N . Temporal and spatial variability in root reinforcement of streambanks:accounting for soil shear strength and moisture. Catena, 2007. 69 (3): 197- 205.
	Roering J J , Schmidt K M , Stock J D , et al. Shallow landsliding, root reinforcement, and the spatial distribution of trees in the Oregon Coast Range. Canadian Geotechnical Journal, 2003. 40 (2): 237- 253.
	Sakals M E , Sidle R C . A spatial and temporal model of root cohesion in forest soils. Canadian Journal of Forest Research, 2004. 34 (4): 950- 958.
	Schwarz M , Lehmann P , Or D . Quantifying lateral root reinforcement in steep slopes-from a bundle of roots to tree stands. Earth Surface Processes and Landforms, 2010. 35 (3): 354- 367.
	Schwarz M , Preti F , Giadrossich F , et al. Quantifying the role of vegetation in slope stability:a case study in Tuscany (Italy). Ecological Engineering, 2010. 36 (3): 285- 291.
	Waldron L J , Dakessian S . Soil reinforcement by roots:calculation of increased soil shear resistance from root properties. Soil Science, 1981. 132 (6): 427- 435.
	Waldron L J . The shear resistance of root-permeated homogeneous and stratified soil. Soil Science Society of America Journal, 1977. 41 (5): 843- 849.
	Wu T H , McKinnell III W P , Swanston D N . Strength of tree roots and landslides on Prince of Wales Island, Alaska. Canadian Geotechnical Journal, 1979. 16 (1): 19- 33.
	Zhou Y , Watts D , Cheng X , et al. The traction effect of lateral roots of Pinus yunnanensis on soil reinforcement:a direct in situ test. Plant and Soil, 1997. 190 (1): 77- 86.
	Zhou Y , Watts D , Li Y , et al. A case study of effect of lateral roots of Pinus yunnanensi on shallow soil reinforcement. Forest Ecology and Management, 1998. 103 (2): 107- 120.

土层深度 Soil depth/m	土壤密度 Soil density/(g·cm^-3)	紧实度 Compactness/kPa	黏聚力 Cohesion/kPa	内摩擦角 Internal friction angle/(°)	根系面积比率 Root area ratio(%)
0.1~0.2	1.29±0.26	72.00±19.63	15.36±5.21	22.70±2.71	0.196 7±0.017 1

黏聚力增强值 Addition cohesion/kPa	土壤体积含水率Soil volumetric water content(%)
黏聚力增强值 Addition cohesion/kPa	15	20	25	30	35	40
原状根土复合体Undisturbed root-soil composite	15.42	10.75	10.64	8.21	4.60	6.81
重塑根土复合体Remolded root-soil composite	5.98	6.91	5.92	4.71	2.96	2.46
模型计算值Estimated value of model	28.42	26.31	24.18	25.74	24.46	25.11
k′	0.54	0.41	0.44	0.32	0.19	0.27
