干燥器法检测人造板甲醛释放量的主要影响因素及不确定度

doi:10.11707/j.1001-7488.20201117

Abstract

Abstract:

Objective: The desiccator method is one of the main methods to determine formaldehyde emission in wood-based panels. However, the desiccator method also has some problems such as poor reproducibility and low accuracy. In order to improve the accuracy of the measurement results, it is necessary to study the main influencing factors and measurement uncertainty of the desiccator method. Method: In this paper, veneer particleboard was used as the research object, the influences of water absorption and panel's loading rate on the determination of formaldehyde emission in panel by desiccator method were investigated. Meanwhile, the sources of various uncertainties in the determination processes of desiccator method were analyzed, and the uncertainty was also calculated. Result: When the water absorption increased from 20 mL to 300 mL, the stable release value of formaldehyde increased from 49 μg to 72 μg. When the load-carrying ratio of sheet metal increased from 0.037 m²·m^-3 to 17.6 m²·m^-3, the stable release value of formaldehyde decreased from 2.14 mg·L^-1 to 0.88 mg·L^-1 at unit load-carrying ratio. Furthermore, the uncertainty of the 40 L dryer method was higher than that of the 9-11 L dryer. Among the main sources of uncertainty, the uncertainty introduced by repeated measurements contributed the largest to the overall uncertainty. Conclusion: Absorbed water was positively correlated with formaldehyde emission, while carrying capacity was negatively correlated with formaldehyde emission. In the processes of experiment, each step should be operated according to the standard specification to ensure the accuracy and reliability of the data.

Key words: desiccator method, wood-based panels, formaldehyde, uncertainty

CLC Number:

TS67

Mengting Yin,Botao Li,Bin Lü,Yuejin Fu,Fan Yang,Xianwu Zou. Influencing Factors and Uncertainty of Formaldehyde Emission in Wood-Based Panels by Desiccator Method[J]. Scientia Silvae Sinicae, 2020, 56(11): 159-167.

Figures/Tables 11

Table 1

Fig.1

Fig.2

Table 2

Fig.3

Fig.4

Table 3

Fig.5

Table 4

Table 5

Table 6

References 0

	肖小兵. 我国人造板产业发展现状. 木材工业, 2016, 30 (2): 11- 14, 28. doi: 10.3969/j.issn.1001-8654.2016.02.003
	Xiao X B . Status of wood-based panel industry in China. China Wood Industry, 2016, 30 (2): 11- 14, 28. doi: 10.3969/j.issn.1001-8654.2016.02.003
	Cox S S , Liu Z , Little J C , et al. Diffusion-controlled reference mate rial for VOC emissions testing:proof of concept. Indoor Air, 2010, 20 (5): 424- 433. doi: 10.1111/j.1600-0668.2010.00666.x
	Carter R D , Zhang J S . Definition of standard office environments for evaluating the impact of office furniture emissions on indoor VOC concentrations. ASHRAE Transactions, 2007, 113, 466- 477.
	Gunschera J , Mentese S , Salthammer T , et al. Impact of building materials on indoor formaldehyde levels:effect of ceiling tiles, mineral fiber insulation and gypsum board. Building and Environment, 2013, 64, 138- 145. doi: 10.1016/j.buildenv.2013.03.001
	Howard-Reed C , Liu Z , Benning J , et al. Diffusion-controlled reference material for volatile organic compound emissions testing:pilot inter-laboratory study. Building and Environment, 2011, 46 (7): 1504- 1511. doi: 10.1016/j.buildenv.2011.01.024
	He Z K , Wei W J , Zhang Y P . Formaldehyde and VOC emissions at different manufacturing stages of wood-based panels. Bwlding and Environment, 2012, 47, 197- 204. doi: 10.1016/j.buildenv.2011.07.023
	Klepeis N E , Nelson W C , Ott W R . The national human activity pattern survey(NHAPS):a resource for assessing exposure to environmental pollutants. Journal of Exposure Analysis and Environmental Epidemiology, 2001, 11 (3): 231- 252. doi: 10.1038/sj.jea.7500165
	Lim S , Lee K , Seo S , et al. Impact of regulation on indoor volatile organic compounds in new unoccupied apartment in Korea. Atmospheric Environment, 2011, 45 (11): 1994- 2000. doi: 10.1016/j.atmosenv.2011.01.020
	Liu W W , Zhang Y P , Yao Y , et al. Indoor decorating and refurbishing materials and furniture volatile organic compounds emission labeling systems:A literature review. Chinese Science Bulletin, 2012, 57, 2533- 2543. doi: 10.1007/s11434-012-5208-x
	Meyer B , Koshlap K , Ceiling K , et al. Comparison of wet and dry desiccator test methods for formaldehyde emission from UF-bonded wood. Forest Products Journal, 1983, 33 (1): 35- 37.
	Myers G E . Formaldehyde emission from particleboard and plywood paneling:measurement, mechanism, and product standards. Forest Products Journal, 1983, 33 (5): 27- 37.
	Que Z L , Wang F B , Ma L F , et al. Effect of loading ratio, conditioning time and air exchange rate on the formaldehyde emission from wood-based board using large chamber and desiccator method. Composites Part B:Engineering, 2013, 47, 278- 282. doi: 10.1016/j.compositesb.2012.11.019
	Rybicky J , Horst K , Kambanis S M . Assessment of the 2-hour desiccator test for formaldehyde release from particleboard. Forest Products Journal, 1983, 33 (9): 50- 54.
	Salem M Z M , Böhm M , Srba J , et al. Evaluation of formaldehyde emission from different types of wood-based panels and flooring materials using different standard test methods. Building and Environment, 2012, 49, 89- 96.
	Stylianos K, Kimmo K, Dimitrios K, et al. 2005. Harmonization of indoor material emissions labelling systems in the EU. ECA Report No.24, Italy.
	Wang X K , Zhang Y P . A new method for determining the initial mobile formaldehyde concentrations, partition coefficients, and diffusion coefficients of dry building materials. Journal of the Air & Waste Management Association, 2009, 59, 819- 825.
	Wei W J , Zhang Y P , Xiong J Y , et al. A standard reference for chamber testing of material VOC emissions:design principle and performance. Atmospheric Environment, 2012, 47, 381- 388. doi: 10.1016/j.atmosenv.2011.10.051
	Xiong J Y , Zhang Y P . Impact of temperature on the initial emittable concentration of formaldehyde in building materials:experimental observation. Indoor Air, 2010, 20 (6): 523- 529. doi: 10.1111/j.1600-0668.2010.00675.x
	Xiong J Y , Yao Y , Zhang Y P . C-history method:rapid measurement of the initial emittable concentration, diffusion and partition coefficients for formaldehyde and VOCs in building materials. Environmental Science & Technology, 2011a, 45 (8): 3584- 3590.
	Xiong J Y , Zhang Y P , Huang S D . Characterisation of VOC and formaldehyde emission from building materials in a static environmental chamber:model development and application. Indoor and Built Environment, 2011b, 20 (2): 217- 225. doi: 10.1177/1420326X103874801

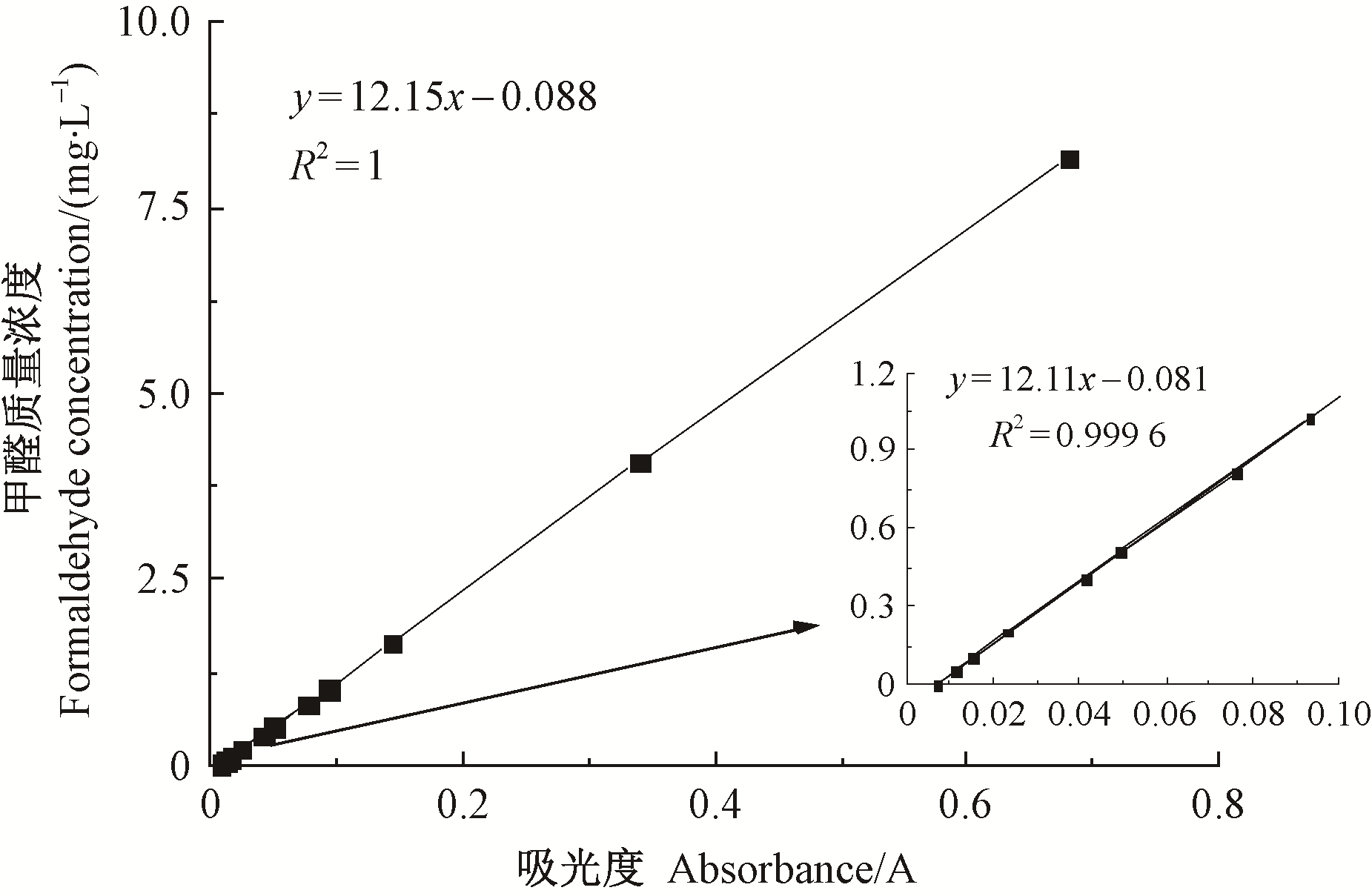

甲醛质量浓度 Formaldehyde concentration/ (mg·L^-1)	0	0.051	0.102	0.204	0.51	1.02	0	0.408	0.816	1.632	4.08	8.16
吸光度 Absorbance/A	0.007	0.011	0.015	0.023	0.049	0.093	0.007	0.041	0.076	0.143	0.34	0.68

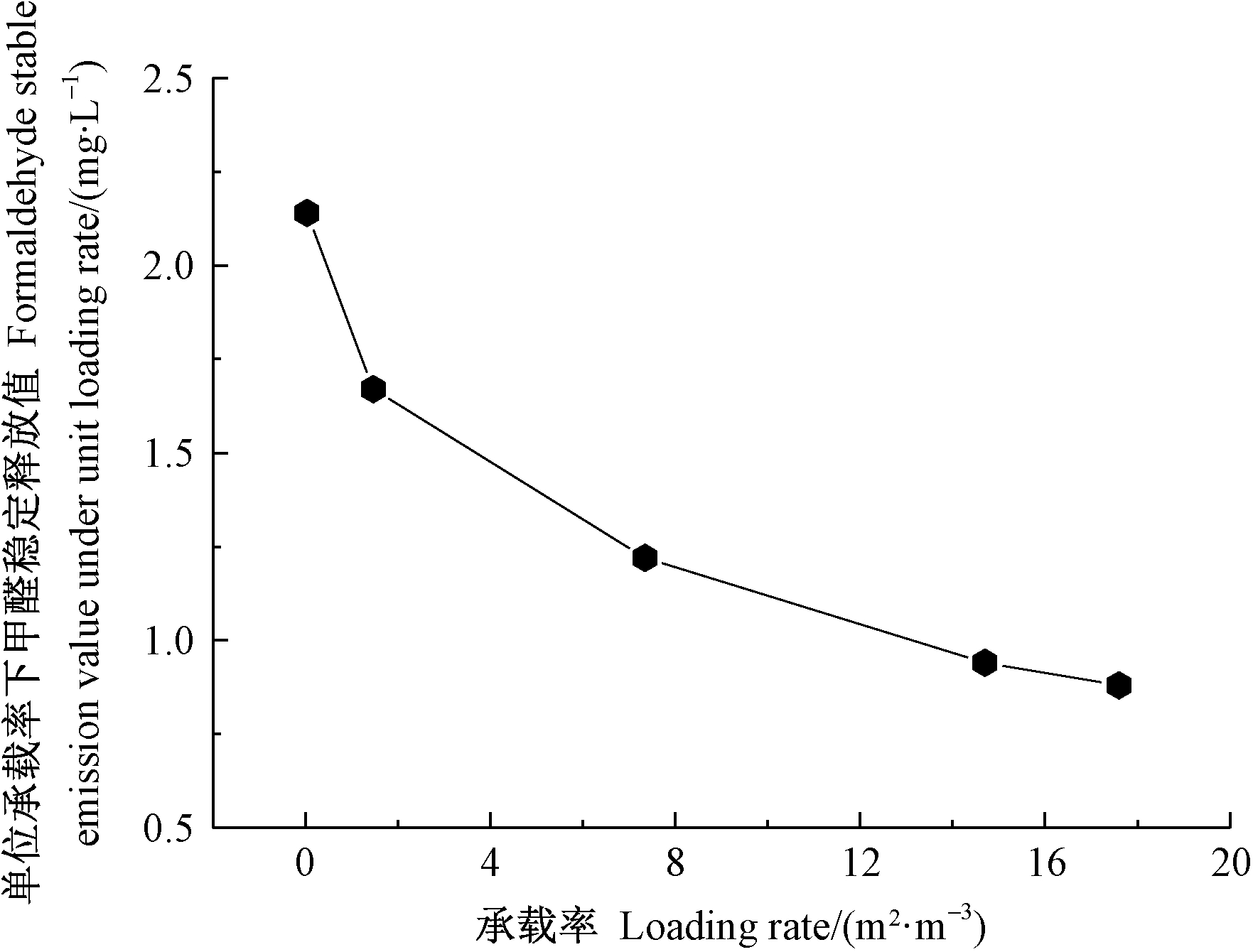

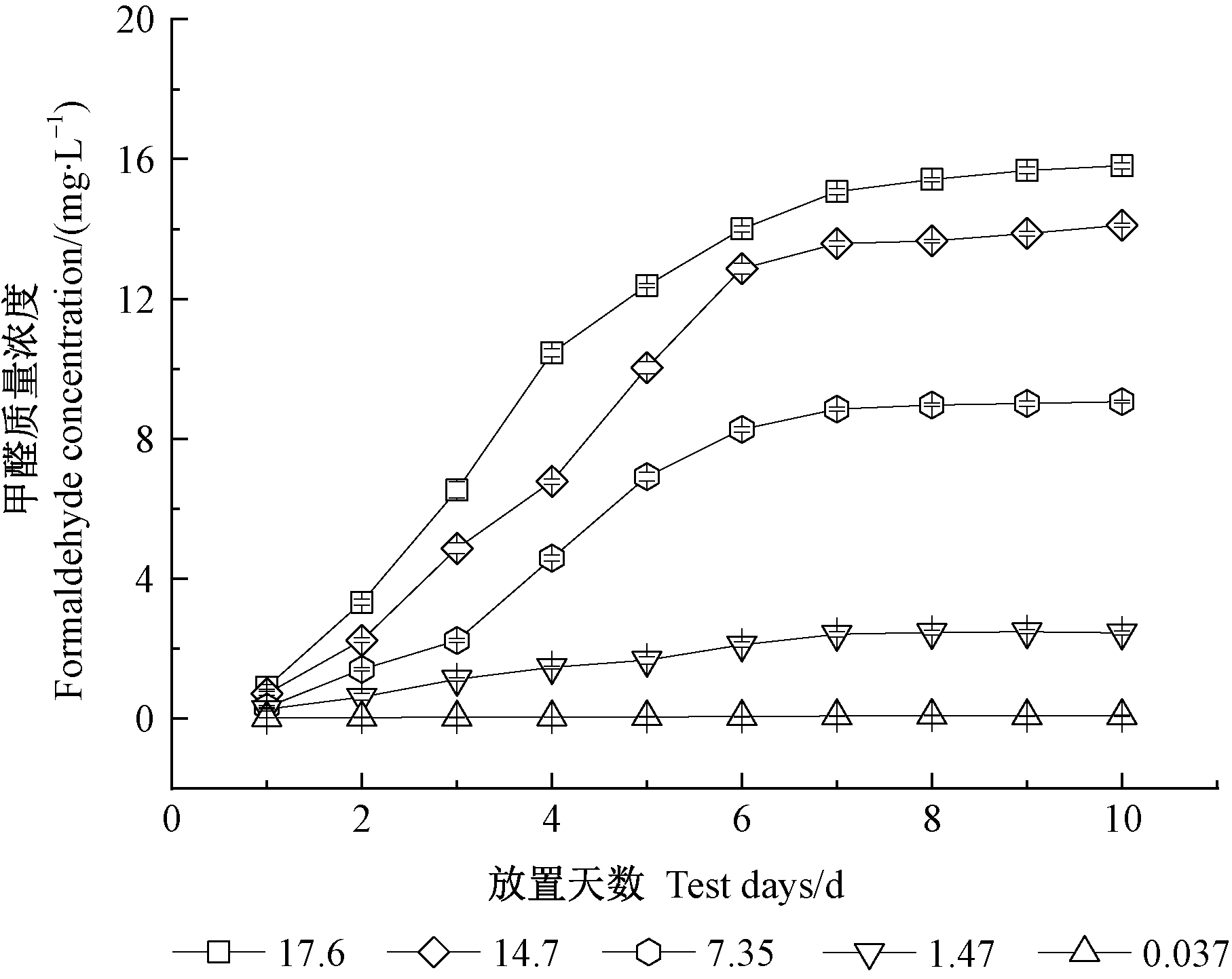

承载率 Loading rate/ (m²·m^-3)	甲醛质量浓度 Formaldehyde concentration/ (mg·L^-1)	单位承载率下甲醛稳定释放值 Formaldehyde stable emission value under unit loading rate / (mg·L^-1)
0.037	0.079	2.14
1.47	2.45	1.67
7.35	8.97	1.22
14.7	13.80	0.94
17.6	15.49	0.88

样品种类 Sample species	序号 Serial number	A	A₀	A-A₀	甲醛释放量Formaldehyde emission/(mg·L^-1)
LPB	1	0.013	0.007	0.006	0.073
	2	0.014	0.007	0.007	0.085
	3	0.013	0.007	0.006	0.073
	4	0.013	0.007	0.006	0.073
	5	0.014	0.007	0.007	0.085
	6	0.013	0.007	0.006	0.073
	平均值Average value				0.077
MPB	1	0.046	0.007	0.039	0.474
	2	0.043	0.007	0.036	0.438
	3	0.043	0.007	0.036	0.438
	4	0.044	0.007	0.037	0.450
	5	0.045	0.007	0.038	0.462
	6	0.043	0.007	0.036	0.438
	平均值Average value				0.450
HPB	1	0.051	0.007	0.044	0.535
	2	0.053	0.007	0.046	0.559
	3	0.050	0.007	0.043	0.523
	4	0.053	0.007	0.046	0.559
	5	0.050	0.007	0.043	0.523
	6	0.051	0.007	0.044	0.535
	平均值Average value				0.539

样品种类 Sample species	序号 Serial number	A	A₀	A-A₀	甲醛释放量Formaldehyde emission/(mg·L^-1)
LPB	1	0.015	0.007	0.008	0.097
	2	0.014	0.007	0.007	0.085
	3	0.015	0.007	0.008	0.097
	4	0.013	0.007	0.006	0.073
	5	0.013	0.007	0.006	0.073
	6	0.014	0.007	0.007	0.085
	平均值Average value				0.085
MPB	1	0.051	0.007	0.044	0.535
	2	0.045	0.007	0.038	0.462
	3	0.047	0.007	0.040	0.486
	4	0.048	0.007	0.041	0.498
	5	0.049	0.007	0.042	0.511
	6	0.045	0.007	0.038	0.462
	平均值Average value				0.492
HPB	1	0.055	0.007	0.048	0.583
	2	0.053	0.007	0.046	0.559
	3	0.051	0.007	0.044	0.535
	4	0.051	0.007	0.044	0.535
	5	0.057	0.007	0.050	0.608
	6	0.056	0.007	0.049	0.596
	平均值Average value				0.569

各分量不确定度 Uncertainty of each component	吸收水体积 Absorbed water volume	板材试件切割 Panel specimen cutting	甲醛标准溶液 Formaldehyde standard solution	容量瓶 Volumetric flask	移液枪 Pipette gun	天平 Balance	分光光度计 Spectrophotometer	重复性测量 Repeatability measurement
LPB(9~11 L)	9.63×10^-3	1.21×10^-2						5.51×10^-2
MPB(9~11 L)	1.45×10^-2	5.44×10^-3						2.36×10^-2
HPB(9~11 L)			1.50×10^-2	6.45×10^-4	7.74×10^-4	3.85×10^-5	1.61×10^-3	2.10×10^-2
LPB(40 L)								9.15×10^-2
MPB(40 L)								4.17×10^-2
HPB(40 L)								3.85×10^-2

Influencing Factors and Uncertainty of Formaldehyde Emission in Wood-Based Panels by Desiccator Method

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 11

References 0

Related Articles 15

Recommended Articles

Metrics

Comments

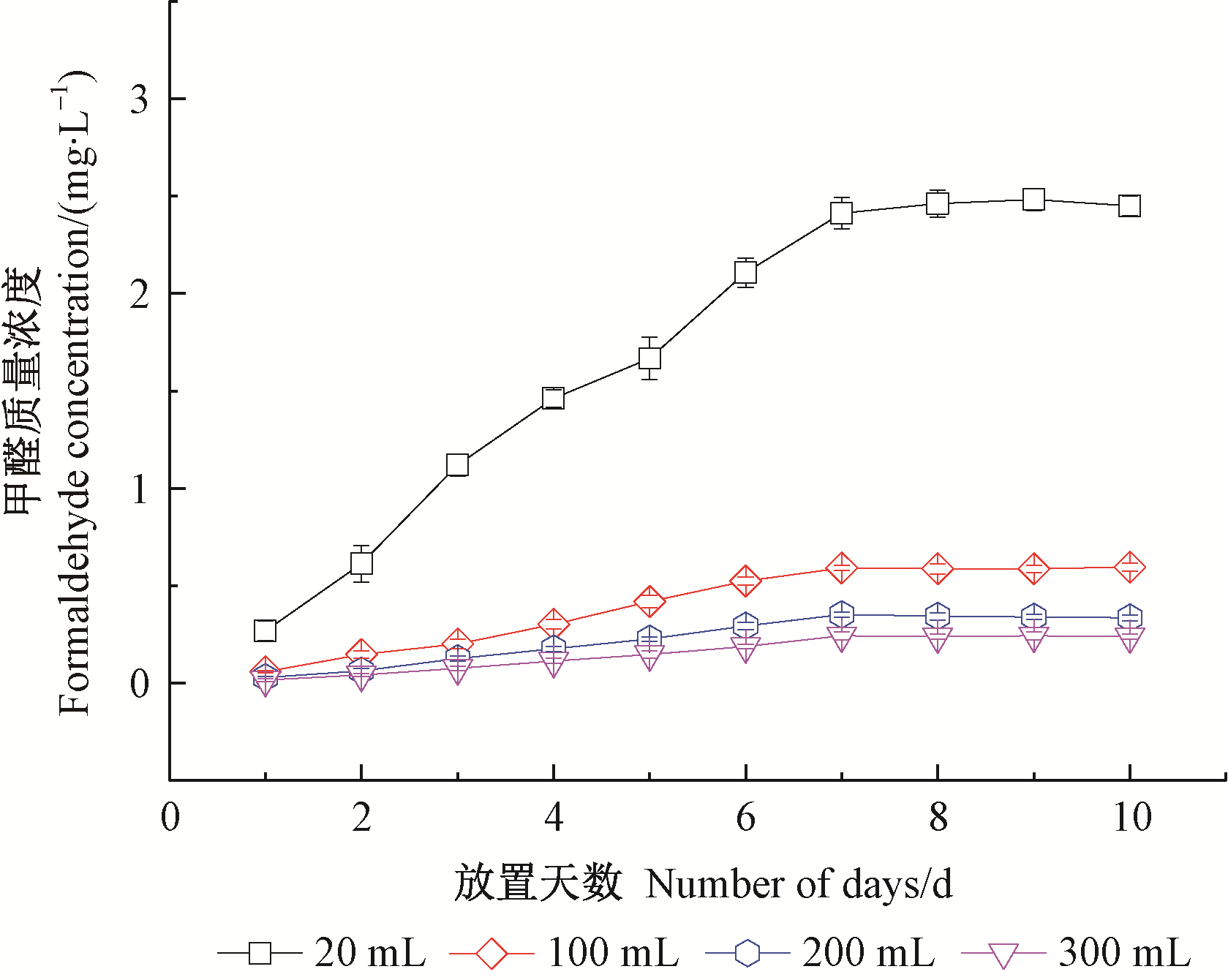

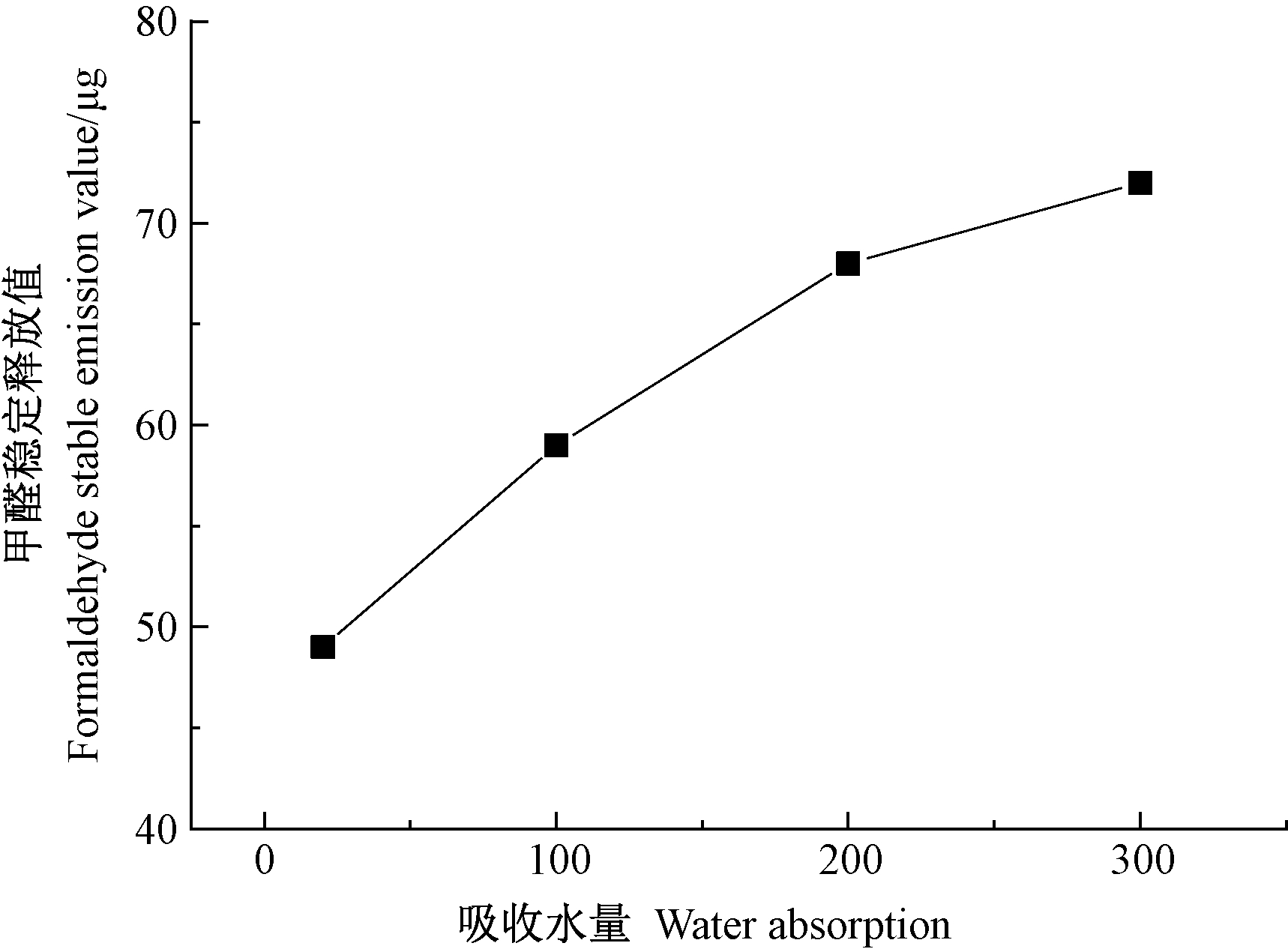

吸收水量 Absorbed distilled water /mL	蒸馏水中甲醛质量浓度 Formaldehyde concentration in distilled water/ (mg·L^-1)	甲醛稳定释放值 Formaldehyde stable emission value/μg
300	0.24	72
200	0.34	68
100	0.59	59
20	2.45	49
