植物色彩对潮白河城镇河岸夏秋季景观视觉吸引力的影响

doi:10.11707/j.1001-7488.LYKX20210492

摘要/Abstract

摘要：

目的: 探讨与辨识影响色彩斑块视觉吸引力的关键因子，为有效提升城镇河岸带植物色彩景观的视觉吸引力提供参考。方法: 在潮白河城镇河段河岸带，设置1000 m城镇人工河岸带植物景观样带，通过无人机拍摄记录与图片转换，选取23个样本的2个季节共46张图片。构建色彩分析程序，智能提取（辅助手动删除和补全错误与不完整区域）河岸带林冠景观；定义H（Hue色相）值区间，即 (25, 45] (45, 80] (80, 140] (140, 220] (220, 290] (290, 345] (345, 25]，以及归一化V（Value明度）值、S（Saturation饱和度）值区间,即[0, 0.33](0.33, 0.67](0.67, 1]，划分出63种颜色；识别得到其中25种颜色的38 745个色彩斑块，提取并统计所有色彩斑块的面积、位置等数据。招募30名志愿者进行眼动试验，获取样本图片的视觉热点，并以图片中色彩斑块与视觉热点间欧式距离度量色彩斑块的视觉吸引力。采用一般线性混合效应模型，控制样本为随机因子，分析植物色彩特征对视觉吸引力的影响。结果: 城镇河岸带植物景观共计25种颜色，包括橙色系4种、黄色系4种、黄绿色系8种、绿色系9种，其中绿色系与黄绿色系的面积比例超过80%。色彩斑块视觉吸引力存在不同色彩属性间差异，高明度或中饱和度的色彩斑块更趋向于较高的视觉吸引力。同时，色彩斑块的视觉吸引力存在较显著的季节差异，秋季的视觉吸引力高于夏季。另外，色彩明度和饱和度对视觉吸引力有显著作用，色相对色彩斑块视觉吸引力不产生直接的显著影响，但会通过与色彩斑块面积的交互作用产生显著影响。并且，不同色相与色彩斑块面积的交互作用存在差异，斑块色相值在 (345, 80]范围时，视觉吸引力随斑块面积增加而减小；斑块色相值在(80, 140]范围时，视觉吸引力随斑块面积增加而增加。结论: 强调绿色—黄绿色的渐变色景观是城镇化地区河岸植物的基本色彩风貌；区分基底和前景色，有助于理解不同渐变色彩景观视觉吸引力的差异。基于色彩斑块颜色属性和面积对视觉吸引力的影响特点，提出了色彩斑块尺度提高视觉吸引力的可能途径。

关键词: 城镇河岸带, 植物色彩, 视觉吸引力, 交互作用

Abstract:

Objective: Urban riparian is an important ecotone between the city land and aquatic zone, serving a variety of ecological and aesthetic functions, which need to be protected, and its landscape needs to be optimized. This study analyzed the effects of color on urban riparian landscape and identified the key factors to its visual attraction, in order to provide a reference for effectively improving the visual attractiveness of urban riparian vegetation color view. Method: In this study, Chaobai River, the most important river flowing through the Beijing-Tianjin-Hebei metropolitan region, was targeted and its 1 000 m urban artificial riparian segment was selected as the research subject. A total of 46 images of 23 plots were taken by a drone in summer and autumn. The 63 color categories were defined by H (Hue) for (25, 45] (45, 80] (80, 140] (140, 220] (220, 290] (290, 345] (345, 25], normalized V (Value) and S (Saturation) for [0, 0.33], (0.33, 0.67], (0.67, 1]. According to this, 38 744 color patches of 25 color categories were extracted through a self-made program. The color patch characteristics were obtained, and their distances to the visual hotspot resulting from the eye movement experiment with 30 volunteers were used to measure the view attraction. At last, a linear mixed regression model was used to analyze the influence of color characteristics on visual attraction. Result: 1) A total of 25 color types of 4 categories, including 4 types of orange, 4 types of yellow, 8 types of yellow-green, and 9 types of green were found in urban riparian. Among them, the green and yellow-green categories accounted for more than 80% of total area proportions. 2) Visual attraction varied in different values, saturation, or hues. Color patches with high saturation belonging to (0.67, 1] or with medium value belonging to (0.33, 0.67] tend to have higher visual attraction. Meanwhile, there was a significant seasonal difference in the visual attraction of color patches, with autumn having a higher visual attraction than summer. 3) Color brightness and saturation had significant positive effects on visual attraction. Hue significantly impacted visual attraction through the interaction with color patches’ area. Moreover, this interaction varied in diverse hues. The more increase of color patch area, the higher the visual attraction only when the hue was within (80, 140]. Conversely, the visual attraction became lower when the hue range resulted in yellow-green, yellow, and orange categories. Conclusion: The gradient colorful scenery from green to yellow-green is emphasized to gain attention as a more common urban riparian vegetation landscape. Distinguishing between the base background color and foreground color is helpful to understand the visual attraction’ differentiation cross color attributes and season. Based on the influence of the color patch’s attribute and area on visual attraction, possible optimization suggestions through the color patch scale for visual attraction are proposed.

Key words: urban riparian, plant color, visual attraction, interaction

中图分类号:

S731.2

张昶,韩文静,王成. 植物色彩对潮白河城镇河岸夏秋季景观视觉吸引力的影响[J]. 林业科学, 2023, 59(8): 30-39.

Chang Zhang,Wenjing Han,Cheng Wang. Effects of Plant Color on Visual Attraction for Chaobai River’s Summer and Autumn Urban Riparian Landscape[J]. Scientia Silvae Sinicae, 2023, 59(8): 30-39.

图/表 6

图1

表1

表2

图2

参考文献 0

	陈秀新, 贾克斌. 三维量化颜色直方图在彩色图像检索中的应用. 计算机应用与软件, 2012, 29 (9): 31- 32. doi: 10.3969/j.issn.1000-386x.2012.09.008
	Chen X X, Jia K B. Application of three-dimensional quantized colour histogram in colour image retrieval. Computer Applications and Software, 2012, 29 (9): 31- 32. doi: 10.3969/j.issn.1000-386x.2012.09.008
	曹瑜娟, 徐程扬, 崔　义, 等. 观景距离和光照条件对黄栌林景观色彩的影响. 中南林业科技大学学报, 2019, 39 (5): 22- 48.
	Cao Y J, Xu C Y, Cui Y, et al. Effects of viewing distance and light conditions on the color of Cotinus coggygria var. cinerea forest landscape . Journal of Central South University of Forestry & Technology, 2019, 39 (5): 22- 48.
	曹瑜娟, 徐程扬, 任雅雪, 等. 基于敏感度排序的风景林色彩格局指数筛选. 林业科学, 2021, 57 (8): 1- 12.
	Cao Y J, Xu C Y, Ren Y X, et al. Selection of color pattern indices of scenic forest based on sensitivity ranks. Scientia Silvae Sinicae, 2021, 57 (8): 1- 12.
	樊鹏飞, 梁流涛, 李炎埔, 等. 基于系统耦合视角的京津冀城镇化协调发展评价. 资源科学, 2016, 38 (12): 2361- 2374.
	Fan P F, Liang L T, Li Y P, et al. Evaluation of coordinated development of urbanization from the perspective of system coupling in the Beijing-Tianjin-Hebei Region. Resources Science, 2016, 38 (12): 2361- 2374.
	郭素玲, 赵宁曦, 张建新, 等. 基于眼动的景观视觉质量评价—以大学生对宏村旅游景观图片的眼动实验为例. 资源科学, 2017, 39 (6): 1137- 1147.
	Guo S L, Zhao N X, Zhang J X, et al. Landscape visual quality assessment based on eye movement: college student eye-tracking experiments on tourism landscape pictures. Resource Science, 2017, 39 (6): 1137- 1147.
	贾　娜, 史久西, 秦一心, 等. 森林色彩景观格局指数与色彩属性指标对观赏效应的影响. 林业科学, 2021, 57 (2): 12- 21.
	Jia N, Shi J X, Qin Y X, et al. Influence of forest color landscape pattern indices and color attribute indicators on ornamental effect. Scientia Silvae Sinicae, 2021, 57 (2): 12- 21.
	金佳莉, 王　成, 贾宝全. 我国4个典型城市近30年绿色空间时空演变规律. 林业科学, 2020, 56 (3): 61- 72.
	Jin J L, Wang C, Jia B Q. Spatio-temporal patterns of evolution urban greenspace during the last three decades in four typical cities of China. Scientia Silvae Sinicae, 2020, 56 (3): 61- 72.
	李丽. 2016. 建筑环境色彩规划设计. 北京: 机械工业出版社, 39.
	Li L. 2016. Color planning and design of architectural environment. Beijing: Mechanical Industry Press, 39. [in Chinese]
	刘华杰. 2013. 城市街道空间中建筑界面色彩的控制研究——以陕西省安康市城市色彩规划为例. 重庆: 重庆大学.
	Liu H J. 2013 The color control study of building interfaces color in city street space——take Ankang city color planning for example. Chongqing: Chongqing University.［in Chinese］
	刘金燕, 丁国昌, 兰宇翔, 等. 闽东南海岛台湾相思林春季景观质量评价研究——以平潭岛为例. 西北林学院学报, 2020, 35 (5): 249- 254.
	Liu J Y, Ding G C, Lan Y X, et al. Evaluation on landscape quality of Acacia confuse in spring in the southeast islands of Fujian——a case study of Pingtan island . Journal of Northwest Forestry University, 2020, 35 (5): 249- 254.
	马冰倩, 徐程扬, 崔　义. 2018. 八达岭秋季景观整体色彩组成对美景度的影响. 西北林学院学报, 33(6): 258-264.
	Ma B Q, Xu C Y, Cui Y, 2018. Effects of color composition in Badaling forests on autumn landscape quality. Journal of Northwest Forestry University, 33(6): 258–264.［in Chinese］
	秦一心. 2016. 长三角地区生态景观林色彩量化与配置研究. 呼和浩特: 内蒙古农业大学.
	Qin Y X. 2016. Yangtze river delta region ecological landscape forest color quantization and configuration research. Hohhot: Inner Mongolia Agricultural University.［in Chinese］
	史尚睿. 2015. 森林景观色彩量化软件与最优配比规律初探. 北京: 中国林业科学研究院.
	Shi S R. 2015. First exploration on quantization software and optimal regularities in color matching of forest landscape—example as autumn in Beijing. Beijing: Chinese Academy of Forestry［in Chinese］
	孙亚美. 2015. 北京地区常用秋色叶树种色彩量化与评价研究. 北京: 北京林业大学
	Sun Y M. 2015. Color quantization and evaluation research on fall-color trees in Being. Beijing: Beijing Forestry University.［in Chinese］
	王　涵. 2017. 通州运河森林公园森林景观及其美景度研究. 北京: 中国林业科学研究院
	Wang H. 2017. Study on forest landscape and scenic beauty of Tongzhou canal forest park. Beijing: Chinese Academy of Forestry.［in Chinese］
	王　礼. 2018. 基于图像的观赏植物识别与系统研发. 浙江农林大学
	Wang L. 2018. Image based ornamental plants recognition and system development. Hangzhou: Zhejiang Agriculture & Forestry University［in Chinese］
	王　娜, 钟永德, 黎　森. 基于SBE法的城郊森林公园森林林内景观美学质量评价. 西北林学院学报, 2017, 32 (1): 308- 314.
	Wang N, Zhong Y D, Li S. SBE based evaluation of in-forest landscape aesthetic quality of forest park in suburb. Journal of Northwest Forestry University, 2017, 32 (1): 308- 314.
	王贤广, 王峥嵘, 何小勇, 等. 浙西南秋季林相美景度及其最优颜色构成模式研究. 南京林业大学学报(自然科学版), 2019, 43 (1): 122- 130.
	Wang X G, Wang Z R, He X Y, et al. The beauty degree of forest facies and its optimal color composition pattern in the southwest Zhejiang Province in autumn. Journal of Nanjing Forestry University (Natural Sciences Edition), 2019, 43 (1): 122- 130.
	杨少华. 色相对比中的色彩注目性研究. 美术文献, 2020, (4): 147- 150.
	Yang S H. Study of color attention in color contrast. Art Literature, 2020, (4): 147- 150.
	张　翠, 王　晶. 2015. 色彩构成. 合肥: 合肥工业大学出版社, 70-72.
	Zhang C, Wang J. 2015. Color composition. Hefei: Hefei University of Technology Press, 70–72.［in Chinese］
	张广分. 2011. 北京潮白河上游流域河岸植被缓冲带研究. 北京: 北京林业大学, 13–14.
	Zhang G F. 2011. Research on riparian vegetation buffer zone of the Chaobaihe upstream river basin in Beijing. Beijing: Beijing Forestry University, 13–14［in Chinese］
	张小晶, 陈　娟, 李巧玉, 等. 基于视觉特性的川西亚高山秋季景观林色彩量化及景观美学质量评价. 应用生态学报, 2020, 31 (1): 49- 58.
	Zhang X J, Chen J, Li Q Y, et al. Color quantification and evaluation of landscape aesthetic quality for autumn landscape forest based on visual characteristics in subalpine region of western Sichuan, China. Chinese Journal of Applied Ecology, 2020, 31 (1): 49- 58.
	张元康, 王秀荣, 杨　婷, 等. 贵阳市常见园林植物春季新叶色彩属性变化特征研究. 西北林学院学报, 2019, 34 (6): 208- 213.
	Zhang Y K, Wang X R, Yang T, et al. Change characteristics of new leaf color attributes of common garden plants in Guiyang City in spring. Journal of Northwest Forestry University, 2019, 34 (6): 208- 213.
	张　喆. 2017. 基于公众响应评价的森林色彩特征及其影响研究——以四川九寨沟秋季森林为例. 北京: 中国林业科学研究院.
	Zhang Z. 2017. Public response to characteristics of forest color and its influence: a case study of forest in autumn of Jiuzhai Vally, Sichuan Province. Beijing: Chinese Academy of Forestry.［in Chinese］
	郑　瑶. 2014. 重庆市秋季常见园林植物色彩定量研究. 重庆: 西南大学, 38–41.
	Zhen Y. 2014. Quantitative research on autumn common plant color in Chongqing. Chongqing: Southwest University, 38–41.［in Chinese］
	郑　宇, 张炜琪, 吴倩楠, 等. 陕西金丝大峡谷国家森林公园秋季景观林色彩量化研究. 西北林学院学报, 2016, 31 (3): 275- 280.
	Zhen Y, Zhang W Q, Wu Q N, et al. The color quantization of the fall scenic forest in Jinsi Canyon national forest park in Shaanxi province. Journal of Northwest Forestry University, 2016, 31 (3): 275- 280.
	Bates D, Mächler M., Bolker B, et al. Fitting linear mixed-effects models using lme4. Journal of Statistical Software, 2015, 67 (1): 1- 48.
	Burdescu D D, Brezovan M, Ganea E, et al. 2009. A new method for segmentation of images represented in a HSV Color space. Springer Berlin Heidelberg.
	Camgöz N, Yener C, Güven D. Effects of hue, saturation, and brightness: Part 2: Attention. Color Research & Application, 2004, 29 (1): 20- 28.
	Dupont L, Antrop M & Van Eetvelde V. Eye-tracking analysis in landscape perception research: influence of photograph properties and landscape characteristics. Landscape Research, 2014, 39 (4): 417- 432. doi: 10.1080/01426397.2013.773966
	Forman R. T. T. 1997. Land mosaics: the ecology of landscape and regions. Cambridge: Cambridge University Press, 213–246.
	Gerardin P, Dojat M, Knoblauch K, et al. Effects of background and contour luminance on the hue and brightness of the Watercolor effect. Vision Research, 2018, 144, 9- 19. doi: 10.1016/j.visres.2018.01.003
	Kantartzis A, Varras G, Kakouri P, et al. Greenway planning and management of urban riparian corridors: the alternative basis for an integrated system of urban green spaces. Case study: riparian corridors in the city of Igoumenitsa, Greece. Earth Science India, 2009, 2 (3): 159- 173.
	Lüdecke D. ggeffects: Tidy data frames of marginal effects from regression models. Journal of Open Source Software, 2018, 3 (26): 772. doi: 10.21105/joss.00772
	Mu Y X, Lin W Y, Diao X L, et al. Implementation of the visual aesthetic quality of slope forest autumn color change into the configuration of tree species. Scientific Reports, 2022, 12 (1): 1034. doi: 10.1038/s41598-021-04317-1
	Rosley M S F, Lamit H, Rahman S R A. Perceiving the aesthetic value of the rural landscape through valid indicators. Procedia-Social and Behavioral Sciences, 2013, 85, 318- 331. doi: 10.1016/j.sbspro.2013.08.362
	Sinkkonen A. Red reveals branch die-back in Norway maple Acer platanoides . Annals of Botany, 2008, 102 (3): 361- 366. doi: 10.1093/aob/mcn101
	Wang Z, Li M Y, Zhang X H, et al. Modeling the scenic beauty of autumnal tree color at the landscape scale: a case study of Purple mountain, Nanjing, China. Urban Forestry & Urban Greening, 2020, 47, 126526.
	Witzel C. Variation of saturation across hue affects unique and typical hue choices. i-Perception, 2019, 10 (5): 1- 14.
	Yan Z G, Teng M J, He W, et al. Impervious surface area is a key predictor for urban plant diversity in a city undergone rapid urbanization. Science of the Total Environment, 2019, 650, 335- 342. doi: 10.1016/j.scitotenv.2018.09.025
	Yang C, Natuhara Y. Effect of urbanization on vegetation in riparian area: plant communities in artificial and semi-natural habitats. Sustainability, 2019, 12 (1): 204- 221. doi: 10.3390/su12010204
	Zhang M, Zhang K, Feng Q H, et al. A novel image retrieval method based on hybrid information descriptors. Journal of Visual Communication and Image Representation, 2014, 25 (7): 1574- 1587. doi: 10.1016/j.jvcir.2014.06.016

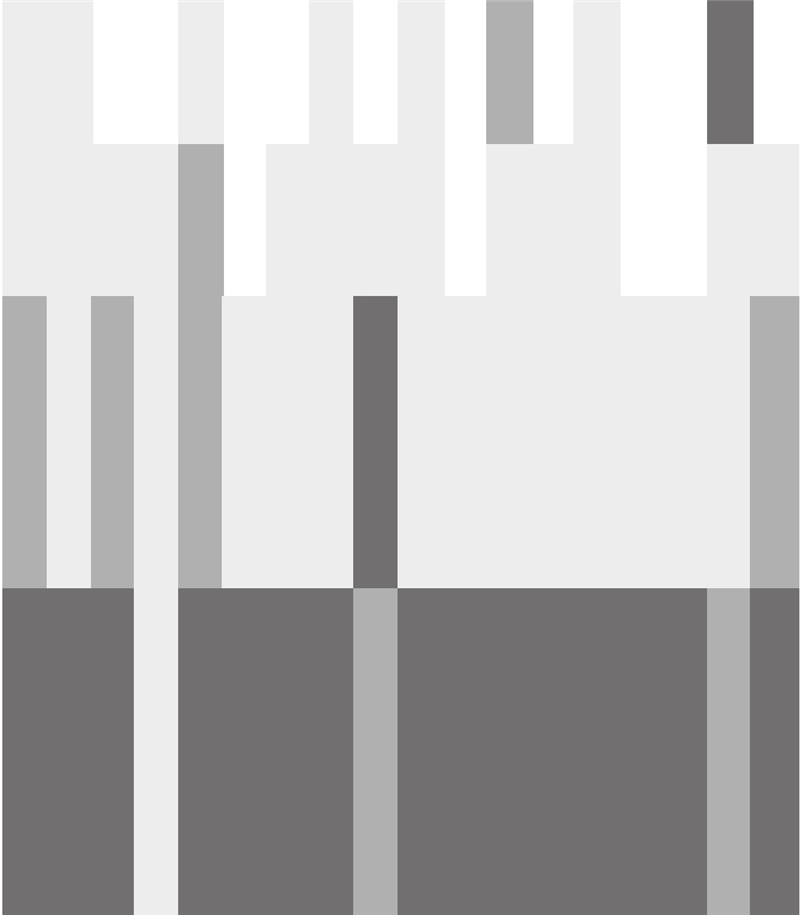

主要冠层植物 Major canopy plants																		颜色种类 Color type	夏季面积比例 Summer area ratio	秋季面积比例 Autumn area ratio

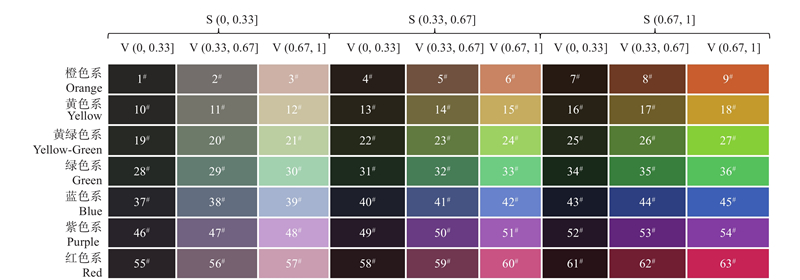

A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	颜色种类 Color type	夏季面积比例 Summer area ratio	秋季面积比例 Autumn area ratio
																		1^#	LS-LV O	0.097	0.059
																		2^#	LS-MV O	0.012	0.017
																		3^#	LS-HV O	0.006	0.003
																		4^#	MS-LV O	0.407	—
																		10^#	LS-LV Y	0.057	0.074
																		11^#	LS-MV Y	0.004	0.177
																		12^#	LS-HV Y	0.001	0.001
																		13^#	MS-LV Y	0.512	1.983
																		19^#	LS-LV YG	1.556	0.707
																		20^#	LS-MV YG	10.950	5.362
																		21^#	LS-HV YG	0.006	0.006
																		22^#	MS-LV YG	0.736	0.023
																		23^#	MS-MV YG	0.002	0.228
																		24^#	MS-HV YG	—	0.013
																		25^#	HS-LV YG	17.648	14.132
																		26^#	HS-MV YG	—	0.016
																		28^#	LS-LV G	5.484	1.047
																		29^#	LS-MV G	0.421	38.344
																		30^#	LS-HV G	19.374	0.518
																		31^#	MS-LV G	1.856	0.501
																		32^#	MS-MV G	0.002	5.955
																		33^#	MS-HV G	—	0.372
																		34^#	HS-LV G	40.870	28.858
																		35^#	HS-MV G	—	1.399
																		36^#	HS-HV G	—	0.202

色彩属性 Color attributes		色彩斑块视觉热点距离中位数 The median color patch visual hotspot distance	p	色彩斑块视觉热点距离季节差异 Seasonal differences in color patch visual hotspot distance
色彩属性 Color attributes			p	夏季平均值-秋季平均值 Mean of summer-Mean of autumn	95%CI
饱和度S	低Low	590.79a	<0.01	15.41	15.38, 15.44
	中Medium	562.00b		91.04	90.98, 91.10
	高High	591.34a		23.45	23.42, 23.48
明度V	低Low	600.30a	<0.01	33.88	33.85, 33.91
	中Medium	574.01b		4.49	4.45, 4.52
	高High	549.75c		59.85	59.78, 59.92
色相H	橙Orange	589.10b	<0.01	57.53	57.25, 57.81
	黄Yellow	574.19b		75.04	74.89, 75.19
	黄绿Yellow-green	599.08a		12.66	12.63, 12.70
	绿Green	577.92b		35.24	35.21, 35.27

影响因子 Impact factor	M β（95% CI）	M_HA β（95% CI）	M_SA β（95% CI）	M_VA β（95% CI）
H	0.004 (?0.009, 0.010)	?0.002 (?0.012, 8.203)	0.001 (?0.009, 0.0103)	0.001 (?0.009, 0.010)
S	?0.047^* (?0.060, ?0.034)	?0.048^* (?0.060, ?3.562)	?0.047^* (?0.060, ?0.035)	?0.048^* (?0.061, ?0.036)
V	?0.073^* (?0.085, ?0.059)	?0.073^* (?0.085, ?5.987)	?0.072^* (?0.085, ?0.059)	?0.074^* (?0.085, ?0.060)
A	?0.081 (?0.017, 0.002)	0.012 (?0.010, 3.454)	?0.009 (?0.019, 0.001)	?0.007 (?0.017, 0.002)
H*A		?0.027^* (?0.054, ?8.946)
S*A			0.007 (?0.002, 0.016)
V*A				?0.009 (?0.019, 0.001)
Season	?0.059^* (?0.079, ?0.040)	?0.060^* (?0.080, ?4.055)	?0.060^* (?0.079, ?0.040)	?0.060^* (?0.079, ?0.040)
