双承载索多跨索道鞍座两端拉力模型与验证

doi:10.11707/j.1001-7488.LYKX20250698

摘要/Abstract

摘要：

目的: 解决传统计算方法在双承载索多跨索道平曲鞍座两端承载索拉力分析中精度不足的问题，为双承载索多跨索道的结构设计和安全评估提供可靠的理论依据和技术支撑。方法: 综合考虑承载索自重及与鞍座间的摩擦效应，基于抛物线理论建立平曲鞍座两端拉力的力学模型，并引入弹性伸长、弦长缩短和温度变化等因素进行有荷补正。以厦门健康步道工程49#双承载索多跨索道为研究对象，在无荷与有荷状态下实测张力数据，对模型进行验证，并对关键参数进行敏感性分析。结果: 无荷状态下模型计算值与实测值的最大相对误差为3.42%，有荷状态下模型计算值与实测值的最大相对误差为3.95%，均小于工程允许的5%误差阈值。敏感性分析表明，摩擦系数是影响模型计算结果的关键敏感参数，其±10%的波动可导致拉力约±3%的计算偏差；温度变化的影响较小，其±10 ℃的波动引起的相对变化率低于1.1%。结论: 本研究建立的平曲鞍座两端拉力模型计算精度高、工程适用性强，可有效支撑双承载索多跨索道的张力控制、结构设计和安全评估工作。

关键词: 双承载索多跨索道, 平曲鞍座, 拉力模型, 抛物线理论, 敏感性分析

Abstract:

Objective: This study aims to address the problem of insufficient accuracy in traditional calculation methods for analyzing the tension of the carrying cables at both ends of horizontal-curved saddles in double-carrying-cable multi-span ropeways, and to provide a reliable theoretical basis and technical support for the design and safety assessment of such ropeways. Method: Considering the self-weight of the carrying cables and the friction effect between the cables and the saddles, a mechanical model of the cable tension at both ends of the horizontal-curved saddle was established based on the parabolic theory. Factors such as elastic elongation, chord length shortening, and temperature variation were incorporated to correct the model under loaded conditions. The 49# double-carrying-cable multi-span ropeway of the Xiamen Greenway Project was used as the research object, the tension data was measured under unloaded and loaded conditions to validate the model, and a sensitivity analysis was conducted on key parameters. Result: Under unloaded conditions, the maximum relative error between the model calculations and measured values was 3.42%, and under loaded conditions, the maximum relative error was 3.95%, both of which were lower than the engineering tolerance threshold of 5%. The sensitivity analysis indicated that the friction coefficient was a key sensitive parameter affecting the model's calculation results: a ±10% variation in the friction coefficient leads to approximately ±3% deviation in tension. Temperature variation had a smaller effect: a ±10 ℃ temperature fluctuation resulted in a relative change rate below 1.1%. Conclusion: The proposed tension model for both ends of the horizontal-curved saddle exhibits high calculation accuracy and strong engineering applicability, which can effectively support tension control, structural design, and safety assessment of double-carrying-cable multi-span cargo ropeways.

Key words: double-carrying-cable multi-span ropeway, horizontal-curved saddle, tension model, parabolic theory, sensitivity analysis

中图分类号:

S776.32

胡宝森,周成军,郑丽凤,巫志龙,周新年. 双承载索多跨索道鞍座两端拉力模型与验证[J]. 林业科学, 2026, 62(9): 53-61.

Baosen Hu,Chengjun Zhou,Lifeng Zheng,Zhilong Wu,Xinnian Zhou. Model and Verification of Tension at Both Ends of the Saddle of a Multi-Span Cableway with Double Carrying Cables[J]. Scientia Silvae Sinicae, 2026, 62(9): 53-61.

图/表 15

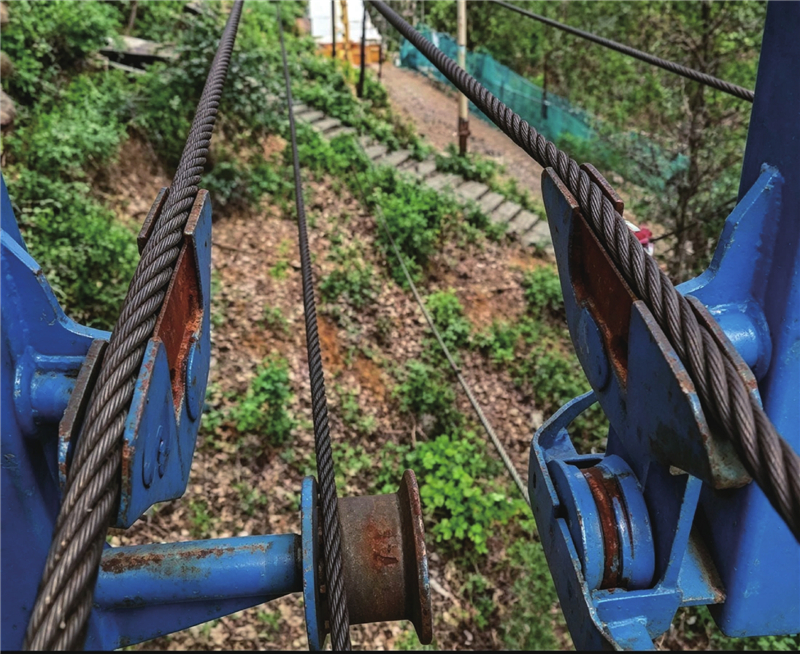

图1

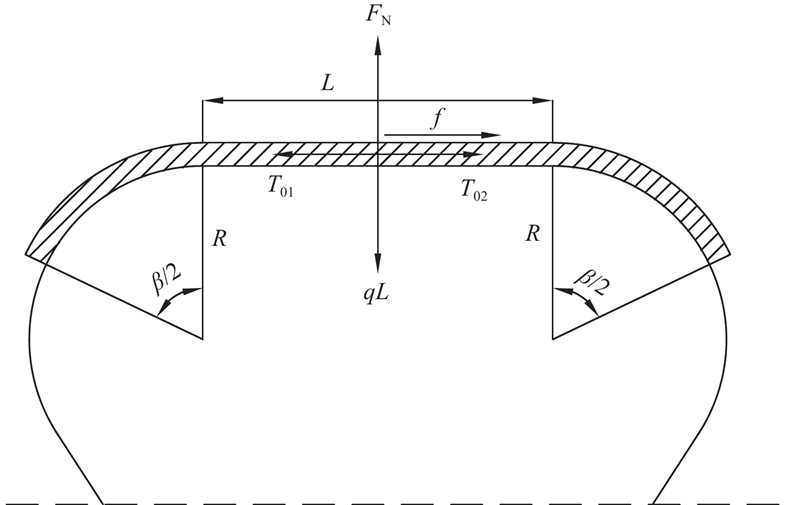

图2

图3

图4

图5

图6

图7

表1

表2

表3

表4

表5

表6

表7

表8

参考文献 0

	官印生, 周新年, 郑丽凤, 等. 抛物线理论多跨索道设计模型. 起重运输机械, 2007 (7): 12- 17.
	Guan Y S, Zhou X N, Zheng L F, et al. Multi-span engineering ropeway design based on parabola theory. Hoisting and Conveying Machinery, 2007 (7): 12- 17.
	江　明. 考虑索间耦合效应的双索货运索道系统设计. 机械设计与制造, 2020 (9): 80- 84. doi: 10.3969/j.issn.1001-3997.2020.09.020
	Jiang M. Design of double cable freight ropeway system considering coupling effect between cables. Machinery Design & Manufacture, 2020 (9): 80- 84. doi: 10.3969/j.issn.1001-3997.2020.09.020
	贾　畅, 王丽娜, 唐亚坤, 等. 利用Biome-BGC模型模拟黄土区沙棘人工林碳通量时的生理生态参数敏感性. 林业科学, 2022, 58 (11): 49- 60.
	Jia C, Wang L N, Tang Y K, et al. Sensitivity of ecophysiological parameters in simulating carbon fluxes of Hippophae rhamnoides plantation in the loess area using the Biome-BGC model. Scientia Silvae Sinicae, 2022, 58 (11): 49- 60.
	蓝丽姗. 2017. 架空吊运索道作业过程的振动建模研究. 福州: 福建农林大学.
	Lan L S. 2017. Study on vibration modeling of aerial ropeway operation. Fuzhou: Fujian Agriculture and Forestry University. ［in Chinese］
	李正红, 窦　博, 蓝丽姗, 等. 架空索道在窜移条件下的振动研究. 黄河科技学院学报, 2020, 22 (11): 20- 25.
	Li Z H, Dou B, Lan L S, et al. Research on vibration of aerial cableway under transition condition. Journal of Huanghe S&T College, 2020, 22 (11): 20- 25.
	李玉彤. 2024. 竹林集材索道的力学性能研究及设计. 长沙: 中南林业科技大学.
	Li Y T. 2024. Mechanical property analysis and modular design of forestry skidding ropeway. Changsha: Central South University of Forestry and Technology. ［in Chinese］
	梁玉娟, 左　倩, 赖华碧, 等. 静摩擦力在曲面上的累积效应. 河池学院学报, 2016, 36 (5): 109- 112. doi: 10.3969/j.issn.1672-9021.2016.05.020
	Liang Y J, Zuo Q, Lai H B, et al. The cumulative effect of static friction on the surface. Journal of Hechi University, 2016, 36 (5): 109- 112. doi: 10.3969/j.issn.1672-9021.2016.05.020
	罗仙仙, 周新年, 胡永生, 等. 双承载缆索在特大桥吊装工程上的设计与应用. 福建林学院学报, 2003, 23 (4): 305- 308. doi: 10.13324/j.cnki.jfcf.2003.04.005
	Luo X X, Zhou X N, Hu Y S, et al. The design and application of double skyline suspension cable hoisting of unusually large brigde. Journal of Fujian College of Forestry, 2003, 23 (4): 305- 308. doi: 10.13324/j.cnki.jfcf.2003.04.005
	秦　剑, 张飞凯, 刘　晨, 等. 山区公路与货运索道联合路径规划方法. 山东科学, 2023, 36 (3): 90- 99. doi: 10.3976/j.issn.1002-4026.2023.03.011
	Qin J, Zhang F K, Liu C, et al. Path planning for material transportation by combining mountain road and freight ropeway. Shandong Science, 2023, 36 (3): 90- 99. doi: 10.3976/j.issn.1002-4026.2023.03.011
	文曙东, 杨　荣, 景文川, 等. 基于抛物线理论考虑多跨窜移时货运索道运行轨迹的研究. 东北电力技术, 2018, 39 (1): 8- 10. doi: 10.3969/j.issn.1004-7913.2018.01.002
	Wen S D, Yang R, Jing W C, et al. Research on the trajectory of freight ropeway considering multi-span channeling based on parabolic theory. Northeast Electric Power Technology, 2018, 39 (1): 8- 10. doi: 10.3969/j.issn.1004-7913.2018.01.002
	杨明远, 朱纪洪, 杨赟杰, 等. 垂直/短距起降飞机起飞策略优化. 中国科学: 技术科学, 2026, 56 (3): 548- 565. doi: 10.1360/SST-2025-0361
	Yang M Y, Zhu J H, Yang Y J, et al. Take off strategy optimization for vertical/short takeoff and landing aircraft. Scientia Sinica Technologica, 2026, 56 (3): 548- 565. doi: 10.1360/SST-2025-0361
	于　昊, 苗峰显, 张　君, 等. 电力施工货运索道新型握索器研制. 电力设备管理, 2025 (14): 291- 293.
	Yu H, Miao F X, Zhang J, et al. Development of a new cable grip for power construction freight ropeways. Electric Power Equipment Management, 2025 (14): 291- 293.
	曾　浩, 周成军, 周新年, 等. 双承载货运索道跑车结构分析与优化. 森林工程, 2022, 38 (4): 125- 130.
	Zeng H, Zhou C J, Zhou X N, et al. Structure analysis and optimization of the carriage for freight ropeway of double-skyline. Forest Engineering, 2022, 38 (4): 125- 130.
	张金淼, 秦　剑, 孙国磊, 等. 多档货运索道承载钢丝绳与鞍座接触摩擦力分析研究. 应用物理, 2021, 11 (5): 270- 275.
	Zhang J M, Qin J, Sun G L, et al. Analysis and research on contact friction between steel wire rope and saddle of multi-grade freight ropeway. Applied Physics, 2021, 11 (5): 270- 275.
	张清华, 李　乔, 周凌远. 悬索桥主缆与鞍座摩擦特性理论分析方法. 中国公路学报, 2014, 27 (1): 44- 50. doi: 10.19721/j.cnki.1001-7372.2014.01.007
	Zhang Q H, Li Q, Zhou L Y. Theoretical analysis of cable-saddle friction characteristics for suspension bridges. China Journal of Highway and Transport, 2014, 27 (1): 44- 50. doi: 10.19721/j.cnki.1001-7372.2014.01.007
	郑丽凤, 周新年, 巫志龙. 悬索的理论计算与实测误差分析. 北华大学学报(自然科学版), 2010, 11 (2): 162- 168. doi: 10.3969/j.issn.1009-4822.2010.02.015
	Zheng L F, Zhou X N, Wu Z L. Error analysis among theoretical calculation and measure data of flexible cable. Journal of Beihua University (Natural Science Edition), 2010, 11 (2): 162- 168. doi: 10.3969/j.issn.1009-4822.2010.02.015
	周成军, 巫志龙, 周新年, 等. 多跨索道的可移动中间支架设计. 森林与环境学报, 2016, 36 (1): 104- 110. doi: 10.13324/j.cnki.jfcf.2016.01.017
	Zhou C J, Wu Z L, Zhou X N, et al. Design of movable intermediate support for multi-span cableway. Journal of Forest and Environment, 2016, 36 (1): 104- 110. doi: 10.13324/j.cnki.jfcf.2016.01.017
	周凌远, 李　乔. 缆索与鞍座间的摩擦特性. 兰州理工大学学报, 2011, 37 (2): 117- 121. doi: 10.13295/j.cnki.jlut.2011.02.034
	Zhou L Y, Li Q. Characteristics of friction between cable and saddle. Journal of Lanzhou University of Technology, 2011, 37 (2): 117- 121. doi: 10.13295/j.cnki.jlut.2011.02.034
	周新年, 罗仙仙, 罗桂生, 等. 牛顿迭代法悬索线形与拉力的研究. 林业科学, 2004, 40 (5): 164- 167.
	Zhou X N, Luo X X, Luo G S, et al. Study on newton lteration method of sketch and tension of suspensionrope. Scientia Silvae Sinicae, 2004, 40 (5): 164- 167.
	周新年, 官印生, 张正雄, 等. 武当山特殊吊装索道设计研究. 林业科学, 2007, 43 (3): 108- 112. doi: 10.3321/j.issn:1001-7488.2007.03.018
	Zhou X N, Guan Y S, Zhang Z X, et al. Design study of special hoisting cableway in Wudang Mountain. Scientia Silvae Sinicae, 2007, 43 (3): 108- 112. doi: 10.3321/j.issn:1001-7488.2007.03.018
	周新年, 巫志龙, 周成军. 我国工程索道技术装备及其发展趋势. 林业机械与木工设备, 2010a, 38 (12): 4- 12.
	Zhou X N, Wou C J, Zhou C J. Engineering ropeway technology and equipment and its development trend in china. Forestry Machinery & Woodworking Equipment, 2010a, 38 (12): 4- 12.
	周新年, 巫志龙, 官印生, 等. 移动式承载索应用于特大桥吊装工程的设计. 林业科学, 2010b, 46 (6): 107- 112.
	Zhou X N, Wu Z L, Guan Y S, et al. Design of movable skyline hoisting cableway used in unusually large bridge. Scientia Silvae Sinicae, 2010b, 46 (6): 107- 112.
	周新年, 巫志龙, 周成军, 等. 基于VB 6.0的抛物线理论多跨索道侧型图设计. 福建林学院学报, 2012, 32 (3): 208- 212. doi: 10.3969/j.issn.1001-389X.2012.03.003
	Zhou X N, Wu Z L, Zhou C J, et al. Programming of vertical section profile of multi-span cableway of parabolic theory based on VB 6.0. Journal of Fujian College of Forestry, 2012, 32 (3): 208- 212. doi: 10.3969/j.issn.1001-389X.2012.03.003
	周新年, 周成军, 郑丽凤. 2020. 工程索道. 北京: 机械工业出版社.
	Zhou X N, Zhou C J, Zheng L F. 2020. Engineering ropeway. Beijing: China Machine Press. ［in Chinese］
	Bhushan B, Ko P L. Introduction to tribology. Applied Mechanics Reviews, 2003, 56 (1): B6- B7.
	Chang X D, Peng Y X, Zhu Z C, et al. Sliding friction and wear characteristics of wire rope contact with sheave under long-distance transmission conditions. Materials, 2022, 15 (20): 7092. doi: 10.3390/ma15207092
	do Vale J L, da Silva C H. Kinetic friction coefficient modeling and uncertainty measurement evaluation for a journal bearing test apparatus. Measurement, 2020, 154 (8): 107470. doi: 10.1016/j.measurement.2020.107470
	Hu T, Wang Y H, Huang Z Y, et al. Global sensitivity analysis of textured surface friction coefficient for rotary vane actuator rotating seal. Surface Topography: Metrology and Properties, 2026, 14 (1): 015017. doi: 10.1088/2051-672X/ae41d3
	Liang D, Shuai W, Song A, et al. Experimental investigation of equivalent friction coefficient between rope–drum mechanism and pulley transmission loss for high-altitude wind power generation systems. Energies, 2025, 18 (23): 6079. doi: 10.3390/en18236079
	Qin J, Chen J, Wan J C, et al. Study on friction of bearing cable and saddle with different material in freight ropeways. Materials Science Forum, 2016, 878, 148- 152. doi: 10.4028/www.scientific.net/MSF.878.148

测量内容 Measuring points	跨号Span-sign						合计 Aggregate
测量内容 Measuring points	1	2	3	4	5	6	合计 Aggregate
跨距Span/m	54.2	20.2	84.4	44.9	13.4	92.5	309.5
倾角Inclination angle/(°)	12.292	13.864	12.438	3.066	2.071	?0.96	42.772
斜距Slope distance/m	55.5	20.8	86.4	45.0	13.4	92.5	421.6

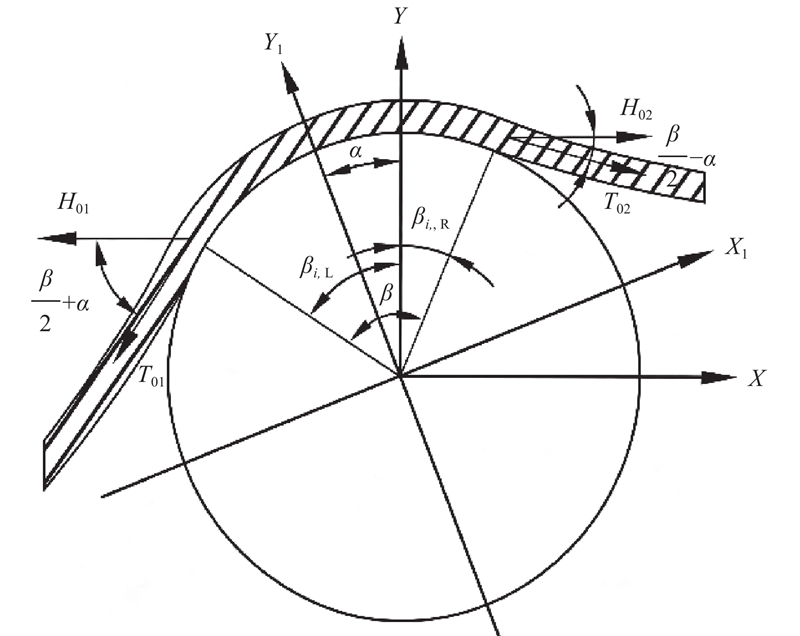

鞍座序号 Saddle serial number	左倾角 Left angle (β_i，L)/(°)	右倾角 Right angle (β_i，R)/(°)	包角 Wrap angle (β)/(°)	偏移角 Deviation angle (α)/(°)
1	8.300	15.312	23.612	?3.506
2	12.398	18.400	30.797	?3.001
3	6.191	6.387	12.578	?0.098
4	0.276	3.065	3.341	?1.395
5	1.076	5.895	6.970	?2.409

鞍座及承载索序号 Saddle and carrying rope number	鞍座左侧 Left side of saddle		鞍座右侧 Right side of saddle		水平拉力差值 Horizontal tension difference
鞍座及承载索序号 Saddle and carrying rope number	拉力T₀₁ Tensile force (T₀₁)	水平拉力H₀₁ Horizontal tensile force (H₀₁)	拉力T₀₂ Tensile force (T₀₂)	水平拉力H₀₂ Horizontal tensile force (H₀₂)	水平拉力差值 Horizontal tension difference
1-1	41.40	40.97	43.00	41.47	0.51
1-2	43.00	42.00	45.80	43.46	1.46
1-3	45.90	45.63	46.10	45.81	0.18
1-4	46.50	46.50	46.50	46.43	0.07
1-5	47.60	47.59	49.60	49.34	1.75
2-1	41.60	41.16	43.20	41.67	0.50
2-2	43.60	42.58	45.10	42.79	0.21
2-3	45.40	45.14	46.60	46.31	1.18
2-4	47.10	47.10	48.50	48.43	1.33
2-5	49.00	48.99	50.80	50.53	1.54

鞍座及承载索序号 Saddle and carrying rope number	鞍板偏向 Saddle plate bias	理论值T₀₁ Theoretical value (T₀₁)/kN	实测值T₀₁ Measured value (T₀₁)/kN	相对误差 Relative error (δ)(%)
1-1	右偏Right	43.00	44.01	2.35
1-2		45.80	46.41	1.34
1-3		46.10	47.55	3.15
1-4		46.50	47.20	1.50
1-5		49.60	48.69	1.83
2-1	右偏Right	43.20	44.22	2.36
2-2		45.10	46.31	2.69
2-3		46.60	48.19	3.42
2-4		48.50	49.97	3.04
2-5		50.80	51.96	2.29

左倾角 Left angle (β'_i，L)/(°)	右倾角 Right angle (β'_i，R)/(°)	包角 Wrap angle (β')/(°)	偏移角 Deviation angle (α')/(°)
0.191	14.354	14.545	?7.081
